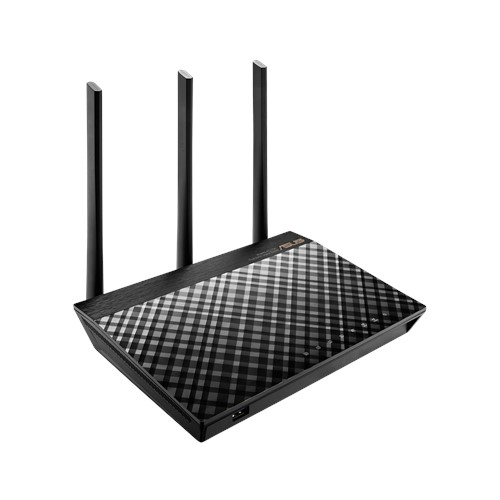

ASUS RT-AC66U B1
ASUS

RT-AC66U B1

Model RT-AC66U B1Part no. 90IG0300-BO3G40EAN 192876322529

77 specifications
  • SpeedWi-Fi 5 (802.11ac)
  • TypeTabletop router
  • Weight660 g
  • ColourBlack
  • Ethernet WANYes
  • Wi-Fi bandDual-band (2.4 GHz / 5 GHz)
See all specifications

Overview

Speed
Wi-Fi 5 (802.11ac)
Type
Tabletop router
Weight
660 g
Colour
Black
Ethernet WAN
Yes
Wi-Fi band
Dual-band (2.4 GHz / 5 GHz)
Brand
ASUS
Model
RT-AC66U B1
Part numbers
90IG0300-BO3G40, 90IG0300-BA1Q0V
EAN / UPC
192876322529, 4718017322522
Also known as
ASUS RT-AC66U B1 wireless router Gigabit Ethernet Dual-band (2.4 GHz / 5 GHz) Black

Specifications

77 specifications in 15 groups

WAN connection

Ethernet WANYes
DSL WANNo
SIM card slotNo
3G/4G USB modem compatibilityYes
WAN connection typeRJ-45

Wireless LAN features

Wi-Fi bandDual-band (2.4 GHz / 5 GHz)
Top Wi-Fi standardWi-Fi 5 (802.11ac)
WLAN data transfer rate (max)1750 Mbit/s
Wi-Fi standards802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
WLAN data transfer rate (first band)300 Mbit/s
WLAN data transfer rate (second band)1450 Mbit/s

Network

Ethernet LANYes
Ethernet LAN interface typeGigabit Ethernet
Ethernet LAN data rates10,100,1000 Mbit/s
Cabling technology10/100/1000Base-T(X)
Networking standardsIEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Full duplexYes
Auto MDI/MDI-XYes
Flow control supportYes
Multicast supportYes
Port forwardingYes
Dynamic DNS (DDNS)Yes
Policy-based routingYes
SSID-based VLAN assignmentYes
Static routeYes

Mobile network

3GNo
4GNo

Ports & interfaces

Ethernet LAN (RJ-45) ports4
USB portYes
USB 2.0 ports quantity1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity1
Memory card slot(s)No
DC-in jackYes

Management features

Web-based managementYes
Web-based setup wizardYes
Quality of Service (QoS) supportYes
Reset buttonYes
WPS push buttonYes

Security

Security algorithms64-bit WEP, 128-bit WEP, WPA-Enterprise, WPA-PSK, WPA2-Enterprise, WPA2-PSK, WPS
FirewallYes
Access Control List (ACL)Yes
Guest accessYes
Stateful Packet Inspection (SPI)Yes
DoS attack preventionYes
FilteringYes
IP address filteringYes
URL filteringYes
System event logYes
DMZ supportYes

Protocols

DHCP clientYes
DHCP serverYes
Universal Plug and Play (UPnP)Yes
Management protocolsACK / SYN / FIN / RST / ICMP

Design

Product typeTabletop router
Product colourBlack
LED indicatorsLAN, Power, WAN, WLAN
On/off switchYes

Packaging content

Cables includedLAN (RJ-45)
AC adapter includedYes
Warranty cardYes
Quick start guideYes

Antenna

Antenna designExternal
Antennas quantity3

Power

Power source typeAC
AC input voltage100 - 240 V
AC input frequency50 - 60 Hz
Output voltage19 V
Output current1.75 A

System requirements

Windows operating systems supportedWindows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterpris
Linux operating systems supportedYes
Mac operating systems supportedMac OS X 10.0 Cheetah, Mac OS X 10.1 Puma, Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.2 Jaguar, Mac OS X 10.3 Panther, Mac OS X 10.4 Tiger, Mac OS X 10.5 Leopard, Mac OS X 10.6 Sno
Mac compatibilityYes

Weight & dimensions

Depth148 mm
Height45 mm
Weight660 g
Width218 mm

Logistics data

Harmonized System (HS) code85176990
