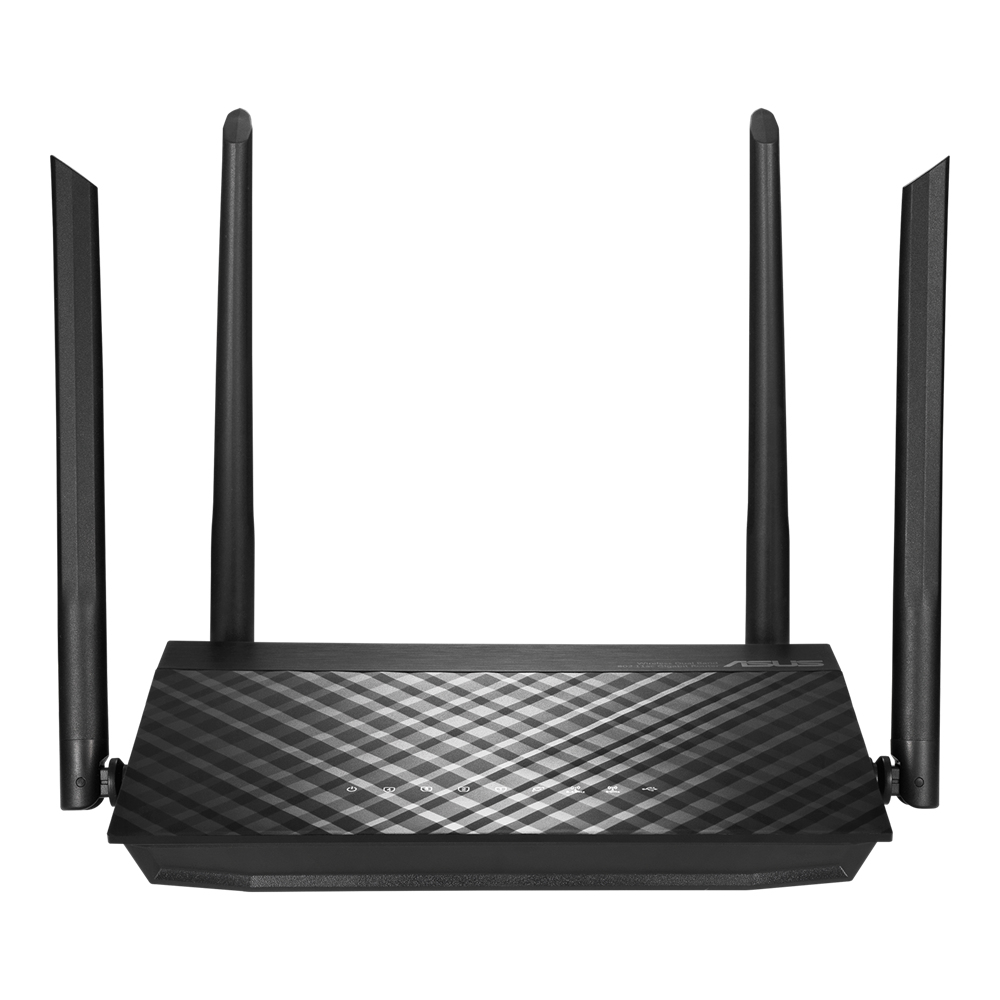

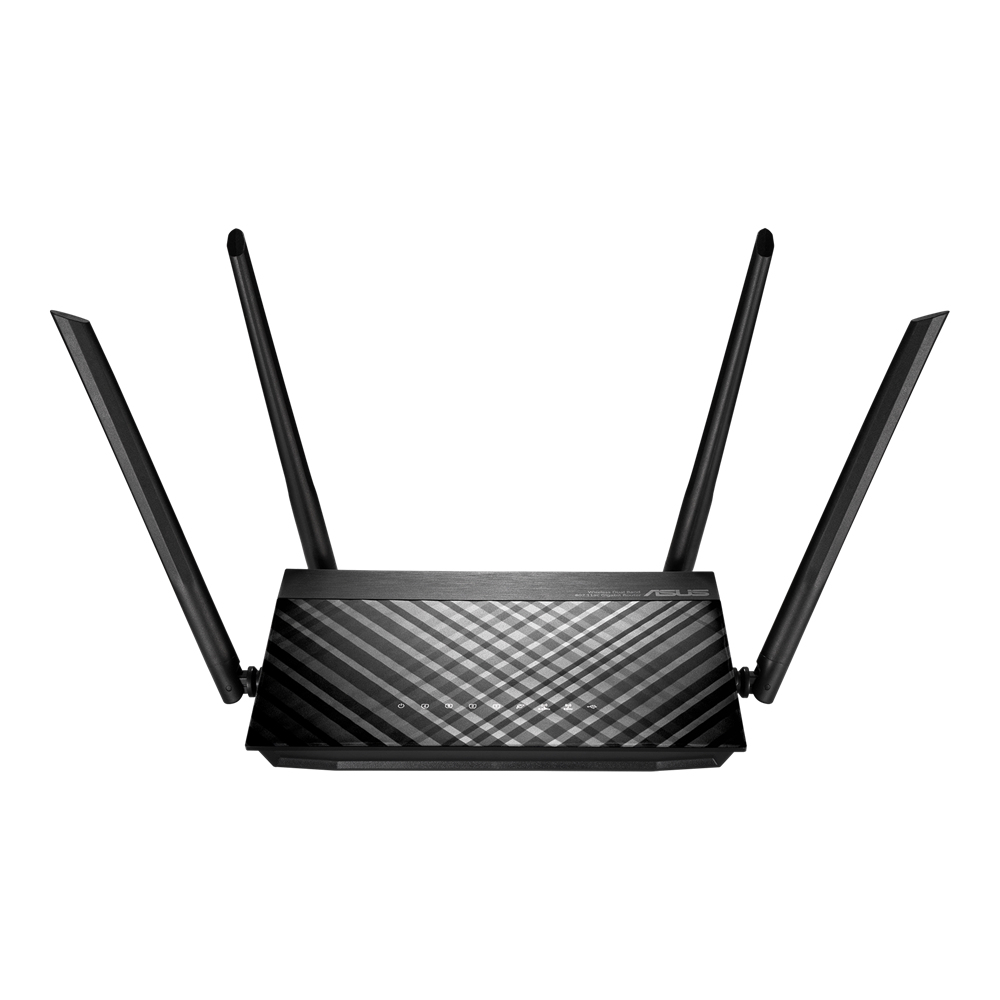

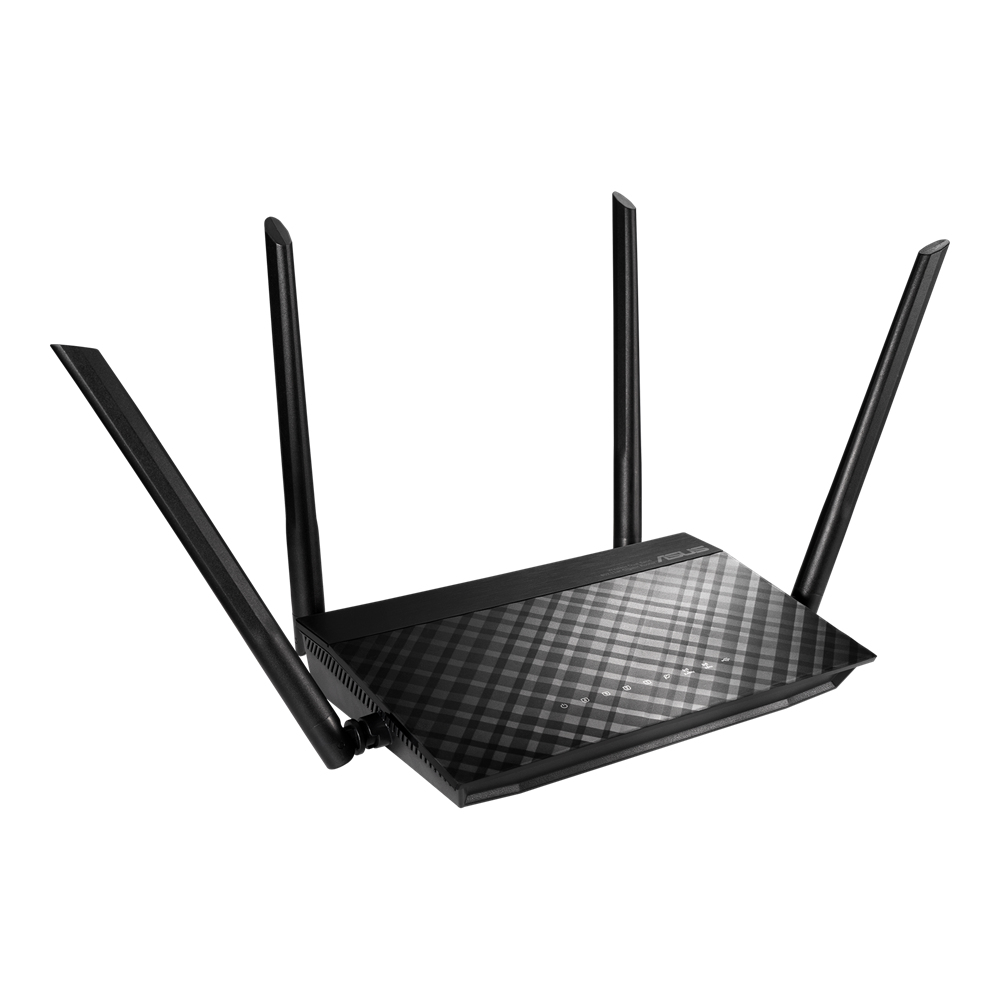

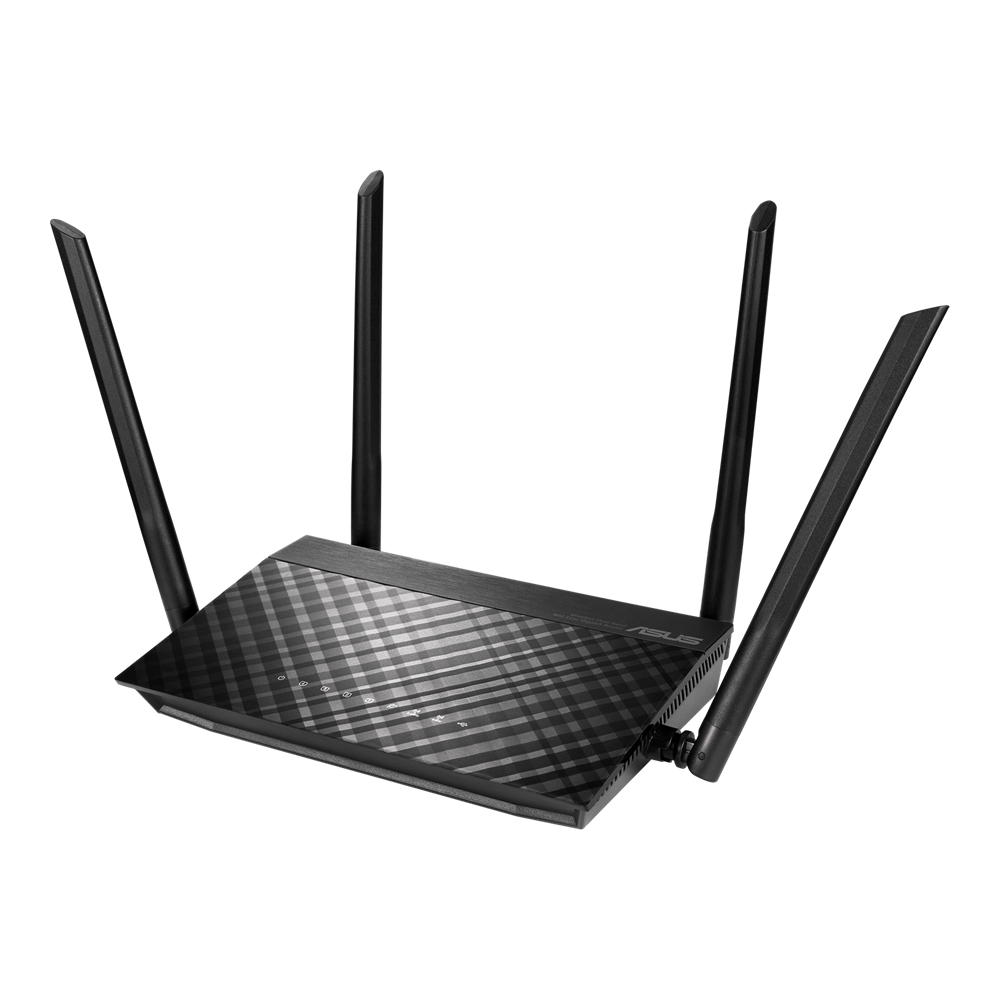

RT-AC58U V3
Model RT-AC58U V3Part no. 90IG0540-BO9460
64 specifications
- Memory128 MB
- SpeedWi-Fi 5 (802.11ac)
- TypeTabletop router
- Weight348 g
- ColourBlack
- Ethernet WANYes
Overview
- Memory
- 128 MB
- Speed
- Wi-Fi 5 (802.11ac)
- Type
- Tabletop router
- Weight
- 348 g
- Colour
- Black
- Ethernet WAN
- Yes
- Brand
- ASUS
- Category
- Wireless Router
- Model
- RT-AC58U V3
- Part numbers
- 90IG0540-BO9460, 90IG0540-BU9460
- Also known as
- ASUS RT-AC58U V3 wireless router Gigabit Ethernet Dual-band (2.4 GHz / 5 GHz) Black
Specifications
64 specifications in 15 groups
WAN connection
| Specification | Value |
|---|---|
| Ethernet WAN | Yes |
| DSL WAN | No |
| SIM card slot | No |
| 3G/4G USB modem compatibility | Yes |
| WAN connection type | RJ-45 |
Wireless LAN features
| Specification | Value |
|---|---|
| Wi-Fi band | Dual-band (2.4 GHz / 5 GHz) |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| WLAN data transfer rate (max) | 867 Mbit/s |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN interface type | Gigabit Ethernet |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Cabling technology | 10/100/1000Base-T(X) |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Port forwarding | Yes |
| Port triggering | Yes |
| SSID-based VLAN assignment | Yes |
| Support Samba (storage) | Yes |
| Built-in FTP server | Yes |
Mobile network
| Specification | Value |
|---|---|
| 3G | No |
| 4G | No |

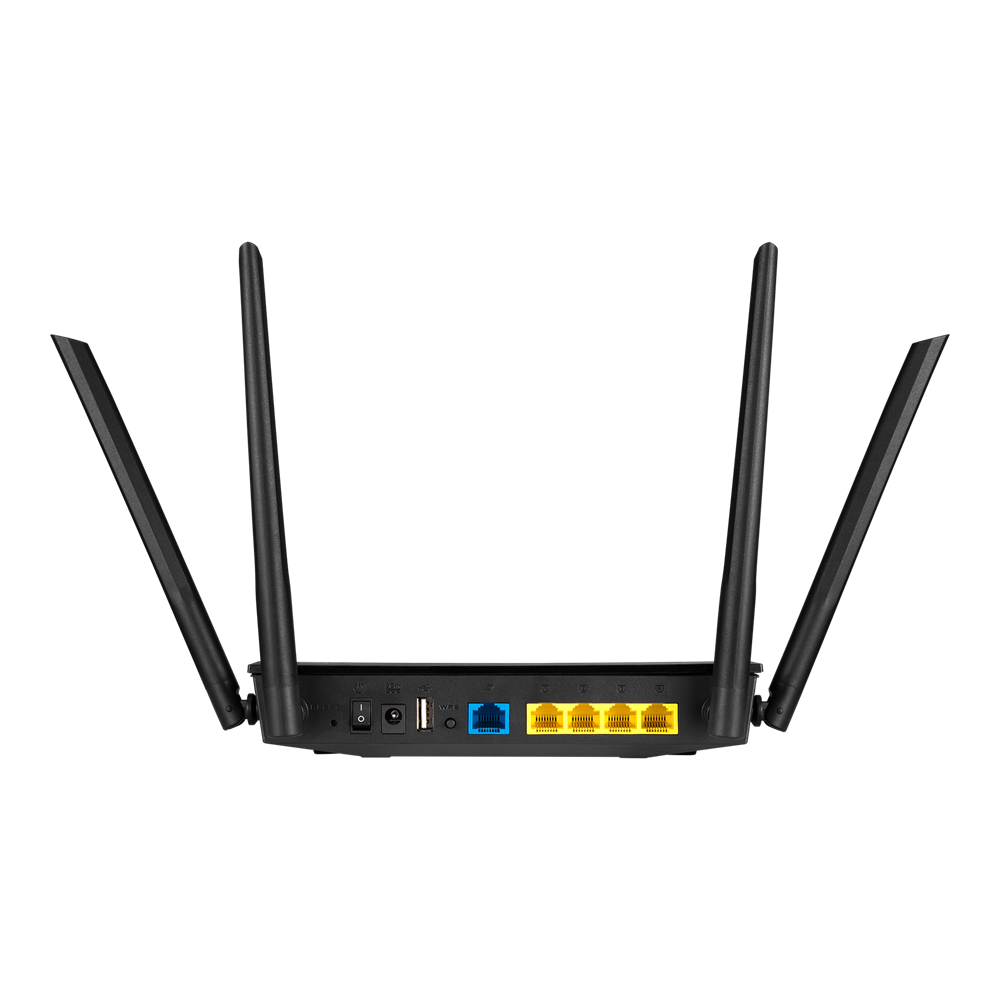

Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 4 |
| USB port | Yes |
| USB 2.0 ports quantity | 1 |
| Memory card slot(s) | No |
| DC-in jack | Yes |
Management features
| Specification | Value |
|---|---|
| Bandwidth control | Yes |
| Quality of Service (QoS) support | Yes |
| Reset button | Yes |
| Intelligent Mesh technology | Yes |
| WPS push button | Yes |
Security
| Specification | Value |
|---|---|
| Security algorithms | WPA, WPA2, WPA2-Enterprise |
| Firewall | Yes |
| Guest access | Yes |
| Schedule access | Yes |
| Filtering | Yes |
| MAC address filtering | Yes |
| MAC address table | 64 entries |
| IP address filtering | Yes |
| System event log | Yes |
| Network address translation (NAT) | Yes |
| NAT functionality | PPTP, L2TP, IPSec, RTSP, H.323, SIP Passthrough,PPPoE relay |
Protocols
| Specification | Value |
|---|---|
| DHCP server | Yes |
Design
| Specification | Value |
|---|---|
| Product type | Tabletop router |
| Product colour | Black |
| LED indicators | LAN, Power, USB, WLAN |
| On/off switch | Yes |
Packaging content
| Specification | Value |
|---|---|
| Cables included | LAN (RJ-45) |
| AC adapter included | Yes |
| Warranty card | Yes |
| Quick start guide | Yes |
Antenna
| Specification | Value |
|---|---|
| Antenna design | External |
| Antennas quantity | 4 |
Features
| Specification | Value |
|---|---|
| Built-in processor | Yes |
| Processor frequency | 775 MHz |
| Internal memory | 128 MB |
| Flash memory | 32 MB |
Power
| Specification | Value |
|---|---|
| Power source type | AC, DC |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Output voltage | 12 V |
| Output current | 1.5 A |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 348 g |
Packaging data
| Specification | Value |
|---|---|
| Package type | Box |
