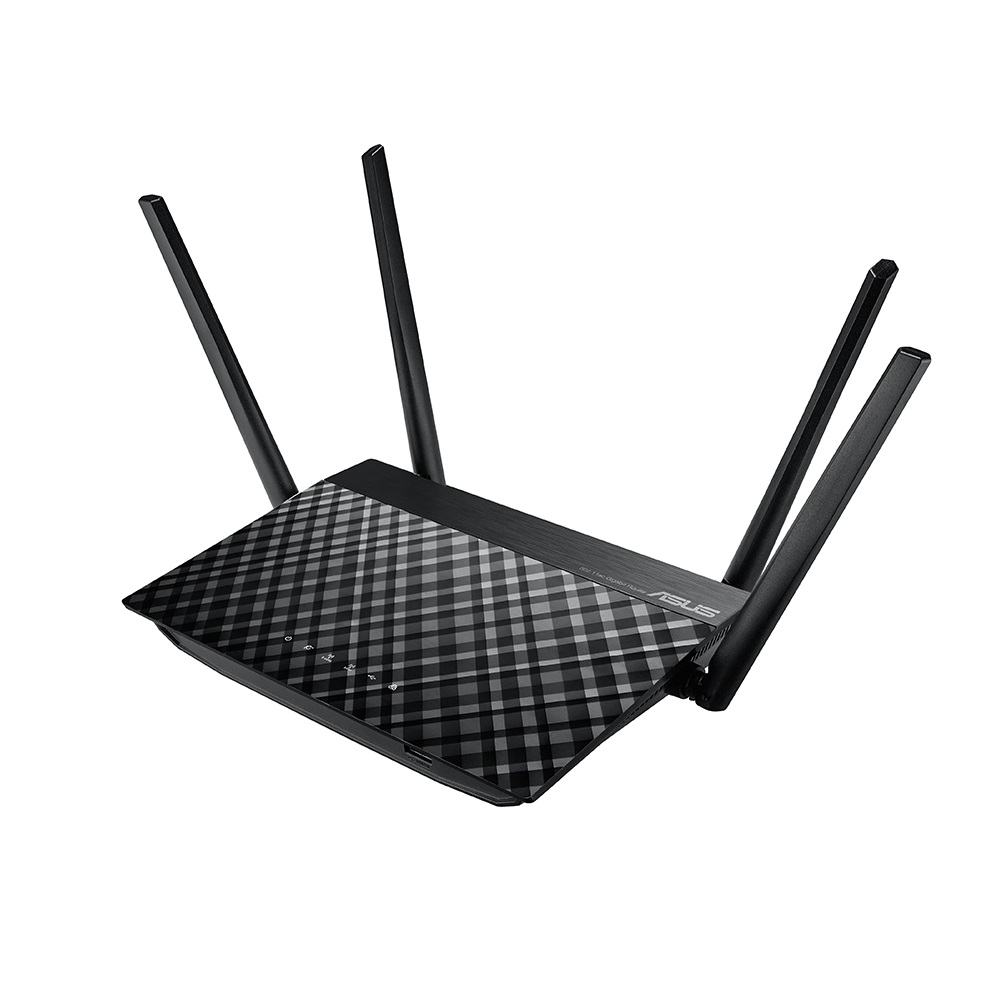

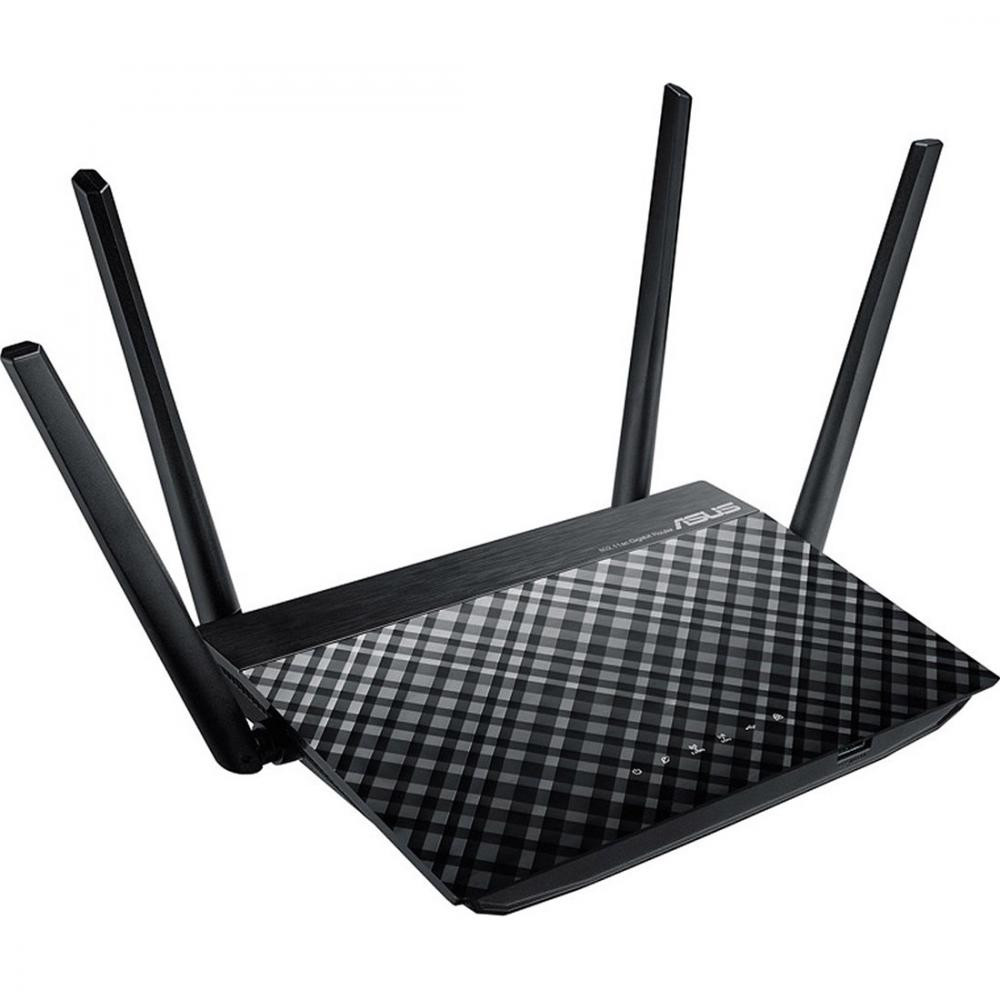

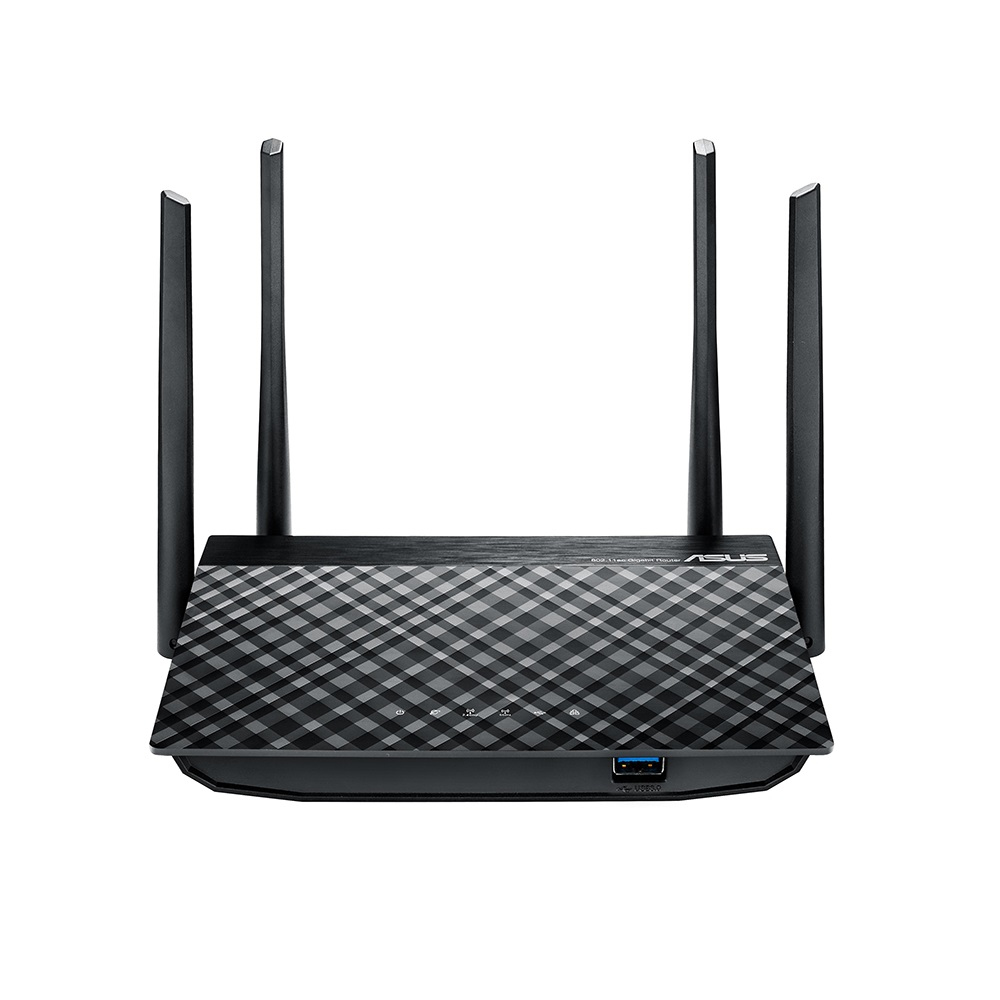

ASUS RT-AC58U V2

RT-AC58U V2

Model RT-AC58U V2Part no. 90IG0540-BO9430EAN 4718017412469

63 specifications

Memory128 MB
SpeedWi-Fi 5 (802.11ac)
TypeTabletop router
Weight348 g
ColourBlack
Ethernet WANYes

See all specifications

Overview

Memory: 128 MB
Speed: Wi-Fi 5 (802.11ac)
Type: Tabletop router
Weight: 348 g
Colour: Black
Ethernet WAN: Yes

Brand: ASUS
Category: Wireless Router
Model: RT-AC58U V2
Part numbers: 90IG0540-BO9430, 90IG0540-BU2430
EAN / UPC: 4718017412469, 4718017422901
Also known as: ASUS RT-AC58U V2 wireless router Gigabit Ethernet Dual-band (2.4 GHz / 5 GHz) Black

Specifications

63 specifications in 17 groups

WAN connection

Specification	Value
Ethernet WAN	Yes
DSL WAN	No
SIM card slot	No
3G/4G USB modem compatibility	Yes
WAN connection type	RJ-45

Wireless LAN features

Specification	Value
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
WLAN data transfer rate (max)	867 Mbit/s
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)

Network

Specification	Value
Ethernet LAN	Yes
Ethernet LAN interface type	Gigabit Ethernet
Ethernet LAN data rates	10,100,1000 Mbit/s
Cabling technology	10/100/1000Base-T(X)
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Port forwarding	Yes
Dynamic DNS (DDNS)	Yes
VPN support	IPSec Pass-Through PPTP Pass-Through L2TP Pass-Through

Mobile network

Specification	Value
3G	No
4G	No

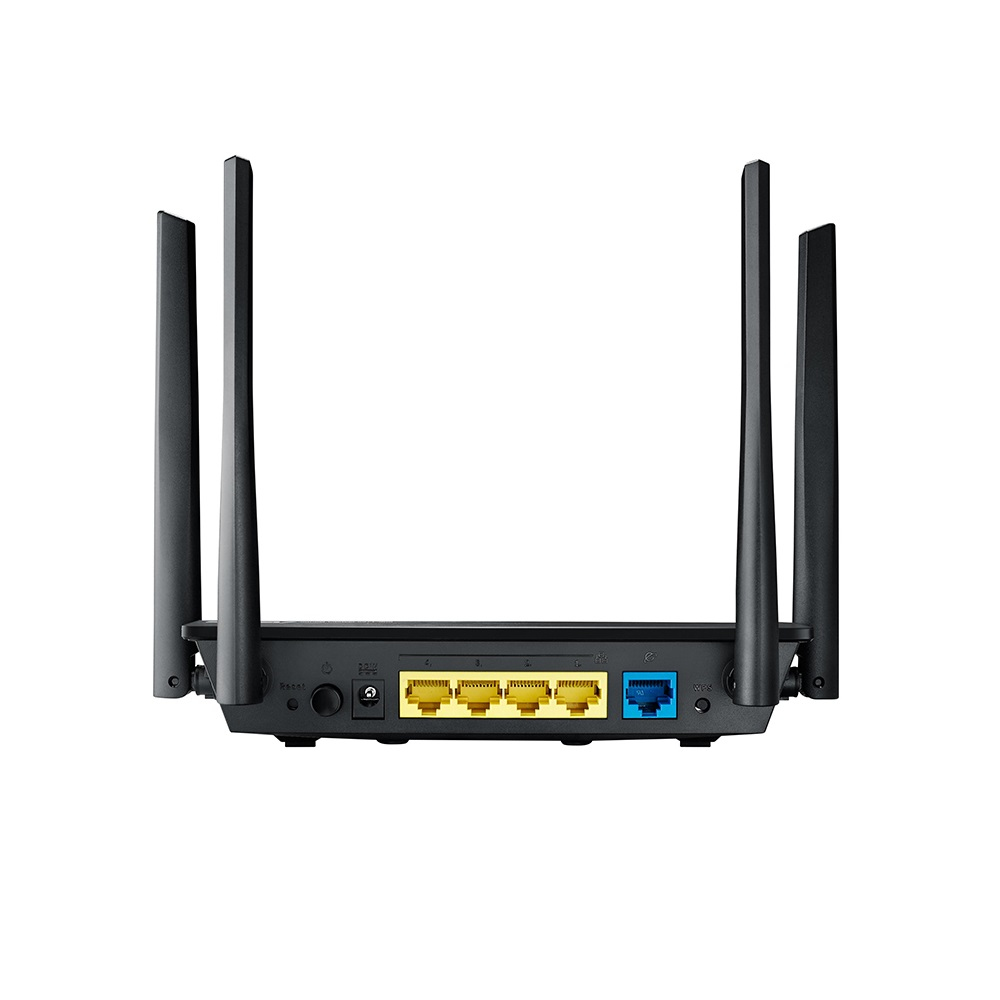

Ports & interfaces

Specification	Value
Ethernet LAN (RJ-45) ports	5
USB port	Yes
USB 2.0 ports quantity	1
Memory card slot(s)	No
DC-in jack	Yes

Management features

Specification	Value
Web-based management	Yes
Quality of Service (QoS) support	Yes
Reset button	Yes
WPS push button	Yes

Security

Specification	Value
Security algorithms	64-bit WEP, 128-bit WEP, WPA-Enterprise, WPA-PSK, WPA2-Enterprise, WPA2-PSK, WPS
Guest access	Yes
DMZ support	Yes

Protocols

Specification	Value
DHCP client	Yes
DHCP server	Yes
Universal Plug and Play (UPnP)	Yes
Management protocols	IGMP v1/v2/v3, NTP Client

Design

Specification	Value
Product type	Tabletop router
Product colour	Black
LED indicators	LAN, USB, WAN, WLAN
On/off switch	Yes

Packaging content

Specification	Value
Cables included	LAN (RJ-45)
AC adapter included	Yes
Warranty card	Yes
Manual	Yes
Quick start guide	Yes

Certificates

Specification	Value
Digital Living Network Alliance (DLNA) certified	Yes

Antenna

Specification	Value
Antenna design	External
Antenna gain level (max)	2 dBi
Antennas quantity	4

Features

Specification	Value
Internal memory	128 MB
Flash memory	16 MB

Power

Specification	Value
Power source type	AC
AC input voltage	110 - 240 V
AC input frequency	50 - 60 Hz
Output voltage	12 V
Output current	1.5 A

System requirements

Specification	Value
Windows operating systems supported	Windows 10, Windows 7, Windows 8.1
Mac operating systems supported	Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.9 Mavericks
Mac compatibility	Yes

Weight & dimensions

Specification	Value
Depth	125 mm
Height	30 mm
Weight	348 g
Width	192 mm

Packaging data

Specification	Value
Package type	Box
