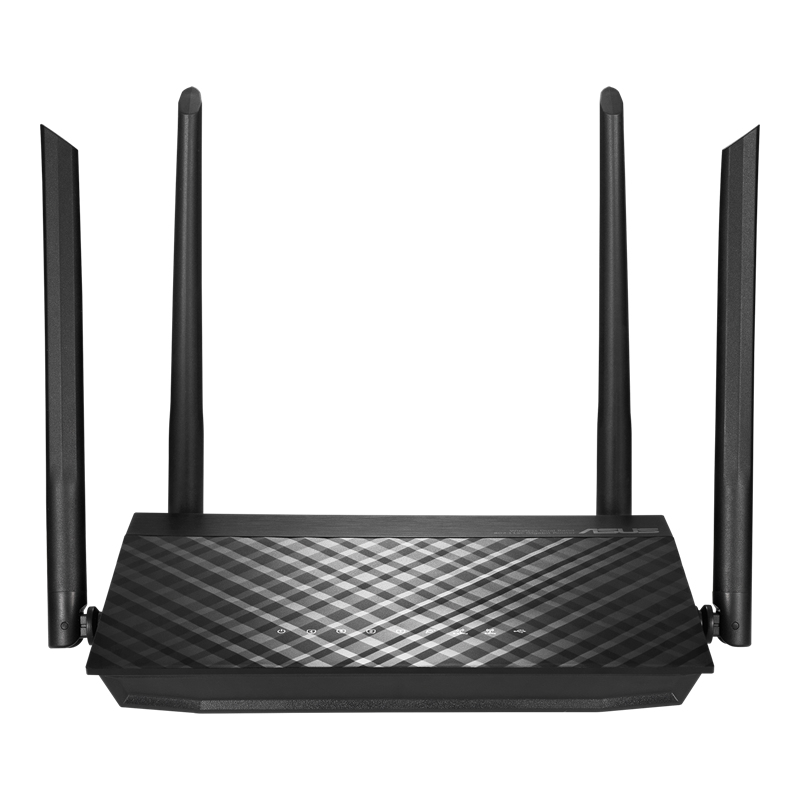

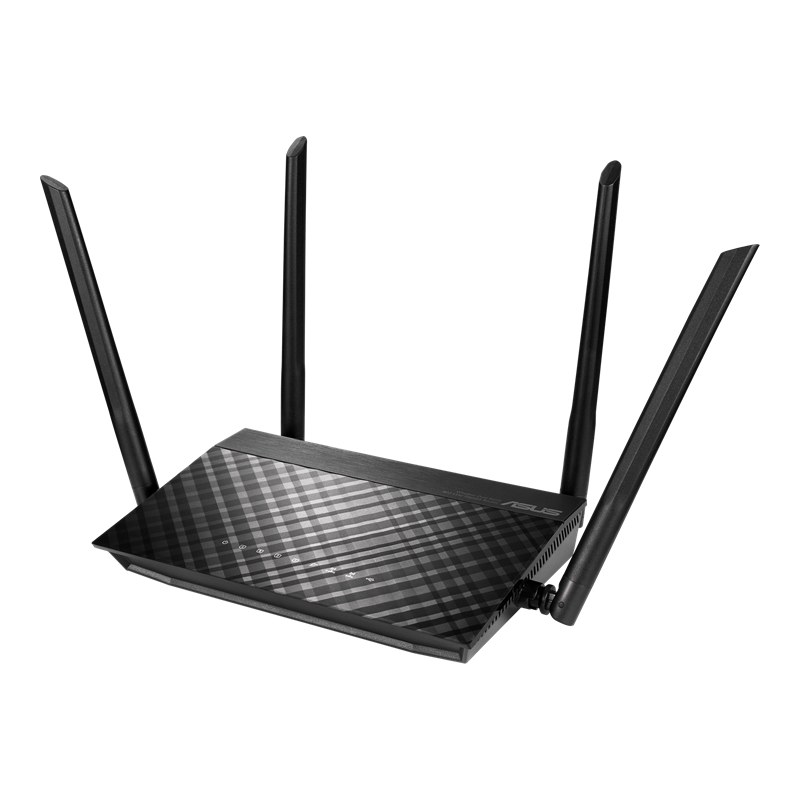

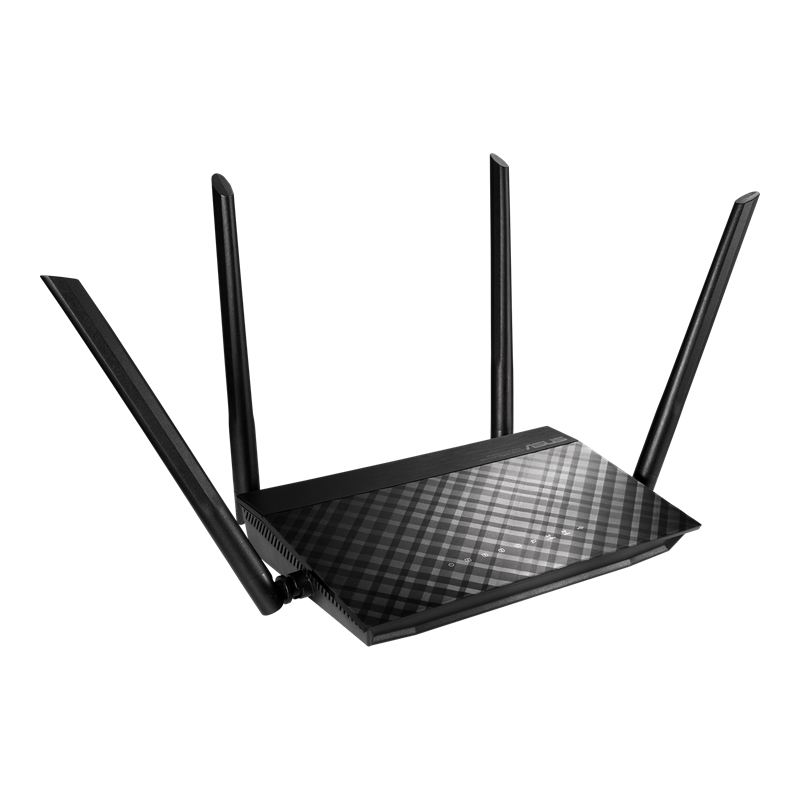

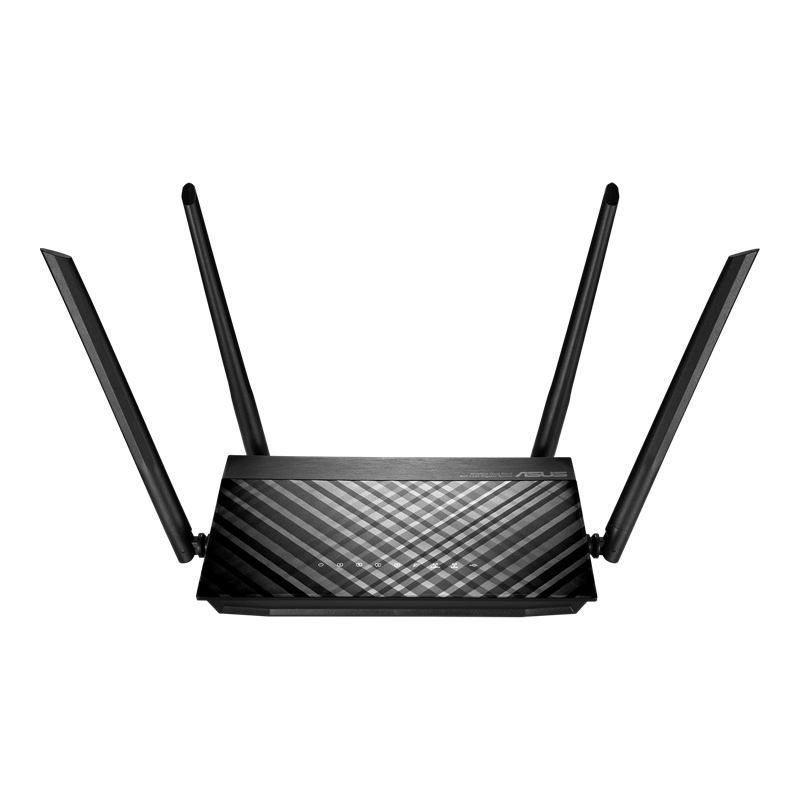

RT-AC1300G PLUS V3
Model RT-AC1300G PLUS V3Part no. 90IG0540-BO9470EAN 4718017412476
69 specifications
- Memory128 MB
- SpeedWi-Fi 5 (802.11ac)
- TypeTabletop router
- Weight348 g
- ColourBlack
- Ethernet WANYes
Overview
- Memory
- 128 MB
- Speed
- Wi-Fi 5 (802.11ac)
- Type
- Tabletop router
- Weight
- 348 g
- Colour
- Black
- Ethernet WAN
- Yes
- Brand
- ASUS
- Category
- Wireless Router
- Model
- RT-AC1300G PLUS V3
- Part number
- 90IG0540-BO9470
- EAN / UPC
- 4718017412476
- Also known as
- ASUS RT-AC1300G PLUS V3 wireless router Gigabit Ethernet Dual-band (2.4 GHz / 5 GHz) Black
Specifications
69 specifications in 14 groups
WAN connection
| Specification | Value |
|---|---|
| Ethernet WAN | Yes |
| DSL WAN | No |
| SIM card slot | No |
| 3G/4G USB modem compatibility | Yes |
Wireless LAN features
| Specification | Value |
|---|---|
| Wi-Fi band | Dual-band (2.4 GHz / 5 GHz) |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| WLAN data transfer rate (max) | 867 Mbit/s |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| WLAN data transfer rate (first band) | 400 Mbit/s |
| WLAN data transfer rate (second band) | 867 Mbit/s |
| Modulation | 256-QAM |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN interface type | Gigabit Ethernet |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Port forwarding | Yes |
| Port triggering | Yes |
| Dynamic DNS (DDNS) | Yes |
| Number of guest networks (2.4 GHz) | 3 |
| Number of guest networks (5 GHz) | 3 |
| Support Samba (storage) | Yes |
| Built-in FTP server | Yes |
| Media server | Yes |
| VPN support | VPN Client L2PT VPN Client OVPN VPN Client PPTP VPN Server OVPN VPN Server PPTP |
Mobile network
| Specification | Value |
|---|---|
| 3G | Yes |
| 4G | Yes |
| 5G | No |

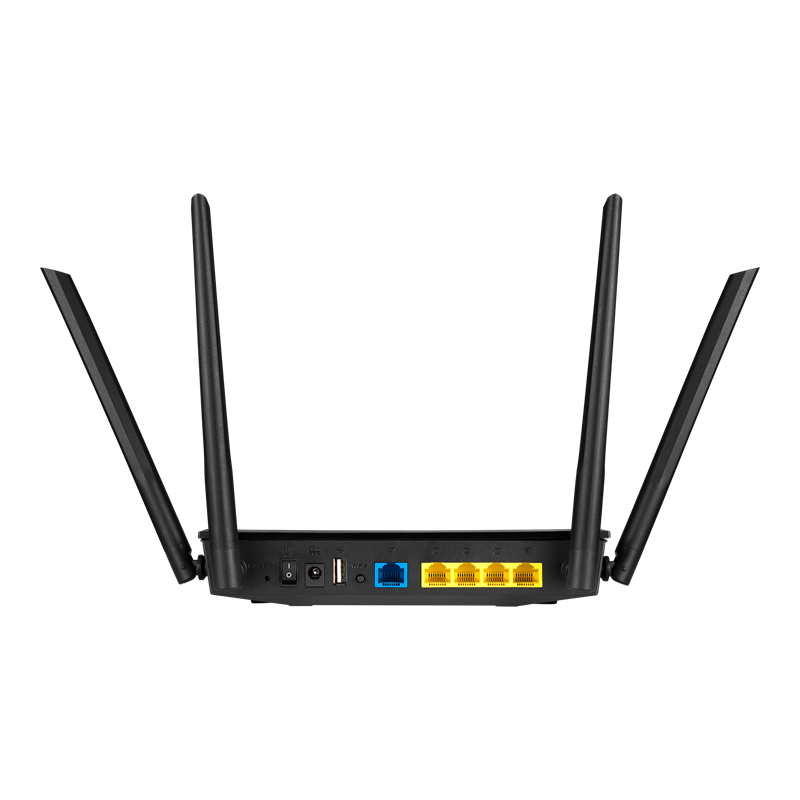

Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 5 |
| USB port | Yes |
| USB 2.0 ports quantity | 1 |
Management features
| Specification | Value |
|---|---|
| Quality of Service (QoS) support | Yes |
| Wake-on-LAN ready | Yes |
| Reset button | Yes |
| WPS push button | Yes |
| MIMO | Yes |
| MU-MIMO technology | No |
Security
| Specification | Value |
|---|---|
| Security algorithms | SSH, SSID, WPA, WPA2, WPA2-Enterprise, WPA2-RADIUS, WPS |
| Firewall | Yes |
| Firewall security | Maximum Firewall keyword filter : 64 Maximum Firewall network service filter : 32 Maximum Firewall URL filter : 64 |
| Parental control | Yes |
| MAC address filtering | Yes |
| MAC address table | 64 entries |
| System event log | Yes |
| DMZ support | Yes |
| Network address translation (NAT) | Yes |
| NAT functionality | PPTP, L2TP, IPSec, RTSP, H.323, SIP Passthrough,PPPoE relay |
Protocols
| Specification | Value |
|---|---|
| DHCP server | Yes |
| Supported network protocols | IPv4, IPv6 |
Design
| Specification | Value |
|---|---|
| Product type | Tabletop router |
| Product colour | Black |
| LED indicators | LAN, Power, USB, WAN |
| On/off switch | Yes |
Packaging content
| Specification | Value |
|---|---|
| Cables included | LAN (RJ-45) |
| AC adapter included | Yes |
| Warranty card | Yes |
| Quick start guide | Yes |
Antenna
| Specification | Value |
|---|---|
| Antenna design | External |
| Antennas quantity | 4 |
Features
| Specification | Value |
|---|---|
| Built-in processor | Yes |
| Processor architecture | MIPS 74Kc |
| Processor frequency | 775 MHz |
| Internal memory | 128 MB |
| Flash memory | 32 MB |
| Firmware upgradeable | Yes |
Power
| Specification | Value |
|---|---|
| Power source type | AC |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Output voltage | 12 V |
| Output current | 1.5 A |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 348 g |
