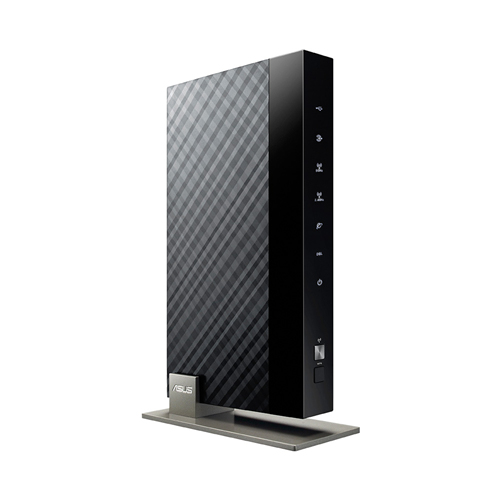

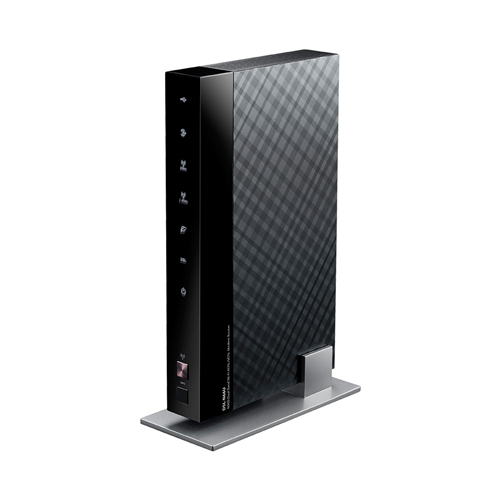

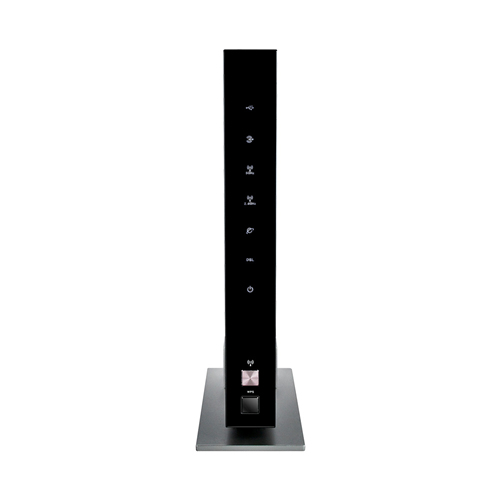

ASUS DSL-N66U wireless router Gigabit Ethernet Dual-band (2.4 GHz

5 GHz) Black

Model DSL-N66UPart no. 90-IGY6002U00-2PA0EAN 5052916887034

54 specifications

SpeedWi-Fi 4 (802.11n)
Weight820 g
ColourBlack
Ethernet WANYes
Wi-Fi bandDual-band (2.4 GHz / 5 GHz)
3GNo

See all specifications

Overview

Speed: Wi-Fi 4 (802.11n)
Weight: 820 g
Colour: Black
Ethernet WAN: Yes
Wi-Fi band: Dual-band (2.4 GHz / 5 GHz)
3G: No

Brand: ASUS
Category: Wireless Router
Model: DSL-N66U
Part numbers: 90-IGY6002U00-2PA0, 90-IGY6002M00-3PA0
EAN / UPC: 5052916887034, 886227273386, 4053162744509, 4716659273387 +3 more
Also known as: ASUS DSL-N66U wireless router Gigabit Ethernet Dual-band (2.4 GHz / 5 GHz) Black

Specifications

54 specifications in 18 groups

WAN connection

Specification	Value
Ethernet WAN	Yes
DSL WAN	Yes
3G/4G USB modem compatibility	Yes

Wireless LAN features

Specification	Value
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
WLAN data transfer rate (max)	450 Mbit/s
Wi-Fi standards	802.11a, 802.11b, 802.11g
Channels quantity	13 channels

Network

Specification	Value
Ethernet LAN	Yes
Ethernet LAN interface type	Gigabit Ethernet
Ethernet LAN data rates	10,100,1000 Mbit/s
Cabling technology	10/100/1000Base-T(X)
Networking standards	IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n

Mobile network

Specification	Value
3G	No
4G	No

DSL features

Specification	Value
VDSL2	Yes
DSL specification	G.992.1, G.992.2, G.992.3, G.992.5, G.992.2

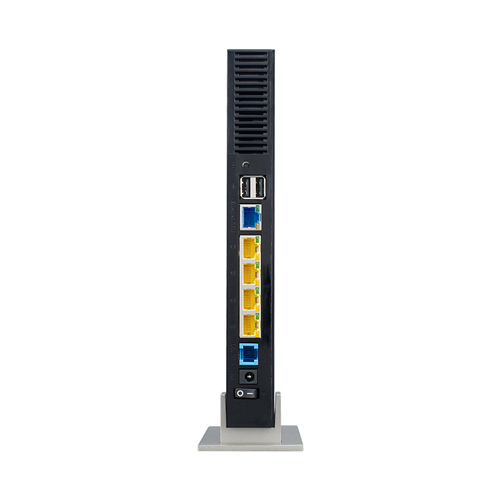

Ports & interfaces

Specification	Value
Ethernet LAN (RJ-45) ports	5
RJ-11 ports quantity	1
DC-in jack	Yes

Management features

Specification	Value
Web-based management	Yes

Security

Specification	Value
Security algorithms	128-bit WEP, 64-bit WEP, WPA-PSK, WPA2-PSK, WPS
Filtering	Yes
MAC address filtering	Yes

Protocols

Specification	Value
DHCP client	Yes

Design

Specification	Value
Product colour	Black
LED indicators	Yes
On/off switch	Yes

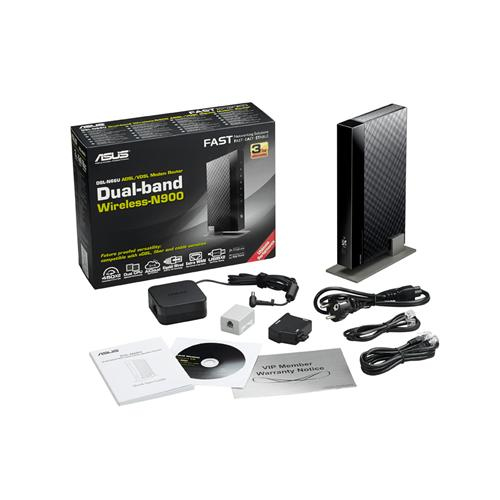

Packaging content

Specification	Value
Cables included	LAN (RJ-45), Phone (RJ-11)
AC adapter included	Yes
Quick start guide	Yes

Certificates

Specification	Value
Certification	CE, C-Tick, Telepermit

Antenna

Specification	Value
Antenna design	Internal
Antenna gain level (max)	2 dBi
Antennas quantity	2

Features

Specification	Value
Firmware upgradeable	Yes

Power

Specification	Value
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz

System requirements

Specification	Value
Windows operating systems supported	Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Win
Linux operating systems supported	Yes
Mac operating systems supported	Mac OS X 10.0 Cheetah, Mac OS X 10.1 Puma, Mac OS X 10.2 Jaguar, Mac OS X 10.3 Panther, Mac OS X 10.4 Tiger, Mac OS X 10.5 Leopard, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion

Weight & dimensions

Specification	Value
Depth	650 mm
Height	255 mm
Weight	820 g
Width	250 mm

Other features

Specification	Value
Mobile network connection	No
Bandwidth (first)	2.4 GHz
Bandwidth (second)	5 GHz
Frequency band	2.4 & 5
Frequency range	2.4 - 5 GHz
USB ports quantity	2
USB version	2.0
WLAN data transfer rates supported	1,2,5.5,6,9,11,12,18,24,36,48,54,450 Mbit/s
xDSL connection	Yes
