ASUS DSL-N17U wireless router Fast Ethernet Black
Model DSL-N17UPart no. 90IG01L0-BM3000EAN 886227889747
51 specifications
- Memory128 MB
- SpeedWi-Fi 4 (802.11n)
- Weight370 g
- ColourBlack
- Ethernet WANYes
- Wi-Fi bandNo
Overview
- Memory
- 128 MB
- Speed
- Wi-Fi 4 (802.11n)
- Weight
- 370 g
- Colour
- Black
- Ethernet WAN
- Yes
- Wi-Fi band
- No
- Brand
- ASUS
- Category
- Wireless Router
- Model
- DSL-N17U
- Part numbers
- 90IG01L0-BM3000, 90IG01L0-BU2000
- EAN / UPC
- 886227889747, 4053162830073
- Also known as
- ASUS DSL-N17U wireless router Fast Ethernet Black
Specifications
51 specifications in 15 groups
WAN connection
| Specification | Value |
|---|---|
| Ethernet WAN | Yes |
| DSL WAN | Yes |
Wireless LAN features
| Specification | Value |
|---|---|
| Wi-Fi band | No |
| Top Wi-Fi standard | Wi-Fi 4 (802.11n) |
| WLAN data transfer rate (max) | 300 Mbit/s |
| Wi-Fi standards | 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN interface type | Fast Ethernet |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Cabling technology | 10/100Base-T(X) |
| Networking standards | IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| VPN support | IPSec Pass-Through PPTP Pass-Through L2TP Pass-Through PPTP server |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 5 |
| RJ-11 ports quantity | 1 |
| DC-in jack | Yes |
Management features
| Specification | Value |
|---|---|
| Web-based management | Yes |
| Reset button | Yes |
Security
| Specification | Value |
|---|---|
| Security algorithms | 128-bit WEP, 64-bit WEP, WPA, WPA-PSK, WPA2-PSK, WPS |
| Filtering | Yes |
| MAC address filtering | Yes |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| LED indicators | DSL, LAN, Power, USB, WLAN |
| On/off switch | Yes |

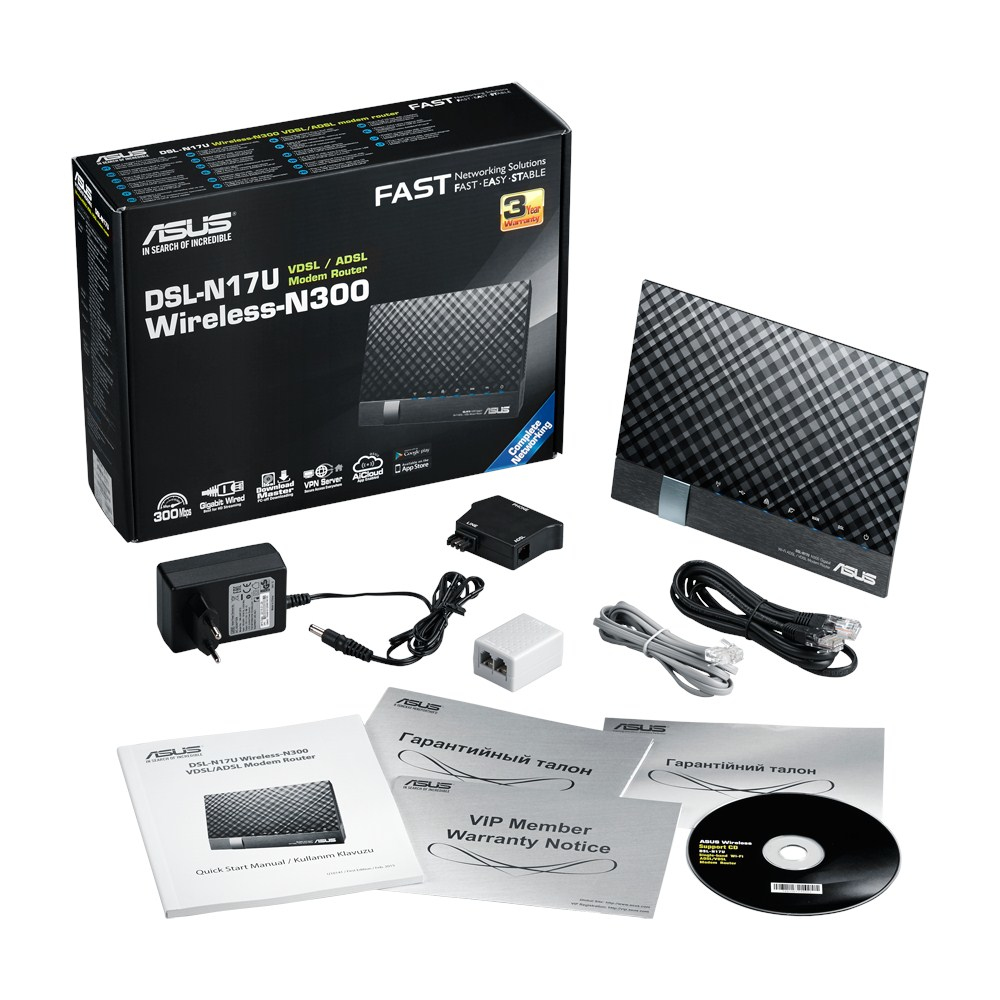

Packaging content
| Specification | Value |
|---|---|
| Cables included | LAN (RJ-45), Phone (RJ-11) |
| AC adapter included | Yes |
| Quick start guide | Yes |
Antenna
| Specification | Value |
|---|---|
| Antenna design | Internal |
| Antennas quantity | 2 |
Features
| Specification | Value |
|---|---|
| Internal memory | 128 MB |
| Flash memory | 128 MB |
| Firmware upgradeable | Yes |
Power
| Specification | Value |
|---|---|
| Power source type | DC |
| AC input voltage | 110 - 240 V |
| AC input frequency | 50 - 60 Hz |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 50 - 90% |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage relative humidity (H-H) | 20 - 90% |
| Storage temperature (T-T) | 0 - 70 °C |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Win |
| Linux operating systems supported | Yes |
| Mac operating systems supported | Mac OS X 10.0 Cheetah, Mac OS X 10.1 Puma, Mac OS X 10.10 Yosemite, Mac OS X 10.2 Jaguar, Mac OS X 10.3 Panther, Mac OS X 10.4 Tiger, Mac OS X 10.5 Leopard, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks |
Weight & dimensions
| Specification | Value |
|---|---|
| Depth | 205 mm |
| Height | 66 mm |
| Weight | 370 g |
| Width | 147 mm |
Other features
| Specification | Value |
|---|---|
| Frequency band | 2.4 GHz |
| Input current | 1.75 A |
| Rack mounting | No |
| USB ports quantity | 2 |
| USB version | 2.0 |
| WLAN data transfer rates supported | 1,2,5.5,6,9,11,12,18,24,36,48,54,300 Mbit/s |
