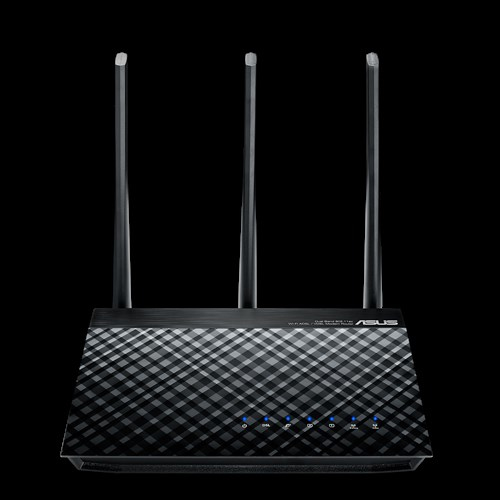

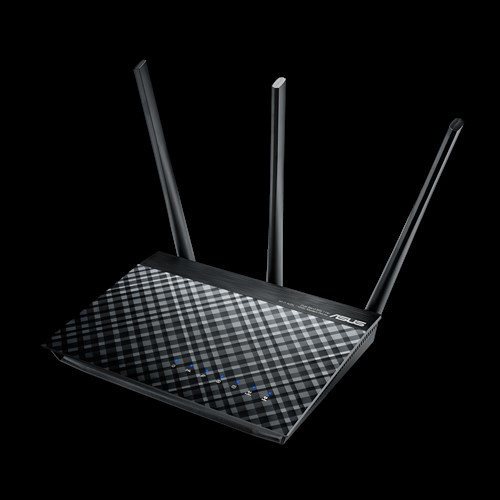

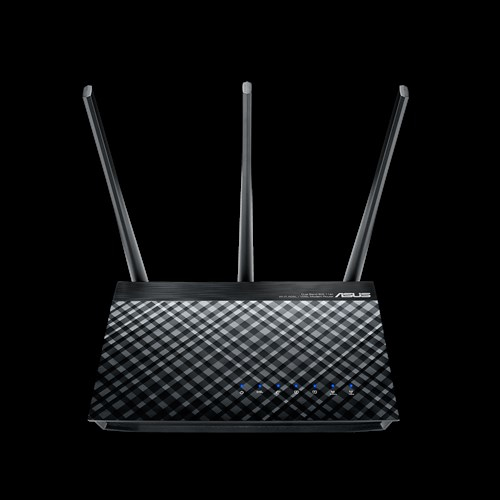

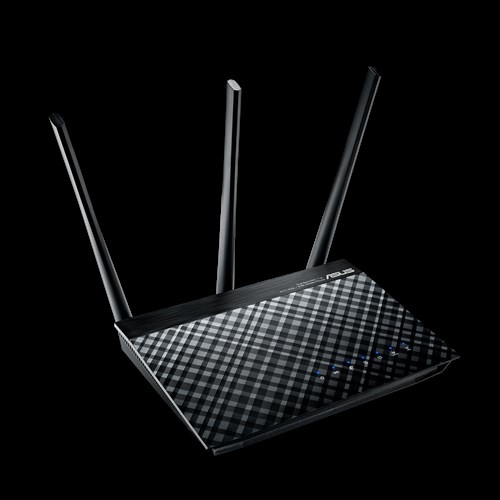

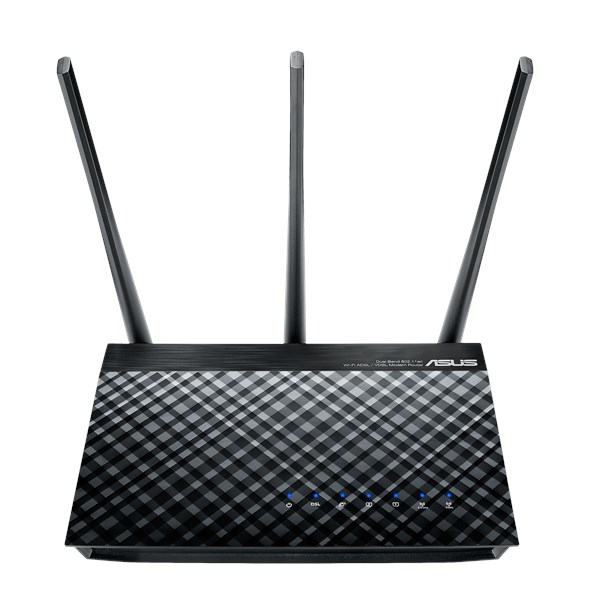

ASUS DSL-AC51 wireless router Gigabit Ethernet Dual-band (2.4 GHz

5 GHz) Black

Model DSL-AC51Part no. 90IG0471-BO3100EAN 889349688106

84 specifications

SpeedWi-Fi 5 (802.11ac)
TypeTabletop router
Weight440 g
ColourBlack
Ethernet WANYes
Wi-Fi bandDual-band (2.4 GHz / 5 GHz)

See all specifications

Overview

Speed: Wi-Fi 5 (802.11ac)
Type: Tabletop router
Weight: 440 g
Colour: Black
Ethernet WAN: Yes
Wi-Fi band: Dual-band (2.4 GHz / 5 GHz)

Brand: ASUS
Category: Wireless Router
Model: DSL-AC51
Part number: 90IG0471-BO3100
EAN / UPC: 889349688106, 4712900688108
Also known as: ASUS DSL-AC51 wireless router Gigabit Ethernet Dual-band (2.4 GHz / 5 GHz) Black

Specifications

84 specifications in 19 groups

WAN connection

Specification	Value
Ethernet WAN	Yes
DSL WAN	Yes
SIM card slot	No
3G/4G USB modem compatibility	No

Wireless LAN features

Specification	Value
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
WLAN data transfer rate (max)	433 Mbit/s
Wi-Fi standards	802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
WLAN data transfer rate (first band)	300 Mbit/s
WLAN data transfer rate (second band)	433 Mbit/s

Network

Specification	Value
Ethernet LAN	Yes
Ethernet LAN interface type	Gigabit Ethernet
Ethernet LAN data rates	10,100,1000 Mbit/s
Cabling technology	10/100/1000Base-T(X)
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11e, IEEE 802.11g, IEEE 802.11i, IEEE 802.11n, IEEE 802.3, IEEE 802.3u
Port forwarding	Yes
VPN Passthrough	Yes
VPN support	IPSec Pass-Through PPTP Pass-Through L2TP Pass-Through PPTP server OpenVPN server PPTP client L2TP client OpenVPN client

Mobile network

Specification	Value
3G	No
4G	No

DSL features

Specification	Value
ADSL	Yes
ADSL2	Yes
ADSL2+	Yes
VDSL	Yes
VDSL2	Yes

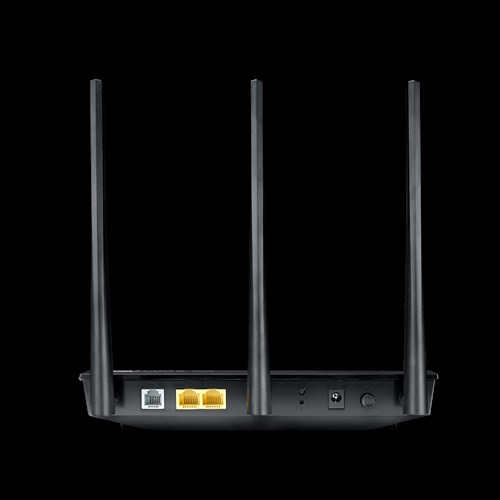

Ports & interfaces

Specification	Value
Ethernet LAN (RJ-45) ports	2
USB port	No
RJ-11 ports quantity	1
Memory card slot(s)	No
DC-in jack	Yes

Management features

Specification	Value
Web-based management	Yes
Web-based setup wizard	Yes
Quality of Service (QoS) support	Yes
Reset button	Yes
WPS push button	Yes

Security

Specification	Value
Security algorithms	64-bit WEP, 128-bit WEP, WPA-Enterprise, WPA-PSK, WPA2-Enterprise, WPA2-PSK, WPS
Firewall	Yes
Firewall security	Parental control
Guest access	Yes
Port-based Network Access Control (PNAC)	Yes
Filtering	Yes
IP address filtering	Yes
URL filtering	Yes
System event log	Yes
DMZ support	Yes
Network address translation (NAT)	Yes

Protocols

Specification	Value
DHCP client	Yes
DHCP server	Yes
Universal Plug and Play (UPnP)	Yes
Management protocols	IGMP v1/v2/v3
Supported network protocols	IPv4, IPv6

Design

Specification	Value
Product type	Tabletop router
Product colour	Black
Housing material	Acrylonitrile butadiene styrene (ABS)
Indication light	Yes
LED indicators	ADSL, DSL, LAN, Power, WLAN
On/off switch	Yes

Packaging content

Specification	Value
Cables included	DSL, LAN (RJ-45), Phone (RJ-11)
AC adapter included	Yes
Quick start guide	Yes

Certificates

Specification	Value
Certification	CE

Antenna

Specification	Value
Antenna design	External
Antennas quantity	3

Features

Specification	Value
Plug and Play	Yes
Firmware upgradeable	Yes

Power

Specification	Value
Power source type	AC, DC
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Output voltage	12 V
Output current	1 A

Operational conditions

Specification	Value
Operating relative humidity (H-H)	50 - 90%
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	20 - 90%
Storage temperature (T-T)	0 - 70 °C

System requirements

Specification	Value
Windows operating systems supported	Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home
Linux operating systems supported	Yes
Mac operating systems supported	Mac OS X 10.1 Puma, Mac OS X 10.2 Jaguar, Mac OS X 10.3 Panther, Mac OS X 10.4 Tiger, Mac OS X 10.5 Leopard, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion
Mac compatibility	Yes

Weight & dimensions

Specification	Value
Depth	175 mm
Height	200 mm
Weight	440 g
Width	207 mm

Packaging data

Specification	Value
Wi-Fi configuration card	Yes
Package type	Box
