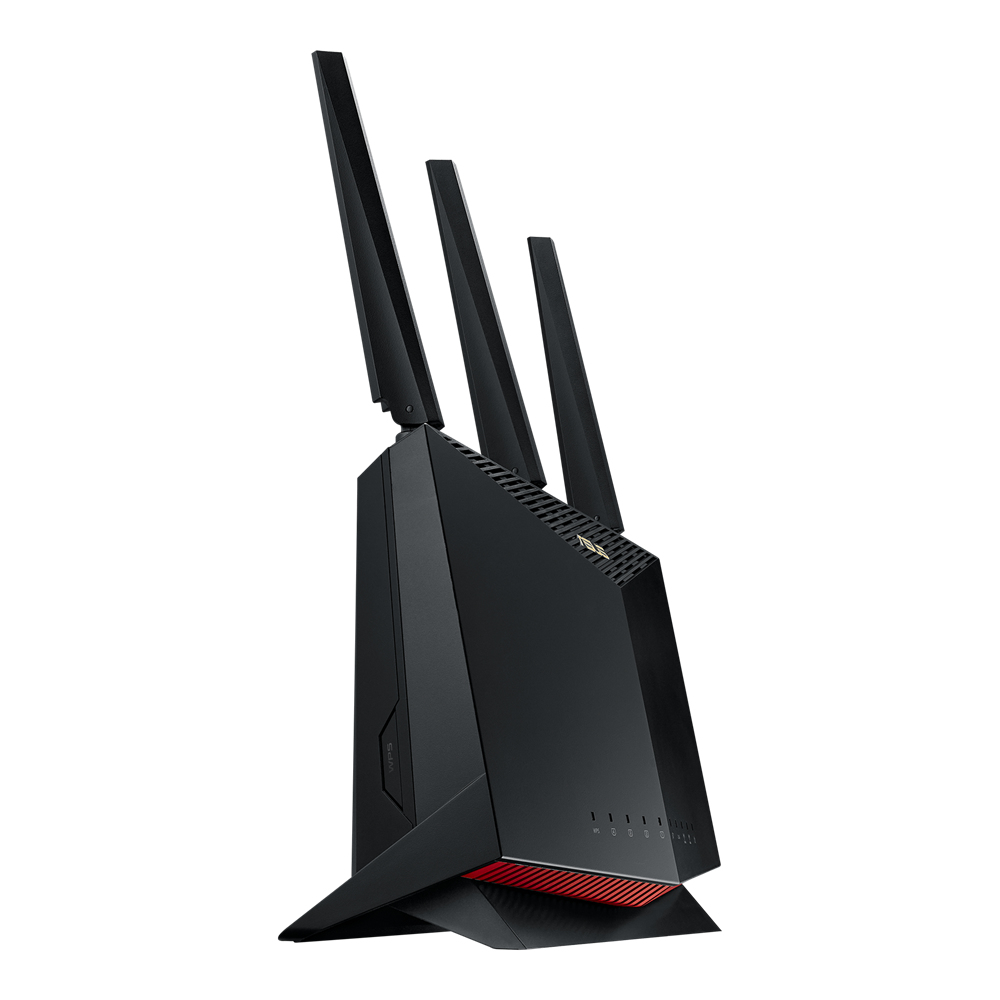

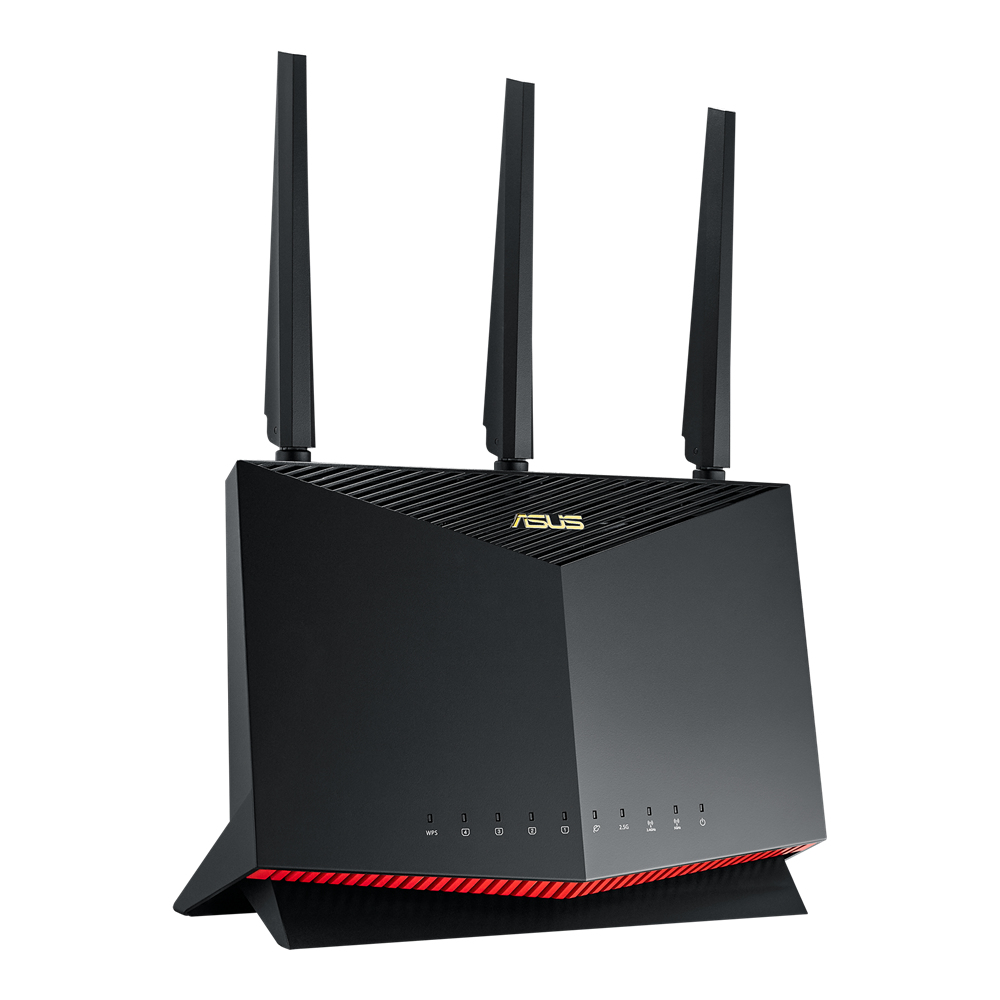

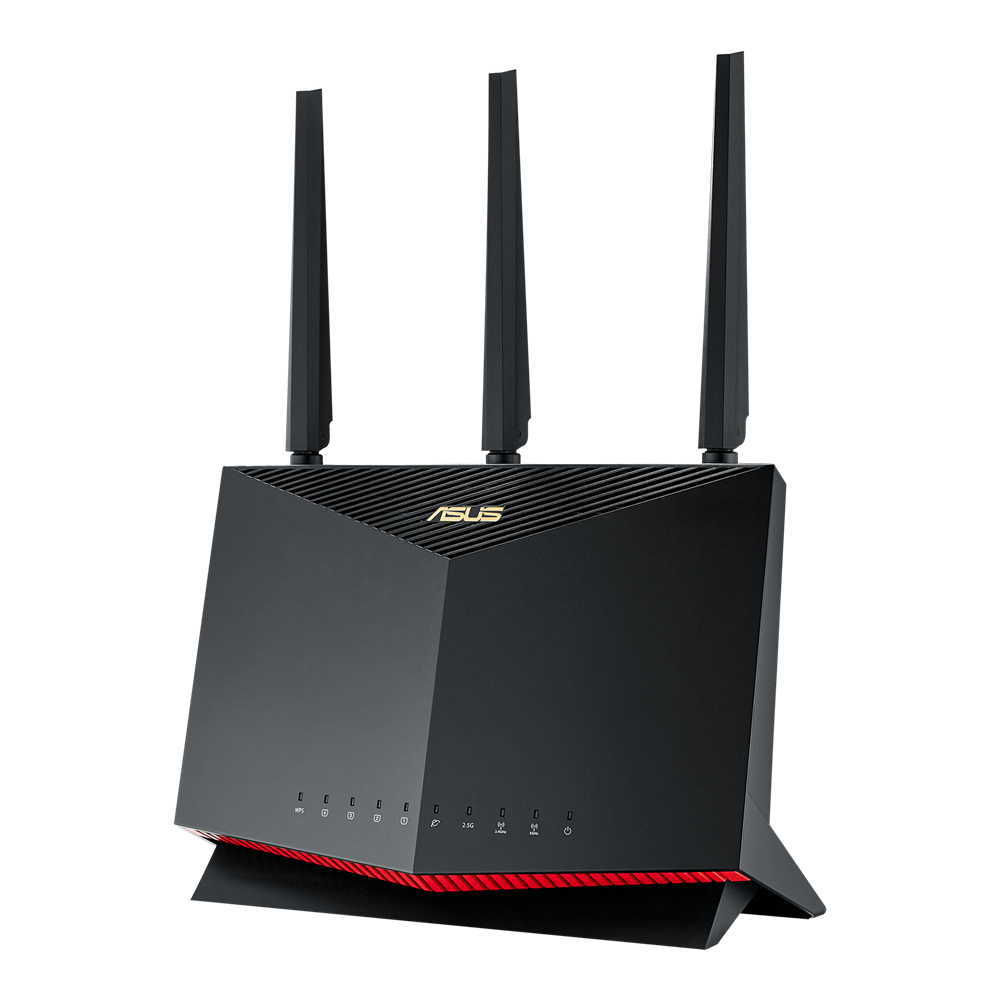

AX5700 RT-AX86U
Model AX5700 RT-AX86UPart no. 90IG05F1-MU2G10EAN 4718017586702
78 specifications
- SpeedWi-Fi 6 (802.11ax)
- TypeTabletop router
- Weight814.5 g
- ColourBlack, Red
- Ethernet WANYes
- Wi-Fi bandDual-band (2.4 GHz / 5 GHz)
Overview
- Speed
- Wi-Fi 6 (802.11ax)
- Type
- Tabletop router
- Weight
- 814.5 g
- Colour
- Black, Red
- Ethernet WAN
- Yes
- Wi-Fi band
- Dual-band (2.4 GHz / 5 GHz)
- Brand
- ASUS
- Category
- Wireless Router
- Model
- AX5700 RT-AX86U
- Part numbers
- 90IG05F1-MU2G10, 90IG05F1-MA1G1V
- EAN / UPC
- 4718017586702
- Also known as
- ASUS AX5700 RT-AX86U wireless router Gigabit Ethernet Dual-band (2.4 GHz / 5 GHz) Black, Red
Specifications
78 specifications in 15 groups
WAN connection
| Specification | Value |
|---|---|
| Ethernet WAN | Yes |
| DSL WAN | No |
| SIM card slot | No |
| 3G/4G USB modem compatibility | Yes |
Wireless LAN features
| Specification | Value |
|---|---|
| Wi-Fi band | Dual-band (2.4 GHz / 5 GHz) |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| WLAN data transfer rate (max) | 4804 Mbit/s |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) |
| WLAN data transfer rate (first band) | 54 Mbit/s |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN interface type | Gigabit Ethernet |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Cabling technology | 10/100/1000Base-T(X) |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Port forwarding | Yes |
| Port triggering | Yes |
| Dynamic DNS (DDNS) | Yes |
| Static route | Yes |
| Number of guest networks (2.4 GHz) | 3 |
| Number of guest networks (5 GHz) | 3 |
| Support Samba (storage) | Yes |
| Built-in FTP server | No |
| Media server | Yes |
| VPN server | IPSec, OVPN, PPTP |
| VPN tunnels quantity | 3 |
| VPN Passthrough | Yes |
| VPN support | IPSec, OVPN, PPTP |
Mobile network
| Specification | Value |
|---|---|
| 3G | Yes |
| 4G | Yes |
| 5G | No |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 5 |
| USB port | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB charging port | No |
| Memory card slot(s) | No |
| DC-in jack | Yes |
Management features
| Specification | Value |
|---|---|
| Bandwidth control | Yes |
| Quality of Service (QoS) support | Yes |
| Wake-on-LAN ready | Yes |
| Reset button | Yes |
| Intelligent Mesh technology | Yes |
| MU-MIMO technology | Yes |
Security
| Specification | Value |
|---|---|
| Firewall | Yes |
| Guest access | Yes |
| Parental control | Yes |
| Filtering | Yes |
| MAC address filtering | Yes |
| IP address filtering | Yes |
| URL filtering | Yes |
| System event log | Yes |
| DMZ support | Yes |
| Network address translation (NAT) | Yes |
Protocols
| Specification | Value |
|---|---|
| DHCP server | Yes |
Design
| Specification | Value |
|---|---|
| Product type | Tabletop router |
| Product colour | Black, Red |
| Wall mountable | No |
| Indication light | Yes |
| LED indicators | Activity, Power, WAN, WPS |
| On/off switch | Yes |
| Built-in display | No |
Packaging content
| Specification | Value |
|---|---|
| Cables included | LAN (RJ-45) |
| AC adapter included | Yes |
| Antenna included | Yes |
| Warranty card | Yes |
| Quick start guide | Yes |
Antenna
| Specification | Value |
|---|---|
| Antenna design | Internal & external |
| Antennas quantity | 4 |
Features
| Specification | Value |
|---|---|
| Built-in processor | Yes |
| Processor frequency | 1800 MHz |
| Processor cores | 4 |
| Works with Amazon Alexa | Yes |
Power
| Specification | Value |
|---|---|
| Power source type | AC |
| AC input voltage | 110 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Output voltage | 19 V |
| Output current | 2.37 A |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 814.5 g |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85176990 |
