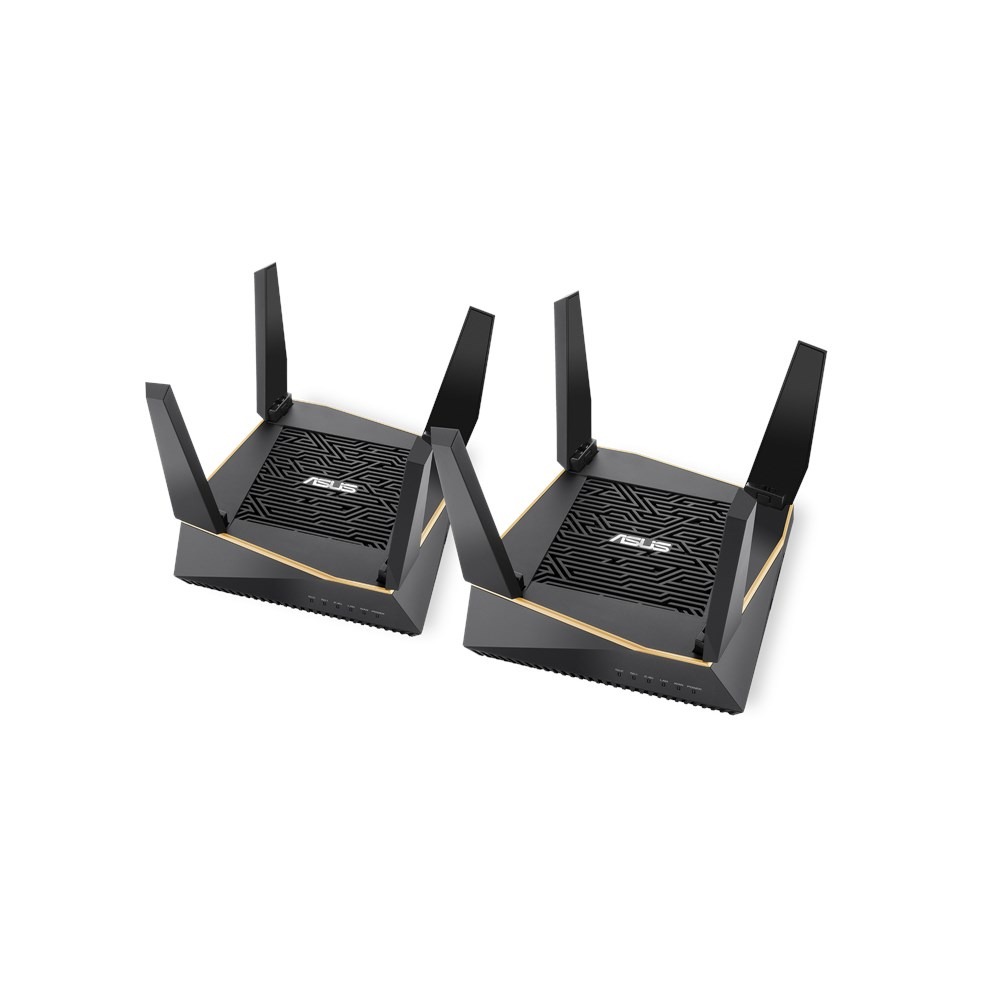

ASUS AiMesh AX6100

AiMesh AX6100

Model AiMesh AX6100Part no. 90IG04P0-MO3020EAN 4718017116930

63 specifications

SpeedWi-Fi 6 (802.11ax)
TypeTabletop router
Weight651 g
ColourBlack
Ethernet WANYes
3GNo

See all specifications

Overview

Speed: Wi-Fi 6 (802.11ax)
Type: Tabletop router
Weight: 651 g
Colour: Black
Ethernet WAN: Yes
3G: No

Brand: ASUS
Category: Wireless Router
Model: AiMesh AX6100
Part numbers: 90IG04P0-MO3020, 90IG04P0-MO3010
EAN / UPC: 4718017116930, 4718017116817
Also known as: ASUS AiMesh AX6100 wireless router Gigabit Ethernet Tri-band (2.4 GHz / 5 GHz / 5 GHz) Black

Specifications

63 specifications in 16 groups

WAN connection

Specification	Value
Ethernet WAN	Yes
DSL WAN	No
SIM card slot	No
3G/4G USB modem compatibility	No
WAN connection type	RJ-45

Wireless LAN features

Specification	Value
Wi-Fi band	Tri-band (2.4 GHz / 5 GHz / 5 GHz)
Top Wi-Fi standard	Wi-Fi 6 (802.11ax)
WLAN data transfer rate (max)	6071 Mbit/s
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Modulation	256-QAM
Channel bandwidth	160 MHz

Network

Specification	Value
Ethernet LAN	Yes
Ethernet LAN interface type	Gigabit Ethernet
Networking standards	IEEE 802.11ax, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Port forwarding	Yes
Dynamic DNS (DDNS)	Yes
VPN support	IPSec Pass-Through PPTP Pass-Through L2TP Pass-Through PPTP server OpenVPN server PPTP client L2TP client OpenVPN client

Mobile network

Specification	Value
3G	No
4G	No

Ports & interfaces

Specification	Value
Ethernet LAN (RJ-45) ports	4
USB port	Yes
USB 2.0 ports quantity	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
Memory card slot(s)	No
DC-in jack	Yes

Management features

Specification	Value
Web-based management	Yes
Quality of Service (QoS) support	Yes
Reset button	Yes
WPS push button	Yes
MU-MIMO technology	Yes

Security

Specification	Value
Security algorithms	WPA-Enterprise, WPA-PSK, WPA2-Enterprise, WPA2-PSK, WPS
System event log	Yes
DMZ support	Yes

Protocols

Specification	Value
Universal Plug and Play (UPnP)	Yes

Design

Specification	Value
Product type	Tabletop router
Product colour	Black
LED indicators	LAN, Power, WAN, WLAN
On/off switch	Yes

Antenna

Specification	Value
Antenna design	Internal & external
Antennas quantity	6

Power

Specification	Value
Power source type	AC
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Output voltage	19 V
Output current	1.75 A

Operational conditions

Specification	Value
Operating relative humidity (H-H)	50 - 90%
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	20 - 90%
Storage temperature (T-T)	0 - 70 °C

System requirements

Specification	Value
Windows operating systems supported	Windows 10, Windows 7, Windows 8, Windows 8.1
Linux operating systems supported	Yes
Mac operating systems supported	Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion
Mac compatibility	Yes

Weight & dimensions

Specification	Value
Depth	155 mm
Height	52.6 mm
Weight	651 g
Width	155 mm

Packaging data

Specification	Value
Package width	385 mm
Package depth	250 mm
Package height	126 mm
Package weight	1.8 kg
Number of products included	2 pc(s)

Logistics data

Specification	Value
Harmonized System (HS) code	85176990
