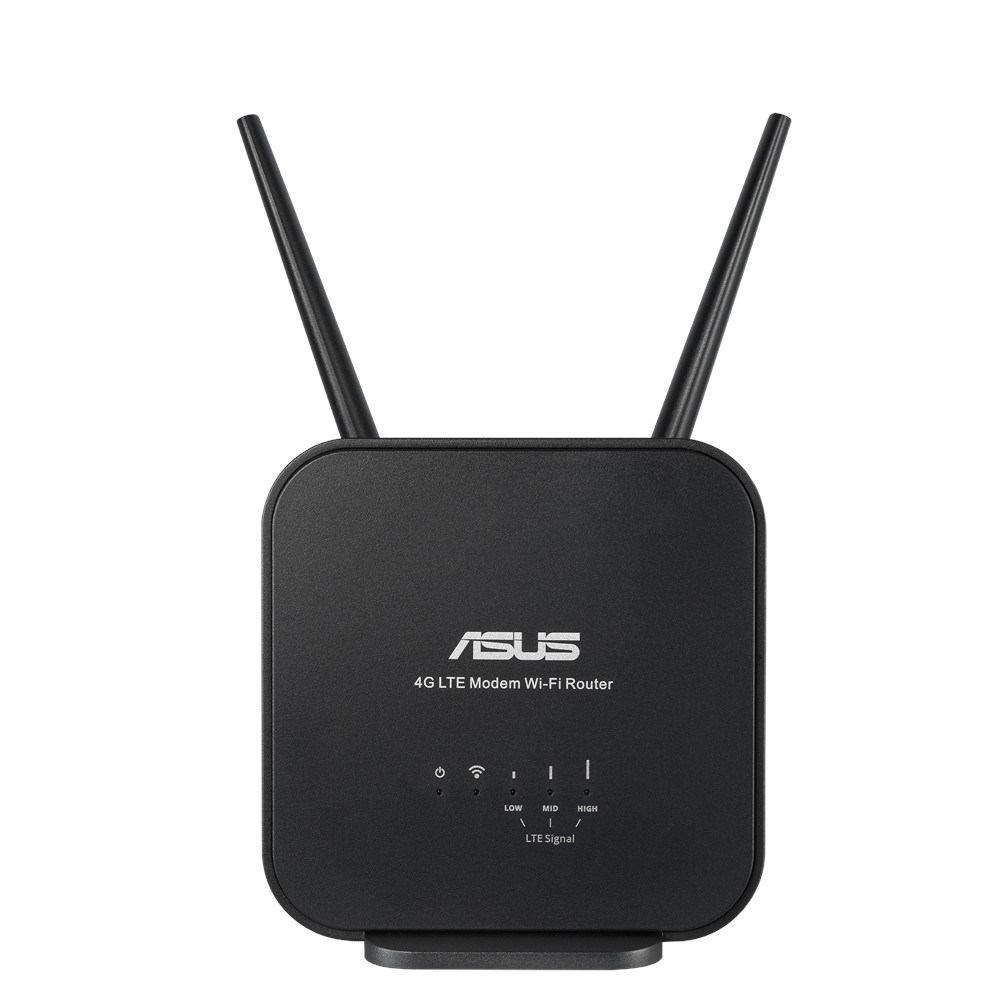

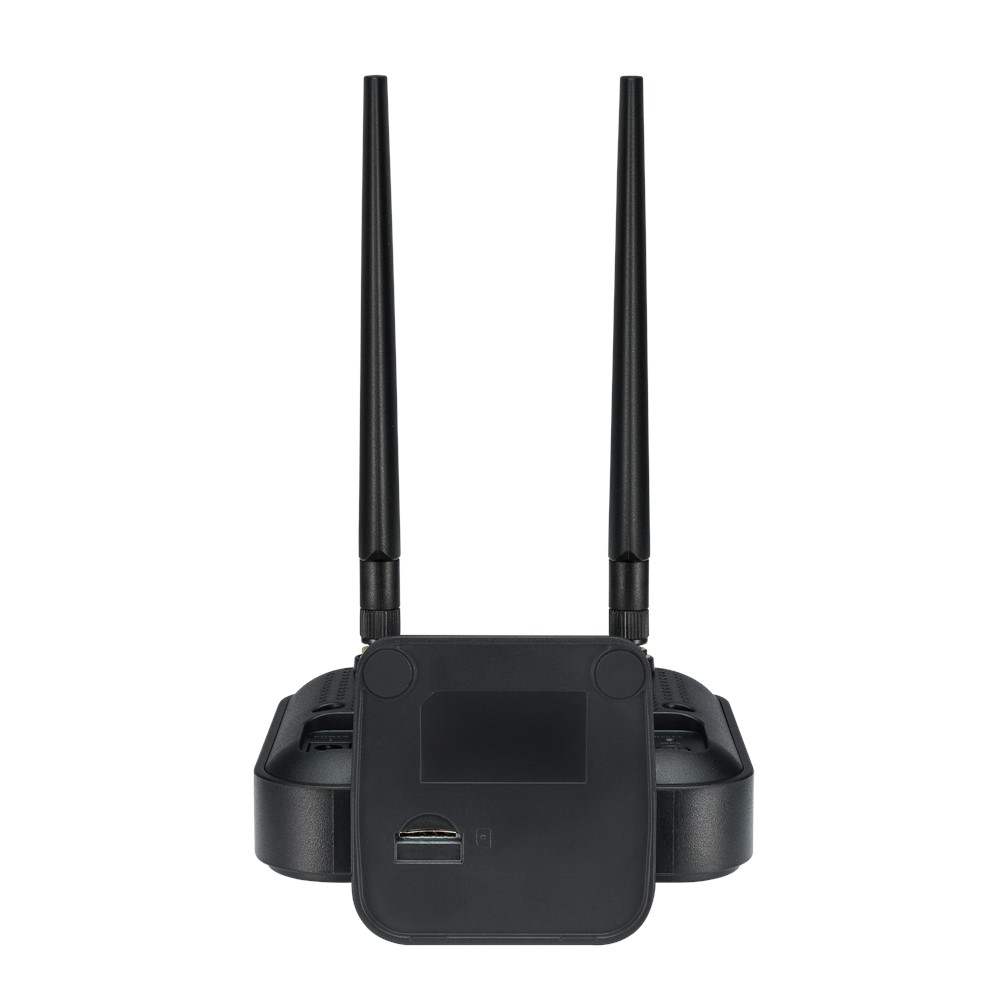

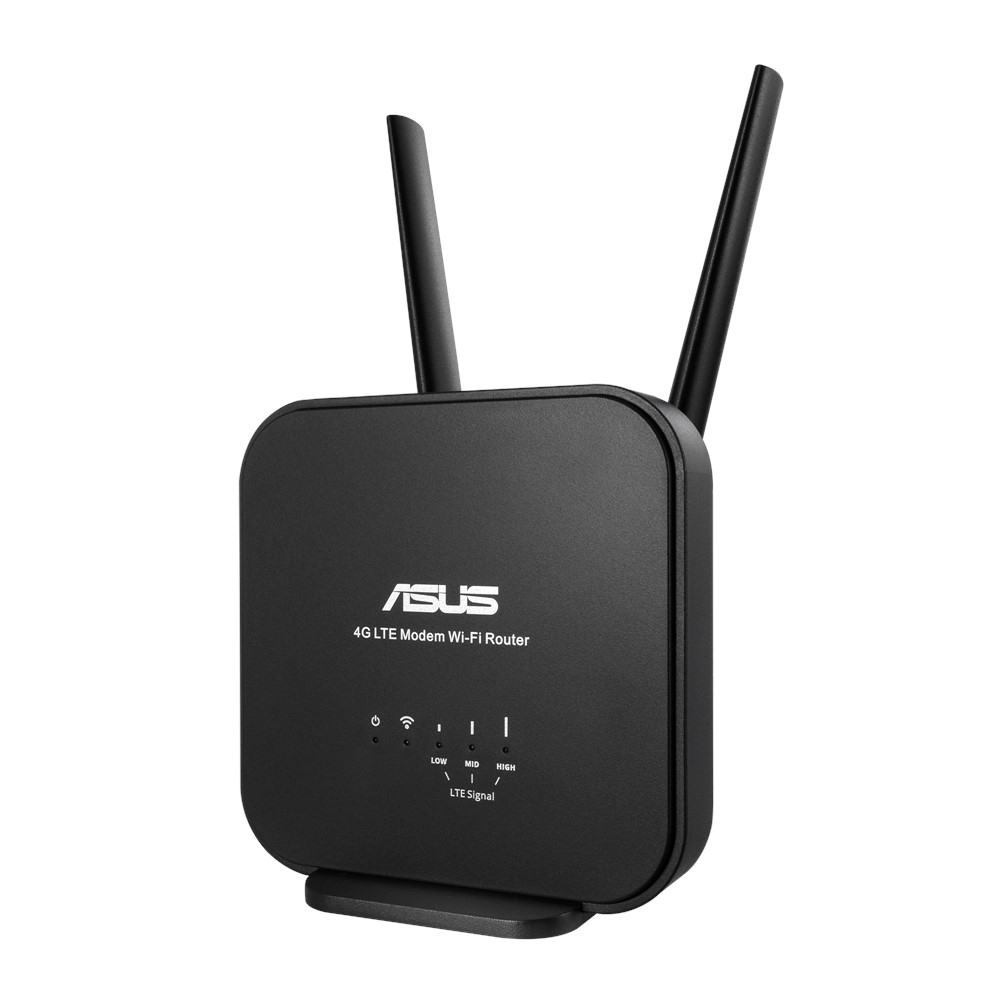

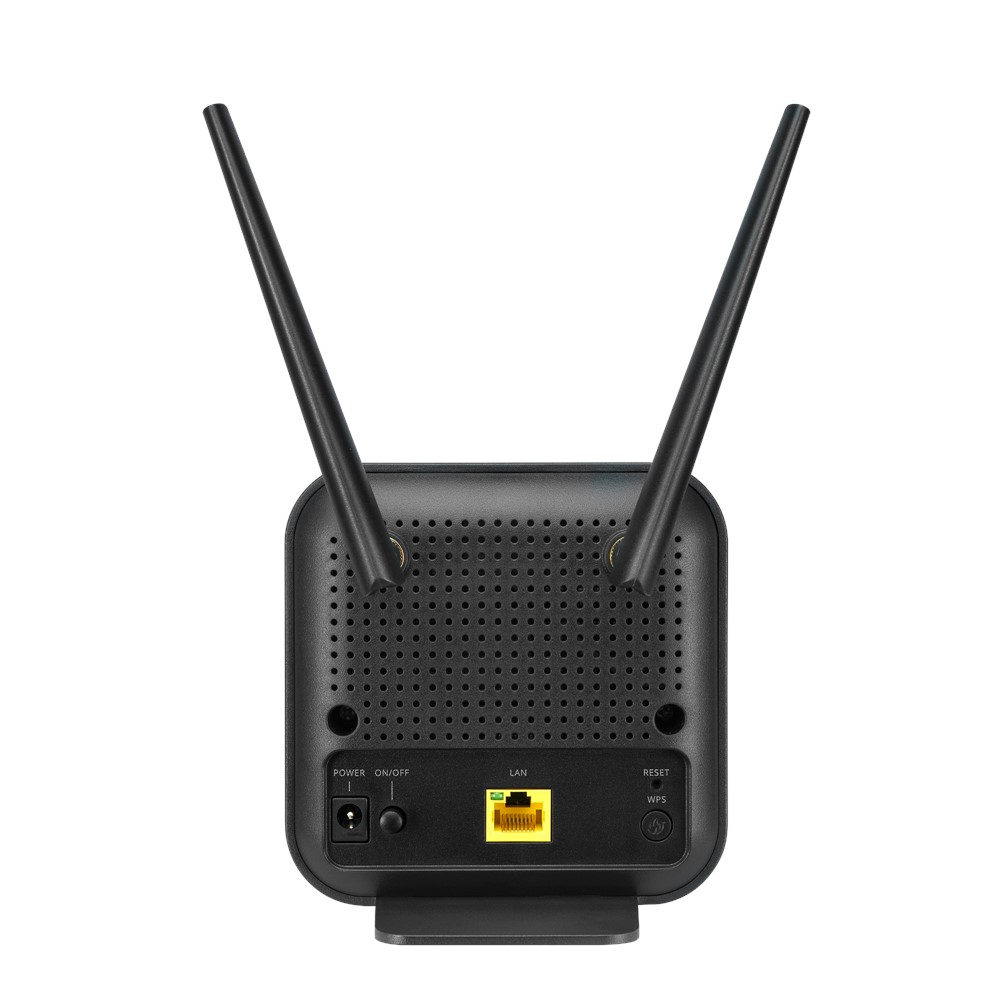

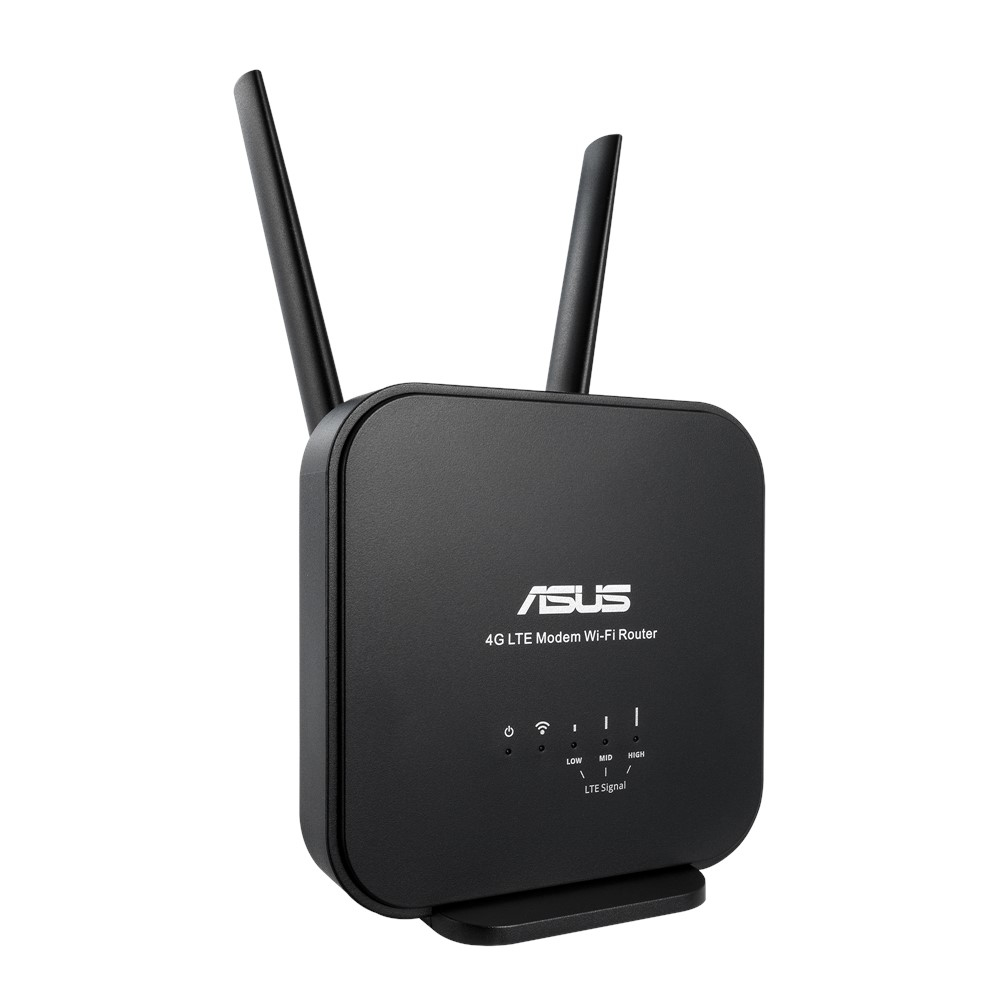

ASUS 4G-N12 B1

4G-N12 B1

Model 4G-N12 B1Part no. 90IG0570-BM3200EAN 4718017257206

57 specifications

Memory256 MB
SpeedWi-Fi 4 (802.11n)
TypeTabletop router
Weight185 g
ColourBlack
Ethernet WANYes

See all specifications

Overview

Memory: 256 MB
Speed: Wi-Fi 4 (802.11n)
Type: Tabletop router
Weight: 185 g
Colour: Black
Ethernet WAN: Yes

Brand: ASUS
Category: Wireless Router
Model: 4G-N12 B1
Part number: 90IG0570-BM3200
EAN / UPC: 4718017257206
Also known as: ASUS 4G-N12 B1 wireless router Fast Ethernet Single-band (2.4 GHz) Black

Specifications

57 specifications in 16 groups

WAN connection

Specification	Value
Ethernet WAN	Yes
DSL WAN	No
SIM card slot	Yes
3G/4G USB modem compatibility	Yes

Wireless LAN features

Specification	Value
Wi-Fi band	Single-band (2.4 GHz)
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
WLAN data transfer rate (max)	300 Mbit/s
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)

Network

Specification	Value
Ethernet LAN	Yes
Ethernet LAN interface type	Fast Ethernet
Ethernet LAN data rates	10,100 Mbit/s
Cabling technology	10/100Base-T(X)
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n

Mobile network

Specification	Value
Mobile network generation	4G
3G	No
4G	Yes
4G standard	LTE

Ports & interfaces

Specification	Value
Ethernet LAN (RJ-45) ports	1
USB port	No
Memory card slot(s)	No
DC-in jack	Yes

Management features

Specification	Value
Quality of Service (QoS) support	Yes
Reset button	Yes
WPS push button	Yes

Security

Specification	Value
Security algorithms	64-bit WEP, 128-bit WEP, WPA-PSK, WPA2-PSK, WPS
Filtering	Yes
MAC address filtering	Yes
IP address filtering	Yes
URL filtering	Yes

Protocols

Specification	Value
Management protocols	UPnP, DHCP, NTP Client, Port Trigger, Port Forwarding, DMZ, System Event Log

Design

Specification	Value
Product type	Tabletop router
Product colour	Black
Housing material	Plastic
LED indicators	LTE, Power, WAN
On/off switch	Yes

Packaging content

Specification	Value
Cables included	LAN (RJ-45)
AC adapter included	Yes
Warranty card	Yes
Quick start guide	Yes

Antenna

Specification	Value
Antenna design	External
Antenna gain level (max)	4 dBi
Antennas quantity	2
Detachable antenna(s)	Yes

Features

Specification	Value
Internal memory	256 MB
Flash memory	512 MB

Power

Specification	Value
Power source type	DC
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Output voltage	12 V
Output current	1 A

System requirements

Specification	Value
Windows operating systems supported	Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic
Mac operating systems supported	Mac OS X 10.1 Puma, Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.4 Tiger, Mac OS X 10.5 Leopard, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks

Weight & dimensions

Specification	Value
Depth	67 mm
Height	114 mm
Weight	185 g
Width	110 mm

Logistics data

Specification	Value
Harmonized System (HS) code	85176990
