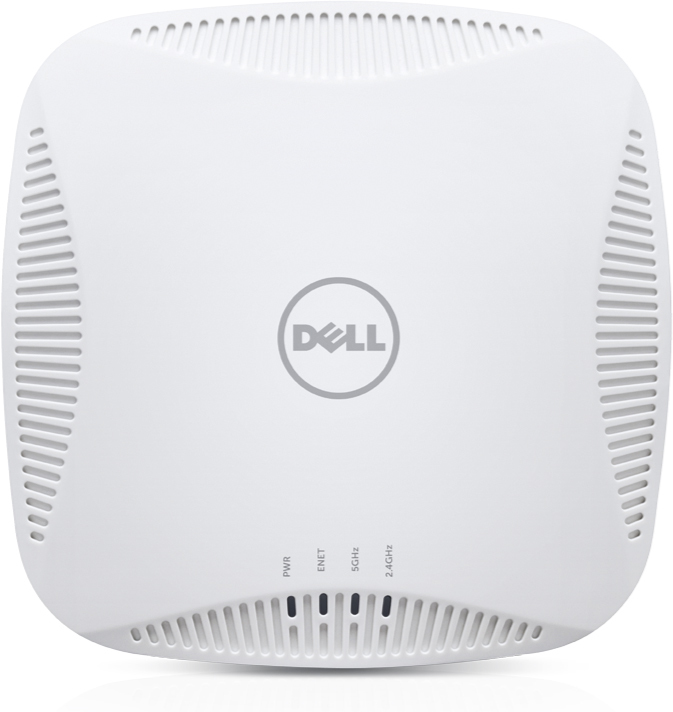

Dell PowerConnect W-AP205 1000 Mbit/s White Power over Ethernet (PoE)
Model W-AP205Part no. 210-ACSDEAN 5397063839582
33 specifications
- Speed1000 Mbit/s
- Weight380 g
- ColourWhite
- 2.4 GHzYes
- Ethernet LAN (RJ-45) ports1
- Antenna featuresIntegrated antenna
Overview
- Speed
- 1000 Mbit/s
- Weight
- 380 g
- Colour
- White
- 2.4 GHz
- Yes
- Ethernet LAN (RJ-45) ports
- 1
- Antenna features
- Integrated antenna
- Brand
- Dell
- Category
- Wireless Access Point
- Model
- W-AP205
- Part number
- 210-ACSD
- EAN / UPC
- 5397063839582
- Also known as
- DELL PowerConnect W-AP205 1000 Mbit/s White Power over Ethernet (PoE)
Specifications
33 specifications in 9 groups
Features
| Specification | Value |
|---|---|
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| Maximum data transfer rate | 1000 Mbit/s |
| Maximum data transfer rate (5 GHz) | 867 Mbit/s |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Frequency band | 2.4, 5 GHz |
| Networking standards | IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3af |
| Modulation | 16-QAM, 256-QAM, 64-QAM, BPSK, QPSK |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| DC-in jack | Yes |
Power
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Power consumption (typical) | 12.5 W |
Design
| Specification | Value |
|---|---|
| Product colour | White |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Reset button | Yes |
| LED indicators | LAN, Power, Status |
| Internal | No |
Antenna
| Specification | Value |
|---|---|
| Antenna features | Integrated antenna |
| Antennas quantity | 4 |
| Antenna gain level (max) | 6 dBi |
Certificates
| Specification | Value |
|---|---|
| Certification | FCC, CE |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 150 mm |
| Depth | 150 mm |
| Height | 41.5 mm |
| Weight | 380 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 190 mm |
| Package depth | 187 mm |
| Package height | 57 mm |
| Package weight | 550 g |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 5 - 95% |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
