BASE 500-360

Model BASE 500-360Part no. SIL BASE 500-360EAN 5060693980220

87 specifications

Speed500 Mbit/s
Weight2.5 kg
ColourWhite
2.4 GHzNo
Security algorithms256-bit AES, SNMP, SNMPv2, SSH
Web-based managementYes

See all specifications

Overview

Speed: 500 Mbit/s
Weight: 2.5 kg
Colour: White
2.4 GHz: No
Security algorithms: 256-bit AES, SNMP, SNMPv2, SSH
Web-based management: Yes

Brand: SilverNet
Category: Wireless Access Point
Model: BASE 500-360
Part number: SIL BASE 500-360
EAN / UPC: 5060693980220, 5712505945025
Also known as: SilverNet BASE 500-360 500 Mbit/s White Power over Ethernet (PoE)

Specifications

87 specifications in 14 groups

Features

Specification	Value
2.4 GHz	No
5 GHz	Yes
Maximum data transfer rate	500 Mbit/s
Ethernet LAN data rates	10,100,1000 Mbit/s
Throughput data rate	867 Mbit/s
Frequency band	5.1 - 5.8 GHz
Bandwidth	5 GHz
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11i, IEEE 802.11n, IEEE 802.1Q, IEEE 802.1x, IEEE 802.3af
Cabling technology	10/100/1000Base-T(X)
Channels quantity	25 channels
Channel bandwidth	40 MHz
Automatic channel scanning	Yes
Automatic channel selection	Yes
Control channel mode	Tagged & untagged
Full duplex	Yes
Duplex mode auto-negotiation	Yes
Auto MDI/MDI-X	Yes
MIMO	Yes
MIMO type	Multi User MIMO
Modulation	16-QAM, 64-QAM, 256-QAM, BPSK, QPSK
Fit AP mode features	Mesh networking
WLAN channel features	WLAN channel management
VLAN support	Yes
Virtual LAN features	IP subnet–based VLAN, Port-based VLAN, Protocol-based VLAN, Tagged VLAN, VLAN Identifier ( VLAN ID)
Number of VLAN IDs	4095
Automatic interference avoidance	Yes
STA isolation (same VLAN)	Yes
Wireless isolation	Yes
Band steering	Yes
Dynamic Frequency Selection (DFS)	Yes
Quality of Service (QoS) support	Yes
Maximum indoor range	1000 m
Maximum outdoor range	1000 m
Transmitting power	26 dBmW
Receiver sensitivity	-82dBm@54Mbps, -74dBm@300Mbps, -68dBm@1.3Gbps

Security

Specification	Value
Security algorithms	256-bit AES, SNMP, SNMPv2, SSH
MAC address filtering	Yes
Service Set Identifier (SSID) features	Hidden SSID, Multiple SSIDs, SSID broadcast

Management features

Specification	Value
Web-based management	Yes
Local AP management	Telnet
Firmware upgradeable	Yes

Ports & interfaces

Specification	Value
Ethernet LAN (RJ-45) ports	1
USB 2.0 ports quantity	0

Power

Specification	Value
Power over Ethernet (PoE)	Yes
AC input voltage	100 - 240 V
Output voltage	24-48, 48-56 V
Power consumption (typical)	6 W
Power consumption (max)	16 W
Power plug type	Type G
Power supply	15.4 W

Design

Specification	Value
Placement	Pole
Product colour	White
International Protection (IP) code	IP66
Reset button	Yes
LED indicators	LAN, Signal strength

Antenna

Specification	Value
Antenna type	Internal
Antenna direction type	Omni-directional
Antenna features	Integrated antenna
Antennas quantity	4
Antenna gain level (max)	7 dBi
Antenna connector type	RP-MMCX
Number of connectors	2
Polarization	Dual polarization

Performance

Specification	Value
Compatible operating systems	Microsoft Windows, Mac OS, Linux Distributions
Minimum system requirements	Internet Explorer, Google Chrome, Mozilla Firefox

Certificates

Specification	Value
Certification	CE, FCC

Weight & dimensions

Specification	Value
Width	240 mm
Depth	240 mm
Height	300 mm
Weight	2.5 kg

Packaging data

Specification	Value
Package width	240 mm
Package depth	240 mm
Package height	300 mm
Package weight	3 kg
Package type	Box

Packaging content

Specification	Value
Quantity per pack	1 pc(s)
PoE adapter included	Yes
Mounting kit	Yes
Quick start guide	Yes

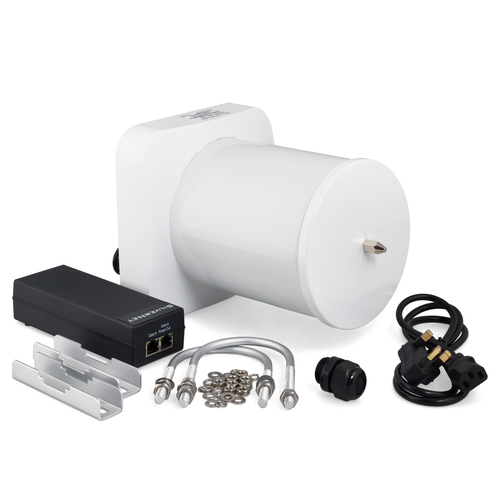

Packaging content	Includes 1 x radio, 1 x PoE injector PSU and 1 x Tilt and Swivel 3 Axis mounting bracket.
Bundled software	SilverView Pro Network Management & Monitoring Software

Operational conditions

Specification	Value
Operating relative humidity (H-H)	0 - 95%
Operating temperature (T-T)	-20 - 70 °C
Storage temperature (T-T)	-40 - 90 °C
Storage relative humidity (H-H)	0 - 95%

Logistics data

Specification	Value
Country of origin	United Kingdom
UK Trade Tariff code	85176200
