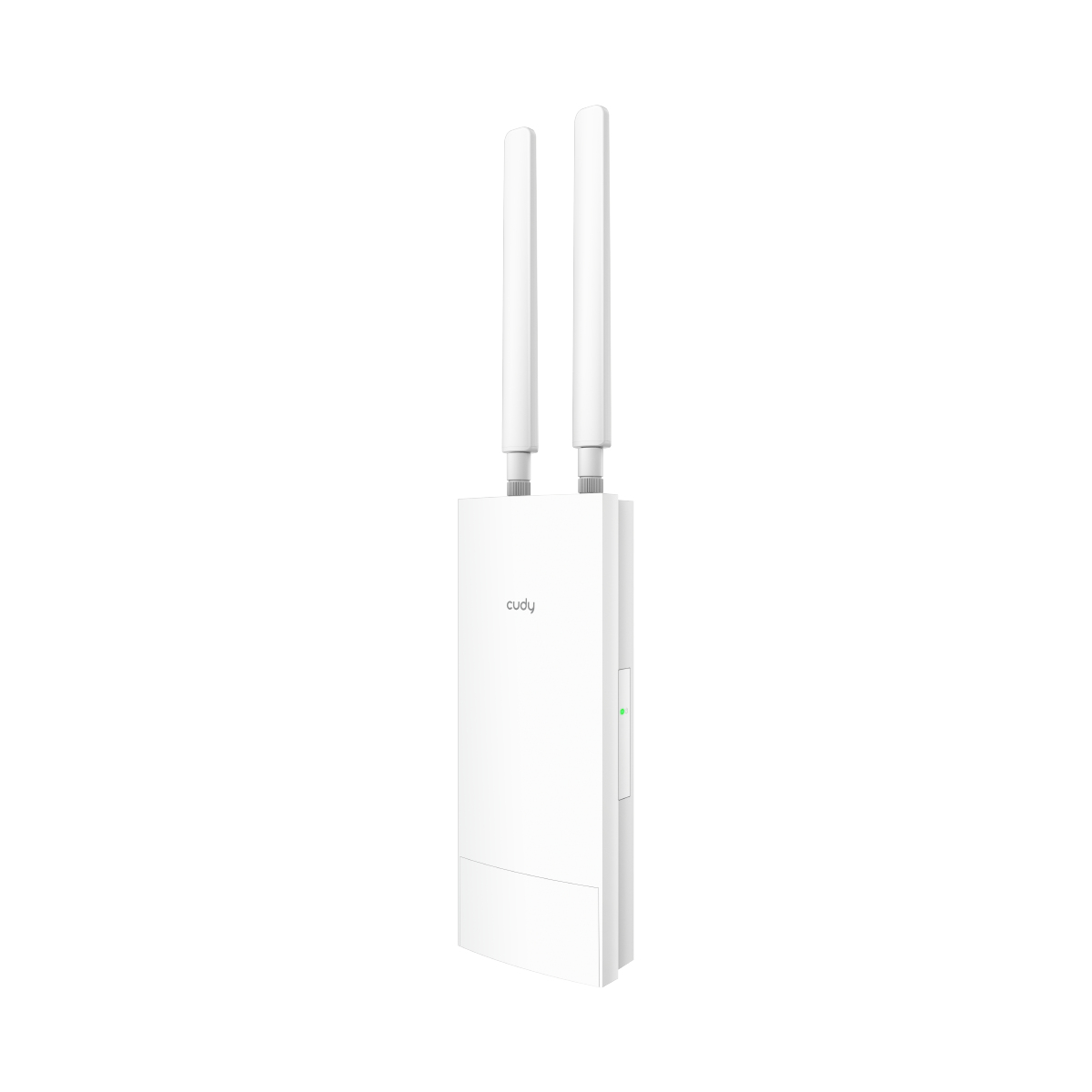

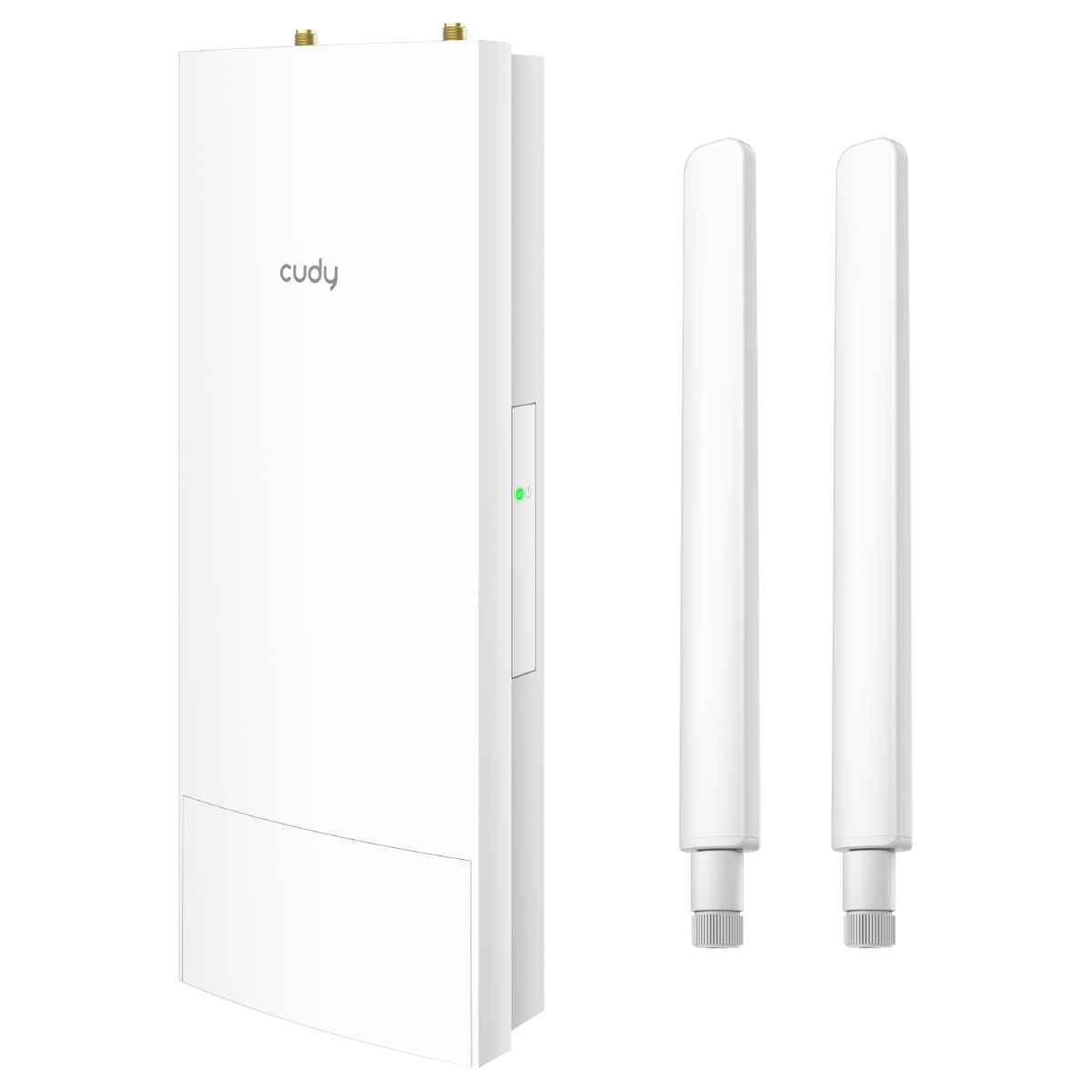

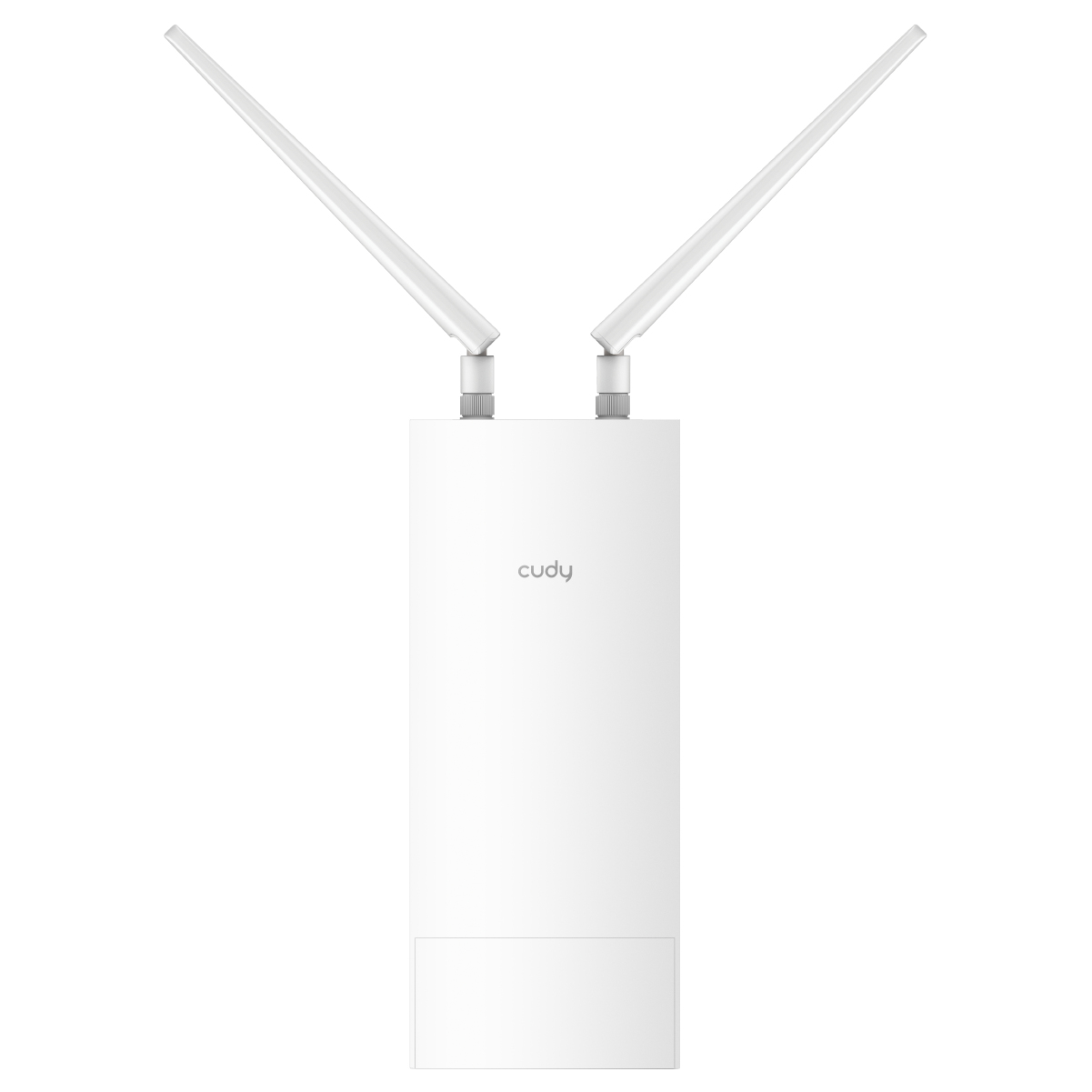

BE3600 High Power Indoor/Outdoor Wi-Fi 7 Access Point, AP3600 Outdoor 1.0
Model BE3600 High Power Indoor/Outdoor Wi-Fi 7 Access Point, AP3600 Outdoor 1.0Part no. AP3600 OUTDOOR 1.0EAN 6971690795368
72 specifications
- Memory512 MB
- Speed3570 Mbit/s
- ColourWhite
- 2.4 GHzYes
- Security algorithmsWPA, WPA2, WPA3
- Ethernet LAN (RJ-45) ports2
Overview
- Memory
- 512 MB
- Speed
- 3570 Mbit/s
- Colour
- White
- 2.4 GHz
- Yes
- Security algorithms
- WPA, WPA2, WPA3
- Ethernet LAN (RJ-45) ports
- 2
- Brand
- Cudy
- Category
- Wireless Access Point
- Model
- BE3600 High Power Indoor/Outdoor Wi-Fi 7 Access Point, AP3600 Outdoor 1.0
- Part number
- AP3600 OUTDOOR 1.0
- EAN / UPC
- 6971690795368
- Also known as
- Cudy BE3600 High Power Indoor/Outdoor Wi-Fi 7 Access Point, AP3600 Outdoor 1.0 3570 Mbit/s White Power over Ethernet (PoE)
Specifications
72 specifications in 16 groups
Features
| Specification | Value |
|---|---|
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| 6 GHz | No |
| Maximum data transfer rate | 3570 Mbit/s |
| Maximum data transfer rate (2.4 GHz) | 688 Mbit/s |
| Maximum data transfer rate (5 GHz) | 2882 Mbit/s |
| Ethernet LAN data rates | 10,100,1000,2500 Mbit/s |
| Networking standards | IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11be, IEEE 802.11g, IEEE 802.11n, IEEE 802.3at |
| Bluetooth | No |
| Channel bandwidth | 160 MHz |
| MIMO | Yes |
| MIMO type | Multi User MIMO |
| Modulation | 4096-QAM |
| VLAN support | Yes |
| Quality of Service (QoS) support | Yes |
| Maximum outdoor range | 320 m |
Security
| Specification | Value |
|---|---|
| Security algorithms | WPA, WPA2, WPA3 |
| MAC address filtering | Yes |
| IP address filtering | Yes |
| Service Set Identifier (SSID) features | Multiple SSIDs |
| Number of SSID supported | 8 |
| Guest access | Yes |
| IGMP snooping | Yes |
Protocols
| Specification | Value |
|---|---|
| DHCP server | Yes |
Management features
| Specification | Value |
|---|---|
| Cloud-managed | Yes |
| Syslog | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 2 |
| USB 2.0 ports quantity | 0 |
Power
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) type supported | Passive PoE |
| AC input frequency | 50/60 Hz |
| AC input voltage | 100 - 240 V |
| Output voltage | 48 V |
| Power consumption (typical) | 5 W |
| Power consumption (max) | 18 W |
Design
| Specification | Value |
|---|---|

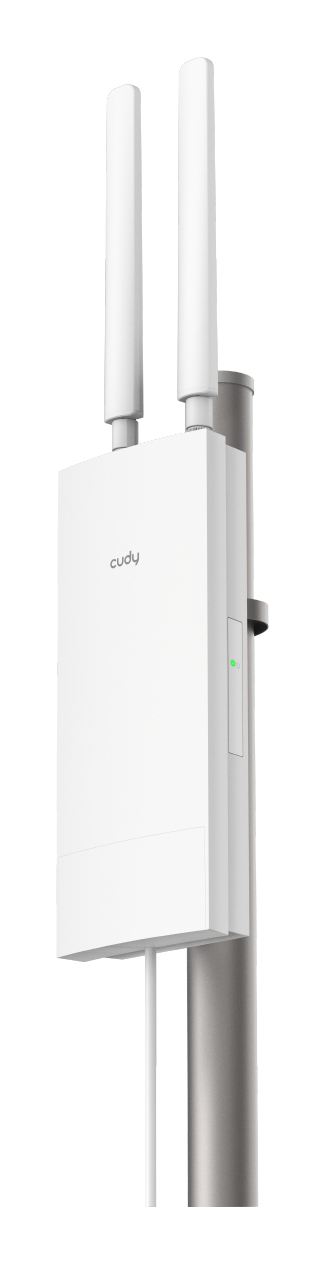

| Placement | Pole, Wall |
| Product colour | White |
| International Protection (IP) code | IP65 |
| Reset button | Yes |
| WPS push button | Yes |
| LED indicators | Yes |
Antenna
| Specification | Value |
|---|---|
| Antenna type | Internal & external |
| Antenna features | Detachable antenna |
| Antennas quantity | 3 |
| Antenna gain level (max) | 5.5 dBi |
| Antenna connector type | RP-SMA |
Performance
| Specification | Value |
|---|---|
| Built-in processor | Yes |
| Processor frequency | 2000 MHz |
| Flash memory | 128 MB |
| Internal memory | 512 MB |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | CE, Federal Communications Commission (FCC) |
Technical details
| Specification | Value |
|---|---|
| Products per shipping (inner) case | 10 pc(s) |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 240 mm |
| Depth | 100 mm |
| Height | 53.7 mm |
| Antenna depth | 2.16 cm |
| Antenna height | 1.55 cm |
| Antenna width | 19.8 cm |
Packaging data
| Specification | Value |
|---|---|
| Package width | 324 mm |
| Package depth | 107 mm |
| Package height | 86 mm |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| PoE adapter included | Yes |
| Cables included | LAN (RJ-45), AC |
| Mounting kit | Yes |
| Quick start guide | Yes |
| Bundled software | Cudy Software |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 0 - 100% |
| Operating temperature (T-T) | -40 - 65 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 10 - 95% |
Logistics data
| Specification | Value |
|---|---|
| Country of origin | China |
