AP1300 Outdoor
Model AP1300 OutdoorPart no. AP1300 OUTDOOREAN 6971690792893
89 specifications
- Memory128 MB
- Speed1167 Mbit/s
- Weight865 g
- ColourWhite
- 2.4 GHzYes
- Security algorithmsWPA, WPA2, WPA3
Overview
- Memory
- 128 MB
- Speed
- 1167 Mbit/s
- Weight
- 865 g
- Colour
- White
- 2.4 GHz
- Yes
- Security algorithms
- WPA, WPA2, WPA3
- Brand
- Cudy
- Category
- Wireless Access Point
- Model
- AP1300 Outdoor
- Part number
- AP1300 OUTDOOR
- EAN / UPC
- 6971690792893
- Also known as
- Cudy AP1300 Outdoor 1167 Mbit/s White Power over Ethernet (PoE)
Specifications
89 specifications in 16 groups
Features
| Specification | Value |
|---|---|
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| 6 GHz | No |
| Maximum data transfer rate | 1167 Mbit/s |
| Maximum data transfer rate (2.4 GHz) | 300 Mbit/s |
| Maximum data transfer rate (5 GHz) | 867 Mbit/s |
| Ethernet LAN data rates | 100,1000 Mbit/s |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3af, IEEE 802.3at |
| Number of users | 128 user(s) |
| Bluetooth | No |
| Channel bandwidth | 80 MHz |
| MIMO | Yes |
| MIMO type | Multi User MIMO |
| Fit AP mode features | Mesh networking |
| Wi-Fi Multimedia (WMM)/(WME) | Yes |
| Fast roaming | Yes |
| VLAN support | Yes |
| Virtual LAN features | Tagged VLAN |
| Rate limiting | Yes |
| Operating modes | Wireless Access Point, Wireless Router, Wireless Extender, WISP |
| Wireless isolation | Yes |
| Band steering | Yes |
| Quality of Service (QoS) support | Yes |
| Dynamic DNS (DDNS) | Yes |
| Port forwarding | Yes |
| BeamForming | Yes |
| Maximum outdoor range | 170 m |
Security
| Specification | Value |
|---|---|
| Security algorithms | WPA, WPA2, WPA3 |
| MAC address filtering | Yes |
| IP address filtering | Yes |
| Service Set Identifier (SSID) features | Multiple SSIDs |
| Number of SSID supported | 8 |
| Parental control | Yes |
| IGMP snooping | Yes |
| Network address translation (NAT) | Yes |
Protocols
| Specification | Value |
|---|---|
| DHCP client | Yes |
Management features
| Specification | Value |
|---|---|
| Web-based management | Yes |
| Syslog | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| USB 2.0 ports quantity | 0 |
| WAN connection | Wi-Fi, Ethernet (RJ-45) |
Power
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) type supported | Active PoE, Passive PoE |
| AC input frequency | 50/60 Hz |
| AC input voltage | 100 - 240 V |
| Output voltage | 24 - 57 V |
| Power consumption (typical) | 11 W |
Design
| Specification | Value |
|---|---|
| Placement | Pole, Wall |
| Product colour | White |
| International Protection (IP) code | IP65 |
| Reset button | Yes |
| WPS push button | Yes |
Antenna
| Specification | Value |
|---|---|
| Antenna type | External |
| Antenna features | Detachable antenna |
| Antennas quantity | 2 |
| Antenna connector type | RP-SMA |
Performance
| Specification | Value |
|---|---|
| Chipset | MT7621DA+MT7613B+MT7603E |
| Built-in processor | Yes |
| Processor frequency | 880 MHz |
| Flash memory | 16 MB |
| Internal memory | 128 MB |
| Compatible operating systems | Microso� Windows XP, Vista, Windows 7, Windows 8, Windows10, Linux |
Technical details
| Specification | Value |
|---|---|
| Products per shipping (inner) case | 20 pc(s) |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 100 mm |
| Depth | 53.7 mm |
| Height | 240 mm |
| Weight | 865 g |
| Antenna depth | 1.55 cm |
| Antenna height | 19.8 cm |
| Antenna width | 2.16 cm |
Packaging data
| Specification | Value |
|---|---|
| Package width | 324 mm |
| Package depth | 107 mm |
| Package height | 86 mm |
| Package weight | 865 g |

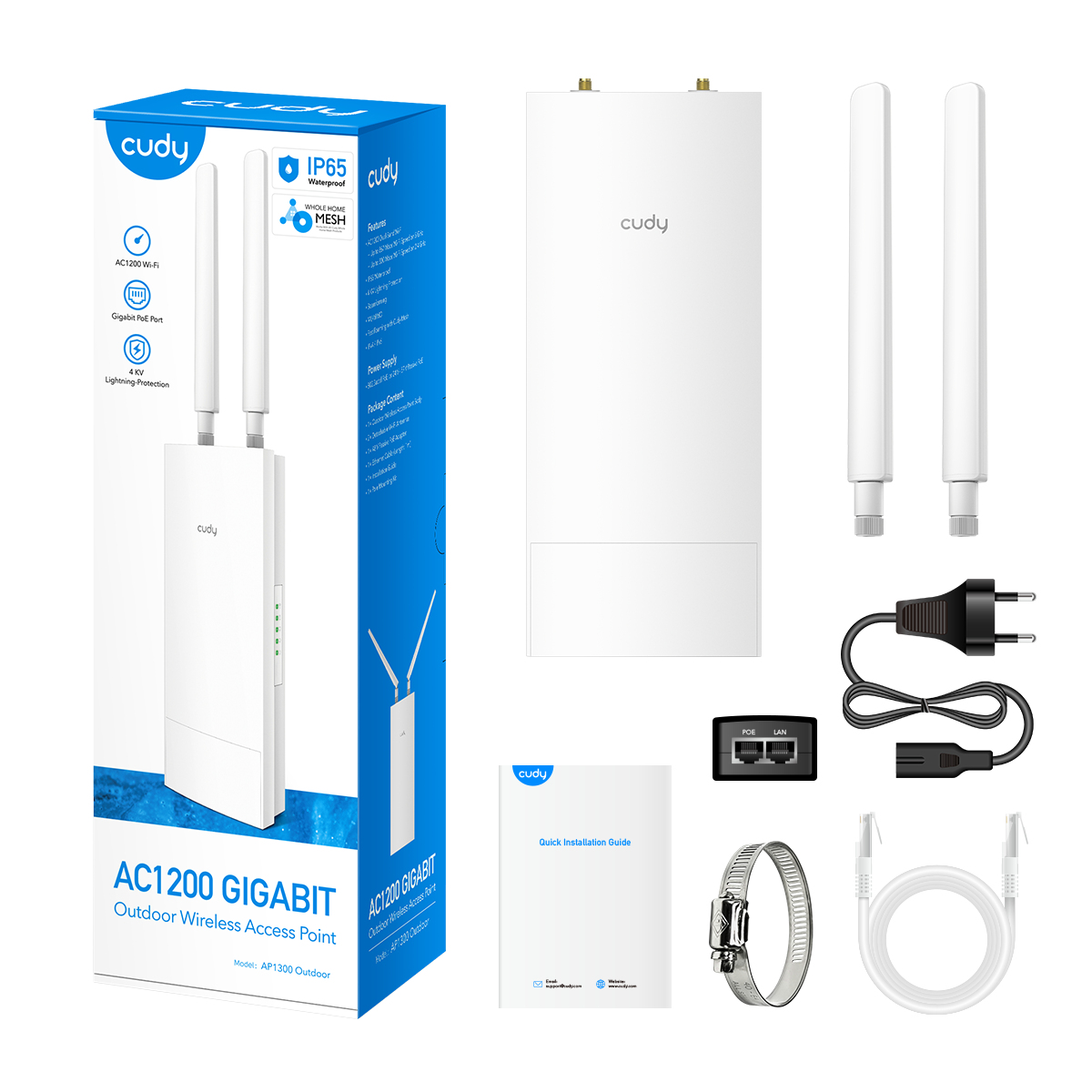

Packaging content
| Specification | Value |
|---|---|
| AC adapter included | No |
| PoE adapter included | Yes |
| Cables included | UTP |
| Mounting kit | Yes |
| Quick start guide | Yes |
| Antenna included | Yes |
| Manual languages | Multi |
| Bundled software | Cudy Software |
Other features
| Specification | Value |
|---|---|
| Wireless range | 170 m |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | -20 - 60 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 5 - 90% |
Logistics data
| Specification | Value |
|---|---|
| Country of origin | China |
| Warranty period | 1 year(s) |
