AC1300 1167 Mbit/s White Power over Ethernet (PoE)
Model AC1300Part no. AP1300EAN 6971690792022
77 specifications
- Memory128 MB
- Speed1167 Mbit/s
- Weight395.6 g
- ColourWhite
- 2.4 GHzYes
- Security algorithmsWPA, WPA2, WPA3
Overview
- Memory
- 128 MB
- Speed
- 1167 Mbit/s
- Weight
- 395.6 g
- Colour
- White
- 2.4 GHz
- Yes
- Security algorithms
- WPA, WPA2, WPA3
- Brand
- Cudy
- Category
- Wireless Access Point
- Model
- AC1300
- Part number
- AP1300
- EAN / UPC
- 6971690792022
- Also known as
- Cudy AC1300 1167 Mbit/s White Power over Ethernet (PoE)
Specifications
77 specifications in 17 groups
Features
| Specification | Value |
|---|---|
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| 6 GHz | No |
| Maximum data transfer rate | 1167 Mbit/s |
| Maximum data transfer rate (2.4 GHz) | 300 Mbit/s |
| Maximum data transfer rate (5 GHz) | 867 Mbit/s |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u |
| Cabling technology | 10/100/1000Base-T(X) |
| Bluetooth | No |
| Full duplex | Yes |
| MIMO | Yes |
| MIMO type | Multi User MIMO |
| Fit AP mode features | Mesh networking |
| VLAN support | Yes |
| Virtual LAN features | Tagged VLAN |
| Rate limiting | Yes |
| Flow control support | Yes |
| Band steering | Yes |
| Quality of Service (QoS) support | Yes |
Security
| Specification | Value |
|---|---|
| Security algorithms | WPA, WPA2, WPA3 |
| MAC address filtering | Yes |
| IP address filtering | Yes |
| Service Set Identifier (SSID) features | Multiple SSIDs |
| Parental control | Yes |
| IGMP snooping | Yes |
Protocols
| Specification | Value |
|---|---|
| DHCP client | Yes |
Management features
| Specification | Value |
|---|---|
| Web-based management | Yes |
| Syslog | Yes |

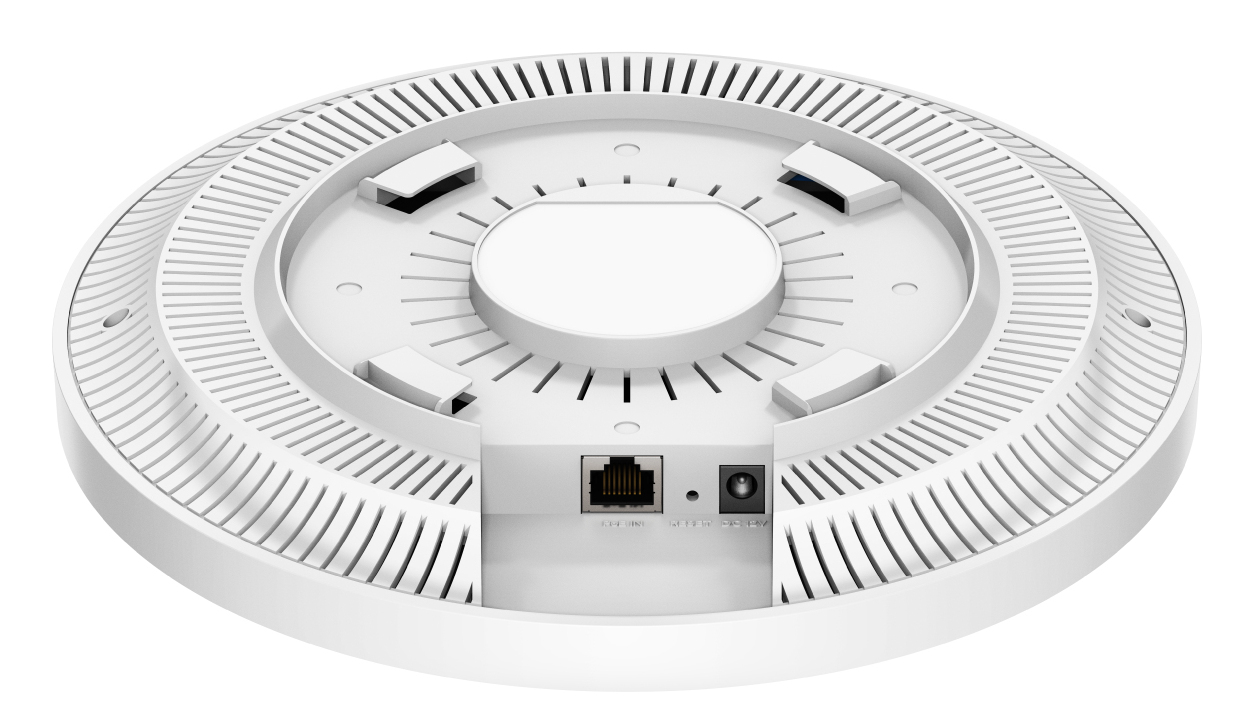

Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| USB 2.0 ports quantity | 0 |
| WAN connection | Ethernet (RJ-45) |
| DC-in jack | Yes |
Power
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) type supported | Passive PoE |
| AC input voltage | 100 - 240 V |
| DC voltage range | 24 - 57 V |
| Output voltage | 12 V |
| Output current | 1 A |
| Power consumption (max) | 11 W |
Design
| Specification | Value |
|---|---|
| Placement | Ceiling, Wall |
| Product colour | White |
| Reset button | Yes |
| LED indicators | Yes |
| Internal | No |
Antenna
| Specification | Value |
|---|---|
| Antenna type | Internal |
| Antenna direction type | Omni-directional |
| Antennas quantity | 4 |
Performance
| Specification | Value |
|---|---|
| Built-in processor | Yes |
| Processor frequency | 880 MHz |
| Flash memory | 16 MB |
| Internal memory | 128 MB |
| Compatible operating systems | Windows, MAC OS, NetWare, UNIX, Linux |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | CE |
Technical details
| Specification | Value |
|---|---|
| Products per shipping (inner) case | 20 pc(s) |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 232 mm |
| Depth | 57.1 mm |
| Height | 232 mm |
| Weight | 395.6 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 283 mm |
| Package depth | 238 mm |
| Package height | 68 mm |
| Package weight | 1.51 kg |

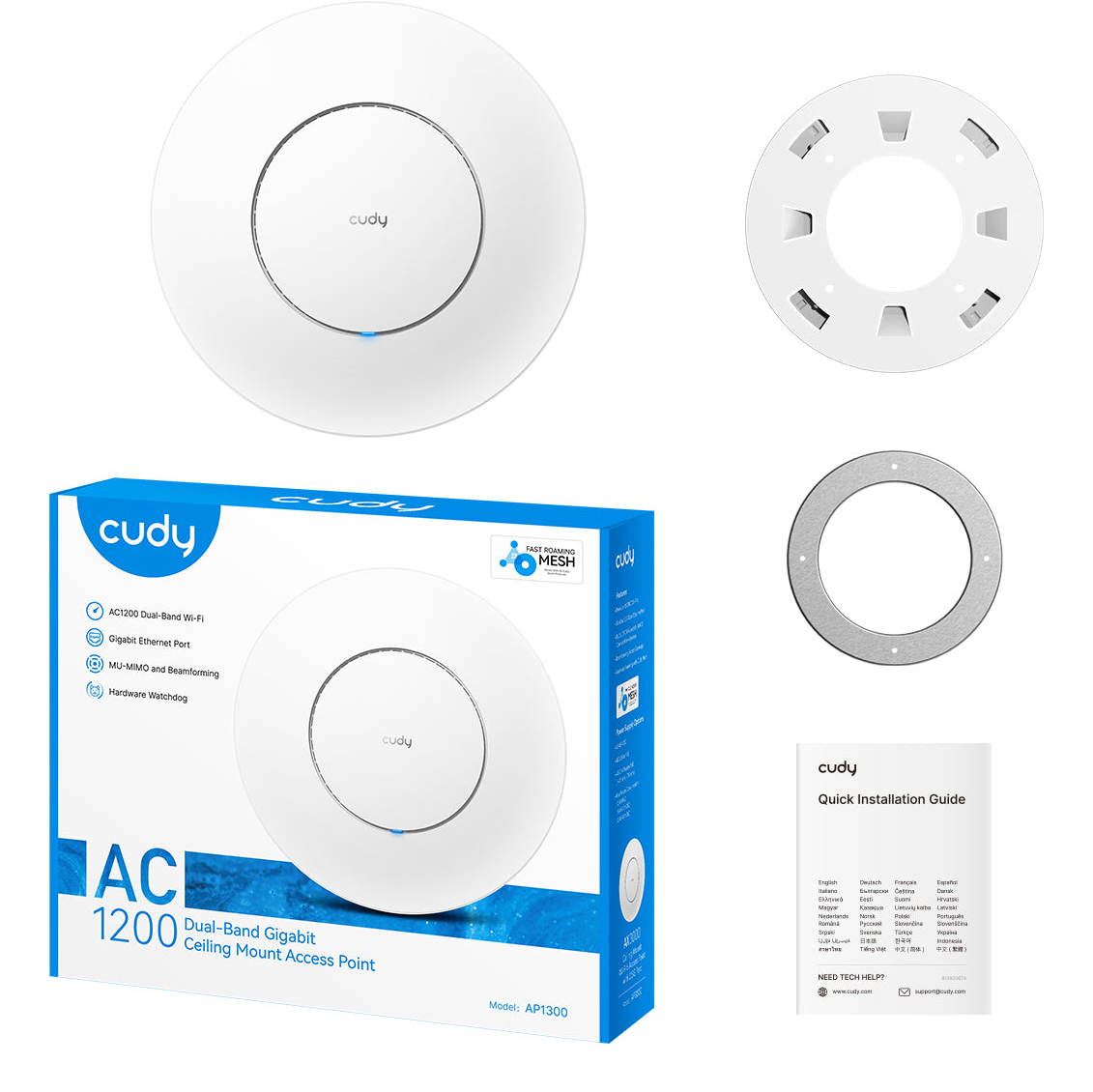

Packaging content
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
| AC adapter included | Yes |
| PoE adapter included | No |

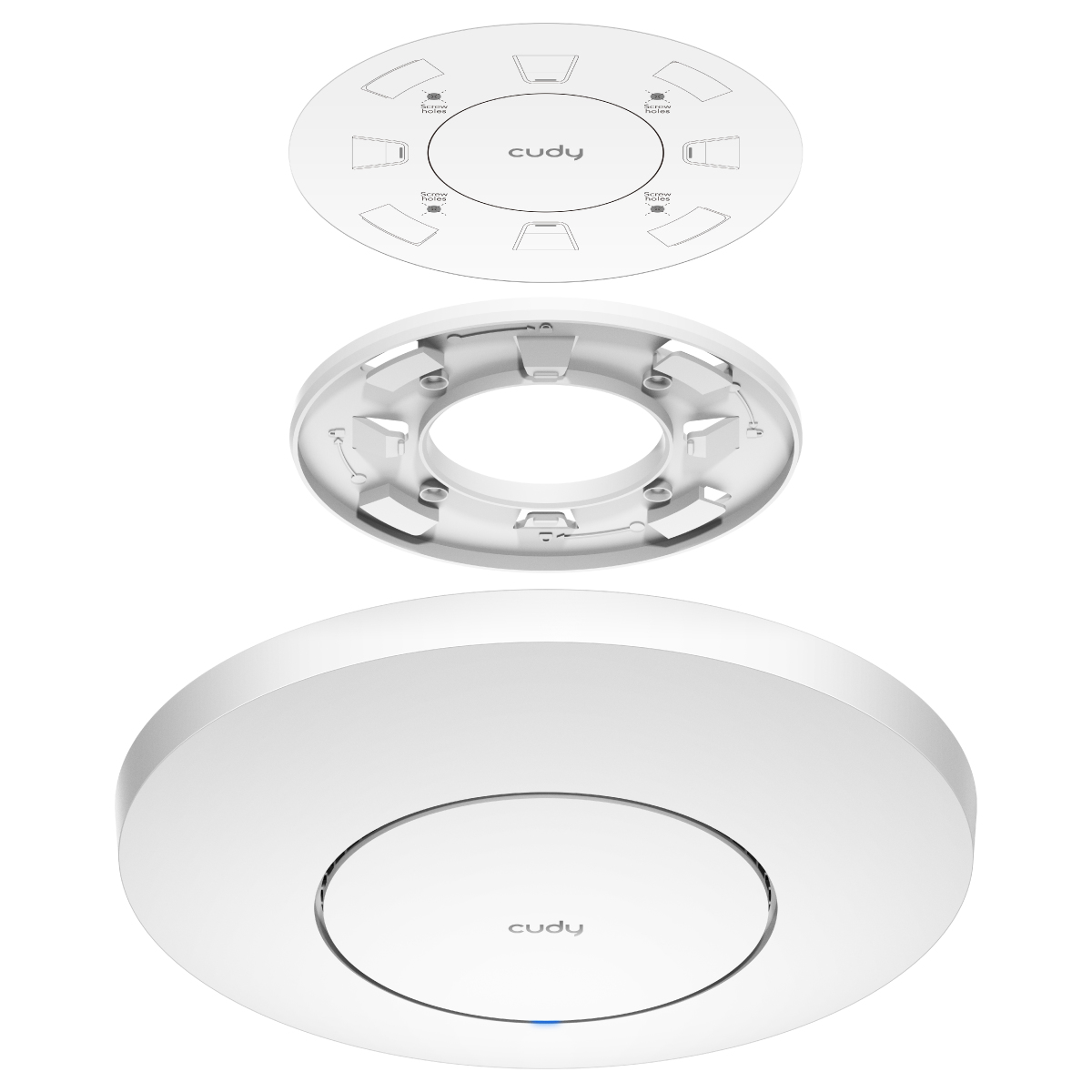

| Mounting kit | Yes |
| Quick start guide | Yes |
| Manual languages | Multi |
| Bundled software | Cudy Software |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | -10 - 65 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 5 - 90% |
Sustainability
| Specification | Value |
|---|---|
| Sustainability compliance | Yes |
Logistics data
| Specification | Value |
|---|---|
| Country of origin | China |
| Warranty period | 1 year(s) |
