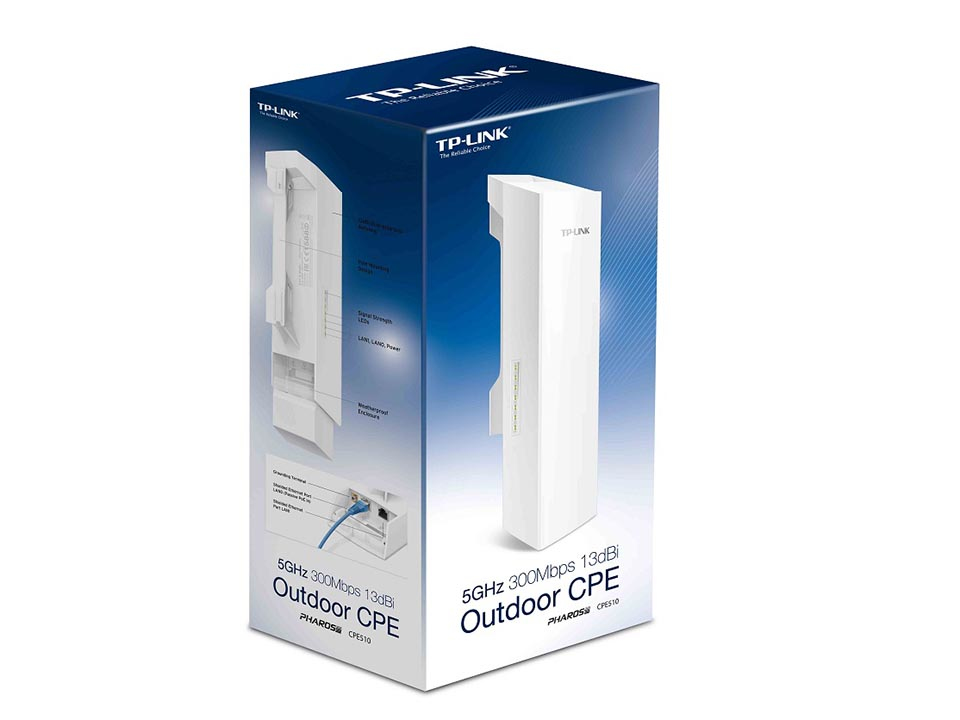

TP-Link 5GHz 300Mbps 13dBi Outdoor CPE

5GHz 300Mbps 13dBi Outdoor CPE

Model CPE510EAN 8459730709226

71 specifications

ProcessorQualcomm Atheros
Memory64 MB
Speed300 Mbit/s
ColourWhite
2.4 GHzNo
MAC address filteringYes

See all specifications

Overview

Processor: Qualcomm Atheros
Memory: 64 MB
Speed: 300 Mbit/s
Colour: White
2.4 GHz: No
MAC address filtering: Yes

Brand: TP-Link
Category: Wireless Access Point
Model: CPE510
Part numbers: CPE510, CPE510 V1
EAN / UPC: 8459730709226, 758399148703, 769118363444, 5054629497135 +14 more
Also known as: TP-Link 5GHz 300Mbps 13dBi Outdoor CPE

Specifications

71 specifications in 14 groups

Features

Specification	Value
2.4 GHz	No
5 GHz	Yes
6 GHz	No
Maximum data transfer rate	300 Mbit/s
Maximum data transfer rate (5 GHz)	300 Mbit/s
Ethernet LAN data rates	10,100 Mbit/s
Throughput data rate	300 Mbit/s
Frequency band	5.15 - 5.85 GHz
Bandwidth	5 GHz
Networking standards	IEEE 802.11a, IEEE 802.11n
Cabling technology	10/100Base-T(X)
Automatic channel scanning	Yes
Automatic channel selection	Yes
VLAN support	Yes
Virtual LAN features	Tagged VLAN
Wireless isolation	Yes
Maximum outdoor range	15000 m
Receiver sensitivity	802.11a: 54M: -75dBm, 48M: -76dBm, 36M: -83dBm, 6-24M: -95dBm 802.11n: MCS15: -73dBm, MCS14: -74dBm, MCS13: -76dBm, MCS12: -80dBm, MCS11: -83dBm, MCS10: -88dBm, MCS9: -90dBm, MCS8: -93dBm, MCS7: -73dBm, MCS6: -74dBm, MCS5: -76dBm, MCS4: -80dBm, MCS3: -83dBm, MCS2: -88dBm, MCS1: -90dBm, MCS0: -93dBm

Security

Specification	Value
Security algorithms	AES, TKIP, WPA, WPA-PSK, WPA2, WPA2-PSK
MAC address filtering	Yes
IP address filtering	Yes
Service Set Identifier (SSID) features	SSID broadcast, SSID broadcast on/off
IGMP snooping	Yes
Auto Wireless Distribution System (WDS)	Yes

Protocols

Specification	Value
Universal Plug and Play (UPnP)	Yes
Management protocols	TDMA

Management features

Specification	Value
Web-based management	Yes
Syslog	Yes
Management platform	Pharos Control
Firmware upgradeable	Yes

Ports & interfaces

Specification	Value

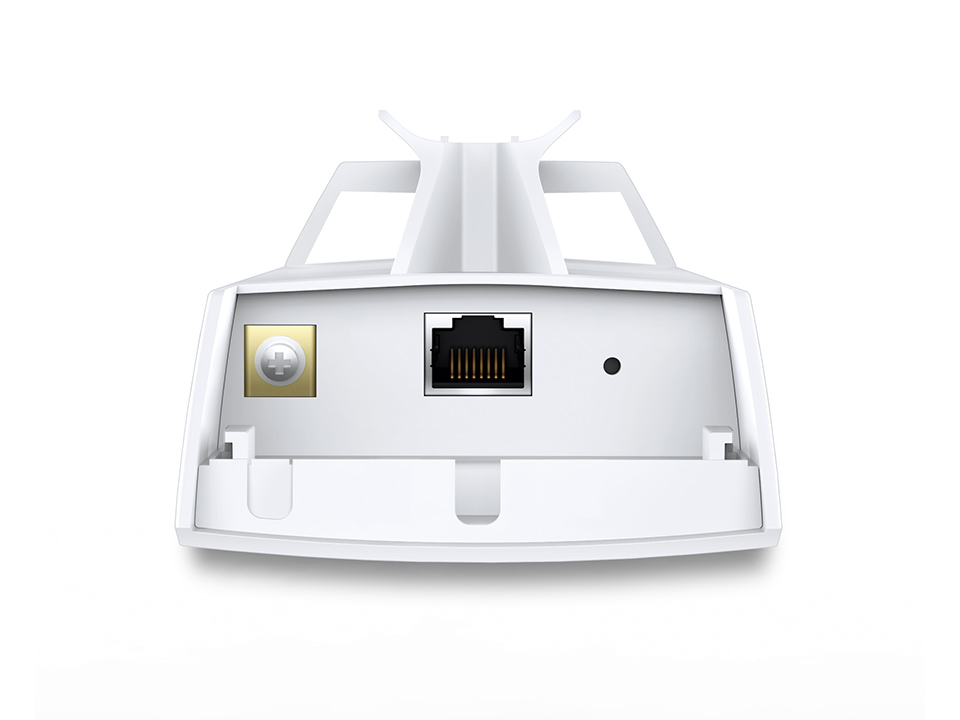

Ethernet LAN (RJ-45) ports	1
USB 2.0 ports quantity	0
WAN connection	Ethernet (RJ-45)
DC-in jack	Yes

Power

Specification	Value
Power over Ethernet (PoE)	Yes
DC voltage range	16 - 27 V
Power consumption (typical)	13 W

Design

Specification	Value
Placement	Pole, Wall
Product colour	White
Housing material	Plastic
International Protection (IP) code	IP5X
Reset button	Yes
LED indicators	Yes

Antenna

Specification	Value
Antenna type	Internal
Antenna direction type	Omni-directional
Antenna features	Integrated antenna
Antennas quantity	1
Antenna gain level (max)	13 dBi

Performance

Specification	Value
Built-in processor	Yes
Processor model	Qualcomm Atheros
Processor frequency	560 MHz
Processor architecture	MIPS 74Kc
Flash memory	8 MB
Internal memory	64 MB
Compatible operating systems	Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 8, Windows 7, MAC OS, NetWare, UNIX or Linux.

Certificates

Specification	Value
Certification	- FCC/UL/IC/GS/PSB/C-tick/SAA/S-Mark/KC-mark - RoHS

Weight & dimensions

Specification	Value
Width	224.4 mm
Depth	79 mm
Height	60.3 mm

Packaging data

Specification	Value
Package width	132 mm
Package depth	270 mm
Package height	106 mm
Package weight	720 g

Packaging content

Specification	Value
Quantity per pack	1 pc(s)
PoE adapter included	Yes
Cables included	AC
Mounting kit	Yes

Operational conditions

Specification	Value
Operating relative humidity (H-H)	10 - 90%
Operating temperature (T-T)	-30 - 70 °C
Storage temperature (T-T)	-40 - 70 °C
Storage relative humidity (H-H)	5 - 95%
