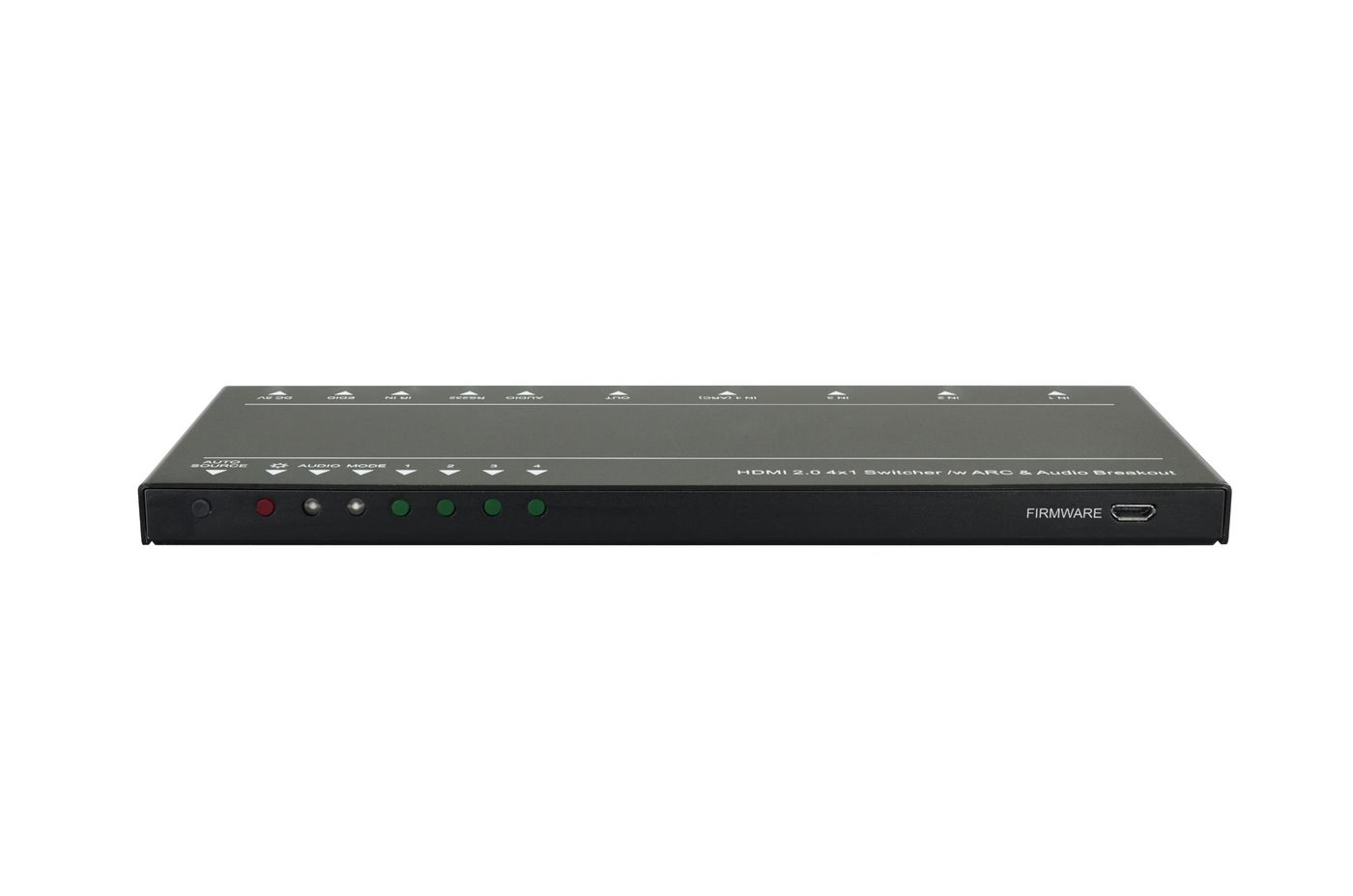

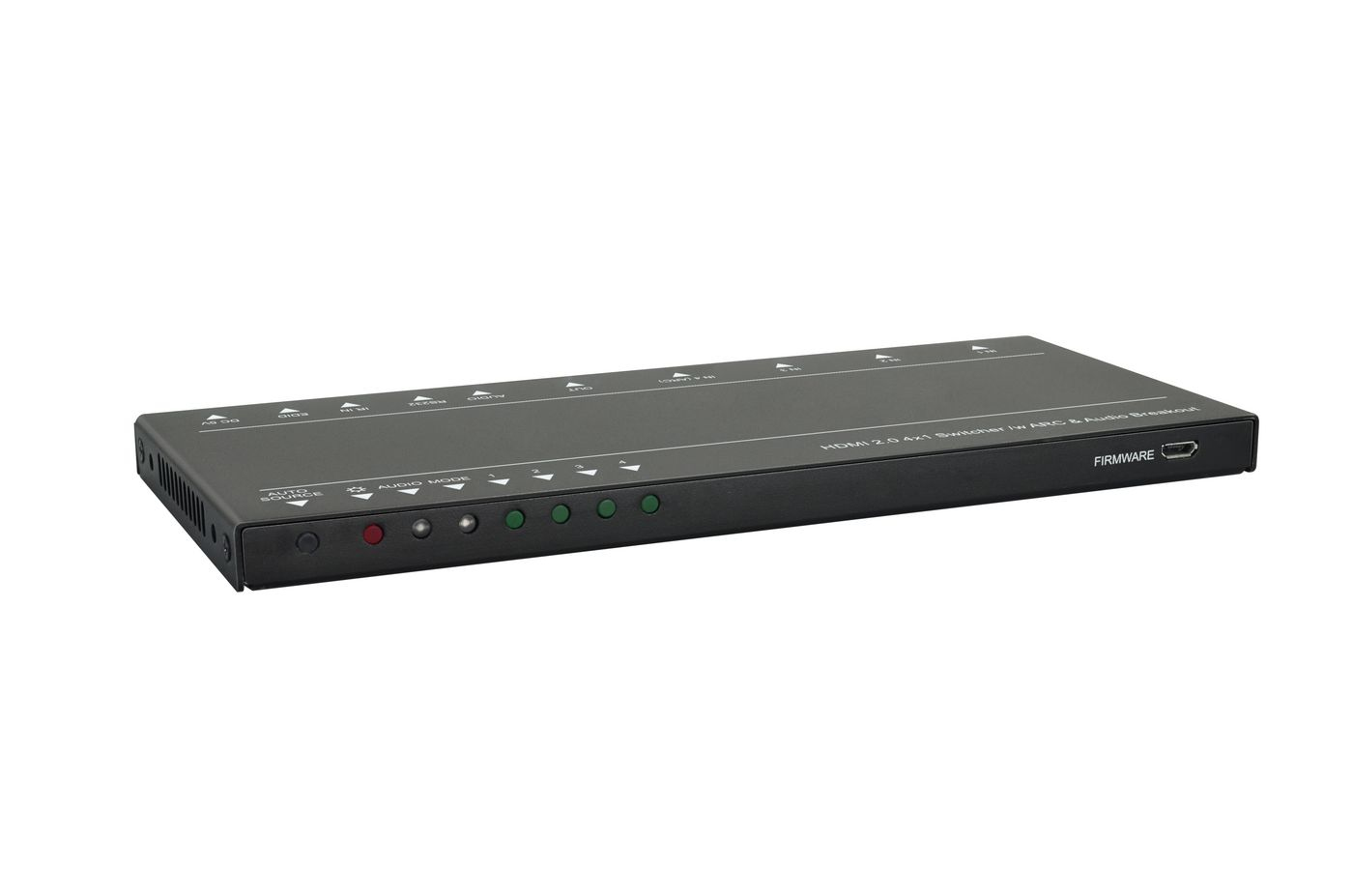

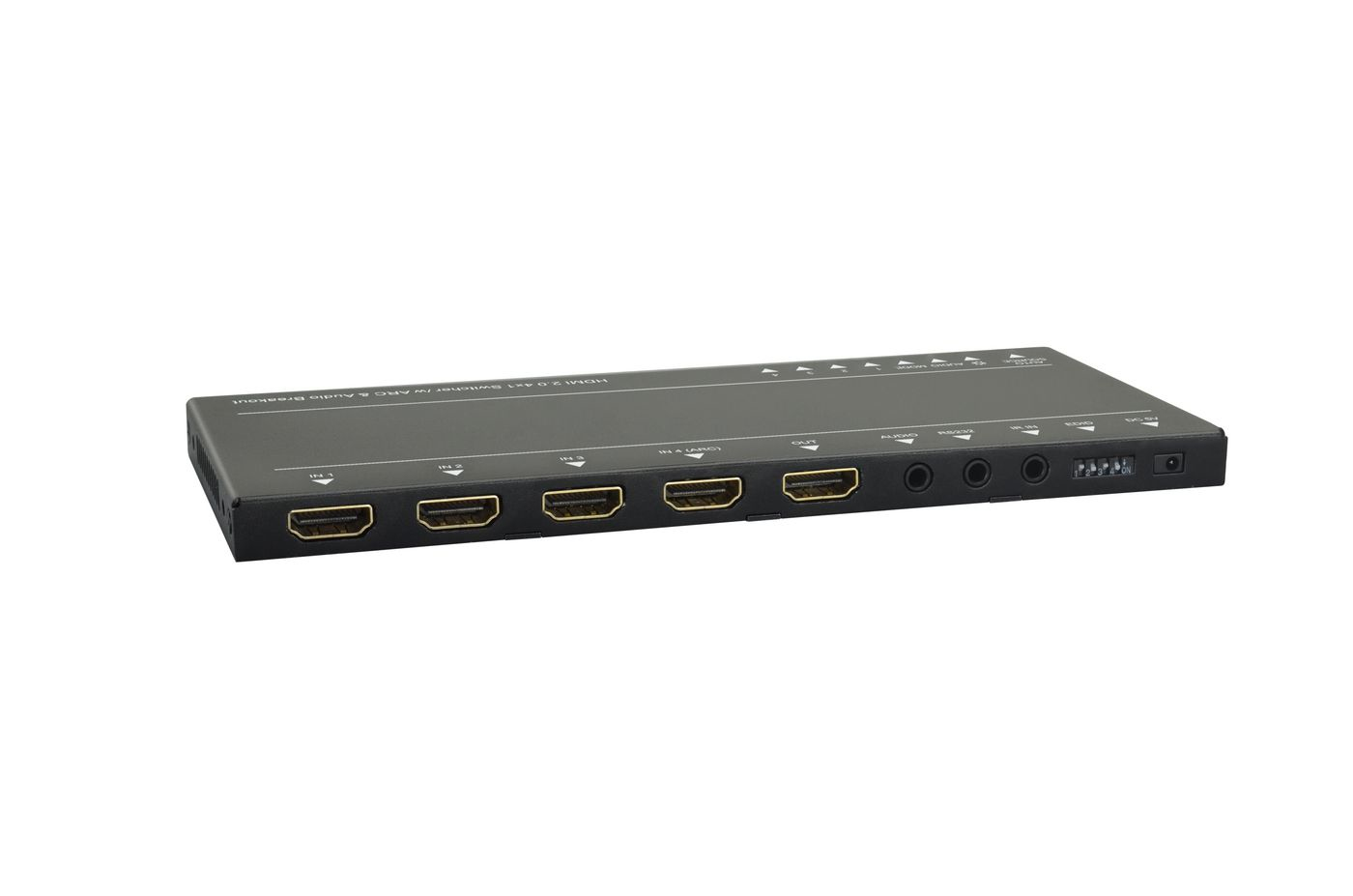

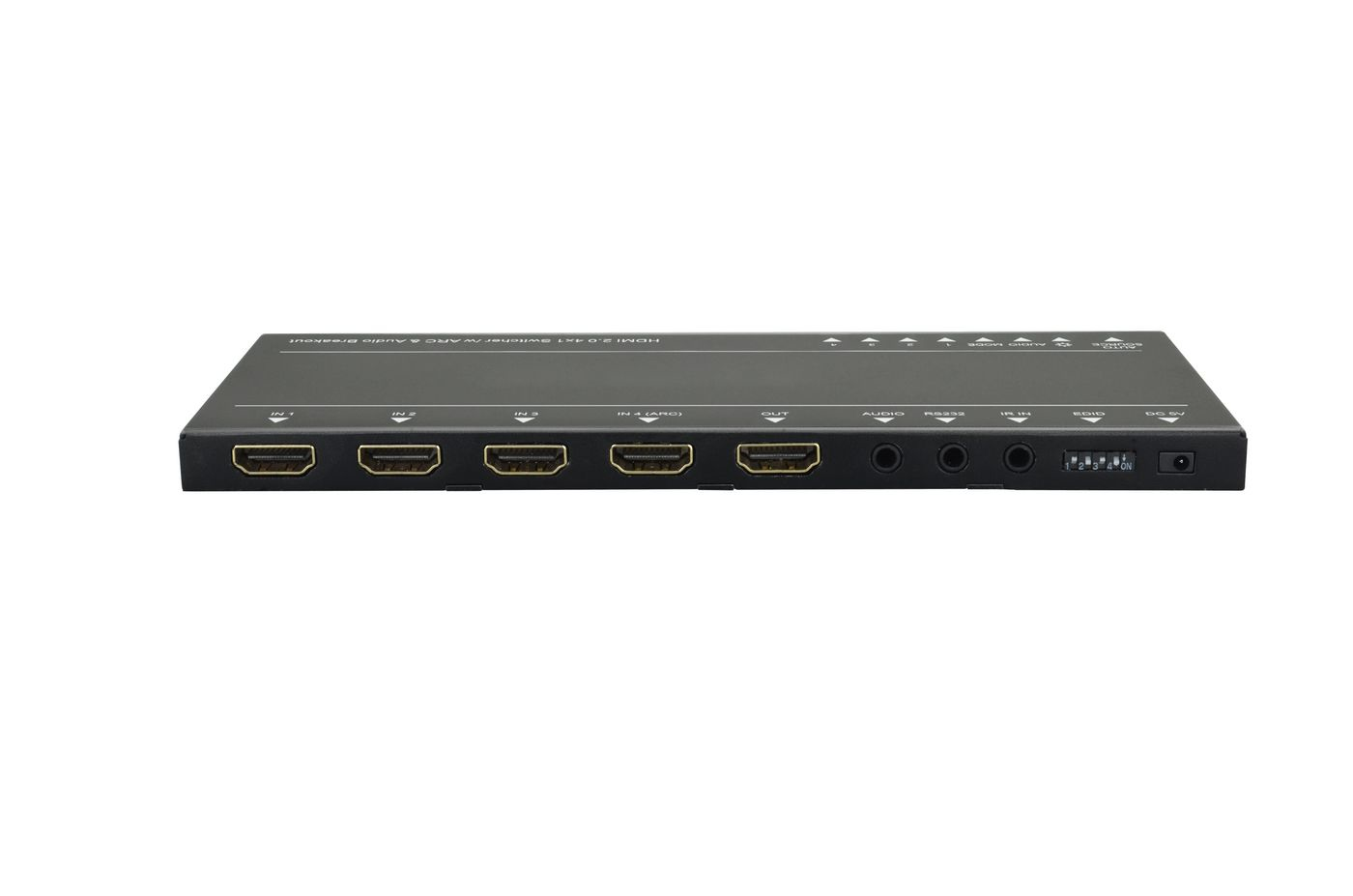

VLSW141H video switch HDMI
Model VLSW141H
38 specifications
- Weight180 g
- ColourBlack
- Video port typeHDMI
- AC input voltage100 - 240 V
- Width194 mm
- Operating temperature (T-T)-10 - 55 °C
Overview
- Weight
- 180 g
- Colour
- Black
- Video port type
- HDMI
- AC input voltage
- 100 - 240 V
- Width
- 194 mm
- Operating temperature (T-T)
- -10 - 55 °C
- Brand
- Vivolink
- Category
- Video Switch
- Model
- VLSW141H
- Part number
- VLSW141H
- Also known as
- Vivolink VLSW141H video switch HDMI
Specifications
38 specifications in 8 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Video port type | HDMI |
| HDMI ports quantity | 5 |
| HDMI version | 2.0 |
| HDMI in | 4 |
| Number of HDMI outputs | 1 |
| Audio (L/R) out | 1 |
| S/PDIF out port | No |
| 3.5 mm (1/8-inch) out | Yes |
| RS-232 ports | 1 |
Features
| Specification | Value |
|---|---|
| Product colour | Black |
| Consumer Electronics Control (CEC) support | Yes |
| Extended display identification data (EDID) | Yes |
| Maximum frame rate | 60 fps |
| Audio formats supported | PCM |
| Audio output channels | 2.0 channels |
| Bandwidth | 18 Gbit/s |
| HD type | 4K Ultra HD |
| HDCP | Yes |
| HDCP version | 2.2 |
| LED indicators | Yes |
| Maximum resolution | 3840 x 2160 pixels |
| Plug and Play | Yes |
| Remote control type | IR + RS232 |
Power
| Specification | Value |
|---|---|
| AC input voltage | 100 - 240 V |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 194 mm |
| Depth | 81 mm |
| Height | 12 mm |
| Weight | 180 g |
| Dimensions (WxDxH) | 194 x 81 x 12 mm |
Packaging data
| Specification | Value |
|---|---|
| Package width | 239 mm |
| Package depth | 134 mm |
| Package height | 124 mm |
| Package weight | 564 g |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Mounting brackets included | Yes |
| Remote control included | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -10 - 55 °C |
Technical details
| Specification | Value |
|---|---|
| Audio support | Yes |
