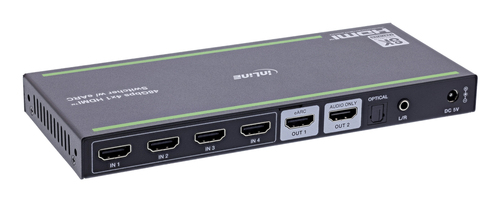

57885A video switch HDMI
Model 57885AEAN 4043718344246
51 specifications
- Weight433 g
- ColourBlack
- Video port typeHDMI
- MaterialMetal
- AC input voltage100 - 240 V
- Width88 mm
Overview
- Weight
- 433 g
- Colour
- Black
- Video port type
- HDMI
- Material
- Metal
- AC input voltage
- 100 - 240 V
- Width
- 88 mm
- Brand
- InLine
- Category
- Video Switch
- Model
- 57885A
- Part number
- 57885A
- EAN / UPC
- 4043718344246
- Also known as
- InLine 57885A video switch HDMI
Specifications
51 specifications in 9 groups

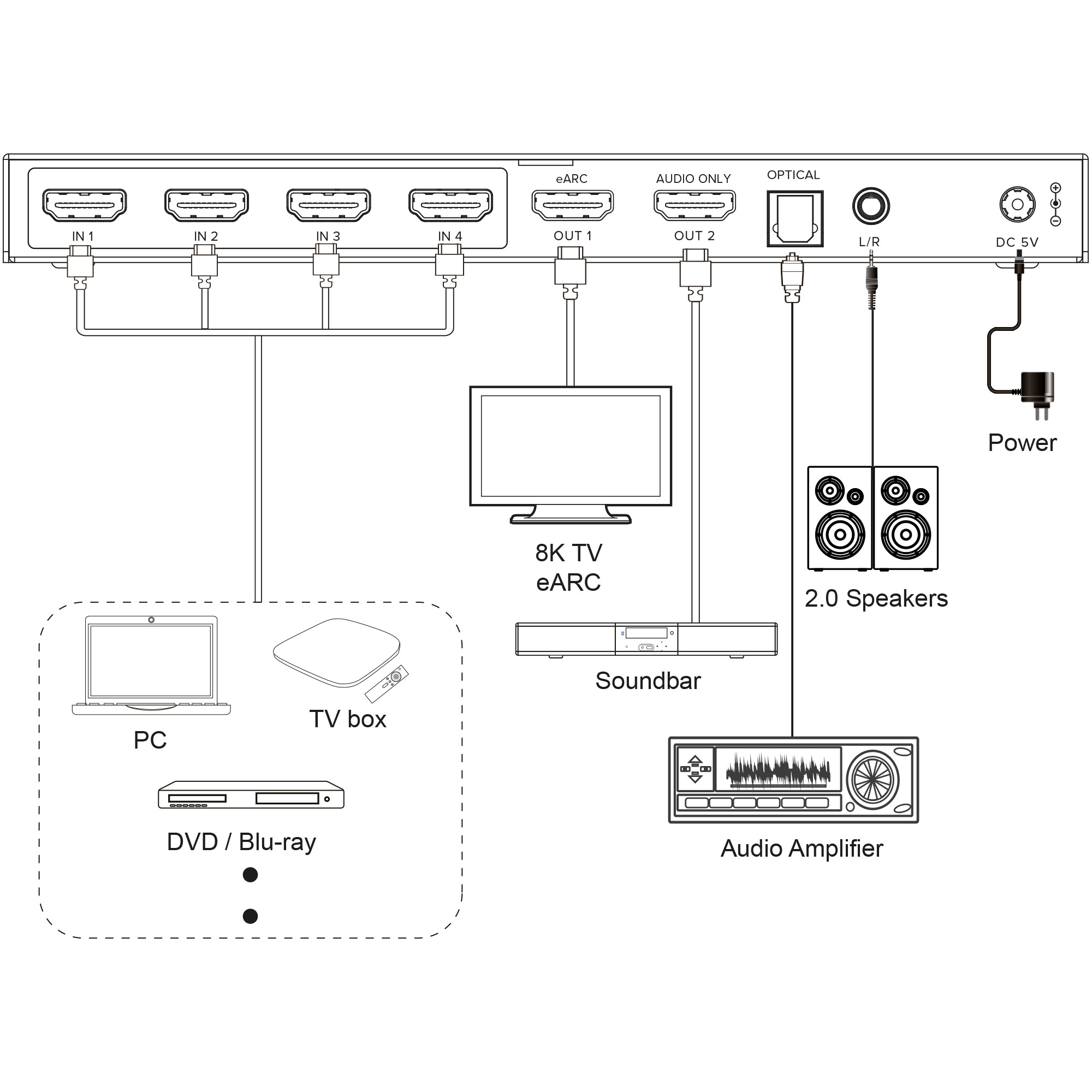

Ports & interfaces
| Specification | Value |
|---|---|
| Video port type | HDMI |
| HDMI ports quantity | 6 |
| HDMI version | 2.1 |
| HDMI in | 4 |
| Number of HDMI outputs | 2 |
| Digital audio optical out | 1 |
| 3.5 mm (1/8-inch) out | Yes |
| DC-in jack | Yes |
Features
| Specification | Value |
|---|---|
| Material | Metal |
| Product colour | Black |
| Consumer Electronics Control (CEC) support | Yes |
| Electrostatic Discharge (ESD) protection (air) | 8 kV |
| Electrostatic Discharge (ESD) protection (contact) | 4 kV |
| Extended display identification data (EDID) | Yes |
| High Dynamic Range (HDR) supported | Yes |
| High Dynamic Range (HDR) technology | Dolby Vision, High Dynamic Range 10 (HDR10), High Dynamic Range 10+ (HDR10 Plus), Hybrid Log-Gamma (HLG) |
| Audio decoders | DTS, DTS-HD, DTS:X, Dolby Atmos, Dolby Digital, Dolby Digital Plus, Dolby TrueHD |
| Bandwidth | 48 Gbit/s |
| Colour depth | 12 bit |
| HD type | 8K Ultra HD |
| HDCP | Yes |
| HDCP version | 2.3 |
| LED indicators | Yes |
| Maximum refresh rate | 120 Hz |
| Maximum resolution | 7680 x 4320 pixels |
| Supported graphics resolutions | 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 3840 x 2160, 7680 x 4320 |
| Supported video modes | 720p, 1080p |
Power
| Specification | Value |
|---|---|
| AC input voltage | 100 - 240 V |
| AC adapter frequency | 50/60 Hz |
| AC adapter output voltage | 5 V |
| AC adapter output current | 1 A |
| Power consumption (typical) | 5 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 88 mm |
| Depth | 199 mm |
| Height | 19 mm |
| Weight | 433 g |
| Dimensions (WxDxH) | 88 x 199 x 19 mm |
Packaging data
| Specification | Value |
|---|---|
| Package width | 168 mm |
| Package depth | 225 mm |
| Package height | 75 mm |
| Package weight | 783 g |
| Package volume | 14600 cm³ |

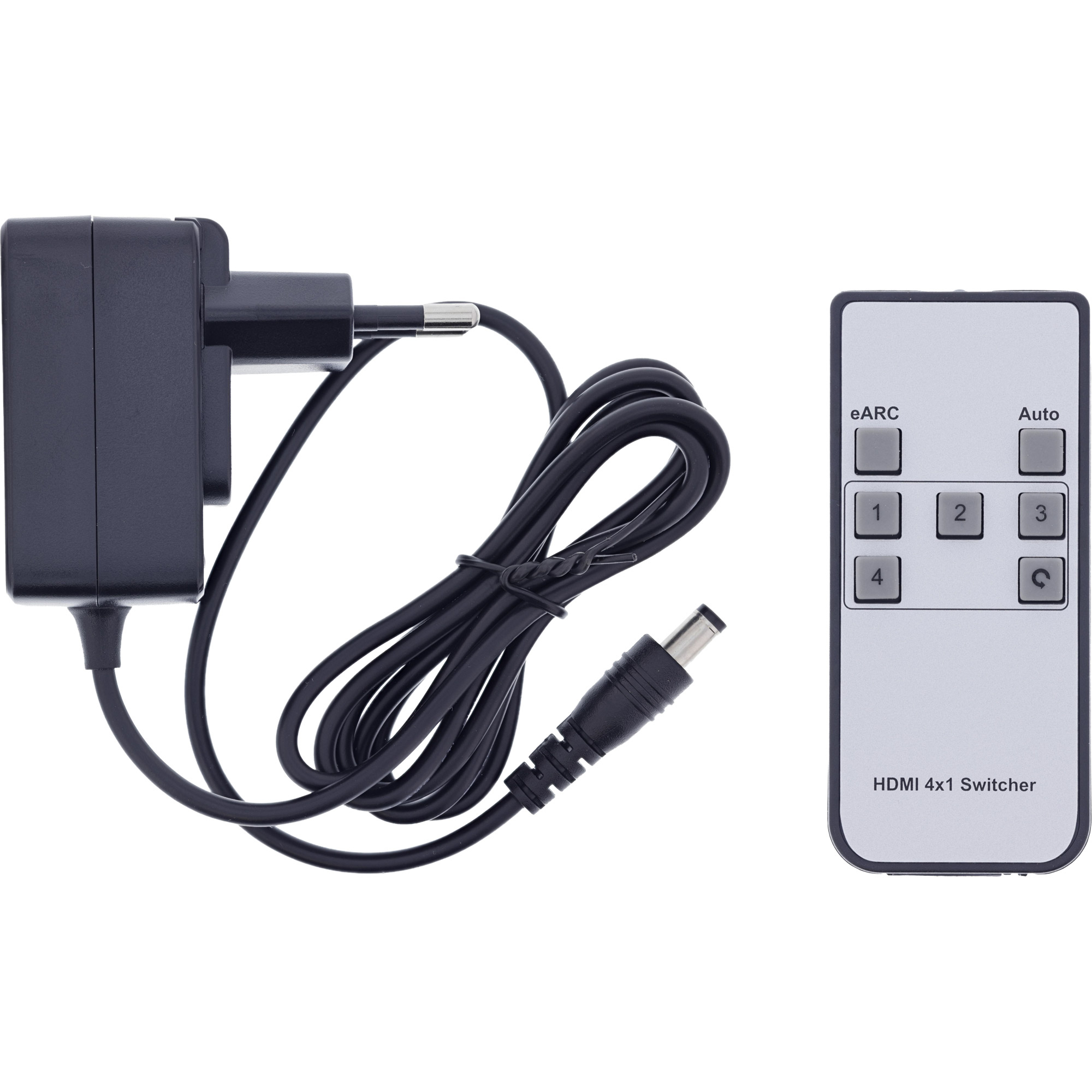

Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Manual | Yes |
| Remote control included | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage relative humidity (H-H) | 10 - 90% |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | TÜV mark |
Logistics data
| Specification | Value |
|---|---|
| Country of origin | Taiwan |
