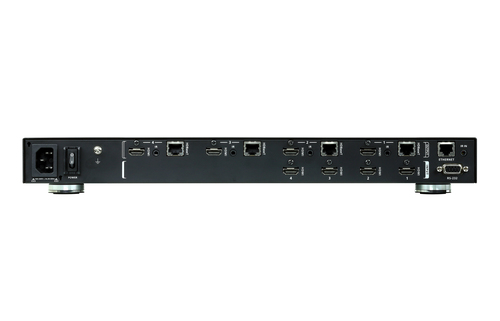

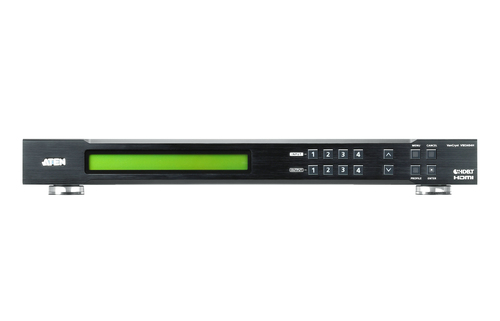

4 x 4 HDMI HDBaseT-Lite (Class B) 4K Matrix Switch
Model VM3404H-AT-GEAN 4719264643491
47 specifications
- Weight5.93 kg
- ColourBlack
- Video port typeHDMI
- MaterialMetal
- AC adapter input voltage100 - 240 V
- Width382.3 mm
Overview
- Weight
- 5.93 kg
- Colour
- Black
- Video port type
- HDMI
- Material
- Metal
- AC adapter input voltage
- 100 - 240 V
- Width
- 382.3 mm
- Brand
- ATEN
- Category
- Video Switch
- Model
- VM3404H-AT-G
- Part number
- VM3404H-AT-G
- EAN / UPC
- 4719264643491
- Also known as
- ATEN 4 x 4 HDMI HDBaseT-Lite (Class B) 4K Matrix Switch
Specifications
47 specifications in 9 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Video port type | HDMI |
| HDMI ports quantity | 8 |
| HDMI in | 4 |
| Number of HDMI outputs | 4 |
| RJ-45 input ports | 1 |
| RJ-45 output ports | 4 |
| RS-232 ports | 1 |
Features
| Specification | Value |
|---|---|
| Material | Metal |
| Product colour | Black |
| Extended display identification data (EDID) | Yes |
| 3D | Yes |
| Bandwidth | 10.2 Gbit/s |
| Bandwidth | 340 MHz |
| HDCP | Yes |
| Input impedance | 100 Ω |
| Maximum operating distance | 70 m |
| Maximum resolution | 4096 x 2160 pixels |
| Output impedance | 100 Ω |
| Supported graphics resolutions | 3840 x 2160, 4096 x 2160 |
Power
| Specification | Value |
|---|---|
| AC adapter input voltage | 100 - 240 V |
| AC adapter frequency | 50/60 Hz |
| AC adapter input current | 1 A |
| Power consumption (max) | 62.6 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 382.3 mm |
| Depth | 432.4 mm |
| Height | 44 mm |
| Weight | 5.93 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 505 mm |
| Package depth | 573 mm |
| Package height | 124 mm |
| Package weight | 7.33 kg |
Packaging content
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
| Mounting kit | Yes |
| Cables included | AC |
| Mounting brackets included | Yes |
| User guide | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85176990 |
| Master (outer) case width | 506 mm |
| Master (outer) case length | 575 mm |
| Master (outer) case height | 130 mm |
| Master (outer) case gross weight | 7.33 kg |
| Master (outer) case net weight | 5.93 kg |
| Products per master (outer) case | 1 pc(s) |
