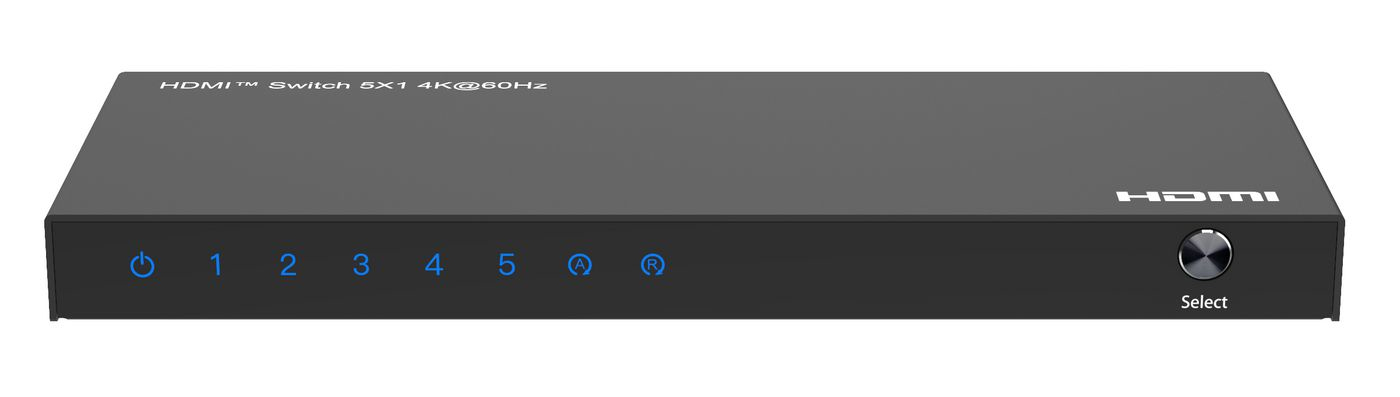

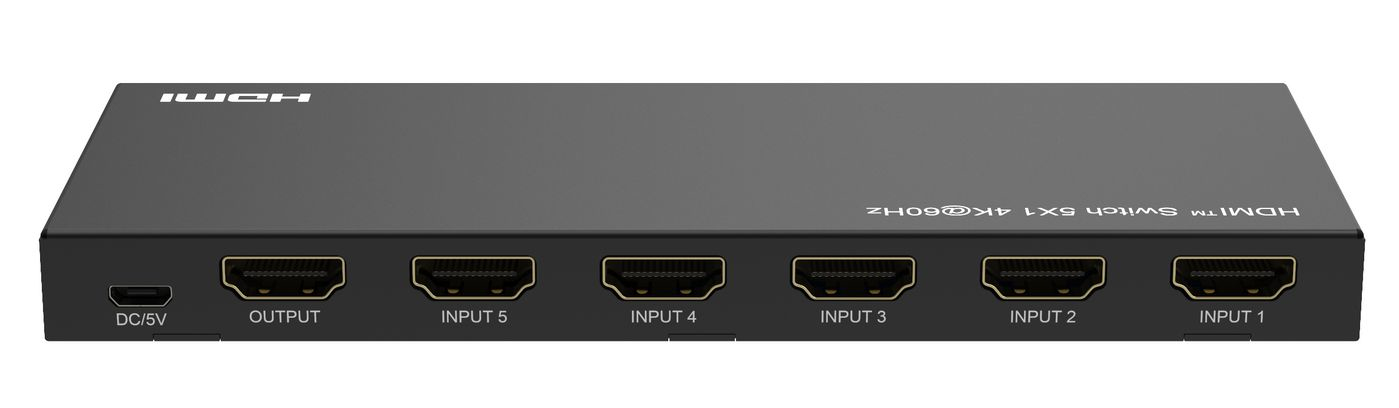

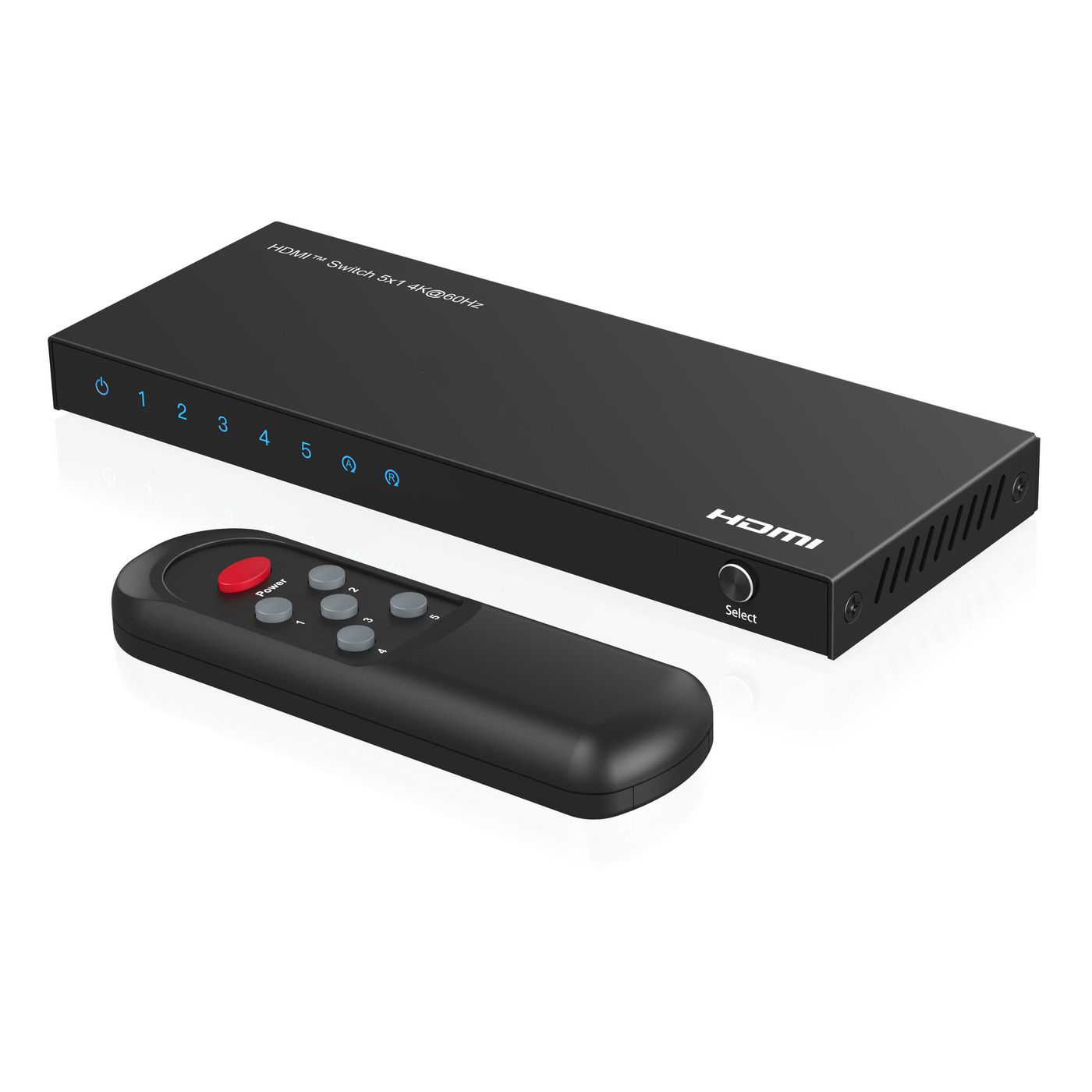

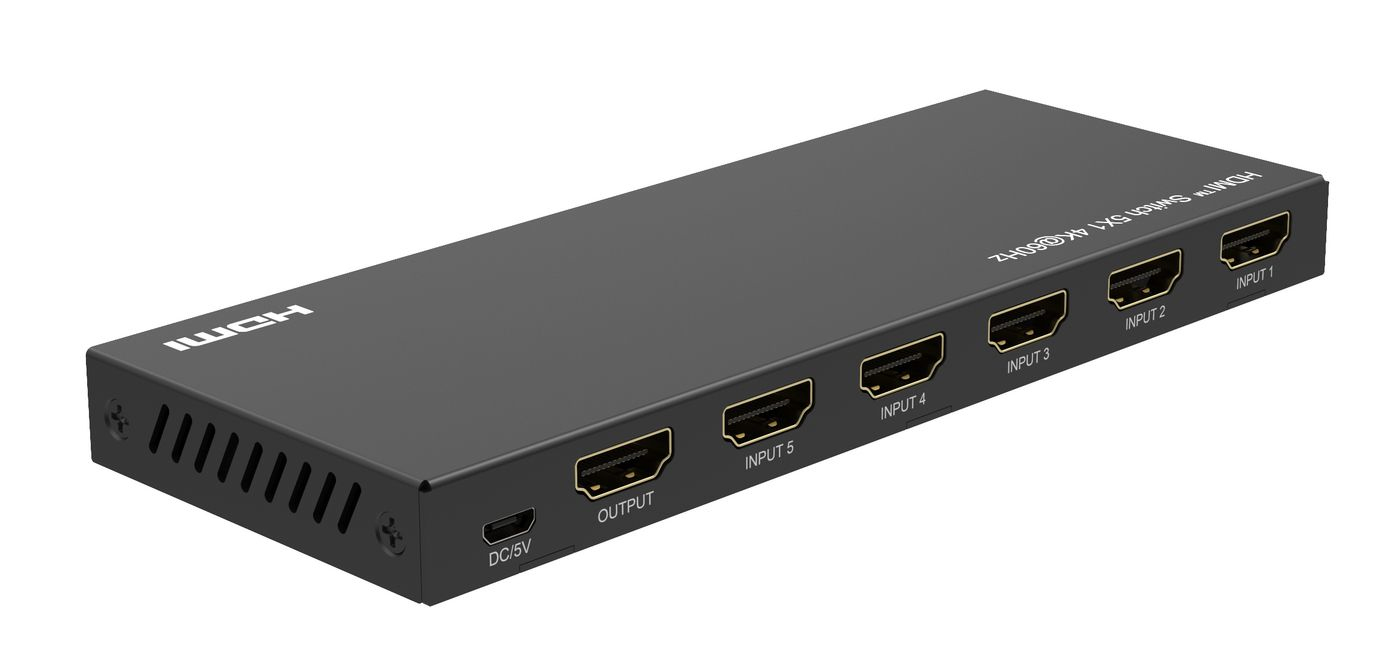

MC-HDMISWITCH0501-4K video switch
Model MC-HDMISWITCH0501-4KEAN 5715063148761
49 specifications
- Weight205 g
- ColourBlack
- HDMI ports quantity6
- MaterialMetal
- AC input voltage5 V
- Width179 mm
Overview
- Weight
- 205 g
- Colour
- Black
- HDMI ports quantity
- 6
- Material
- Metal
- AC input voltage
- 5 V
- Width
- 179 mm
- Brand
- Microconnect
- Category
- Video Switch
- Model
- MC-HDMISWITCH0501-4K
- Part number
- MC-HDMISWITCH0501-4K
- EAN / UPC
- 5715063148761
- Also known as
- Microconnect MC-HDMISWITCH0501-4K video switch
Specifications
49 specifications in 8 groups
Ports & interfaces
| Specification | Value |
|---|---|
| HDMI ports quantity | 6 |
| HDMI version | 2.0 |
| HDMI in | 5 |
| Number of HDMI outputs | 1 |
| USB port type | Micro-USB |
Features
| Specification | Value |
|---|---|
| Material | Metal |
| Product colour | Black |
| Extended display identification data (EDID) | No |
| High Dynamic Range (HDR) supported | Yes |
| 3D | Yes |
| Bandwidth | 18 Gbit/s |
| Bandwidth | 600 MHz |
| Dolby technologies | DTS-HD Master Audio |
| External power adapter | No |
| Full HD | Yes |
| HD type | 4K Ultra HD |
| HDCP | Yes |
| HDCP version | 2.2 |
| LED indicators | Power |
| Maximum refresh rate | 60 Hz |
| Maximum resolution | 3840 x 2160 pixels |
| Plug and Play | Yes |
| Rack mounting | No |
| Remote control type | IR |
| Supported graphics resolutions | 3840 x 2160 |
Power
| Specification | Value |
|---|---|
| AC input voltage | 5 V |
Certificates
| Specification | Value |
|---|---|
| Certification | FCC. CE and RoHS |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 179 mm |
| Depth | 123 mm |
| Height | 45 mm |
| Weight | 205 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 179 mm |
| Package depth | 123 mm |
| Package height | 45 mm |
| Package weight | 340 g |
Packaging content
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
| Power cord included | Yes |
| AC adapter included | No |
| Cables included | Micro-USB |
| Manual | Yes |
| Mounting brackets included | No |
| Quick start guide | Yes |
| Remote control included | Yes |
| Screws included | No |
| Software CD | No |
| User guide | Yes |
| Warranty card | No |
| Packaging content | HDMI Switcher, Remote control, Micro USB cable, Manual and rubber feet |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | Federal Communications Commission (FCC) |
