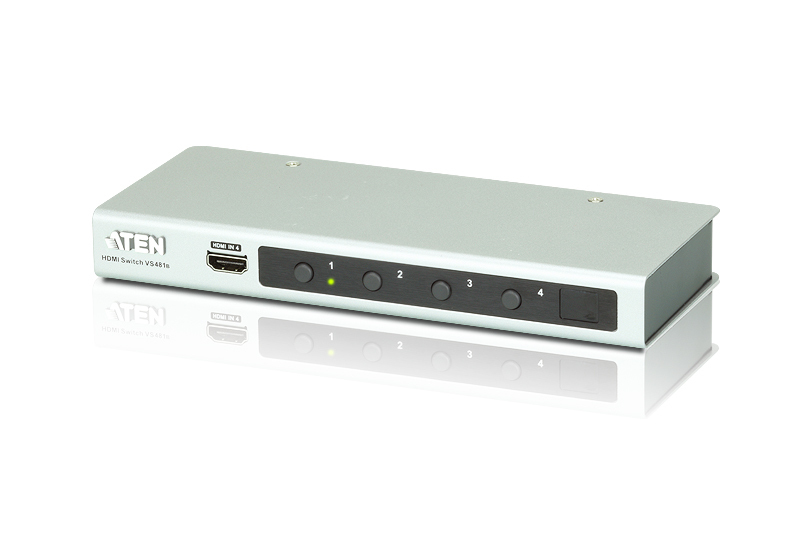

4-Port 4K HDMI Audio/Video Switch with IR Remote Control
Model VS481B-AT-GEAN 4719264642203
48 specifications
- Weight659 g
- ColourSilver
- Video port typeHDMI
- MaterialMetal
- Power consumption (typical)1.76 W
- Width82.5 mm
Overview
- Weight
- 659 g
- Colour
- Silver
- Video port type
- HDMI
- Material
- Metal
- Power consumption (typical)
- 1.76 W
- Width
- 82.5 mm
- Brand
- ATEN
- Category
- Video Switch
- Model
- VS481B-AT-G
- Part number
- VS481B-AT-G
- EAN / UPC
- 4719264642203, 6727920057320
- Also known as
- ATEN 4-Port 4K HDMI Audio/Video Switch with IR Remote Control
Specifications
48 specifications in 8 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Video port type | HDMI |
| HDMI ports quantity | 5 |
| HDMI in | 4 |
| Number of HDMI outputs | 1 |
| RS-232 ports | 1 |
| DC-in jack | Yes |
Features
| Specification | Value |
|---|---|
| Material | Metal |
| Product colour | Silver |
| Consumer Electronics Control (CEC) support | Yes |
| 3D | Yes |
| Bandwidth | 10.2 Gbit/s |
| Bandwidth | 340 MHz |
| Dolby technologies | DTS-HD Master Audio, Dolby TrueHD |
| HD type | 4K Ultra HD |
| HDCP | Yes |
| HDCP version | 2.2 |
| Input impedance | 100 Ω |
| LED indicators | Yes |
| Maximum operating distance | 15 m |
| Maximum refresh rate | 60 Hz |
| Maximum resolution | 4096 x 2160 pixels |
| Output impedance | 100 Ω |
| Supported graphics resolutions | 3840 x 2160, 4096 x 2160 |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 1.76 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 82.5 mm |
| Depth | 200 mm |
| Height | 25 mm |
| Weight | 659 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 59 mm |
| Package depth | 239 mm |
| Package height | 160 mm |
| Package weight | 822 g |
Packaging content
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
| AC adapter included | Yes |
| Cables included | HDMI |
| Remote control included | Yes |
| User guide | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Storage relative humidity (H-H) | 0 - 80% |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85176990 |
| Master (outer) case width | 315 mm |
| Master (outer) case length | 490 mm |
| Master (outer) case height | 178 mm |
| Master (outer) case gross weight | 8.96 kg |
| Master (outer) case net weight | 6.59 kg |
| Products per master (outer) case | 10 pc(s) |
