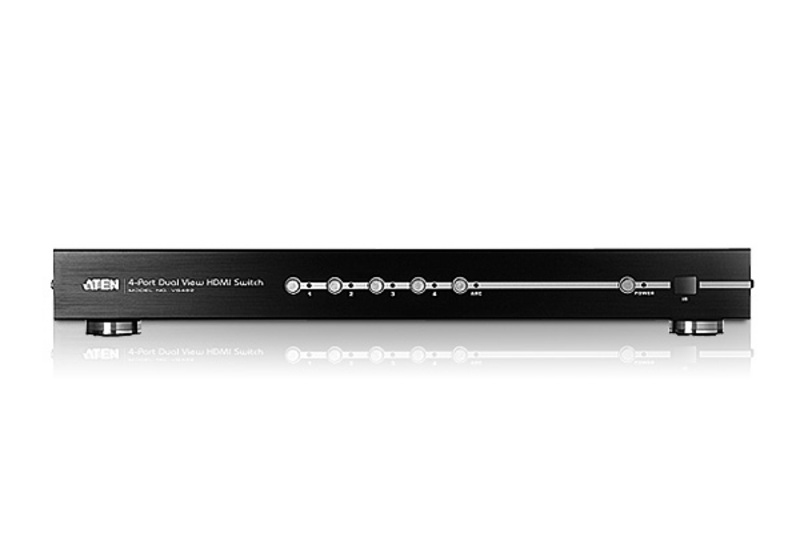

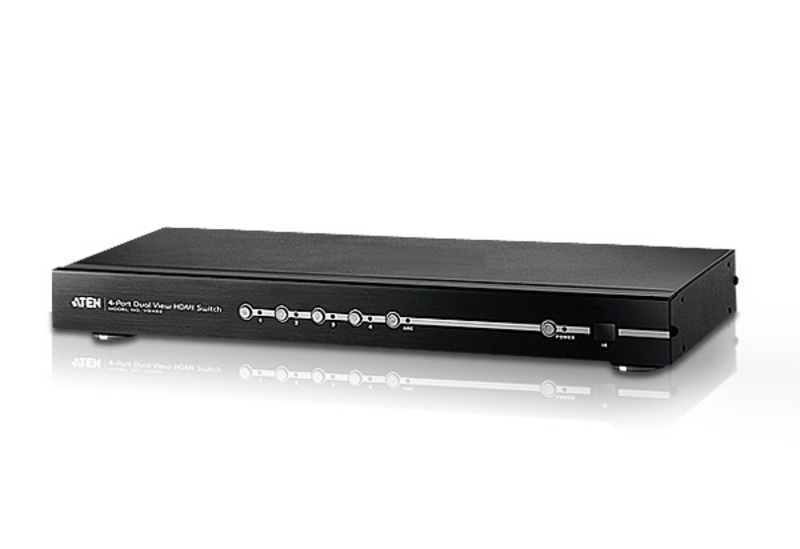

4-Port Dual View HDMI Switch
Model VS482-AT-GEAN 573504624282
50 specifications
- Weight2.37 kg
- ColourBlack
- Video port typeHDMI
- MaterialMetal
- Power consumption (typical)5.74 W
- Width158.6 mm
Overview
- Weight
- 2.37 kg
- Colour
- Black
- Video port type
- HDMI
- Material
- Metal
- Power consumption (typical)
- 5.74 W
- Width
- 158.6 mm
- Brand
- ATEN
- Category
- Video Switch
- Model
- VS482-AT-G
- Part number
- VS482-AT-G
- EAN / UPC
- 573504624282, 4710423777750
- Also known as
- ATEN 4-Port Dual View HDMI Switch
Specifications
50 specifications in 8 groups

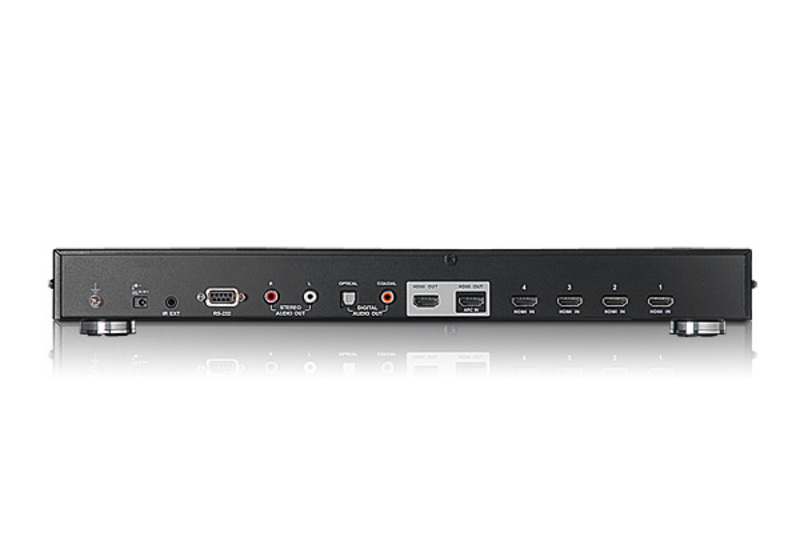

Ports & interfaces
| Specification | Value |
|---|---|
| Video port type | HDMI |
| HDMI ports quantity | 6 |
| HDMI in | 4 |
| Number of HDMI outputs | 2 |
| Audio (L/R) out | 1 |
| Digital audio coaxial out | 1 |
| RS-232 ports | 1 |
| DC-in jack | Yes |
Features
| Specification | Value |
|---|---|
| Material | Metal |
| Product colour | Black |
| Consumer Electronics Control (CEC) support | Yes |
| Extended display identification data (EDID) | Yes |
| 3D | Yes |
| Bandwidth | 225 MHz |
| Bandwidth | 6.75 Gbit/s |
| Dolby technologies | DTS-HD Master Audio, Dolby TrueHD |
| HD type | Full HD |
| HDCP | Yes |
| HDCP version | 1.4 |
| Input impedance | 100 Ω |
| Maximum operating distance | 15 m |
| Maximum resolution | 1920 x 1200 pixels |
| Output impedance | 100 Ω |
| Rack mounting | Yes |
| Supported video modes | 480p, 720p, 1080i, 1080p |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 5.74 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 158.6 mm |
| Depth | 437.2 mm |
| Height | 44 mm |
| Weight | 2.37 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 116 mm |
| Package depth | 540 mm |
| Package height | 233 mm |
| Package weight | 2.93 kg |
Packaging content
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
| Mounting kit | Yes |
| AC adapter included | Yes |
| Remote control included | Yes |
| User guide | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Storage relative humidity (H-H) | 0 - 80% |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85176990 |
| Master (outer) case width | 375 mm |
| Master (outer) case length | 565 mm |
| Master (outer) case height | 258 mm |
| Master (outer) case gross weight | 9.6 kg |
| Master (outer) case net weight | 7.11 kg |
| Products per master (outer) case | 3 pc(s) |
