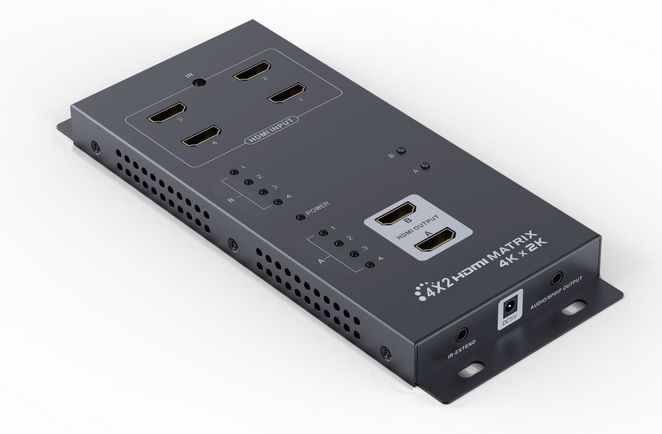

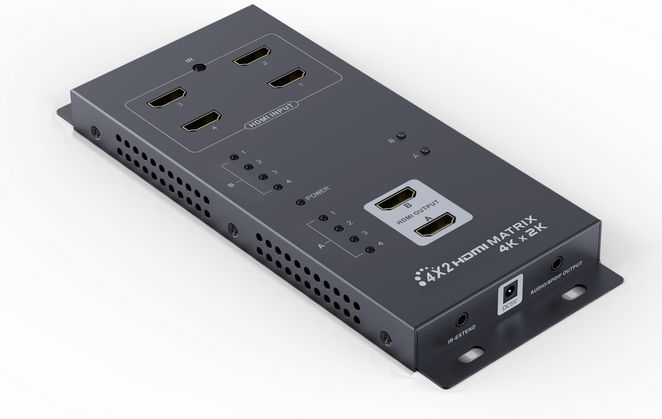

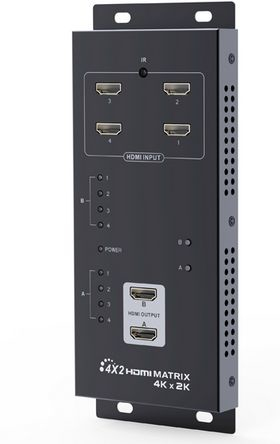

VLHDMIMAT4X2 video switch HDMI
Model VLHDMIMAT4X2EAN 5711783937050
47 specifications
- Weight860 g
- ColourBlack
- Video port typeHDMI
- AC input voltage100 - 240 V
- Width213 mm
- Operating temperature (T-T)0 - 60 °C
Overview
- Weight
- 860 g
- Colour
- Black
- Video port type
- HDMI
- AC input voltage
- 100 - 240 V
- Width
- 213 mm
- Operating temperature (T-T)
- 0 - 60 °C
- Brand
- Vivolink
- Category
- Video Switch
- Model
- VLHDMIMAT4X2
- Part number
- VLHDMIMAT4X2
- EAN / UPC
- 5711783937050
- Also known as
- Vivolink VLHDMIMAT4X2 video switch HDMI
Specifications
47 specifications in 9 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Video port type | HDMI |
| HDMI ports quantity | 6 |
| HDMI version | 1.4 |
| HDMI in | 4 |
| Number of HDMI outputs | 2 |
| Audio (L/R) out | 1 |
| Digital audio coaxial out | 1 |
| S/PDIF out port | Yes |
| 3.5 mm (1/8-inch) out | Yes |
| RS-232 ports | 0 |
| DC-in jack | Yes |
Features
| Specification | Value |
|---|---|
| Product colour | Black |
| Consumer Electronics Control (CEC) support | Yes |
| Extended display identification data (EDID) | Yes |
| 3D | Yes |
| Audio formats supported | PCM |
| Audio output channels | 2.0 channels |
| Bandwidth | 10.2 Gbit/s |
| Bandwidth | 340 MHz |
| Colour depth | 12 bit |
| Dolby technologies | DTS, Dolby Digital |
| HD type | 4K Ultra HD |
| HDCP | Yes |
| HDCP version | 2.2 |
| LED indicators | Yes |
| Maximum resolution | 3840 x 2160 pixels |
| Plug and Play | Yes |
| Remote control type | IR |
| Supported video modes | 480i, 480p, 576i, 576p, 720p, 1080i, 1080p, 2160p |
Power
| Specification | Value |
|---|---|
| AC input voltage | 100 - 240 V |
| AC adapter output voltage | 5 V |
| AC adapter output current | 2 A |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 213 mm |
| Depth | 86 mm |
| Height | 19 mm |
| Weight | 860 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 244 mm |
| Package depth | 179 mm |
| Package height | 84 mm |
| Package weight | 864 g |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Cables included | IR sensor |
| Mounting brackets included | No |
| Remote control included | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 60 °C |
Technical details
| Specification | Value |
|---|---|
| Audio support | Yes |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85176990 |
