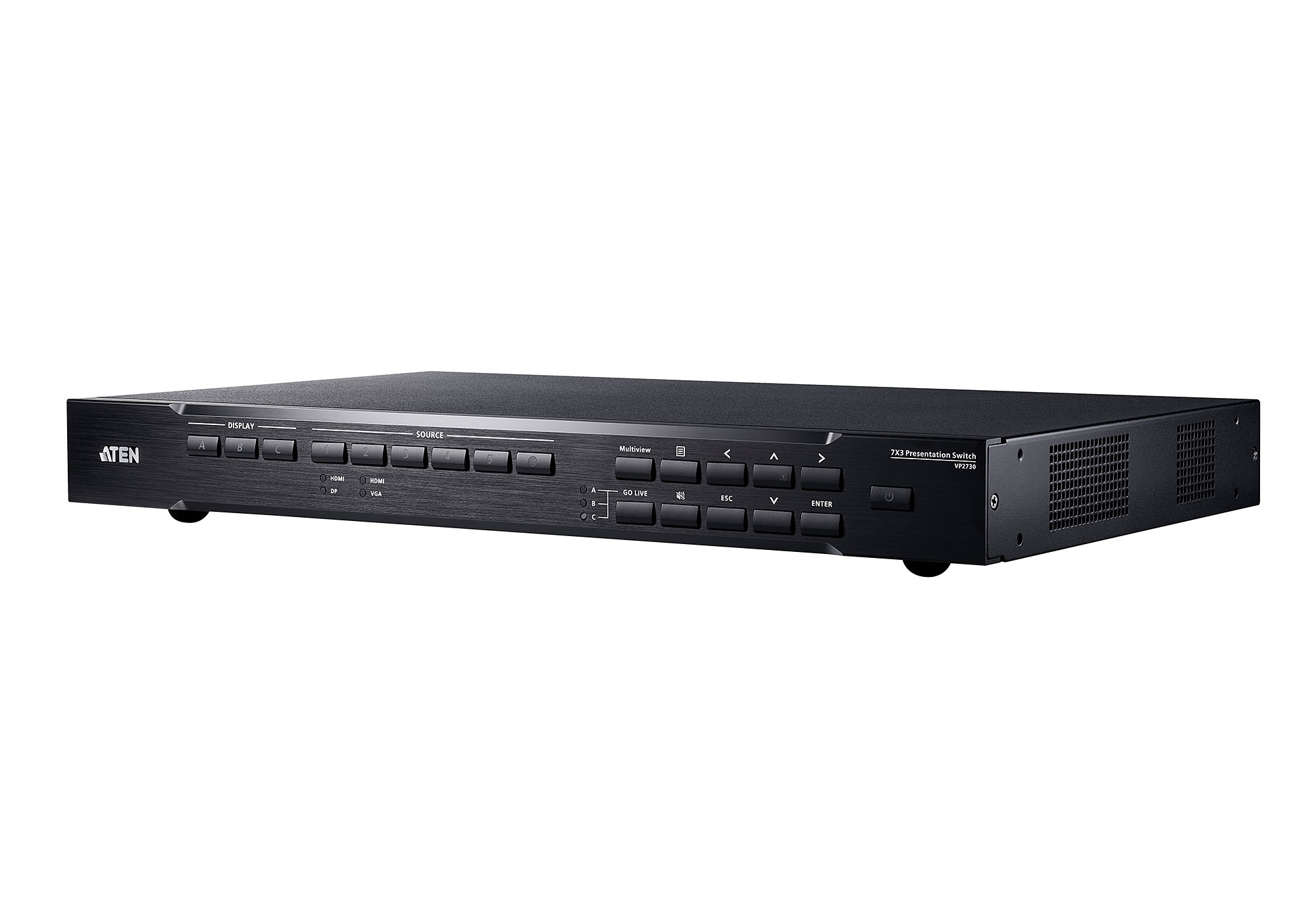

VP1920 HDMI/VGA/DisplayPort
Model VP1920Part no. VP1920-AT-EEAN 672792008016
47 specifications
- Weight2.36 kg
- ColourBlack
- Video port typeHDMI/VGA/DisplayPort
- MaterialMetal
- AC input voltage100 - 240 V
- Width437.2 mm
Overview
- Weight
- 2.36 kg
- Colour
- Black
- Video port type
- HDMI/VGA/DisplayPort
- Material
- Metal
- AC input voltage
- 100 - 240 V
- Width
- 437.2 mm
- Brand
- ATEN
- Category
- Video Switch
- Model
- VP1920
- Part numbers
- VP1920-AT-E, VP1920
- EAN / UPC
- 672792008016
- Also known as
- ATEN VP1920 HDMI/VGA/DisplayPort
Specifications
47 specifications in 7 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Video port type | HDMI/VGA/DisplayPort |
| HDMI ports quantity | 8 |
| HDMI in | 6 |
| Number of HDMI outputs | 2 |
| VGA (D-Sub) ports quantity | 1 |
| VGA (D-Sub) output ports | 1 |
| DisplayPorts quantity | 1 |
| Audio (L/R) in | 2 |
| Audio (L/R) out | 2 |
| Digital audio coaxial out | 1 |
| Composite video in | 1 |
| Component video (YPbPr/YCbCr) in | 1 |
| 3.5 mm (1/8-inch) in | Yes |
| RS-232 ports | 1 |
Features
| Specification | Value |
|---|---|
| Material | Metal |
| Product colour | Black |
| Consumer Electronics Control (CEC) support | Yes |
| Extended display identification data (EDID) | Yes |
| 3D | Yes |
| Built-in speaker(s) | No |
| HD type | 4K Ultra HD |
| HDCP | Yes |
| HDCP version | 1.4 |
| Heat dissipation | 60 BTU/h |
| LED indicators | Yes |
| Maximum operating distance | 15 m |
| Maximum resolution | 4096 x 2160 pixels |
| Rack capacity | 1U |
| Rack mounting | Yes |
| Remote control type | IR |
| Supported graphics resolutions | 1920 x 1200 (WUXGA), 3840 x 2160, 4096 x 2160 |
Power
| Specification | Value |
|---|---|
| AC input voltage | 100 - 240 V |
| AC adapter frequency | 50/60 Hz |
| AC adapter input current | 1 A |
| Power consumption (typical) | 7.3 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 437.2 mm |
| Depth | 163.6 mm |
| Height | 44 mm |
| Weight | 2.36 kg |
Packaging content
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
| Power cord included | Yes |
| Remote control included | Yes |
| User guide | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
