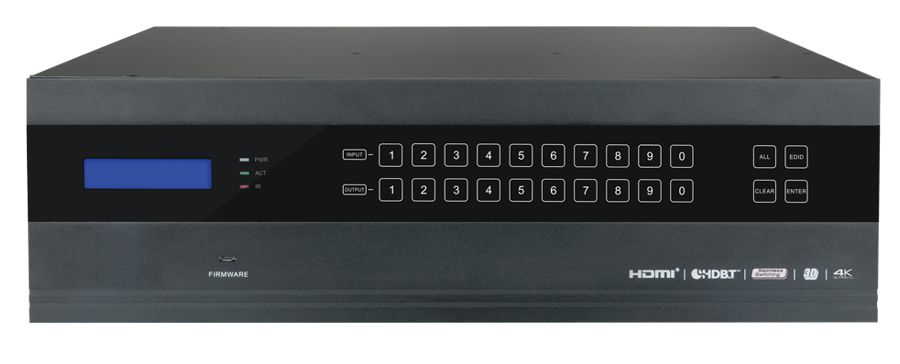

VL120022 video switch
Model VL120022EAN 5705965995129
34 specifications
- Weight3 kg
- ColourBlack
- HDMI ports quantity16
- AC input voltage100 - 240 V
- Width483 mm
- Operating relative humidity (H-H)10 - 90%
Overview
- Weight
- 3 kg
- Colour
- Black
- HDMI ports quantity
- 16
- AC input voltage
- 100 - 240 V
- Width
- 483 mm
- Operating relative humidity (H-H)
- 10 - 90%
- Brand
- Vivolink
- Category
- Video Switch
- Model
- VL120022
- Part number
- VL120022
- EAN / UPC
- 5705965995129
- Also known as
- Vivolink VL120022 video switch
Specifications
34 specifications in 9 groups
Ports & interfaces
| Specification | Value |
|---|---|
| HDMI ports quantity | 16 |
| HDMI version | 1.4 |
| HDMI in | 4 |
| Number of HDMI outputs | 4 |
| Audio (L/R) out | 1 |
| S/PDIF out port | Yes |
| RJ-45 input ports | 1 |
| RJ-45 output ports | 4 |
| 3.5 mm (1/8-inch) out | Yes |
| RS-232 ports | 1 |
Features
| Specification | Value |
|---|---|
| Product colour | Black |
| Consumer Electronics Control (CEC) support | Yes |
| Extended display identification data (EDID) | Yes |
| Audio formats supported | PCM |
| Bandwidth | 10.2 Gbit/s |
| HD type | 4K Ultra HD |
| HDCP | Yes |
| HDCP version | 2.2 |
| LED indicators | Yes |
| Maximum operating distance | 70 m |
| Maximum resolution | 3840 x 2160 pixels |
| Plug and Play | Yes |
| Remote control type | IR + RS232 |
Power
| Specification | Value |
|---|---|
| AC input voltage | 100 - 240 V |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 483 mm |
| Depth | 320 mm |
| Height | 132 mm |
| Weight | 3 kg |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 4 kg |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Mounting brackets included | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 10 - 90% |
Technical details
| Specification | Value |
|---|---|
| Audio support | Yes |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85176990 |
