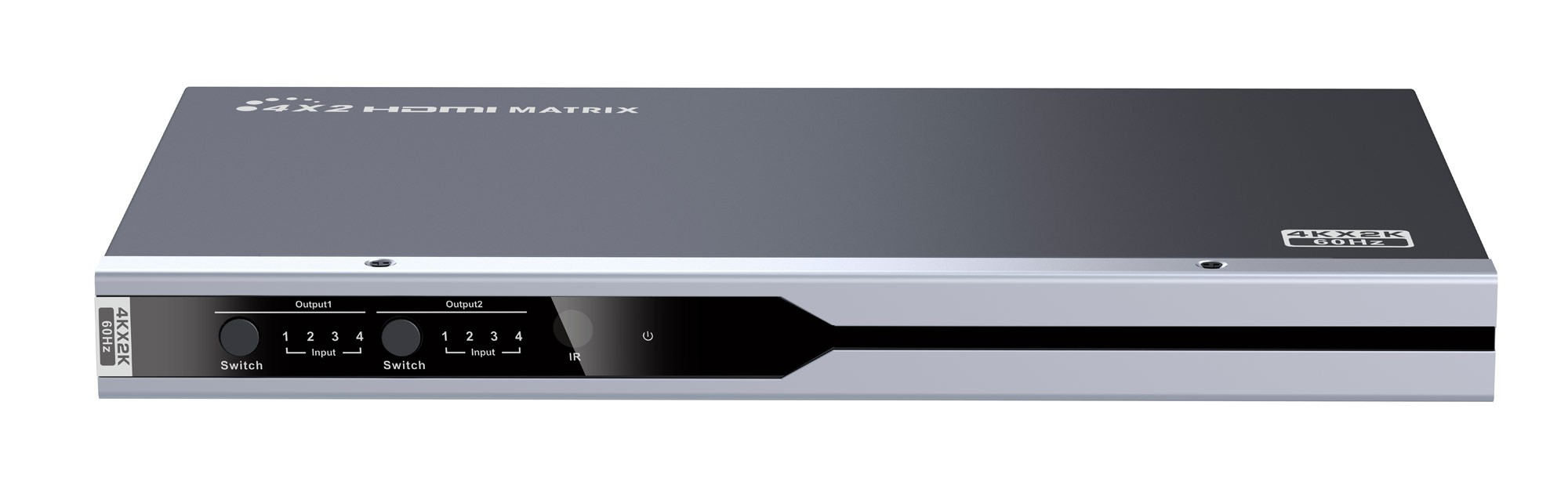

IDATA HDMI2-MX412
Model IDATA HDMI2-MX412EAN 8051128104943
33 specifications
- Weight1.86 kg
- ColourBlack, Silver
- Video port typeHDMI
- Power consumption (typical)15 W
- Width283.5 mm
- Operating temperature (T-T)0 - 60 °C
Overview
- Weight
- 1.86 kg
- Colour
- Black, Silver
- Video port type
- HDMI
- Power consumption (typical)
- 15 W
- Width
- 283.5 mm
- Operating temperature (T-T)
- 0 - 60 °C
- Brand
- Techly
- Category
- Video Switch
- Model
- IDATA HDMI2-MX412
- Part number
- IDATA HDMI2-MX412
- EAN / UPC
- 8051128104943
- Also known as
- Techly IDATA HDMI2-MX412 video switch HDMI
Specifications
33 specifications in 7 groups

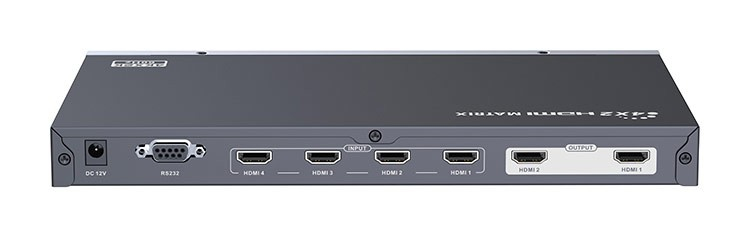

Ports & interfaces
| Specification | Value |
|---|---|
| Video port type | HDMI |
| HDMI ports quantity | 6 |
| HDMI version | 2.0 |
| HDMI in | 4 |
| Number of HDMI outputs | 2 |
| RS-232 ports | 1 |
| DC-in jack | Yes |
Features
| Specification | Value |
|---|---|
| Product colour | Black, Silver |
| 3D | Yes |
| Bandwidth | 18 Gbit/s |
| Bandwidth | 600 MHz |
| Dolby technologies | DTS, DTS-HD, Dolby Digital AC3, Dolby TrueHD |
| HD type | 4K Ultra HD |
| HDCP | Yes |
| HDCP version | 2.2 |
| Maximum refresh rate | 60 Hz |
| Maximum resolution | 3840 x 2160 pixels |
| Plug and Play | Yes |
| Supported graphics resolutions | 3840 x 2160 |
| Supported video modes | 480i, 480p, 576i, 576p, 720p, 1080i, 1080p, 2160p |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 15 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 283.5 mm |
| Depth | 164.8 mm |
| Height | 27.2 mm |
| Weight | 1.86 kg |
Packaging content
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
| Mounting kit | Yes |
| AC adapter included | Yes |
| Manual | Yes |
| Remote control included | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 60 °C |
| Operating relative humidity (H-H) | 0 - 90% |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85176990 |
