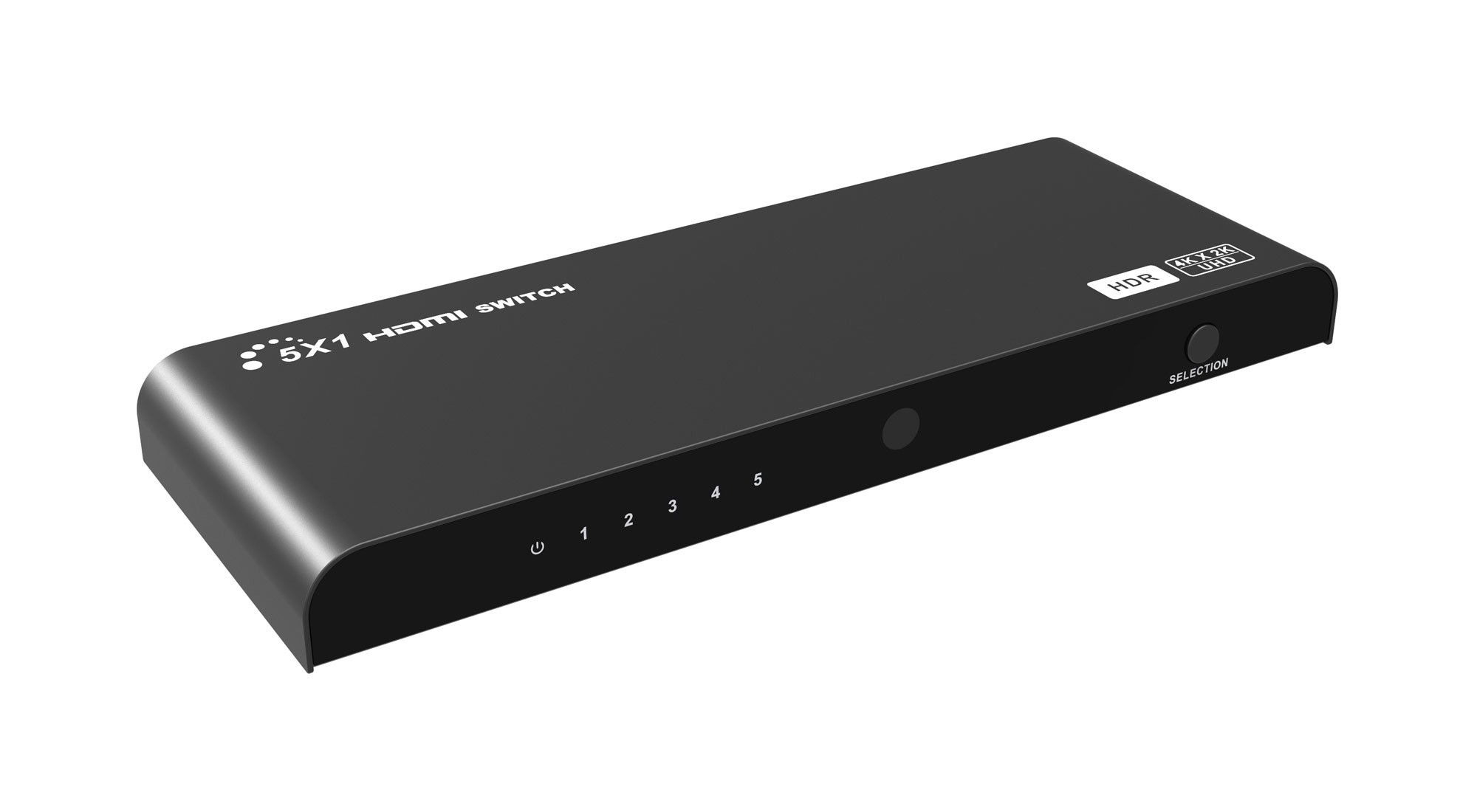

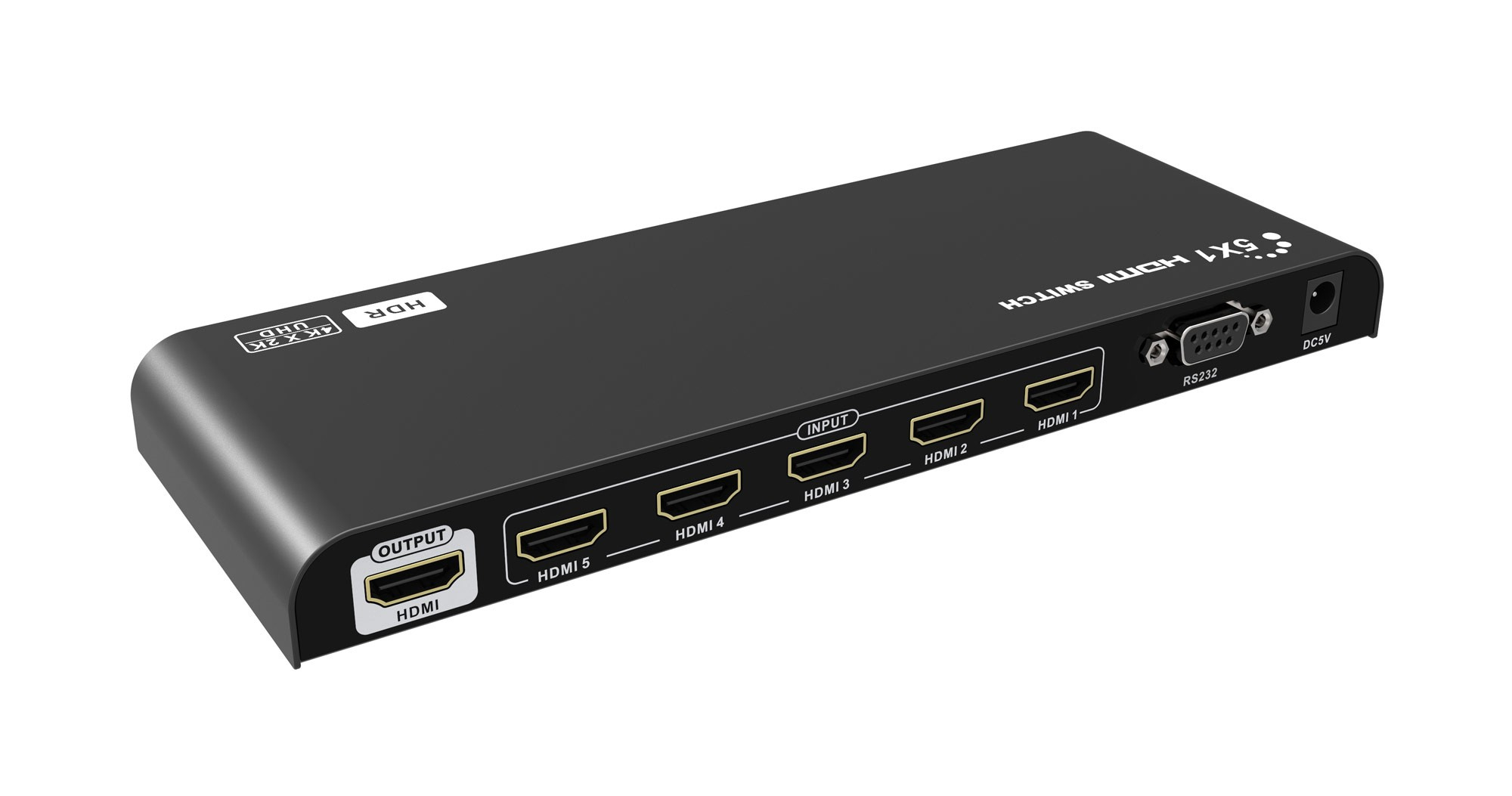

IDATA HDMI2-4K51HDR
Model IDATA HDMI2-4K51HDREAN 8051128104936
31 specifications
- Weight420 g
- ColourBlack
- Video port typeHDMI
- MaterialMetal
- Power consumption (typical)5 W
- Width218 mm
Overview
- Weight
- 420 g
- Colour
- Black
- Video port type
- HDMI
- Material
- Metal
- Power consumption (typical)
- 5 W
- Width
- 218 mm
- Brand
- Techly
- Category
- Video Switch
- Model
- IDATA HDMI2-4K51HDR
- Part number
- IDATA HDMI2-4K51HDR
- EAN / UPC
- 8051128104936
- Also known as
- Techly IDATA HDMI2-4K51HDR video switch HDMI
Specifications
31 specifications in 6 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Video port type | HDMI |
| HDMI ports quantity | 6 |
| HDMI version | 1.4/2.0 |
| HDMI in | 5 |
| Number of HDMI outputs | 1 |
| RS-232 ports | 1 |
| DC-in jack | Yes |
Features
| Specification | Value |
|---|---|
| Material | Metal |
| Product colour | Black |
| 3D | Yes |
| Audio decoders | DSD |
| Bandwidth | 18 Gbit/s |
| Colour depth | 12 bit |
| HD type | 4K Ultra HD |
| HDCP | Yes |
| HDCP version | 2.2 |
| Maximum refresh rate | 60 Hz |
| Maximum resolution | 3840 x 2160 pixels |
| Plug and Play | Yes |
| Supported graphics resolutions | 3840 x 2160 |
| Supported video modes | 480i, 480p, 576p, 720p, 1080i, 1080p, 2160p |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 5 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 218 mm |
| Depth | 78.8 mm |
| Height | 20.5 mm |
| Weight | 420 g |
Packaging content
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
| AC adapter included | Yes |
| Manual | Yes |
| Remote control included | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 60 °C |
