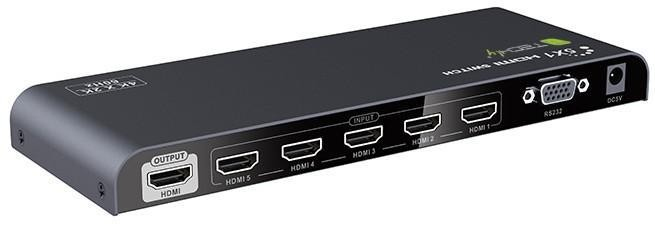

IDATA HDMI2-4K51
Model IDATA HDMI2-4K51EAN 8054529025459
36 specifications
- Weight829 g
- ColourBlack
- Video port typeHDMI
- AC adapter output voltage5 V
- Width217 mm
- Operating temperature (T-T)0 - 60 °C
Overview
- Weight
- 829 g
- Colour
- Black
- Video port type
- HDMI
- AC adapter output voltage
- 5 V
- Width
- 217 mm
- Operating temperature (T-T)
- 0 - 60 °C
- Brand
- Techly
- Category
- Video Switch
- Model
- IDATA HDMI2-4K51
- Part number
- IDATA HDMI2-4K51
- EAN / UPC
- 8054529025459
- Also known as
- Techly HDMI 2.0 Switch with Remote Control 5 IN 1 OUT 4K UHD 3D
Specifications
36 specifications in 8 groups

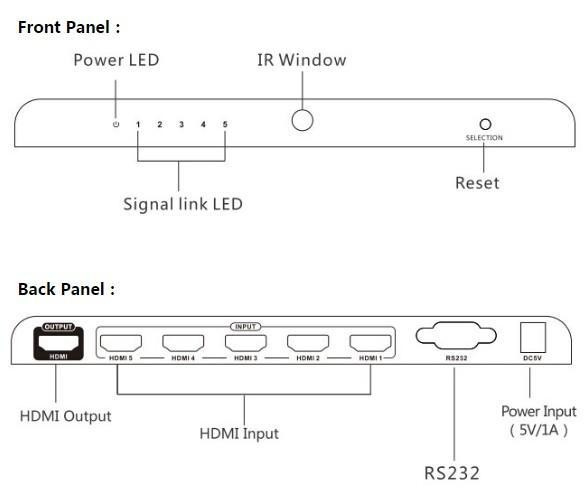

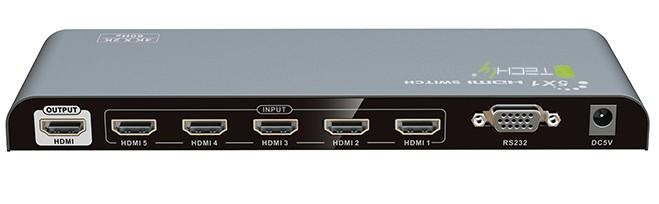

Ports & interfaces
| Specification | Value |
|---|---|
| Video port type | HDMI |
| HDMI ports quantity | 6 |
| HDMI version | 2.0 |
| HDMI in | 5 |
| Number of HDMI outputs | 1 |
| RS-232 ports | 1 |
| DC-in jack | Yes |
Features
| Specification | Value |
|---|---|
| Product colour | Black |
| 3D | Yes |
| Bandwidth | 18 Gbit/s |
| Display Data Channel (DDC) input | 5 V |
| External power adapter | Yes |
| HD type | 4K Ultra HD |
| HDCP | Yes |
| HDCP version | 1.4/2.2 |
| LED indicators | Yes |
| Maximum resolution | 3840 x 2160 pixels |
| Supported graphics resolutions | 640 x 480 (VGA), 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 3840 x 2160 |
| Supported video modes | 480i, 480p, 720p, 1080i, 1080p, 2160p |
Power
| Specification | Value |
|---|---|
| AC adapter output voltage | 5 V |
| AC adapter output current | 1 A |
| Power consumption (typical) | 5 W |
Certificates
| Specification | Value |
|---|---|
| Certification | CE, FCC, WEEE/RAEE |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 217 mm |
| Depth | 76 mm |
| Height | 20 mm |
| Weight | 829 g |
Packaging content
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
| AC adapter included | Yes |
| Manual | Yes |
| Remote control included | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 60 °C |
| Storage temperature (T-T) | -10 - 80 °C |
| Operating relative humidity (H-H) | 10 - 80% |
| Storage relative humidity (H-H) | 5 - 90% |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
