IDATA HDMI2-4K3160B
Model IDATA HDMI2-4K3160BEAN 8059018367171
29 specifications
- Weight174 g
- ColourBlack
- Video port typeHDMI
- AC adapter output voltage5 V
Overview
- Weight
- 174 g
- Colour
- Black
- Video port type
- HDMI
- AC adapter output voltage
- 5 V
- Brand
- Techly
- Category
- Video Switch
- Model
- IDATA HDMI2-4K3160B
- Part number
- IDATA HDMI2-4K3160B
- EAN / UPC
- 8059018367171
- Also known as
- Techly IDATA HDMI2-4K3160B video switch HDMI
Specifications
29 specifications in 7 groups

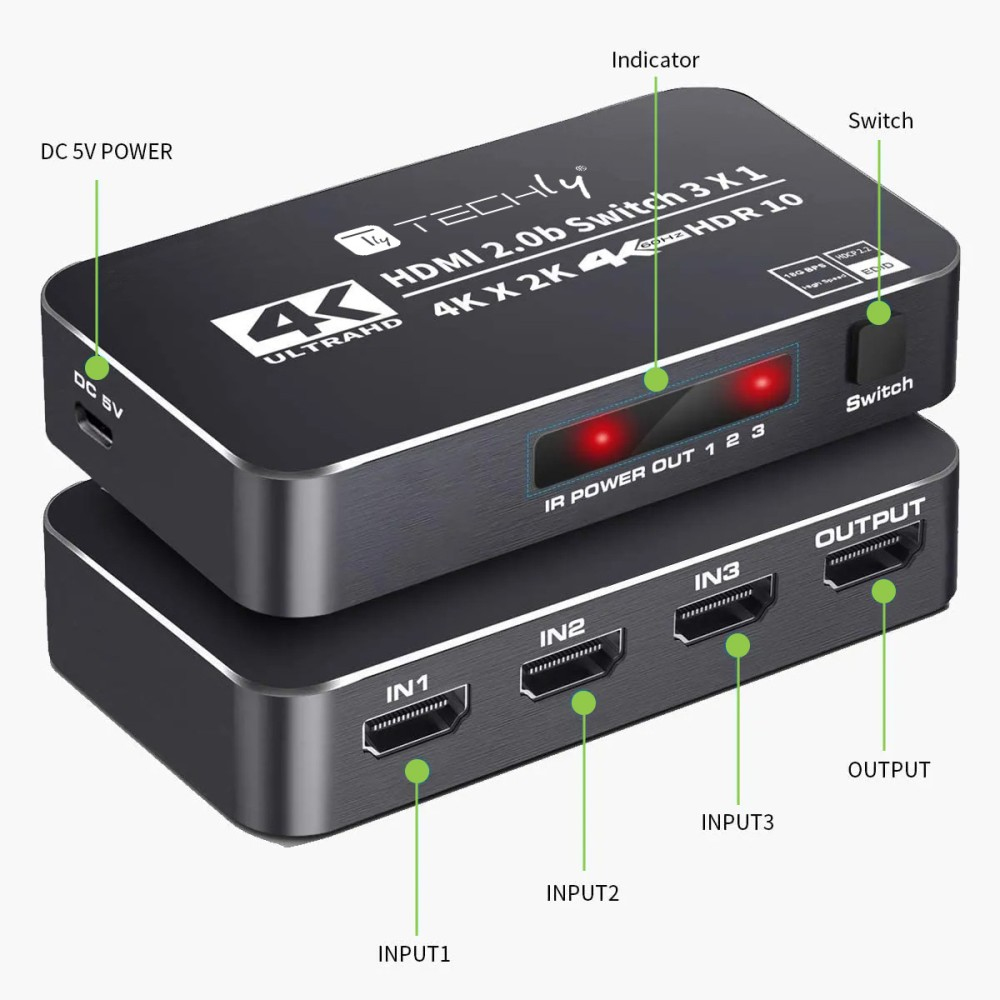

Ports & interfaces
| Specification | Value |
|---|---|
| Video port type | HDMI |
| HDMI ports quantity | 4 |
| HDMI version | 2.0b |

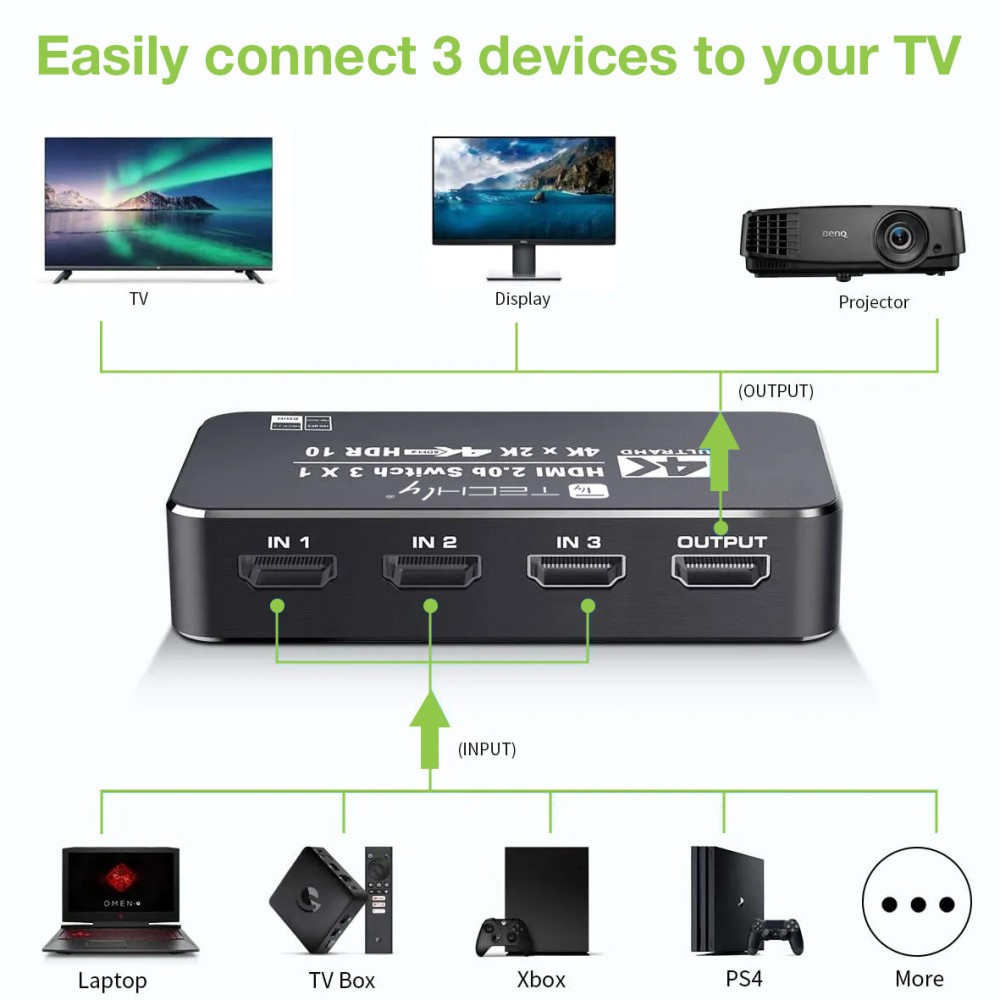

| HDMI in | 3 |
| Number of HDMI outputs | 1 |
| USB port type | Micro-USB |
| USB version | 2.0 |
Features
| Specification | Value |
|---|---|
| Product colour | Black |
| High Dynamic Range (HDR) supported | Yes |
| 3D | Yes |
| Bandwidth | 18.5 Gbit/s |
| Bandwidth | 600 MHz |
| Display type | LED |
| Dolby technologies | DTS, Dolby Digital |
| HD type | 4K Ultra HD |
| HDCP | Yes |
| HDCP version | 2.2 |
| Maximum refresh rate | 60 Hz |
| Plug and Play | Yes |
| Supported video modes | 480i, 480p, 576i, 576p, 720p, 1080p |
Power
| Specification | Value |
|---|---|
| AC adapter output voltage | 5 V |
| AC adapter output current | 1 A |
Certificates
| Specification | Value |
|---|---|
| Certification | EC, FCC , RoHS |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 174 g |
Packaging data
| Specification | Value |
|---|---|
| Package type | Box |
Packaging content
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
| Cables included | USB |
| Manual | Yes |
| Remote control included | Yes |
