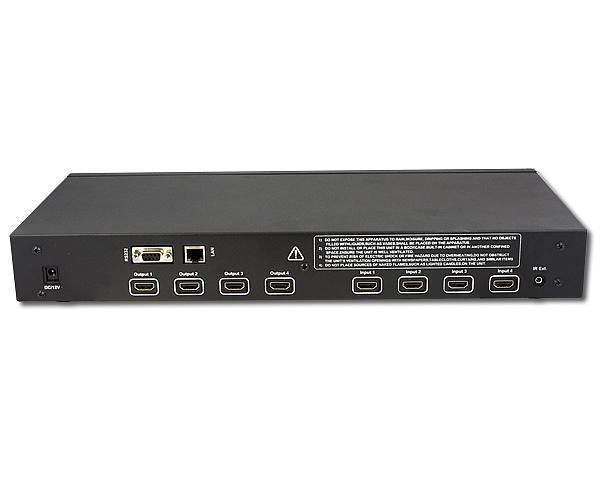

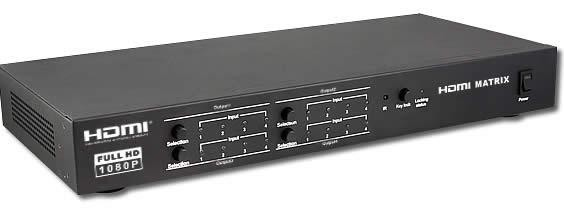

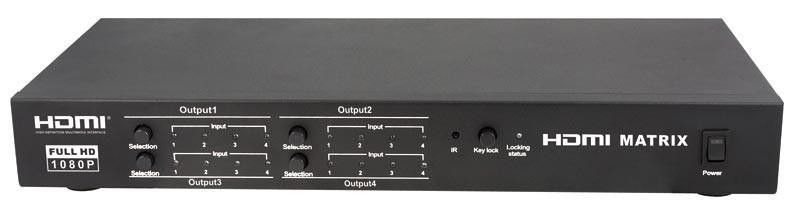

IDATA HDMI-VS344
Model IDATA HDMI-VS344EAN 8054529022960
25 specifications
- Weight3.62 kg
- ColourBlack
- Video port typeHDMI
- AC adapter output voltage12 V
- Width440 mm
Overview
- Weight
- 3.62 kg
- Colour
- Black
- Video port type
- HDMI
- AC adapter output voltage
- 12 V
- Width
- 440 mm
- Brand
- Techly
- Category
- Video Switch
- Model
- IDATA HDMI-VS344
- Part number
- IDATA HDMI-VS344
- EAN / UPC
- 8054529022960
- Also known as
- Techly Switch HDMI 3D 4IN 4 OUT with Remote Control and RS232 IDATA HDMI-VS344
Specifications
25 specifications in 5 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Video port type | HDMI |
| HDMI ports quantity | 8 |
| HDMI version | 1.3 |
| HDMI in | 4 |
| Number of HDMI outputs | 4 |
| RS-232 ports | 1 |
| DC-in jack | Yes |
Features
| Specification | Value |
|---|---|
| Product colour | Black |
| 3D | Yes |
| HD type | Full HD |
| HDCP | Yes |
| LED indicators | Yes |
| Maximum operating distance | 15 m |
| Supported graphics resolutions | 1280 x 720 (HD 720), 1920 x 1080 (HD 1080) |
| Supported video modes | 720i, 720p, 1080i, 1080p |
Power
| Specification | Value |
|---|---|
| AC adapter output voltage | 12 V |
| AC adapter output current | 3 A |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 440 mm |
| Depth | 200 mm |
| Height | 70 mm |
| Weight | 3.62 kg |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Manual | Yes |
| Mounting brackets included | Yes |
| Remote control included | Yes |
