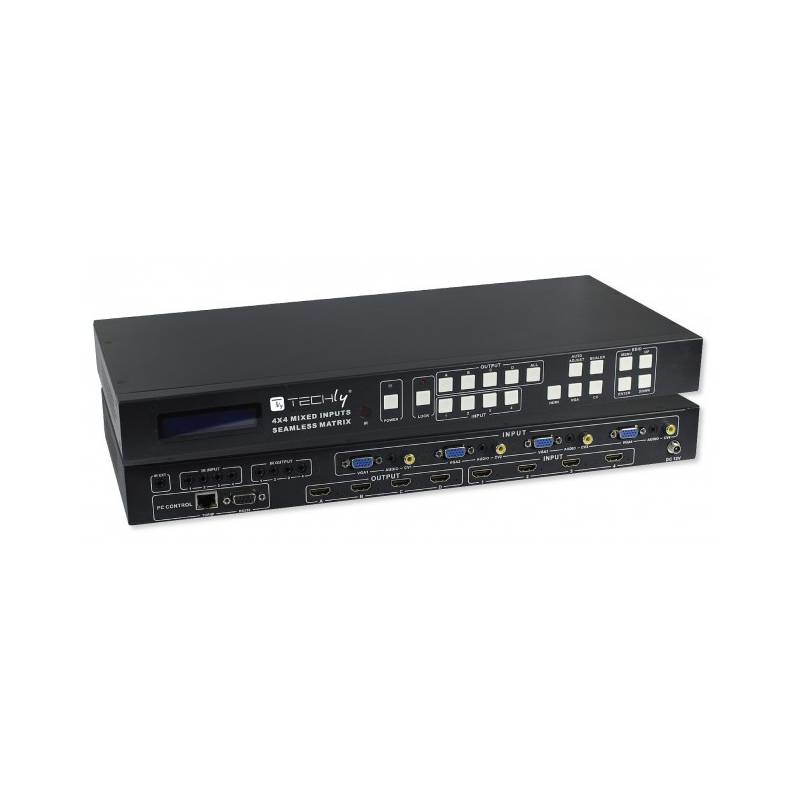

IDATA HDMI-MX944
Model IDATA HDMI-MX944EAN 8054529025671
27 specifications
- ColourBlack
- Video port typeHDMI/VGA
- AC adapter output voltage12 V
- Width (imperial)48.3 cm (19")
Overview
- Colour
- Black
- Video port type
- HDMI/VGA
- AC adapter output voltage
- 12 V
- Width (imperial)
- 48.3 cm (19")
- Brand
- Techly
- Category
- Video Switch
- Model
- IDATA HDMI-MX944
- Part number
- IDATA HDMI-MX944
- EAN / UPC
- 8054529025671
- Also known as
- Techly Matrix Switch 4x4 HDMI VGA and AV Mixed Inputs IDATA HDMI-MX944
Specifications
27 specifications in 6 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Video port type | HDMI/VGA |
| HDMI ports quantity | 1 |
| HDMI version | 1.3 |
| HDMI in | 4 |
| Number of HDMI outputs | 4 |
| VGA (D-Sub) ports quantity | 4 |
| RJ-45 input ports | 1 |
| RS-232 ports | 1 |
| Video in | HDMI |
| DC-in jack | Yes |
Features
| Specification | Value |
|---|---|
| Product colour | Black |
| HDCP | Yes |
| Maximum refresh rate | 60 Hz |
| Plug and Play | Yes |
| Rack mounting | Yes |
| Supported graphics resolutions | 800 x 480 (WVGA), 800 x 600 (SVGA), 1280 x 1024 (SXGA), 1360 x 768 (WXGA), 1920 x 1080 (HD 1080) |
| Supported video modes | 480i, 480p, 576i, 576p, 720i, 720p, 1080i, 1080p |
Power
| Specification | Value |
|---|---|
| AC adapter output voltage | 12 V |
| AC adapter output current | 2.5 A |
Certificates
| Specification | Value |
|---|---|
| Certification | EC, WEE |
Weight & dimensions
| Specification | Value |
|---|---|
| Width (imperial) | 48.3 cm (19") |
Packaging content
| Specification | Value |
|---|---|
| Quantity per pack | 15 pc(s) |
| AC adapter included | Yes |
| Cables included | DC, IR, Serial |
| Manual | Yes |
| Mounting brackets included | Yes |
| Remote control included | Yes |
