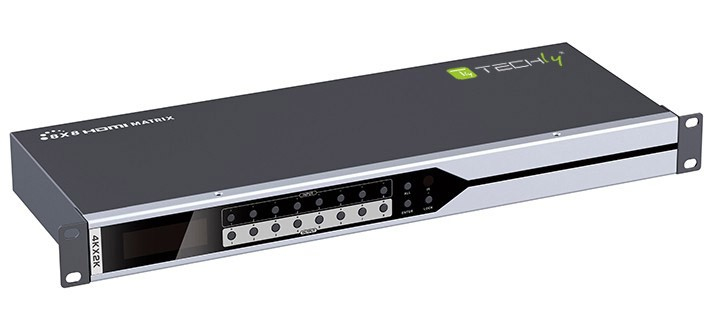

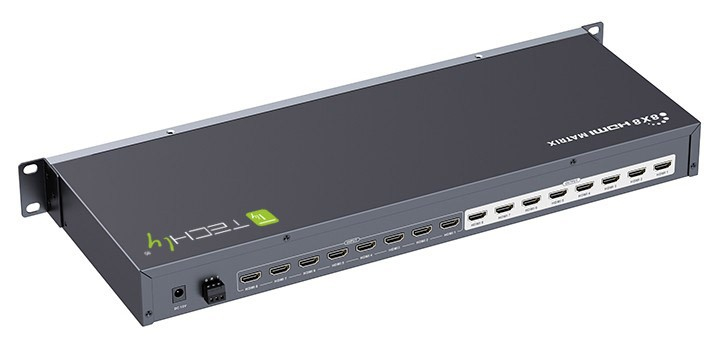

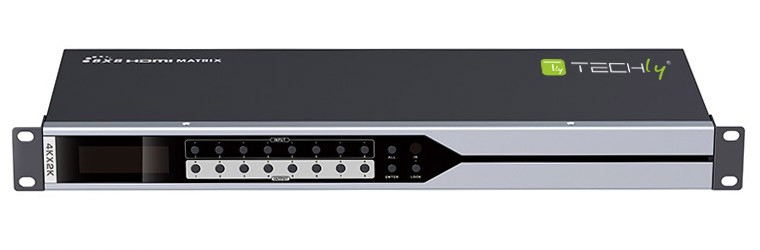

IDATA HDMI-MX818
Model IDATA HDMI-MX818EAN 8051128104417
34 specifications
- Weight2.07 kg
- ColourBlack, Silver
- Video port typeHDMI
- Power consumption (typical)27 W
- Width482.4 mm
- Operating temperature (T-T)0 - 60 °C
Overview
- Weight
- 2.07 kg
- Colour
- Black, Silver
- Video port type
- HDMI
- Power consumption (typical)
- 27 W
- Width
- 482.4 mm
- Operating temperature (T-T)
- 0 - 60 °C
- Brand
- Techly
- Category
- Video Switch
- Model
- IDATA HDMI-MX818
- Part number
- IDATA HDMI-MX818
- EAN / UPC
- 8051128104417
- Also known as
- Techly IDATA HDMI-MX818 video switch
Specifications
34 specifications in 9 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Video port type | HDMI |
| HDMI ports quantity | 16 |
| HDMI version | 1.4 |
| HDMI in | 8 |
| Number of HDMI outputs | 8 |
| RS-232 ports | 1 |
| DC-in jack | Yes |
Features
| Specification | Value |
|---|---|
| Product colour | Black, Silver |
| 3D | Yes |
| Audio decoders | DSD |
| Bandwidth | 10.2 Gbit/s |
| Bandwidth | 340 MHz |
| Dolby technologies | DTS, DTS-HD, Dolby Digital AC3, Dolby TrueHD |
| HD type | 4K Ultra HD |
| HDCP | Yes |
| HDCP version | 1.4 |
| Maximum refresh rate | 30 Hz |
| Maximum resolution | 3840 x 2160 pixels |
| Plug and Play | Yes |
| Supported graphics resolutions | 3840 x 2160 |
| Supported video modes | 480i, 480p, 576i, 576p, 720i, 1080i, 1080p, 2160p |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 27 W |
Certificates
| Specification | Value |
|---|---|
| Certification | CE, FCC, WEEE, RAEE |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 482.4 mm |
| Depth | 179.6 mm |
| Height | 44.4 mm |
| Weight | 2.07 kg |
Packaging content
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
| AC adapter included | Yes |
| Manual | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 60 °C |
| Operating relative humidity (H-H) | 0 - 90% |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85176990 |
