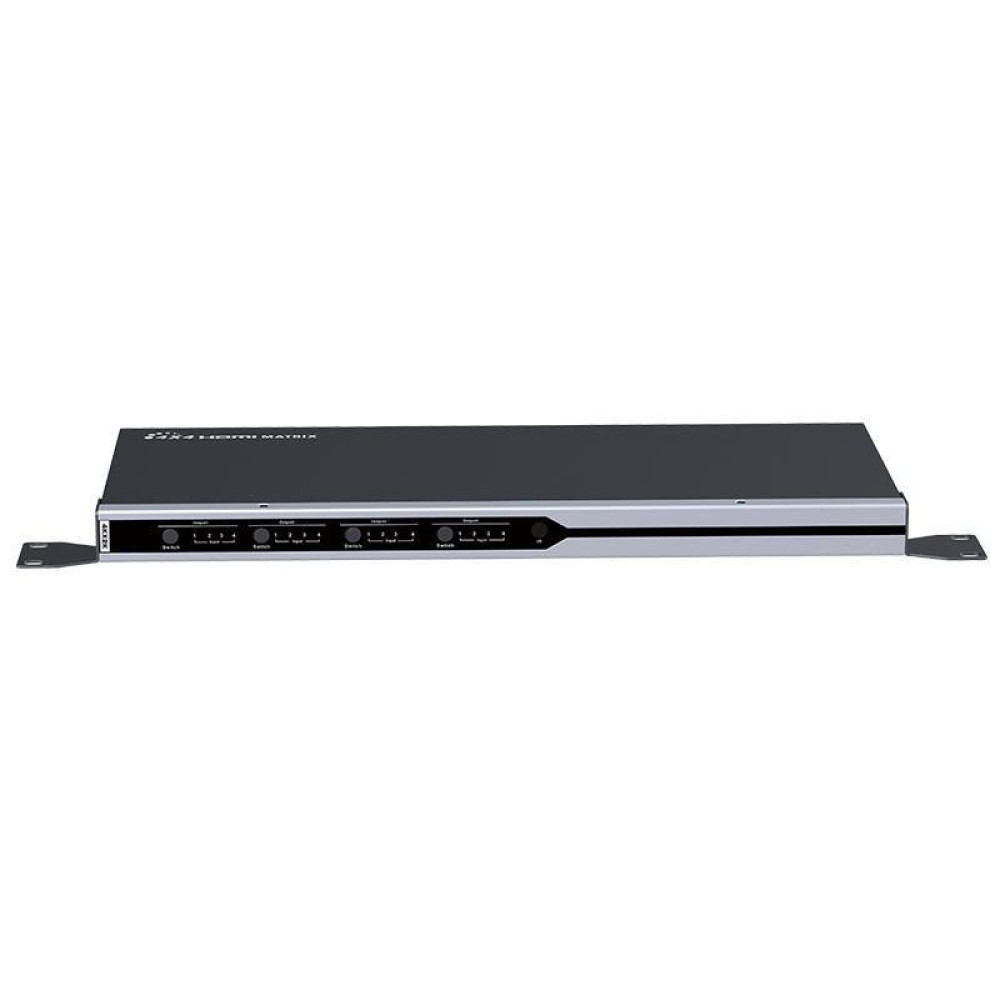

IDATA HDMI-MX414
Model IDATA HDMI-MX414EAN 8054529028177
29 specifications
- Weight2.39 kg
- ColourBlack
- Video port typeHDMI
- Power consumption (typical)18 W
- Width400 mm
- Operating temperature (T-T)0 - 60 °C
Overview
- Weight
- 2.39 kg
- Colour
- Black
- Video port type
- HDMI
- Power consumption (typical)
- 18 W
- Width
- 400 mm
- Operating temperature (T-T)
- 0 - 60 °C
- Brand
- Techly
- Category
- Video Switch
- Model
- IDATA HDMI-MX414
- Part number
- IDATA HDMI-MX414
- EAN / UPC
- 8054529028177
- Also known as
- Techly IDATA HDMI-MX414 video switch
Specifications
29 specifications in 8 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Video port type | HDMI |
| HDMI ports quantity | 8 |
| HDMI version | 1.4 |
| HDMI in | 4 |
| Number of HDMI outputs | 4 |
| RS-232 ports | 1 |
Features
| Specification | Value |
|---|---|
| Product colour | Black |
| 3D | Yes |
| Bandwidth | 10.2 Gbit/s |
| Bandwidth | 340 MHz |
| Dolby technologies | DTS, DTS-HD, Dolby TrueHD |
| HDCP | Yes |
| HDCP version | 1.4 |
| Plug and Play | Yes |
| Supported graphics resolutions | 4096 x 2560 |
| Supported video modes | 2160p |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 18 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 400 mm |
| Depth | 172 mm |
| Height | 23 mm |
| Weight | 2.39 kg |
Packaging content
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
| AC adapter included | Yes |
| Manual | Yes |
| Remote control included | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 60 °C |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | CE |
| Audio support | Yes |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85176990 |
