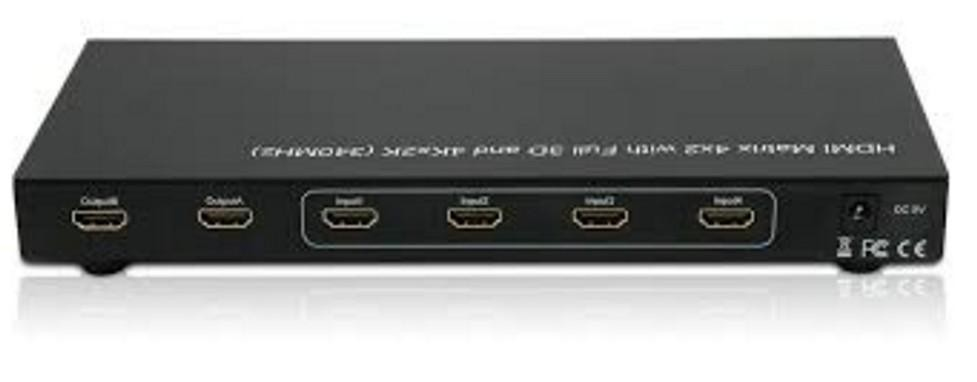

IDATA HDMI-H42B
Model IDATA HDMI-H42BEAN 8054529024889
33 specifications
- Weight1.21 kg
- ColourBlack
- Video port typeHDMI
- AC adapter output voltage5 V
- Width258 mm
- Operating temperature (T-T)0 - 70 °C
Overview
- Weight
- 1.21 kg
- Colour
- Black
- Video port type
- HDMI
- AC adapter output voltage
- 5 V
- Width
- 258 mm
- Operating temperature (T-T)
- 0 - 70 °C
- Brand
- Techly
- Category
- Video Switch
- Model
- IDATA HDMI-H42B
- Part number
- IDATA HDMI-H42B
- EAN / UPC
- 8054529024889
- Also known as
- Techly IDATA HDMI-H42B video switch
Specifications
33 specifications in 9 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Video port type | HDMI |
| HDMI ports quantity | 6 |
| HDMI version | 1.4 |
| HDMI in | 4 |
| Number of HDMI outputs | 2 |
| Video in | HDMI |
| Video out | HDMI |
| DC-in jack | Yes |
Features
| Specification | Value |
|---|---|
| Product colour | Black |
| 3D | Yes |
| Bandwidth | 3.4 Gbit/s |
| Bandwidth | 340 MHz |
| Colour depth | 12 bit |
| Dolby technologies | Dolby Digital, Dolby Digital DTS, Dolby TrueHD |
| HD type | 4K Ultra HD |
| HDCP | Yes |
| Maximum refresh rate | 60 Hz |
| Supported video modes | 480i, 480p, 576i, 576p, 720p, 1080i, 1080p |
Power
| Specification | Value |
|---|---|
| AC adapter output voltage | 5 V |
| AC adapter output current | 2 A |
| Power consumption (typical) | 4 W |
Certificates
| Specification | Value |
|---|---|
| Certification | CE, FCC, WEEE/RAEE |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 258 mm |
| Depth | 112 mm |
| Height | 26 mm |
| Weight | 1.21 kg |
Packaging content
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -10 - 80 °C |
| Operating relative humidity (H-H) | 10 - 85% |
| Storage relative humidity (H-H) | 5 - 90% |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85176990 |
