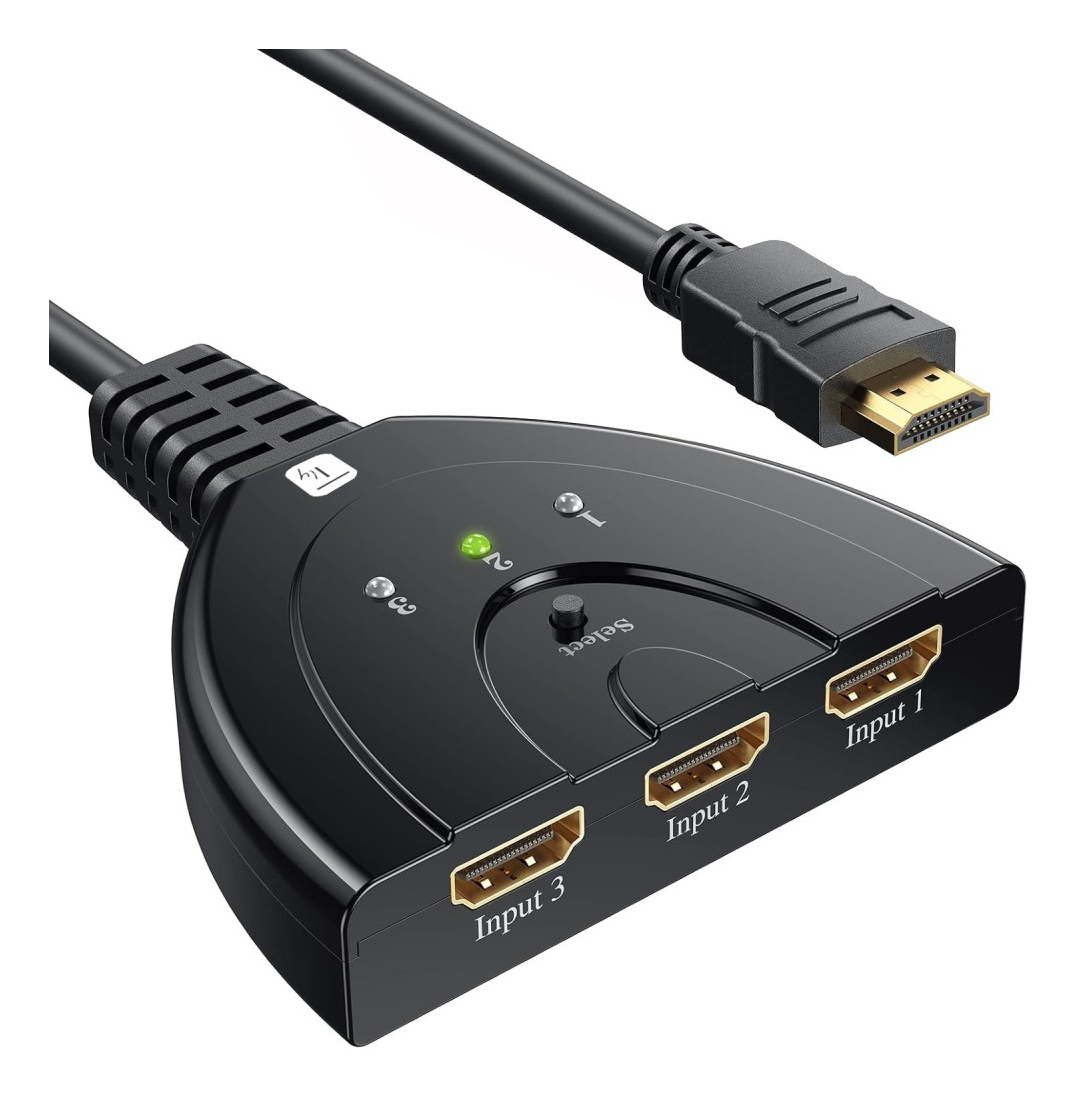

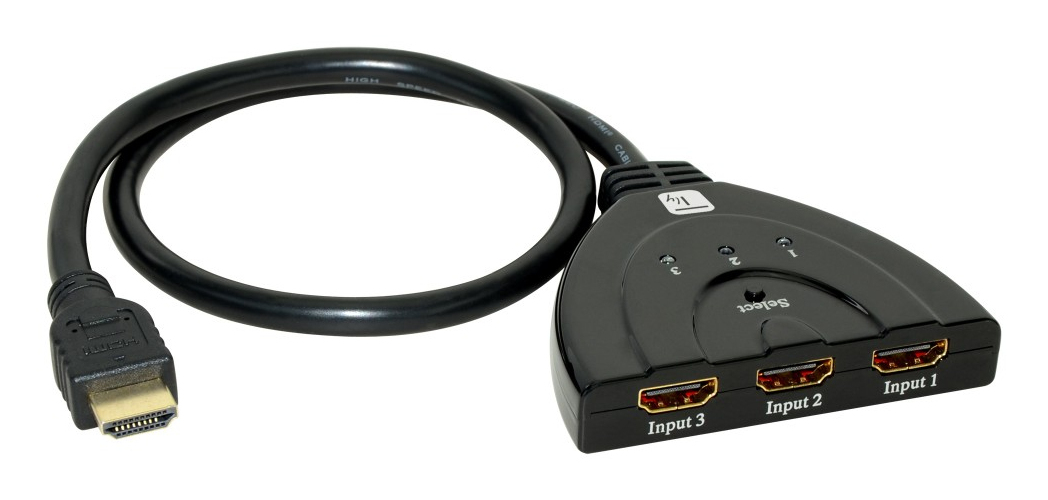

IDATA HDMI-3F8K
Model IDATA HDMI-3F8KEAN 8059018369281
30 specifications
- ColourBlack
- Video port typeHDMI
- Width80 mm
- Operating temperature (T-T)-15 - 55 °C
Overview
- Colour
- Black
- Video port type
- HDMI
- Width
- 80 mm
- Operating temperature (T-T)
- -15 - 55 °C
- Brand
- Techly
- Category
- Video Switch
- Model
- IDATA HDMI-3F8K
- Part number
- IDATA HDMI-3F8K
- EAN / UPC
- 8059018369281
- Also known as
- Techly IDATA HDMI-3F8K video switch
Specifications
30 specifications in 7 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Video port type | HDMI |
| HDMI ports quantity | 3 |
| HDMI version | 2.1 |
| HDMI in | 3 |
| USB port type | USB Type-C |
Features
| Specification | Value |
|---|---|
| Product colour | Black |
| High Dynamic Range (HDR) supported | Yes |
| 3D | No |
| Audio decoders | DTS-HD, Dolby Digital, Dolby TrueHD |
| Audio formats supported | LPCM |
| Bandwidth | 48 Gbit/s |
| Cable length | 0.5 m |
| Colour depth | 36 bit |
| HD type | 8K Ultra HD |
| HDCP | Yes |
| HDCP version | 2.3 |
| LED indicators | Yes |
| Maximum operating distance | 2 m |
| Maximum refresh rate | 60 Hz |
| Maximum resolution | 7680 x 4320 pixels |

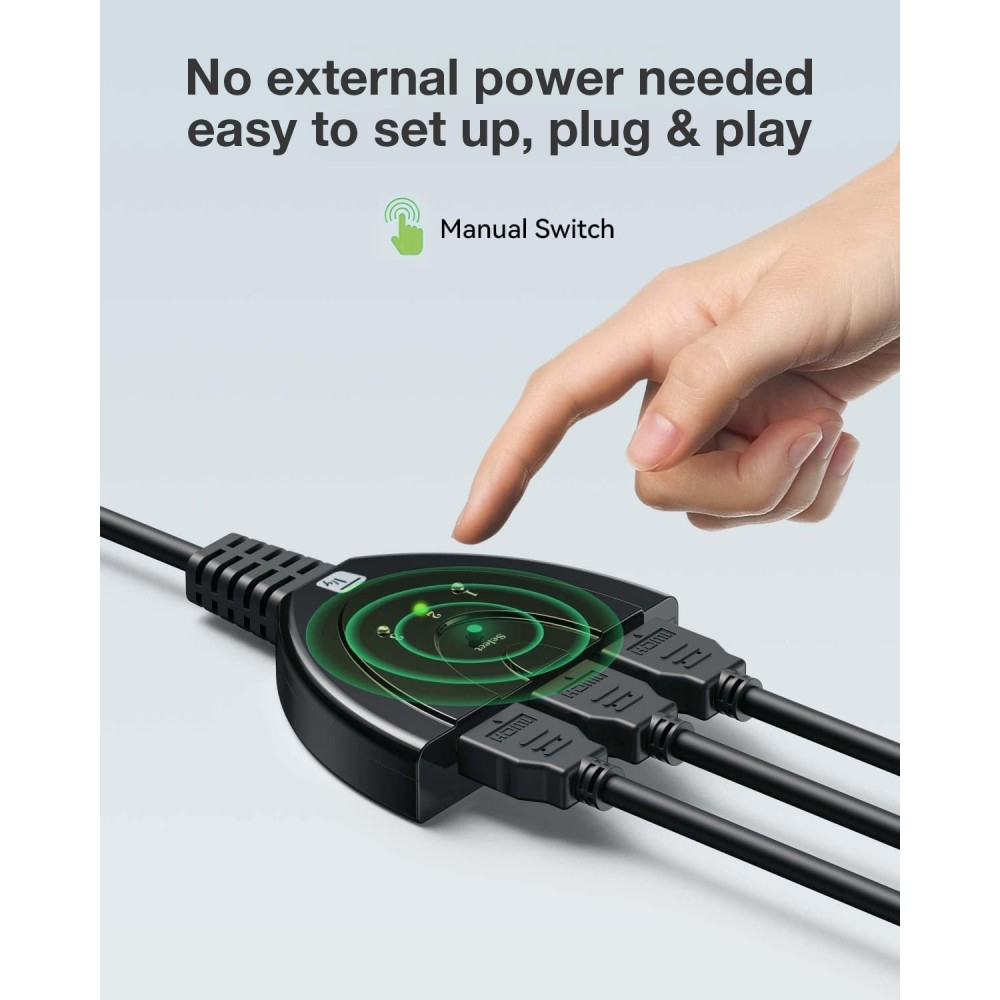

| Plug and Play | Yes |
| Supported video modes | 480i, 480p, 576p, 720p, 1080i, 1080p, 2160p, 4320p |
Certificates
| Specification | Value |
|---|---|
| Certification | EC, FCC , RoHS |
Weight & dimensions
| Specification | Value |
|---|---|

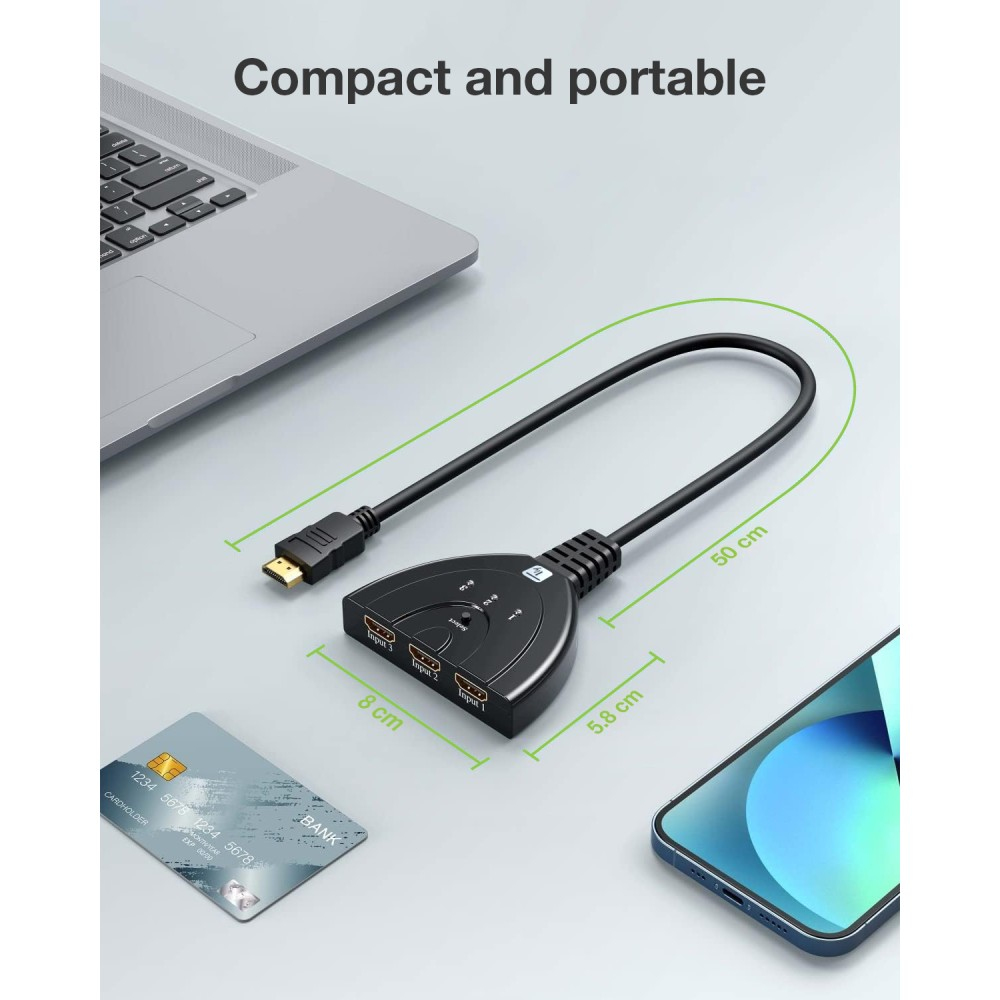

| Width | 80 mm |
| Depth | 58 mm |
Packaging data
| Specification | Value |
|---|---|
| Package type | Box |
Packaging content
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
| Manual | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -15 - 55 °C |
| Operating relative humidity (H-H) | 5 - 90% |
