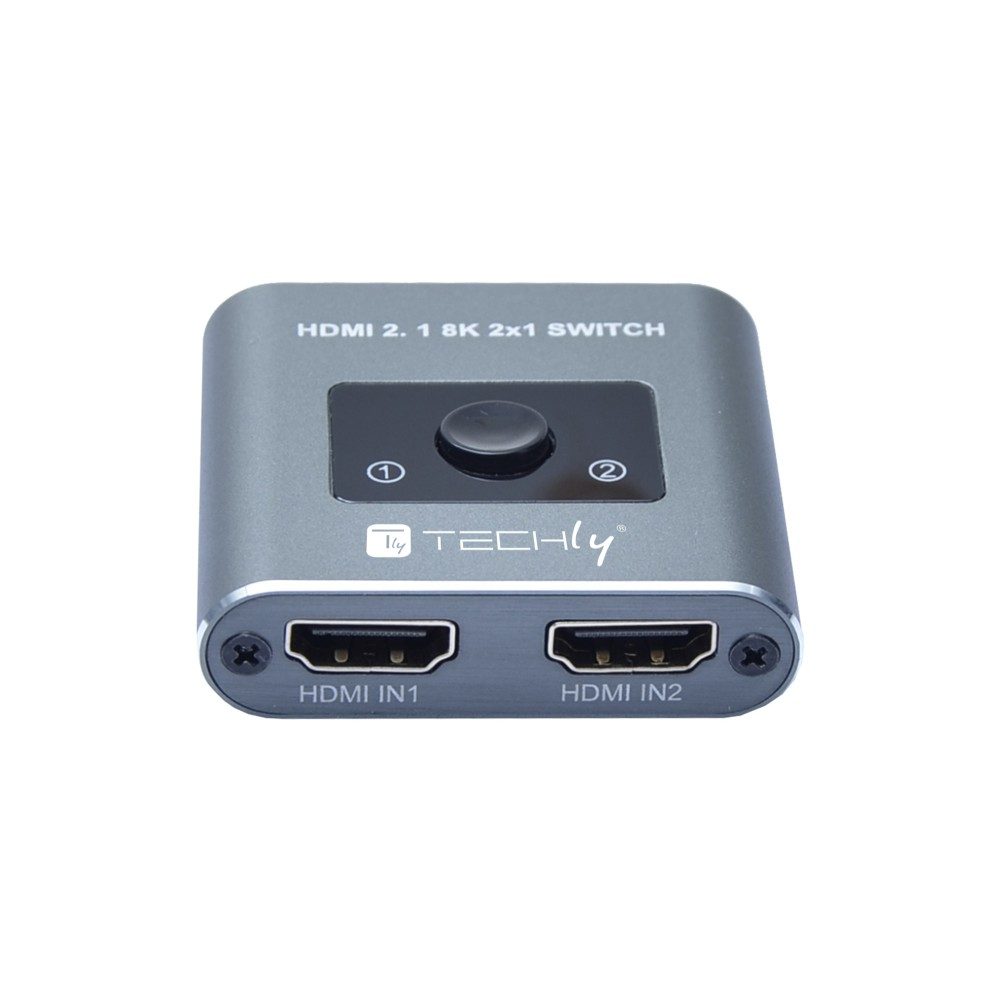

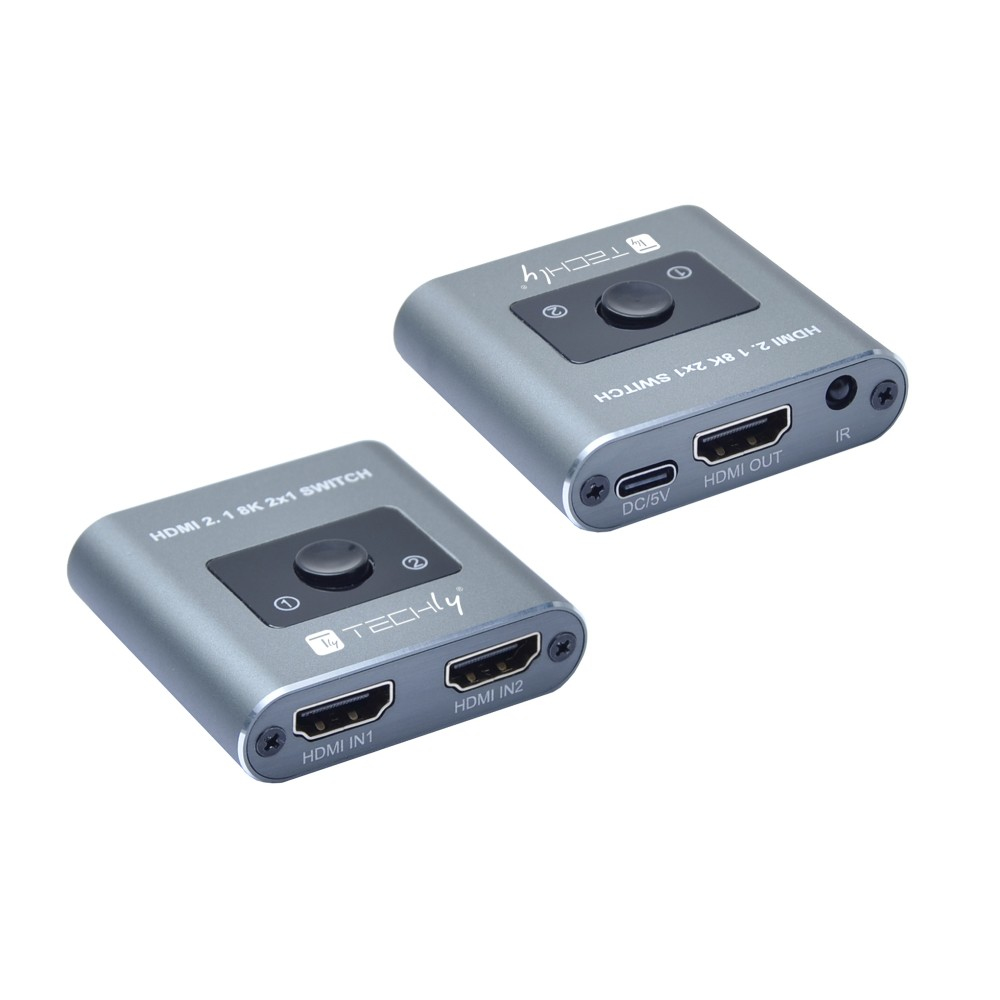

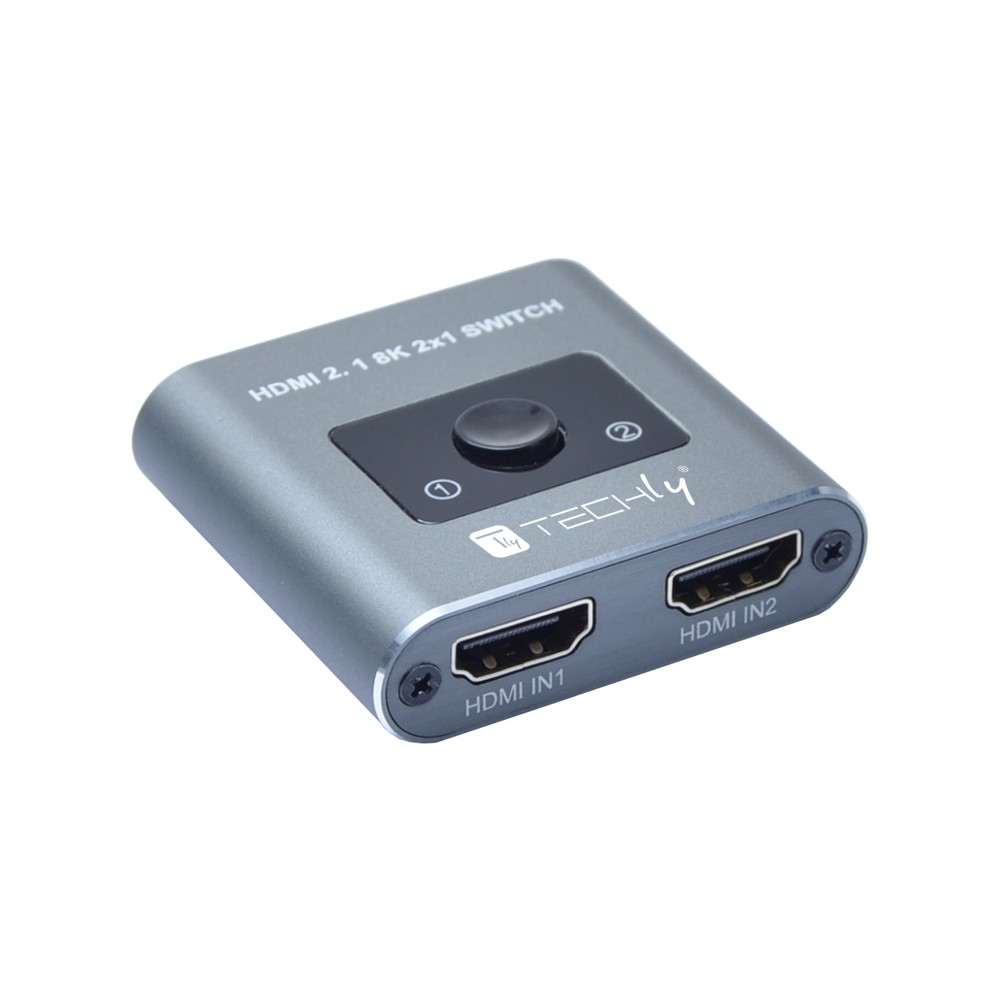

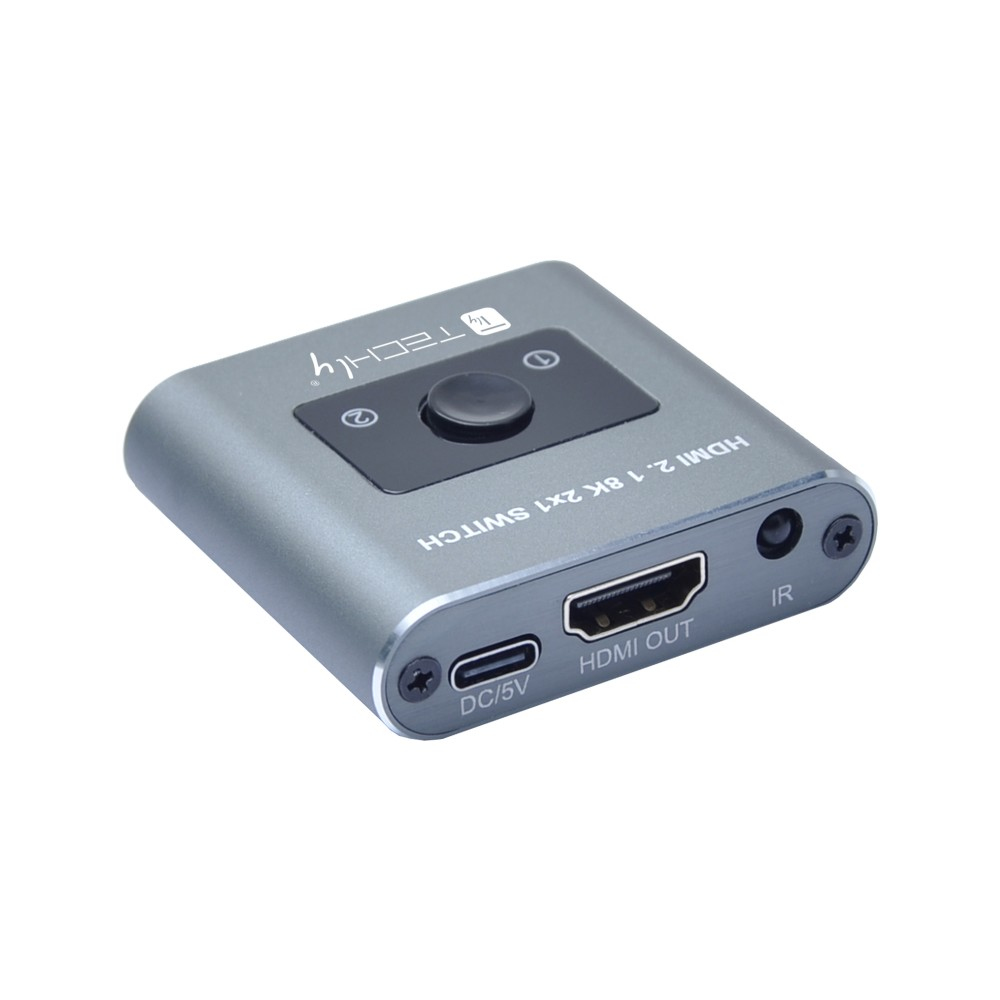

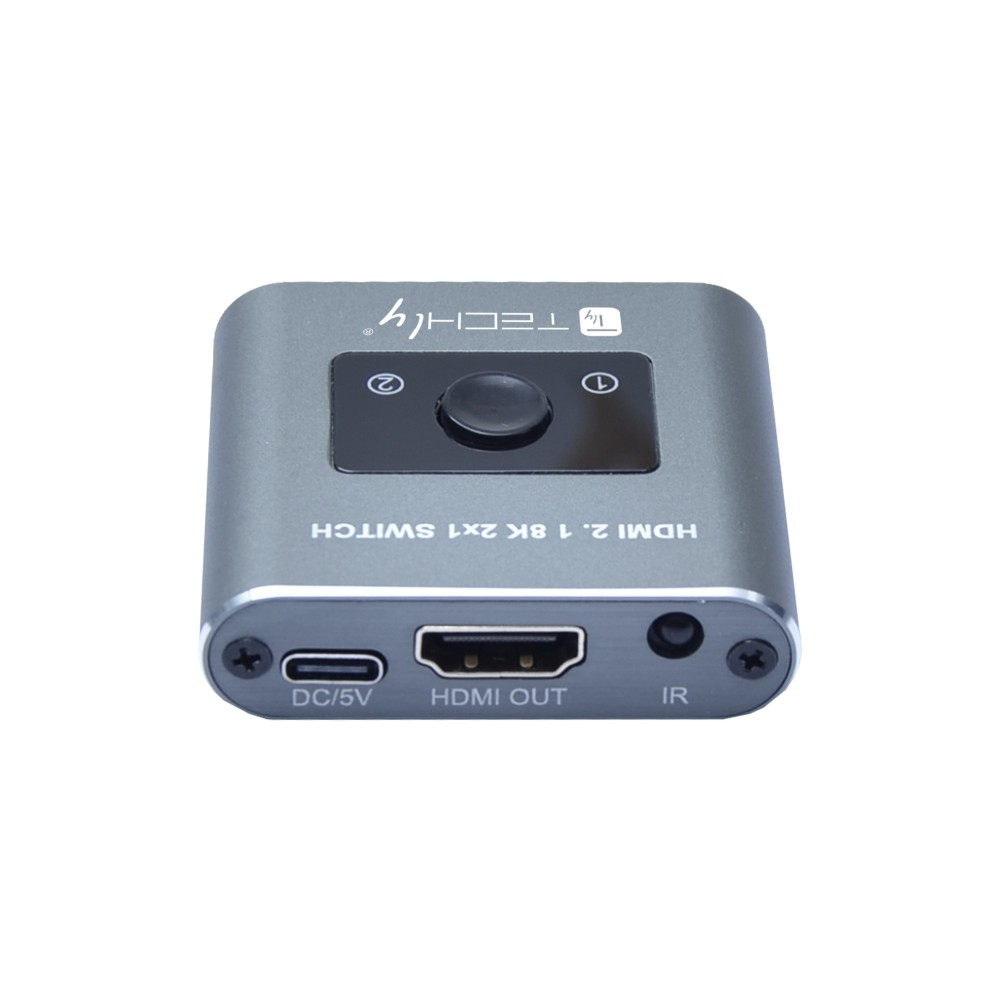

IDATA HDMI-2128KT
Model IDATA HDMI-2128KTEAN 8059018365504
30 specifications
- Weight148 g
- ColourGrey
- Video port typeHDMI
- AC adapter output voltage5 V
- Operating temperature (T-T)-15 - 55 °C
- Compliance certificatesCE, RoHS
Overview
- Weight
- 148 g
- Colour
- Grey
- Video port type
- HDMI
- AC adapter output voltage
- 5 V
- Operating temperature (T-T)
- -15 - 55 °C
- Compliance certificates
- CE, RoHS
- Brand
- Techly
- Category
- Video Switch
- Model
- IDATA HDMI-2128KT
- Part number
- IDATA HDMI-2128KT
- EAN / UPC
- 8059018365504
- Also known as
- Techly IDATA HDMI-2128KT video switch
Specifications
30 specifications in 9 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Video port type | HDMI |
| HDMI ports quantity | 3 |
| HDMI version | 2.1 |
| HDMI in | 2 |
| Number of HDMI outputs | 1 |
Features
| Specification | Value |
|---|---|
| Product colour | Grey |
| Audio decoders | DSD, DTS, Dolby Digital, DTS-HD, Dolby TrueHD |
| Audio formats supported | AC3, LPCM |
| Bandwidth | 48 Gbit/s |
| Colour depth | 36 bit |
| HD type | 8K Ultra HD |
| HDCP | Yes |
| HDCP version | 2.3 |
| Maximum operating distance | 2 m |
| Maximum refresh rate | 60 Hz |
| Maximum resolution | 7680 x 4320 pixels |
| Supported video modes | 1080p, 480p, 2160p, 4320p, 576p |
Power
| Specification | Value |
|---|---|
| AC adapter output voltage | 5 V |
| AC adapter output current | 1 A |
Certificates
| Specification | Value |
|---|---|
| Certification | CE, FCC, RoHS |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 148 g |
Packaging content
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
| AC adapter included | Yes |
| Cables included | USB |
| Remote control included | Yes |
| User guide | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -15 - 55 °C |
| Operating relative humidity (H-H) | 5 - 90% |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | CE, RoHS |
Logistics data
| Specification | Value |
|---|---|
| Products per master (outer) case | 50 pc(s) |
