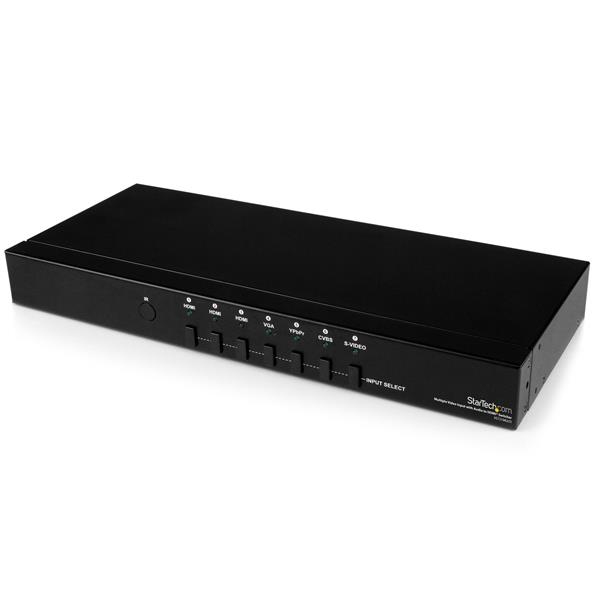

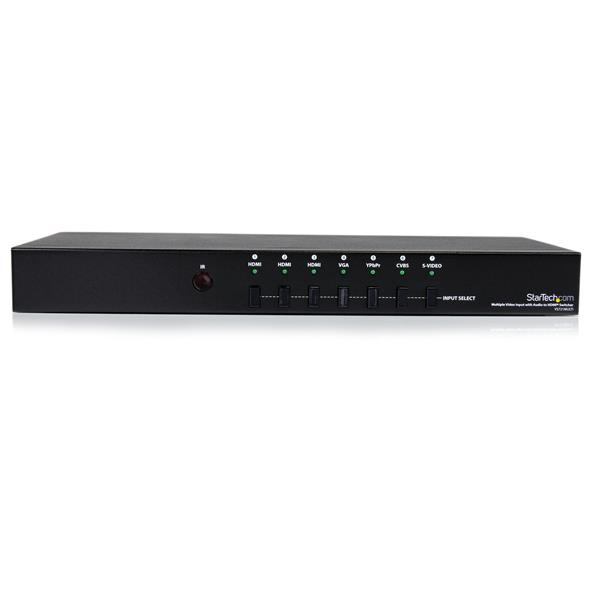

StarTech.com Multiple Video Input with Audio to HDMI Scaler Switcher - HDMI / VGA / Component
Model VS721MULTIEAN 872182651338
44 specifications
- Weight1.8 kg
- ColourBlack
- Video port typeHDMI
- MaterialAluminium
- AC adapter input voltage100 - 240 V
- Width173 mm
Overview
- Weight
- 1.8 kg
- Colour
- Black
- Video port type
- HDMI
- Material
- Aluminium
- AC adapter input voltage
- 100 - 240 V
- Width
- 173 mm
- Brand
- StarTech.com
- Category
- Video Switch
- Model
- VS721MULTI
- Part number
- VS721MULTI
- EAN / UPC
- 872182651338, 065030848497, 069060116465, 100177424668 +9 more
- Also known as
- StarTech.com Multiple Video Input with Audio to HDMI Scaler Switcher - HDMI / VGA / Component
Specifications
44 specifications in 10 groups

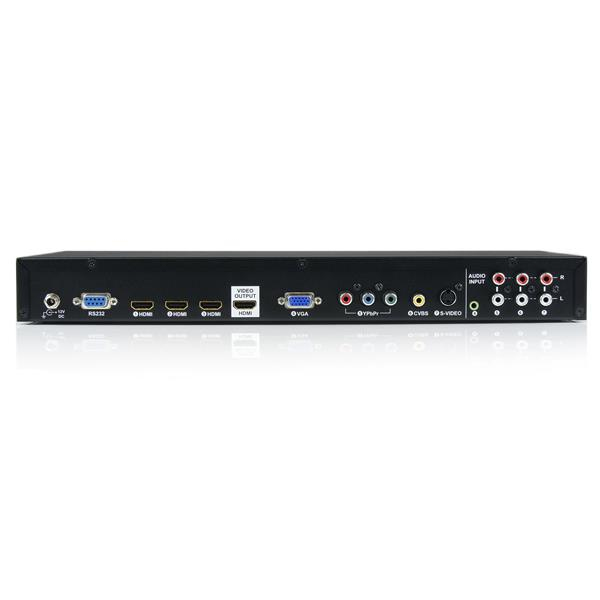

Ports & interfaces
| Specification | Value |
|---|---|
| Video port type | HDMI |
| HDMI in | 3 |
| Number of HDMI outputs | 1 |
| VGA (D-Sub) input ports | 1 |
| Audio (L/R) in | 3 |
| Audio (L/R) out | 3 |
| Composite video in | 1 |
| Component video (YPbPr/YCbCr) in | 1 |
| 3.5 mm (1/8-inch) out | Yes |
| RS-232 ports | 1 |
Features
| Specification | Value |
|---|---|
| Material | Aluminium |
| Product colour | Black |
| HDCP | Yes |
| LED indicators | Yes |
| Maximum resolution | 1920 x 1200 pixels |
| Supported graphics resolutions | 640 x 480 (VGA), 720 x 400, 720 x 480, 720 x 576, 800 x 600 (SVGA), 848 x 480, 1024 x 768 (XGA), 1152 x 864 (XGA+), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 768 (WXGA), 1280 x 800 (WXGA), 1280 x 960, 1360 x 768 (WXGA), 1400 x 1050 (SXGA+), 1440 x 1050, 1440 x 900 (WXGA+), 1600 x 1200 (UXGA), |
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro x64, Windows 10 x64, Windows 2000, Windows 2000 Professional, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise |
Power
| Specification | Value |
|---|---|
| AC adapter input voltage | 100 - 240 V |
| AC adapter input current | 0.6 A |
| AC adapter output voltage | 12 V |
| AC adapter output current | 1.5 A |
| Power consumption (typical) | 18 W |
| Power plug type | Type M |
Certificates
| Specification | Value |
|---|---|
| Certification | CE, FCC, TAA |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 173 mm |
| Depth | 384 mm |
| Height | 45 mm |
| Weight | 1.8 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 260 mm |
| Package depth | 459 mm |
| Package height | 90 mm |
| Package weight | 2.7 kg |

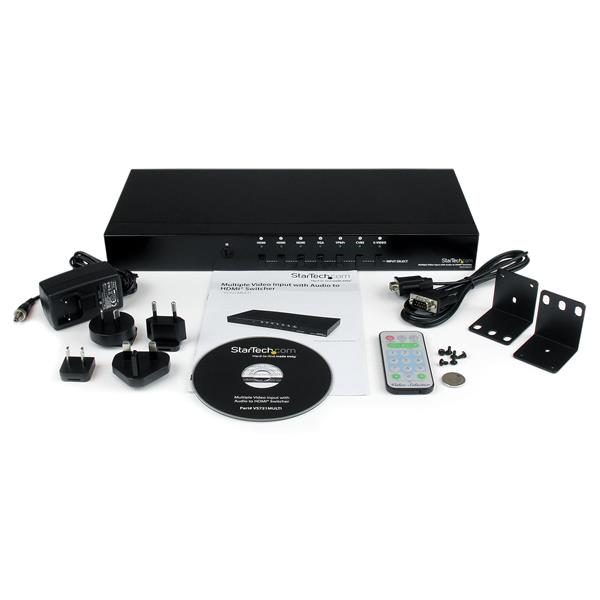

Packaging content
| Specification | Value |
|---|---|
| Mounting kit | Yes |
| AC adapter included | Yes |
| Cables included | Serial |
| Manual | Yes |
| Mounting brackets included | Yes |
| Remote control included | Yes |
| Software CD | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -20 - 85 °C |
| Operating relative humidity (H-H) | 0 - 95% |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85176990 |
