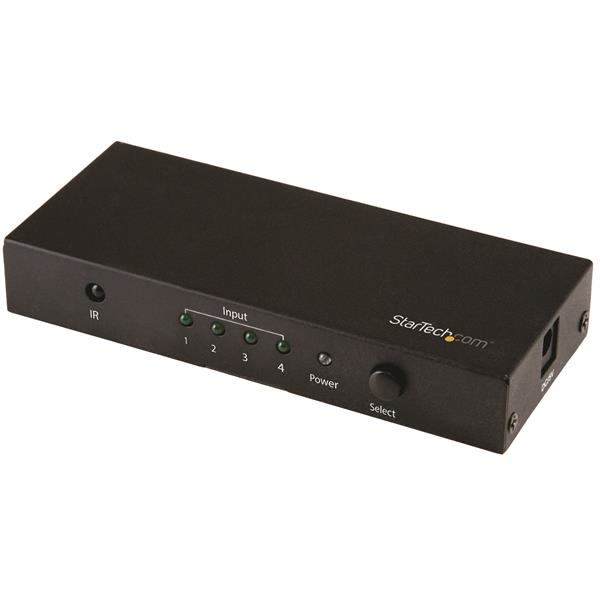

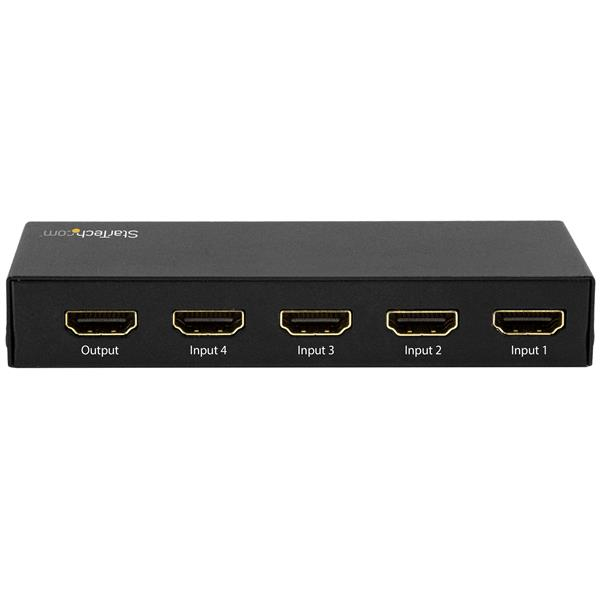

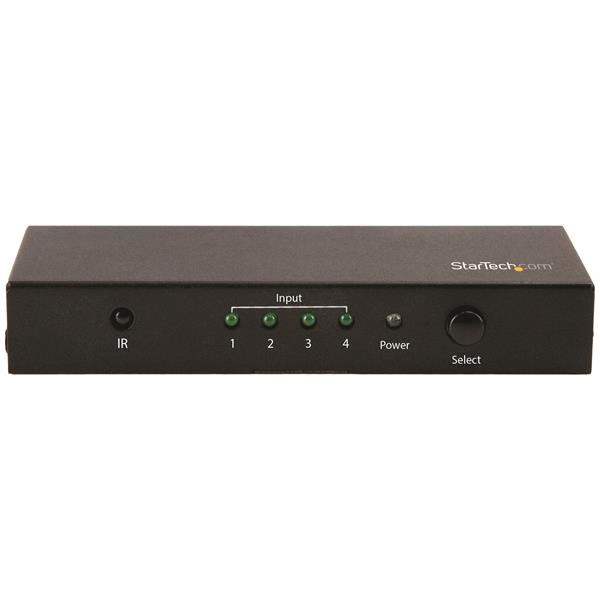

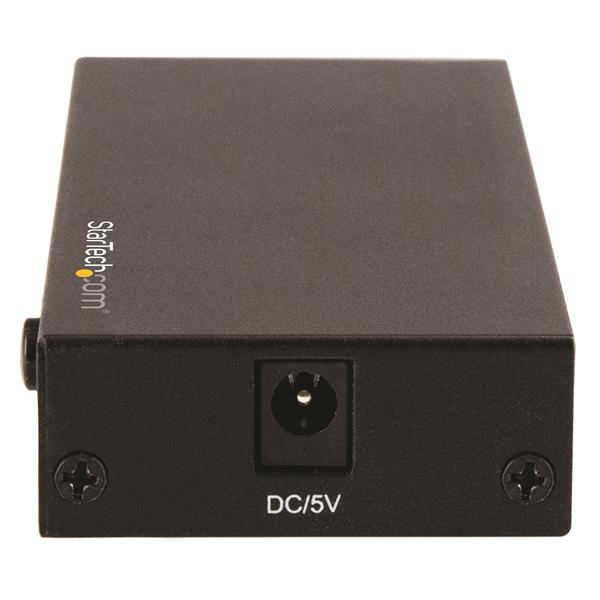

4-Port HDMI Automatic Switch - 4K
60Hz
Model VS421HD20EAN 065030866415
37 specifications
- Weight154 g
- ColourBlack
- Video port typeHDMI
- AC adapter input voltage100 - 240 V
- Width51 mm
- Operating temperature (T-T)0 - 40 °C
Overview
- Weight
- 154 g
- Colour
- Black
- Video port type
- HDMI
- AC adapter input voltage
- 100 - 240 V
- Width
- 51 mm
- Operating temperature (T-T)
- 0 - 40 °C
- Brand
- StarTech.com
- Category
- Video Switch
- Model
- VS421HD20
- Part number
- VS421HD20
- EAN / UPC
- 065030866415, 5057454714460
- Also known as
- StarTech.com 4-Port HDMI Automatic Switch - 4K 60Hz
Specifications
37 specifications in 10 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Video port type | HDMI |
| HDMI ports quantity | 5 |
| HDMI version | 2.0 |
| HDMI in | 4 |
Features
| Specification | Value |
|---|---|
| Product colour | Black |
| Audio output channels | 7.1 channels |
| HDCP | Yes |
| LED indicators | Power |
| Maximum refresh rate | 60 Hz |
| Maximum resolution | 3840 x 2160 pixels |
| Supported graphics resolutions | 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 2560 x 1600 (WQXGA), 3840 x 2160 |
Power
| Specification | Value |
|---|---|
| AC adapter input voltage | 100 - 240 V |
| AC adapter frequency | 50 Hz |
| AC adapter input current | 0.4 A |
| AC adapter output voltage | 5 V |
| AC adapter output current | 2 A |
| Power plug type | Type H |
Certificates
| Specification | Value |
|---|---|
| Certification | CE, FCC |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 51 mm |
| Depth | 123 mm |
| Height | 20 mm |
| Weight | 154 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 217 mm |
| Package depth | 151 mm |
| Package height | 55 mm |
| Package weight | 434 g |
Packaging content
| Specification | Value |
|---|---|
| Remote control included | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -10 - 80 °C |
| Operating relative humidity (H-H) | 10 - 85% |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
| Audio support | Yes |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85176990 |
| Master (outer) case width | 462 mm |
| Master (outer) case length | 293 mm |
| Master (outer) case height | 341 mm |
| Products per master (outer) case | 20 pc(s) |
