2X2 HDMI Matrix Switch w/ Automatic and Priority Switching – 1080p - TAA
Model VS222HDQEAN 4058829196387
42 specifications
- Weight290 g
- ColourBlack
- Video port typeHDMI
- MaterialAluminium, Plastic
- AC adapter input voltage100 - 240 V
- Width65 mm
Overview
- Weight
- 290 g
- Colour
- Black
- Video port type
- HDMI
- Material
- Aluminium, Plastic
- AC adapter input voltage
- 100 - 240 V
- Width
- 65 mm
- Brand
- StarTech.com
- Category
- Video Switch
- Model
- VS222HDQ
- Part number
- VS222HDQ
- EAN / UPC
- 4058829196387, 044111253313, 065030855044, 5704174033240 +1 more
- Also known as
- StarTech.com 2X2 HDMI Matrix Switch w/ Automatic and Priority Switching – 1080p - TAA
Specifications
42 specifications in 10 groups

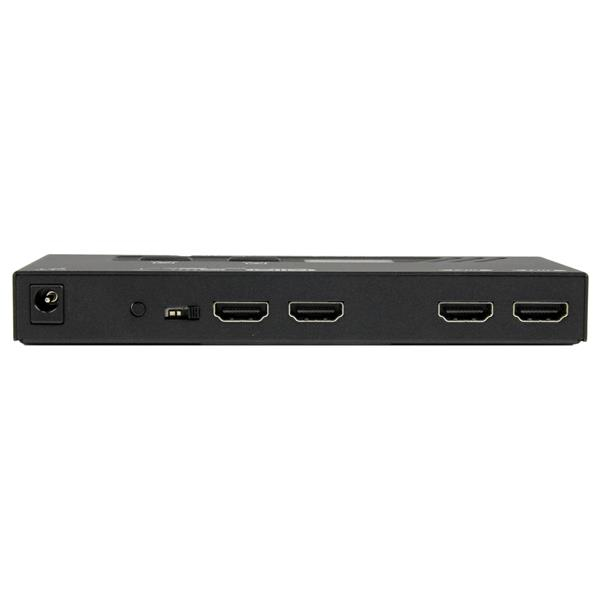

Ports & interfaces
| Specification | Value |
|---|---|
| Video port type | HDMI |
| HDMI ports quantity | 4 |
| HDMI in | 2 |
| Number of HDMI outputs | 2 |
Features
| Specification | Value |
|---|---|
| Material | Aluminium, Plastic |
| Product colour | Black |
| Audio output channels | 7.1 channels |
| HDCP | Yes |
| LED indicators | Activity |
| Maximum operating distance | 10 m |
| Plug and Play | Yes |
| Rack mounting | Yes |
| Supported graphics resolutions | 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA) |
| Supported video modes | 1080p, 720p |
Power
| Specification | Value |
|---|---|
| AC adapter input voltage | 100 - 240 V |
| AC adapter input current | 0.6 A |
| AC adapter output voltage | 12 V |
| AC adapter output current | 1.5 A |
| Power consumption (max) | 18 W |
| Power plug type | Type M |
Certificates
| Specification | Value |
|---|---|
| Certification | CE, FCC, TAA, REACH |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 65 mm |
| Depth | 157 mm |
| Height | 20 mm |
| Weight | 290 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 196 mm |
| Package depth | 294 mm |
| Package height | 76 mm |
| Package weight | 545 g |

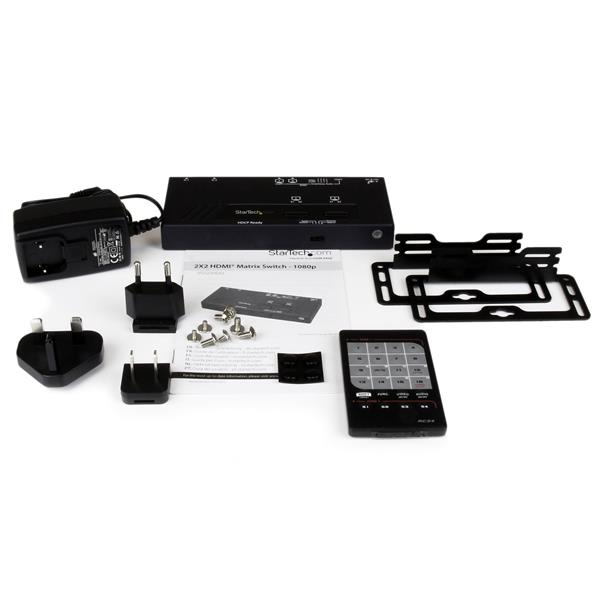

Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Manual | Yes |
| Plug adapter type | NA, EU, UK, AU |
| Remote control included | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85176990 |
| Master (outer) case width | 412 mm |
| Master (outer) case length | 454 mm |
| Master (outer) case height | 334 mm |
| Products per master (outer) case | 12 pc(s) |
