StarTech.com 2-Port VGA Auto Switch Box with Priority Switching and EDID Copy

StarTech.com 2-Port VGA Auto Switch Box with Priority Switching and EDID Copy

Model ST122VGAEAN 5054629079560

37 specifications
  • Weight170 g
  • ColourBlack
  • Video port typeVGA
  • MaterialAluminium
  • AC input voltage100 - 240 V
  • Width59 mm
See all specifications

Overview

Weight
170 g
Colour
Black
Video port type
VGA
Material
Aluminium
AC input voltage
100 - 240 V
Width
59 mm
Brand
StarTech.com
Category
Video Switch
Model
ST122VGA
Part number
ST122VGA
EAN / UPC
5054629079560, 065030852821, 112840346238, 195870085445 +4 more
Also known as
StarTech.com 2-Port VGA Auto Switch Box with Priority Switching and EDID Copy

Specifications

37 specifications in 10 groups

Ports & interfaces

Video port typeVGA
VGA (D-Sub) ports quantity2
Video inVGA
Video out2x VGA
DC-in jackYes

Features

MaterialAluminium
Product colourBlack
Extended display identification data (EDID)Yes
External power adapterYes
LED indicatorsYes
Maximum resolution2048 x 1152 pixels
Supported graphics resolutions1366 x 768, 1600 x 900, 1920 x 1440, 2048 x 1152, 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1440 x 900 (WXGA+), 1600 x 1200 (UXGA), 1680 x 1050 (WSXGA+), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA)
Supported video modes1080p

Power

AC input voltage100 - 240 V
AC adapter input current0.4 A
AC adapter output voltage5 V
AC adapter output current2 A
Power consumption (typical)10 W

Certificates

CertificationCE, FCC, TAA, REACH

Weight & dimensions

Width59 mm
Depth74 mm
Height21 mm
Weight170 g
Length74 mm

Packaging data

Package width170 mm
Package depth145 mm
Package height66 mm
Package weight469 g

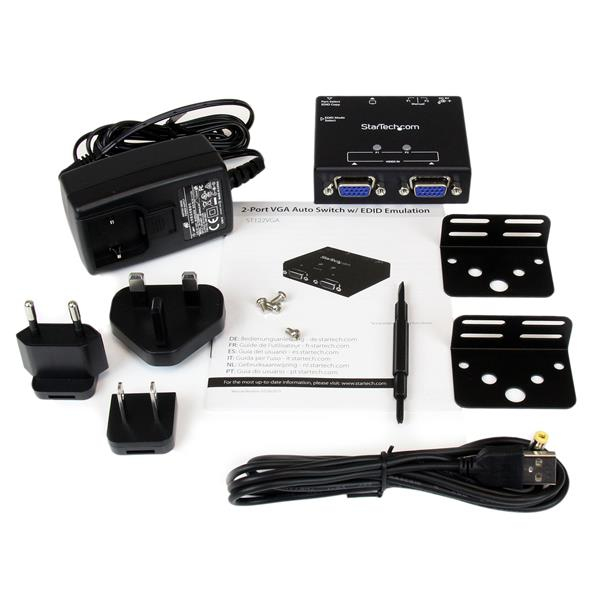

Packaging content

Quantity per pack1 pc(s)
Cables includedUSB
ManualYes
Plug adapter typeNA, EU, UK, ANZ

Operational conditions

Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-10 - 60 °C
Operating relative humidity (H-H)0 - 80%

Technical details

Compliance certificatesRoHS

Logistics data

Harmonized System (HS) code85176990
