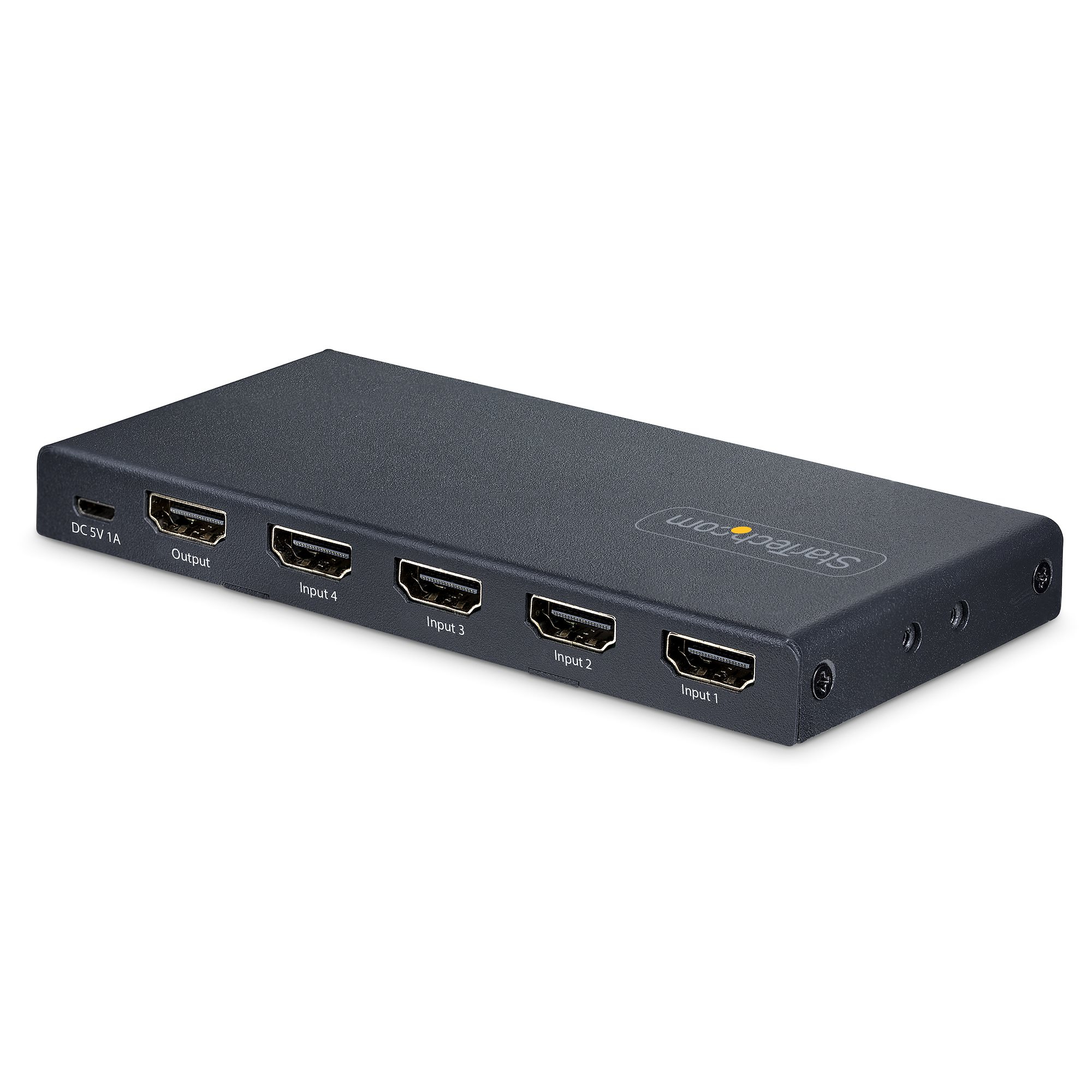

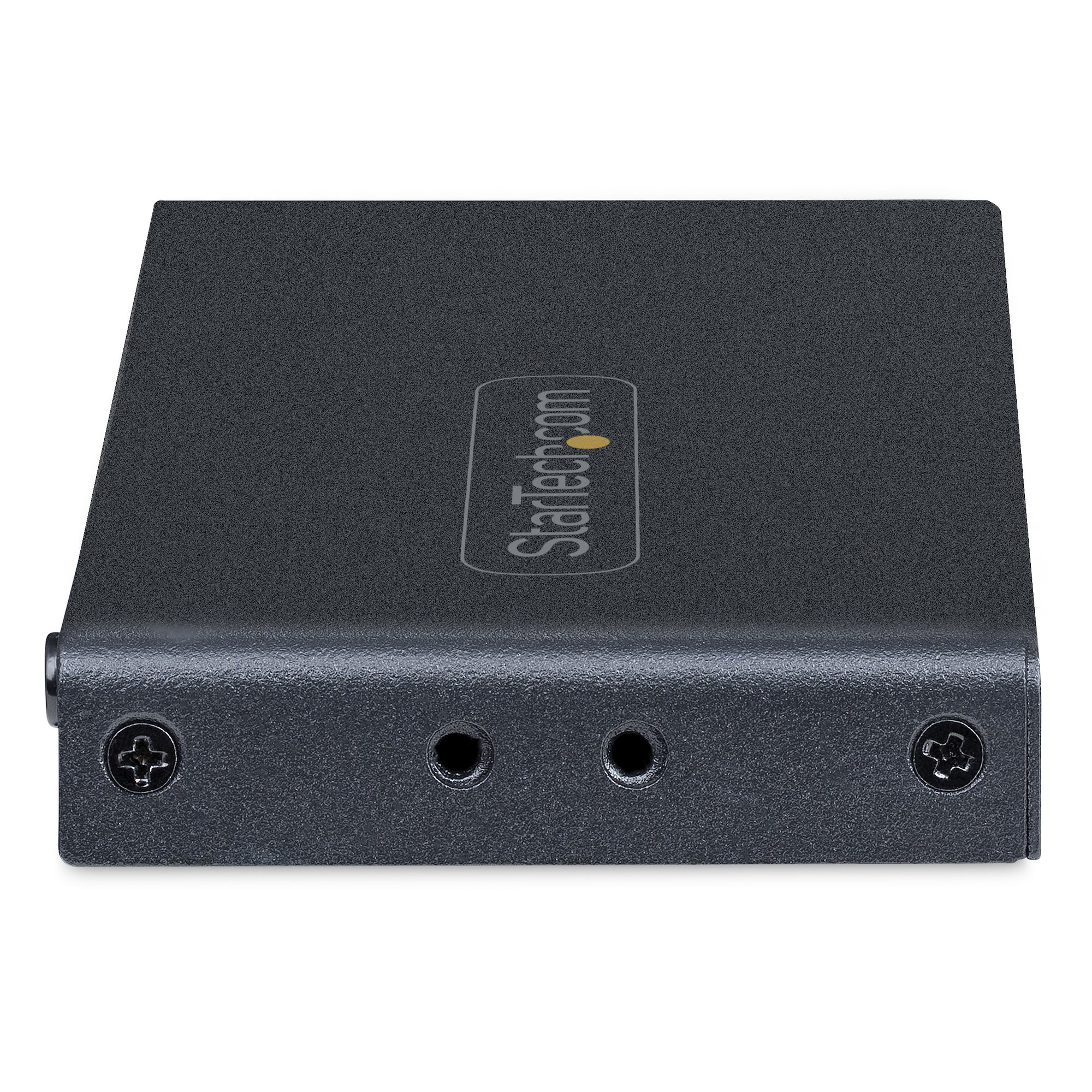

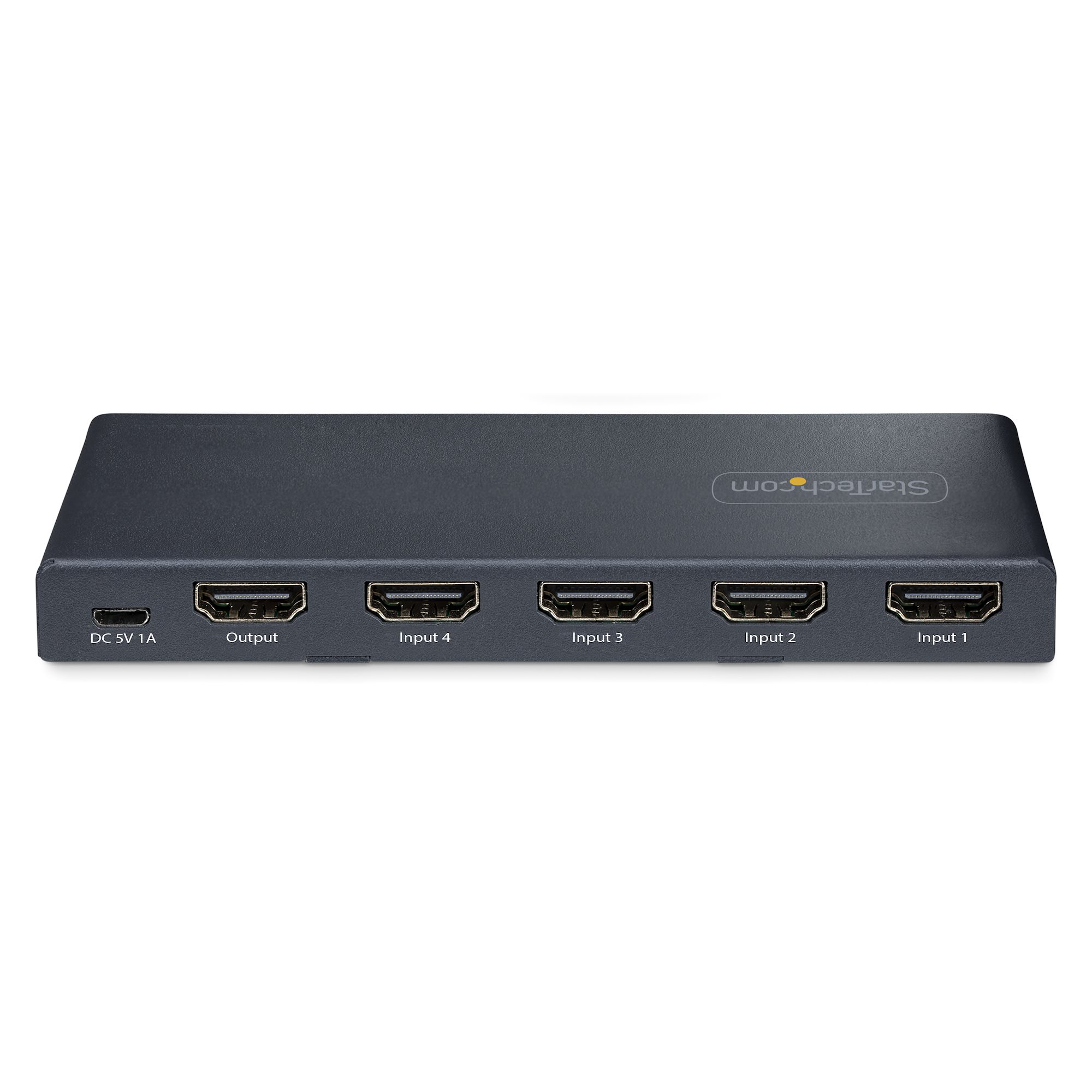

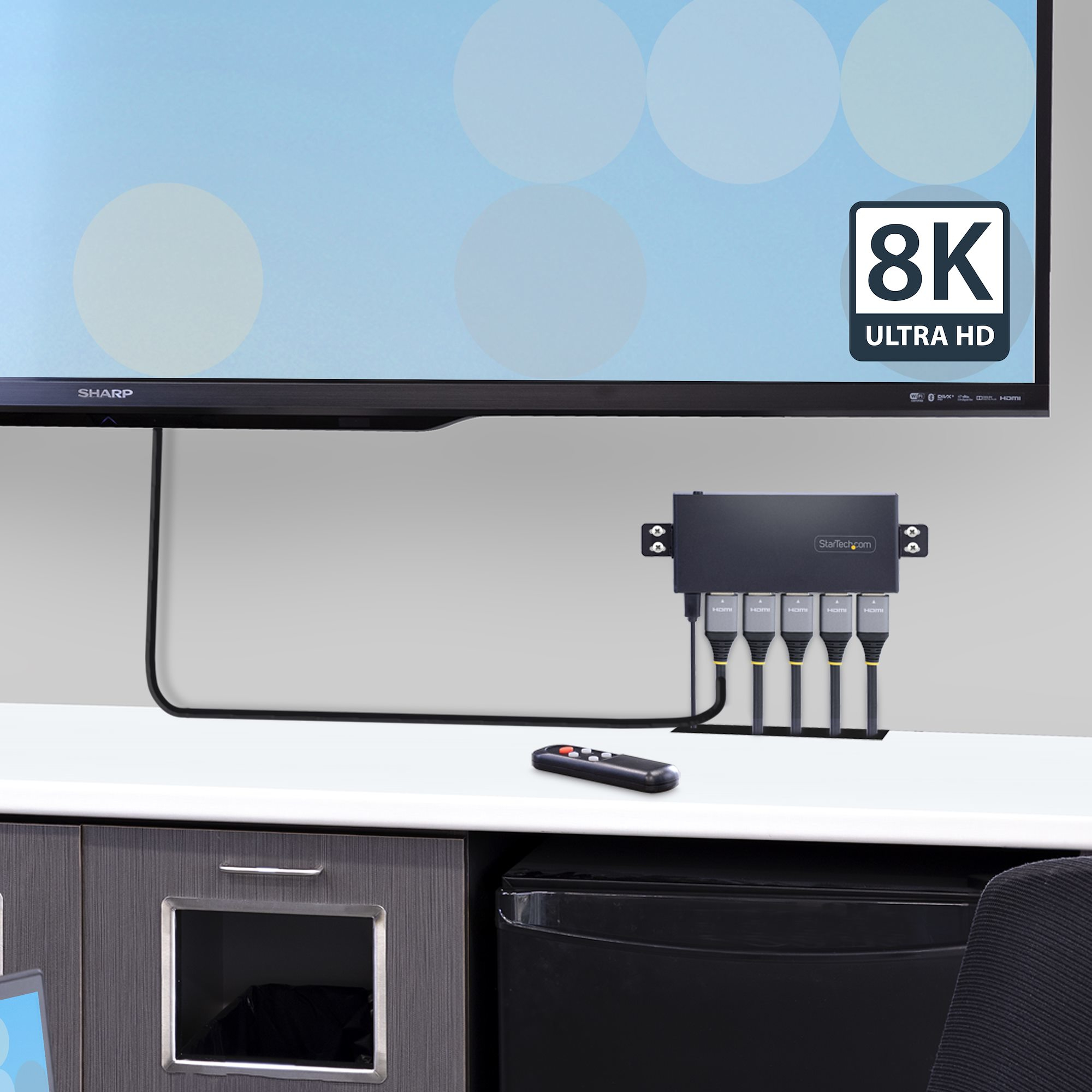

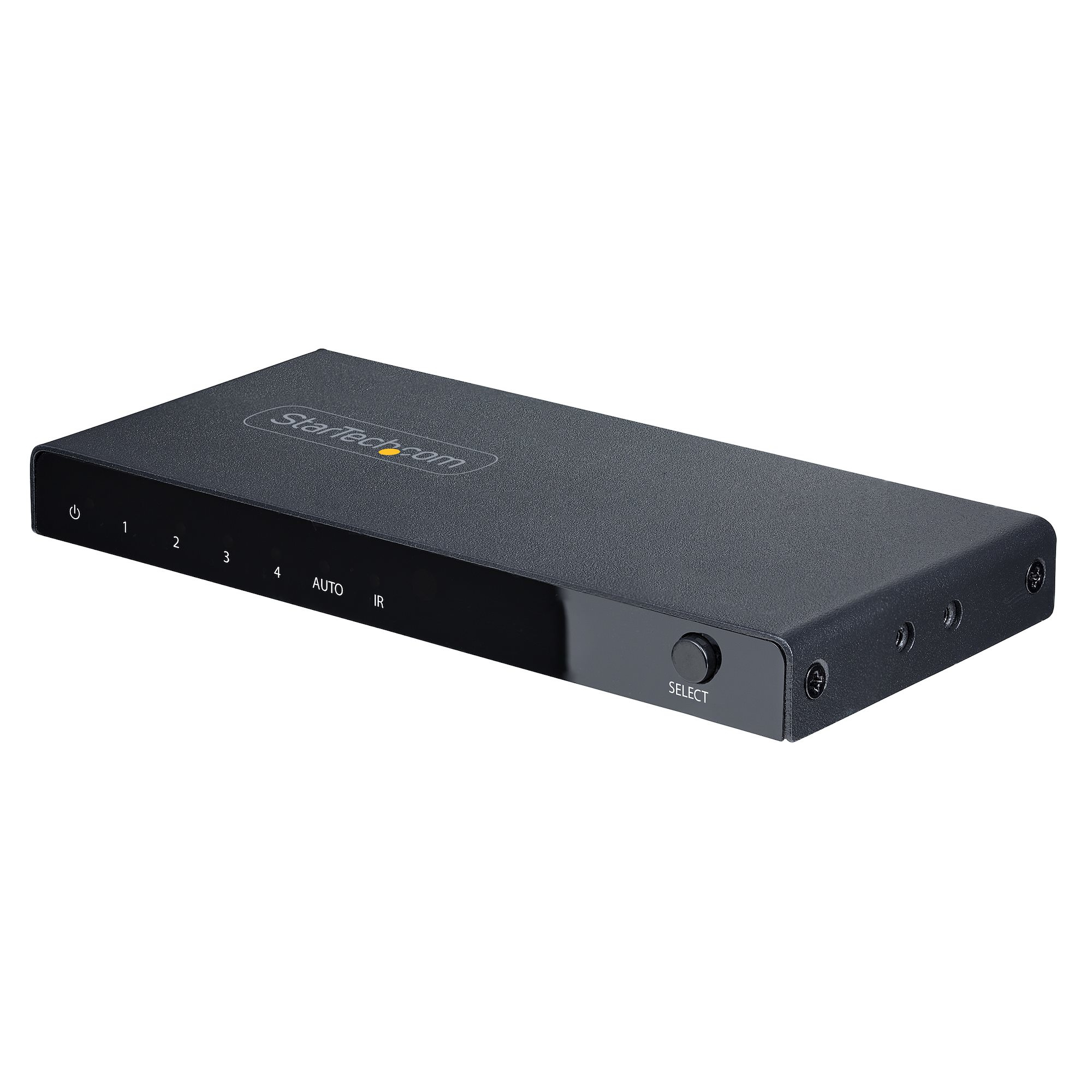

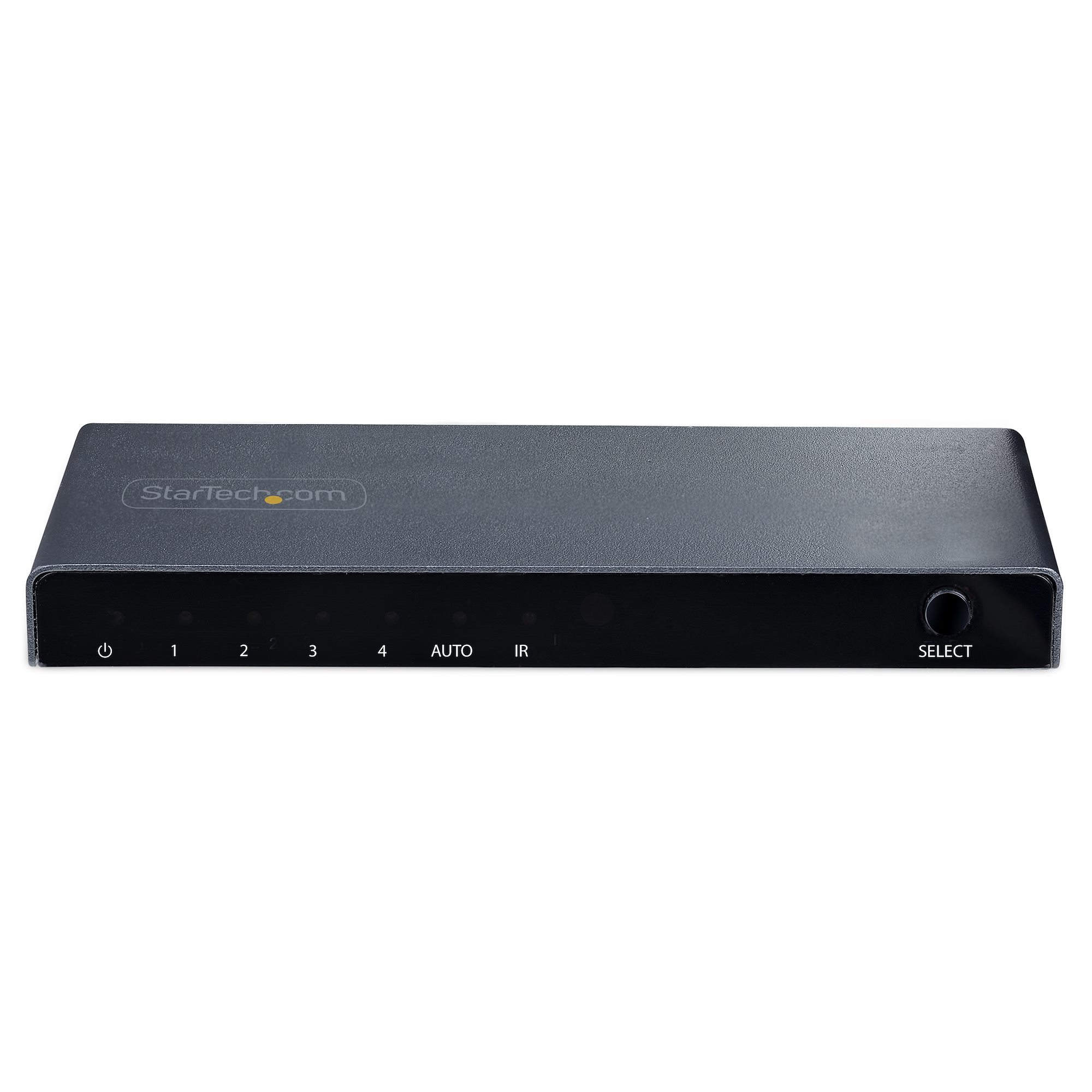

4-Port 8K HDMI Switch, HDMI 2.1 Switcher 4K
120Hz HDR10+, 8K 60Hz UHD, HDMI Switch 4 In 1 Out, Auto/Manual Source Switching, Power Adapter and Remo
Model 4PORT-8K-HDMI-SWITCHEAN 065030899420
46 specifications
- Weight150 g
- ColourBlack
- Video port typeHDMI
- MaterialMetal
- AC input voltage100 - 240 V
- Width61 mm
Overview
- Weight
- 150 g
- Colour
- Black
- Video port type
- HDMI
- Material
- Metal
- AC input voltage
- 100 - 240 V
- Width
- 61 mm
- Brand
- StarTech.com
- Category
- Video Switch
- Model
- 4PORT-8K-HDMI-SWITCH
- Part number
- 4PORT-8K-HDMI-SWITCH
- EAN / UPC
- 065030899420
- Also known as
- StarTech.com 4-Port 8K HDMI Switch, HDMI 2.1 Switcher 4K 120Hz HDR10+, 8K 60Hz UHD, HDMI Switch 4 In 1 Out, Auto/Manual Source Switching, Power Adapter and Remo
Specifications
46 specifications in 10 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Video port type | HDMI |
| HDMI ports quantity | 5 |
| HDMI version | 2.1 |
| HDMI in | 4 |
| Number of HDMI outputs | 1 |
| USB port type | Micro-USB |
Features
| Specification | Value |
|---|---|
| Material | Metal |
| Product colour | Black |
| High Dynamic Range (HDR) supported | Yes |
| Audio output channels | 7.1 channels |
| Bandwidth | 48 Gbit/s |
| Dolby technologies | DTS-HD Master Audio, DTS:X, Dolby Atmos, Dolby TrueHD |
| External power adapter | Yes |
| HDCP | Yes |
| HDCP version | 2.3 |
| LED indicators | Yes |
| Maximum operating distance | 5 m |
| Plug and Play | Yes |
| Supported graphics resolutions | 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 2560 x 1080, 2560 x 1440, 3440 x 1440, 4096 x 2160, 5120 x 1440, 7860 x 4320 |
Power
| Specification | Value |
|---|---|
| AC input voltage | 100 - 240 V |
| AC adapter input current | 0.3 A |
| AC adapter output voltage | 5 V |
| AC adapter output current | 1 A |
| Power consumption (typical) | 5 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 61 mm |
| Depth | 136 mm |
| Height | 14 mm |
| Weight | 150 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 123 mm |
| Package depth | 179 mm |
| Package height | 51 mm |
| Package weight | 420 g |

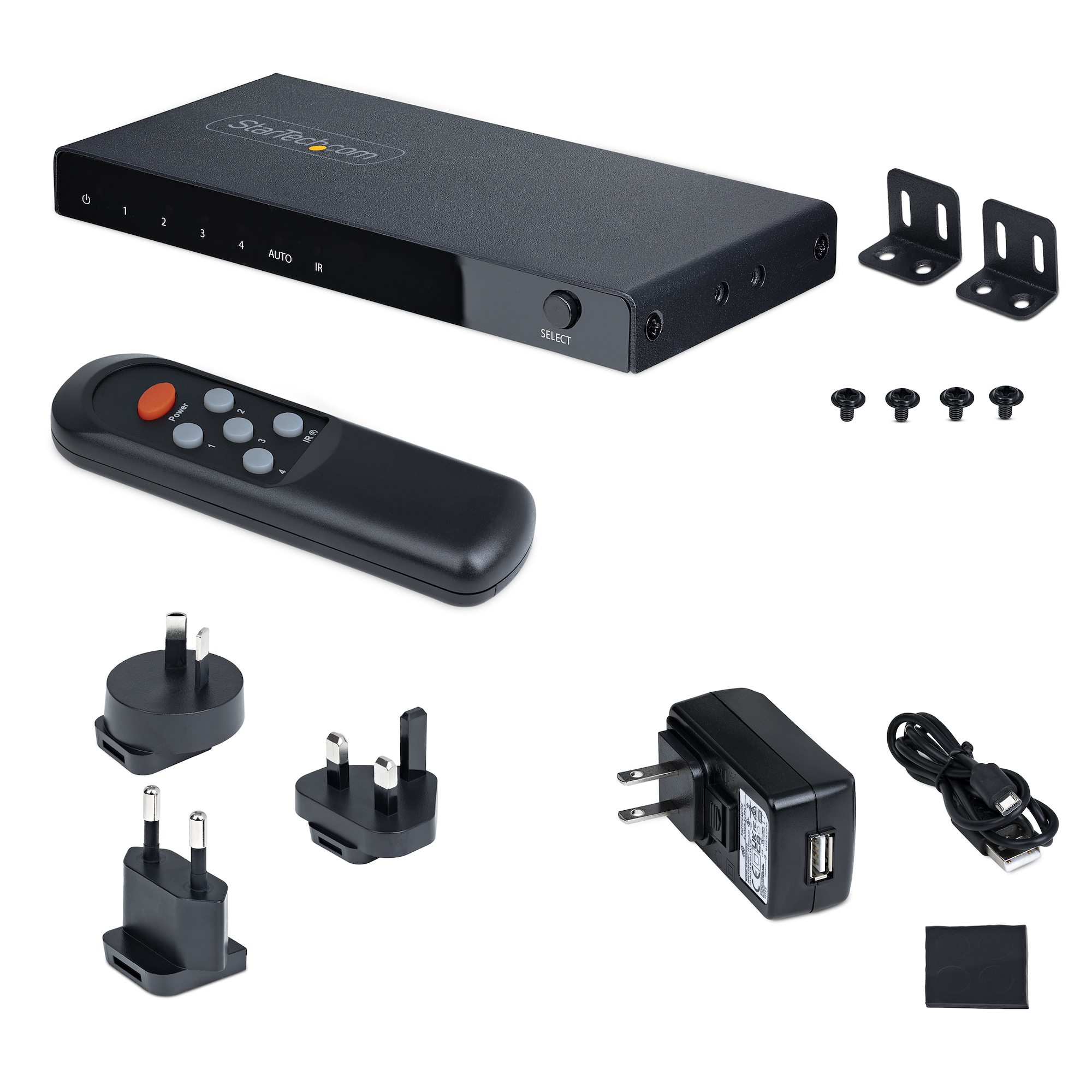

Packaging content
| Specification | Value |
|---|---|
| Mounting kit | Yes |
| AC adapter included | Yes |
| Cables included | USB Type-A to Micro-USB Type-B |
| Quick start guide | Yes |
| Remote control included | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -10 - 80 °C |
| Operating relative humidity (H-H) | 5 - 90% |
Sustainability
| Specification | Value |
|---|---|
| Sustainability compliance | Yes |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | CE, RoHS |
Logistics data
| Specification | Value |
|---|---|
| Master (outer) case width | 397 mm |
| Master (outer) case length | 325 mm |
| Master (outer) case height | 449 mm |
| Products per master (outer) case | 40 pc(s) |
