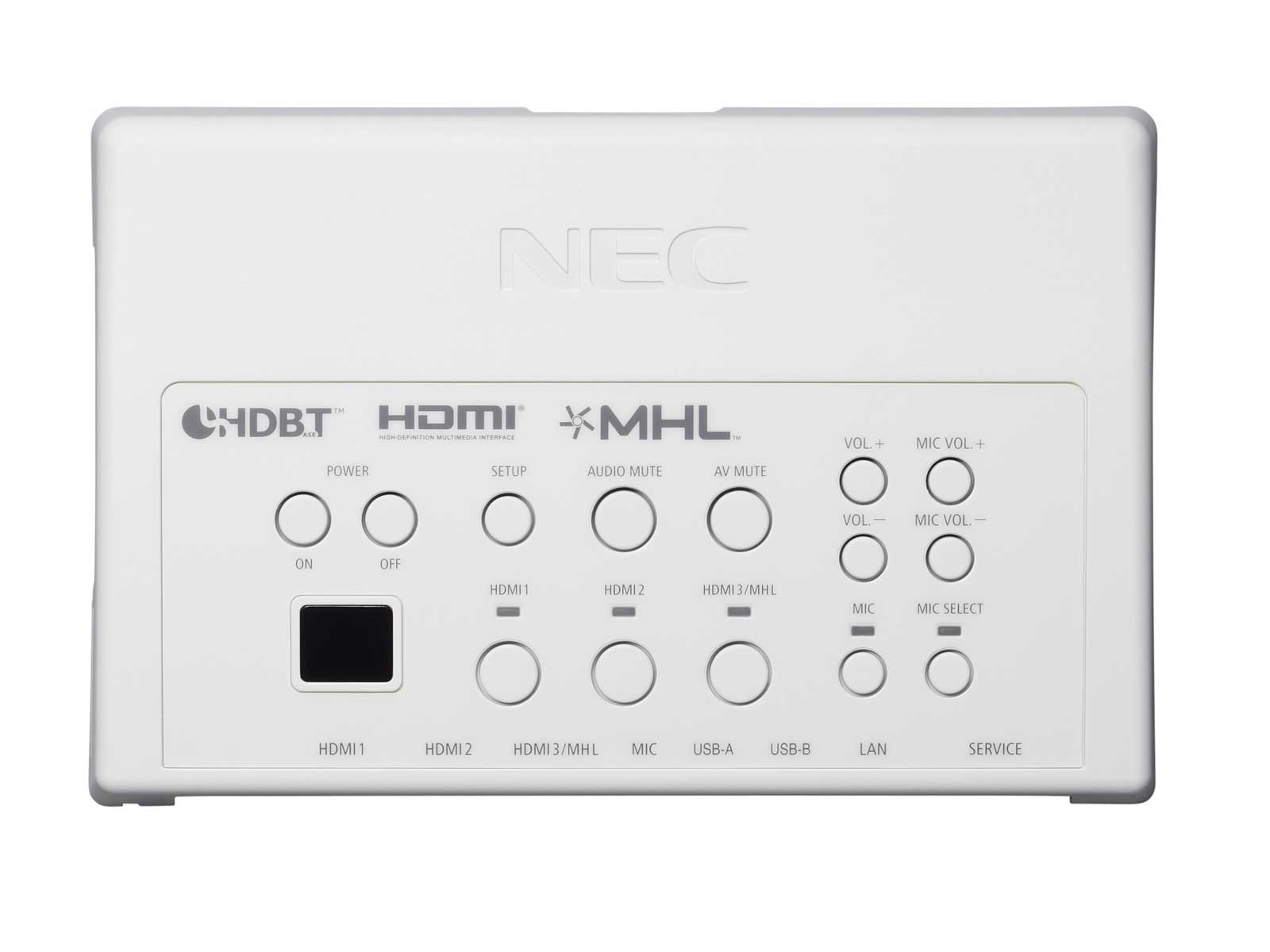

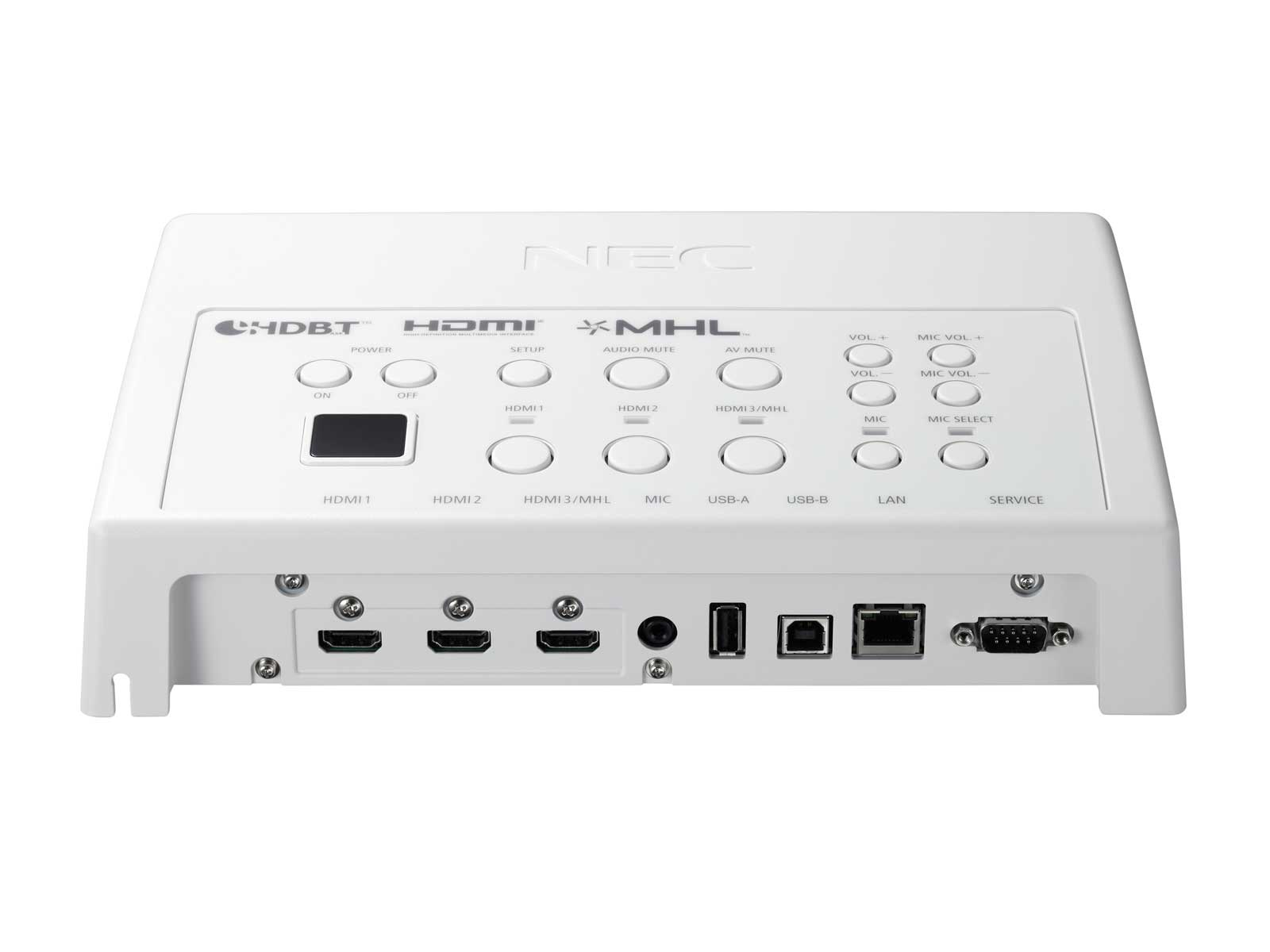

NP01SW1 HDMI
Model NP01SW1Part no. 100014161EAN 805736060751
29 specifications
- Weight1.4 kg
- ColourWhite
- Video port typeHDMI
- AC adapter input voltage100 - 240 V
- Operating temperature (T-T)5 - 40 °C
- Compliance certificatesRoHS
Overview
- Weight
- 1.4 kg
- Colour
- White
- Video port type
- HDMI
- AC adapter input voltage
- 100 - 240 V
- Operating temperature (T-T)
- 5 - 40 °C
- Compliance certificates
- RoHS
- Brand
- NEC
- Category
- Video Switch
- Model
- NP01SW1
- Part number
- 100014161
- EAN / UPC
- 805736060751, 5028695612372
- Also known as
- NEC NP01SW1 HDMI
Specifications
29 specifications in 10 groups

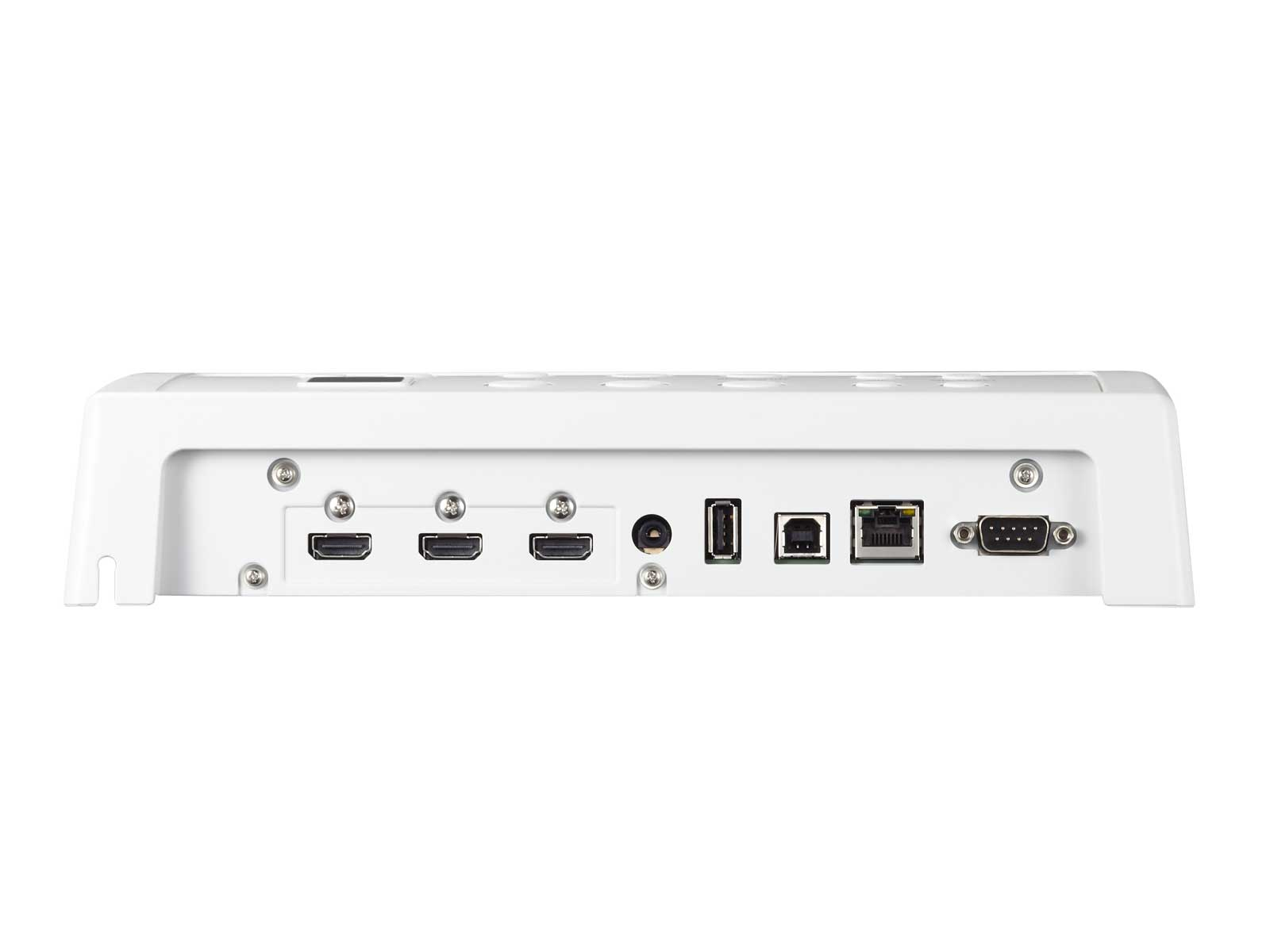

Ports & interfaces
| Specification | Value |
|---|---|
| Video port type | HDMI |
| HDMI in | 3 |
| RJ-45 input ports | 2 |
| RS-232 ports | 1 |
Features
| Specification | Value |
|---|---|
| Product colour | White |
| Colour depth | 12 bit |
| External power adapter | Yes |
| HDCP | Yes |
| Maximum operating distance | 100 m |
| Supported graphics resolutions | 640 x 480 (VGA), 720 x 480, 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 4096 x 2160 |
| Supported video modes | 480i, 480p, 576i, 576p, 720p, 1080i, 1080p |
Power
| Specification | Value |
|---|---|
| AC adapter input voltage | 100 - 240 V |
| AC adapter frequency | 50/60 Hz |
| AC adapter input current | 1.4 A |
| Power consumption (typical) | 21 W |
Certificates
| Specification | Value |
|---|---|
| Certification | CE, FCC, EAC, SASO |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 1.4 kg |
| Dimensions (WxDxH) | 285 x 187 x 64 mm |
Packaging data
| Specification | Value |
|---|---|
| Package width | 354 mm |
| Package depth | 255 mm |
| Package height | 175 mm |
| Package weight | 2.9 kg |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Manual | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 40 °C |
| Storage temperature (T-T) | 10 - 50 °C |
| Operating relative humidity (H-H) | 20 - 80% |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85176990 |
