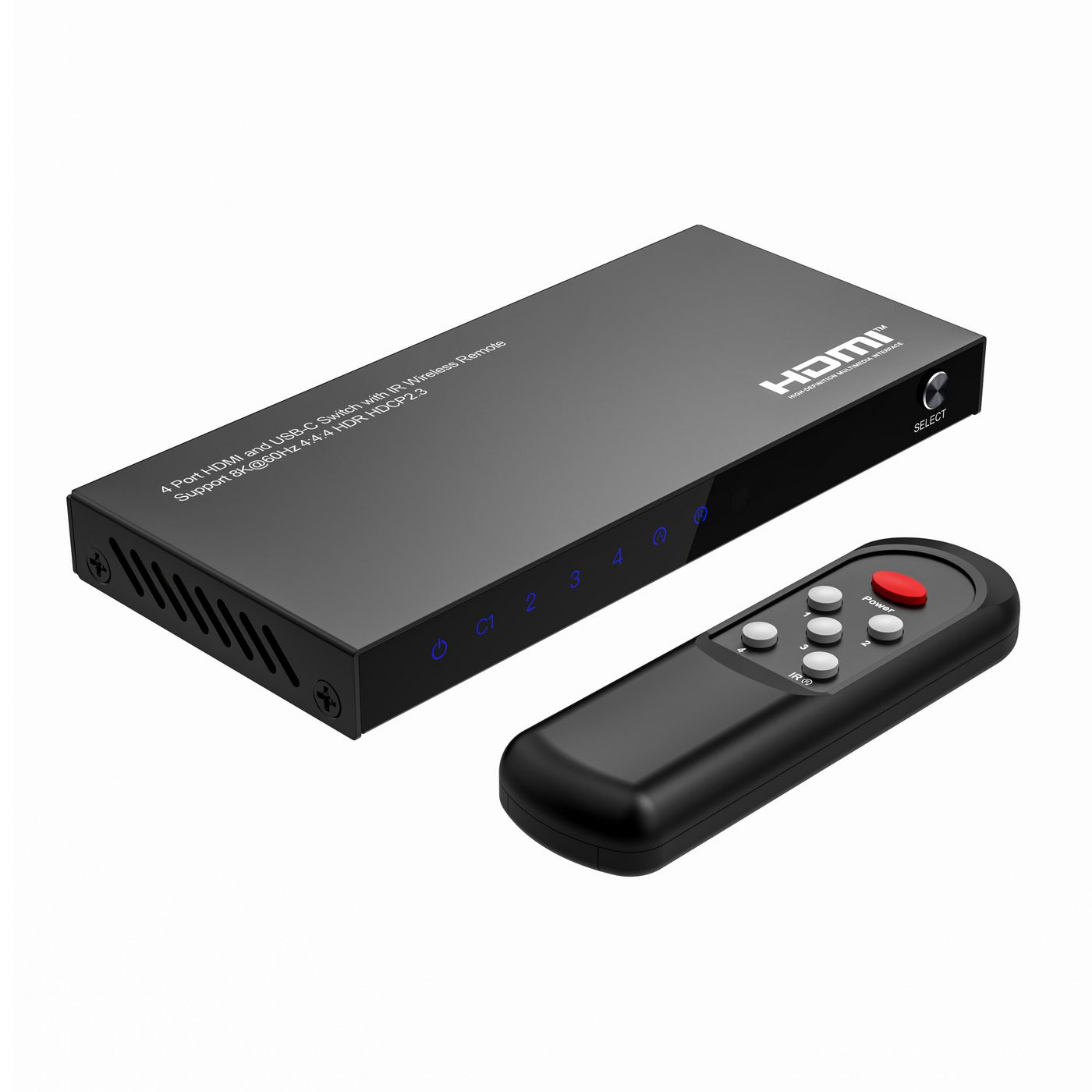

MC-USBCHDMISWITCH0401-8K video switch
Model MC-USBCHDMISWITCH0401-8KEAN 5715063739662
44 specifications
- Weight190 g
- ColourBlack
- HDMI ports quantity4
- MaterialAluminium
- AC input voltage5 V
- Width207 mm
Overview
- Weight
- 190 g
- Colour
- Black
- HDMI ports quantity
- 4
- Material
- Aluminium
- AC input voltage
- 5 V
- Width
- 207 mm
- Brand
- Microconnect
- Category
- Video Switch
- Model
- MC-USBCHDMISWITCH0401-8K
- Part number
- MC-USBCHDMISWITCH0401-8K
- EAN / UPC
- 5715063739662
- Also known as
- Microconnect MC-USBCHDMISWITCH0401-8K video switch
Specifications
44 specifications in 9 groups
Ports & interfaces
| Specification | Value |
|---|---|
| HDMI ports quantity | 4 |
| HDMI version | 2.1 |
| HDMI in | 3 |
| Number of HDMI outputs | 1 |
| USB port type | USB Type-C |
| Video in | HDMI, USB-C |
| Video out | HDMI |
Features
| Specification | Value |
|---|---|
| Material | Aluminium |
| Product colour | Black |
| Consumer Electronics Control (CEC) support | Yes |
| High Dynamic Range (HDR) supported | Yes |
| Audio decoders | DTS |
| Audio formats supported | LPCM |
| Dolby technologies | DTS |
| Full HD | Yes |
| HD type | 8K Ultra HD |
| HDCP | Yes |
| HDCP version | 2.3 |
| Maximum operating distance | 5 m |
| Maximum refresh rate | 60 Hz |
| Maximum resolution | 7680 x 4320 pixels |
| Plug and Play | Yes |
Power
| Specification | Value |
|---|---|
| AC input voltage | 5 V |
| Power consumption (max) | 10 W |
Certificates
| Specification | Value |
|---|---|
| Certification | CE, RoHS and FCC |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 207 mm |
| Depth | 187 mm |
| Height | 56 mm |
| Weight | 190 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 207 mm |
| Package depth | 187 mm |
| Package height | 56 mm |
| Package weight | 440 g |
Packaging content
| Specification | Value |
|---|---|
| Power cord included | Yes |
| AC adapter included | No |
| Batteries included | No |
| Cables included | USB Type-A to USB Type-C |
| Manual | Yes |
| Remote control included | Yes |
| User guide | Yes |
| Packaging content | 1x Main unit and 1x USB A to USB-C power cable |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage relative humidity (H-H) | 5 - 80% |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | CE |
