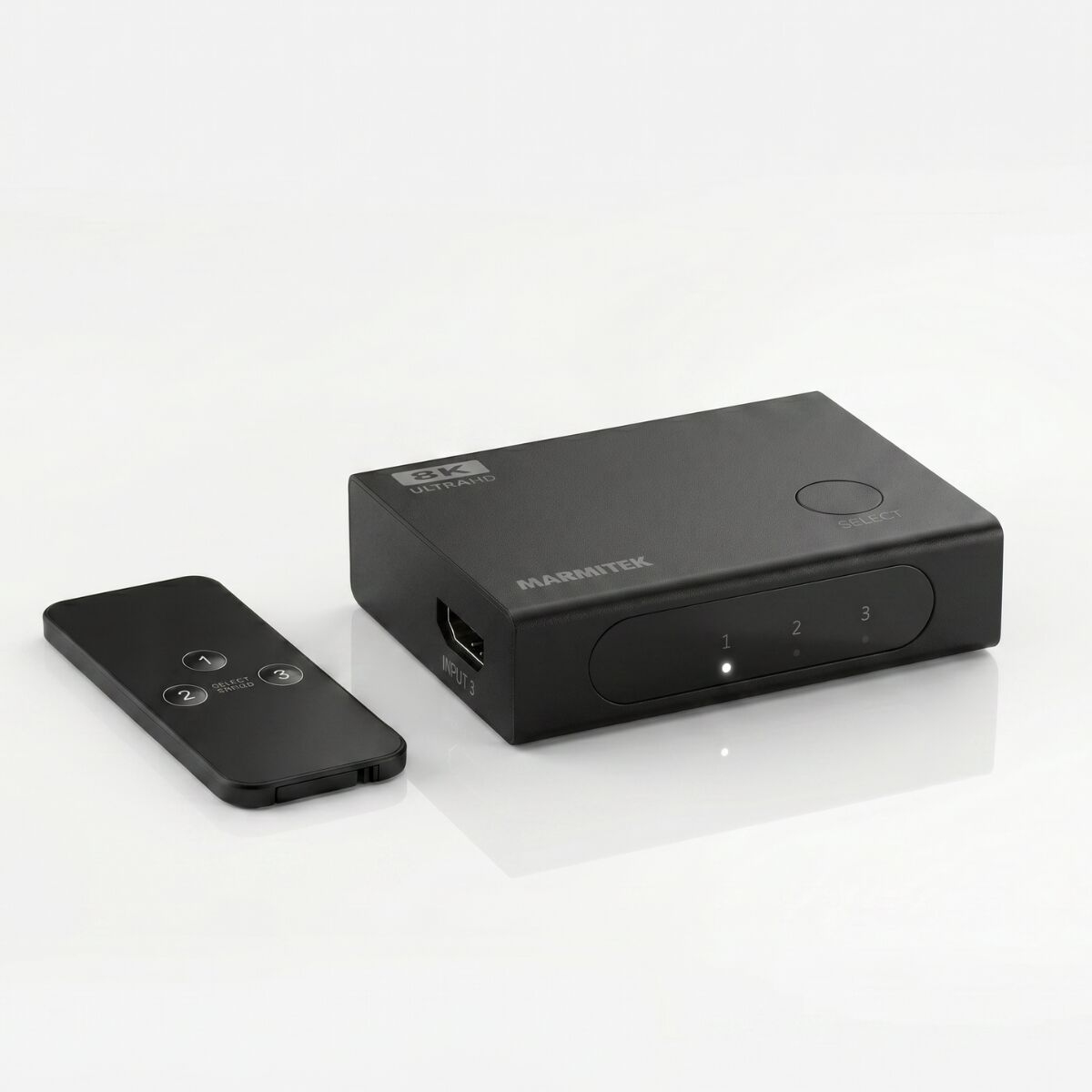

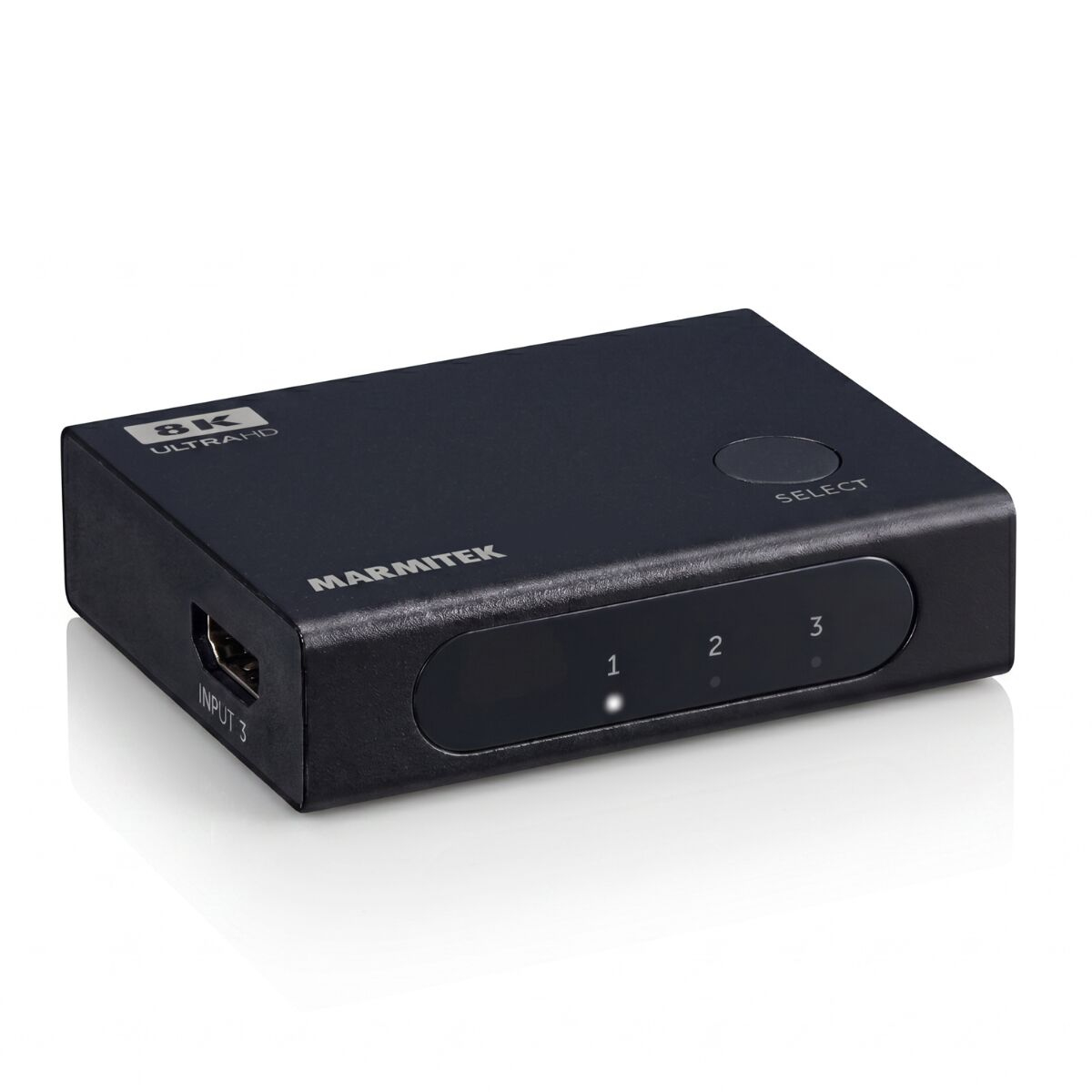

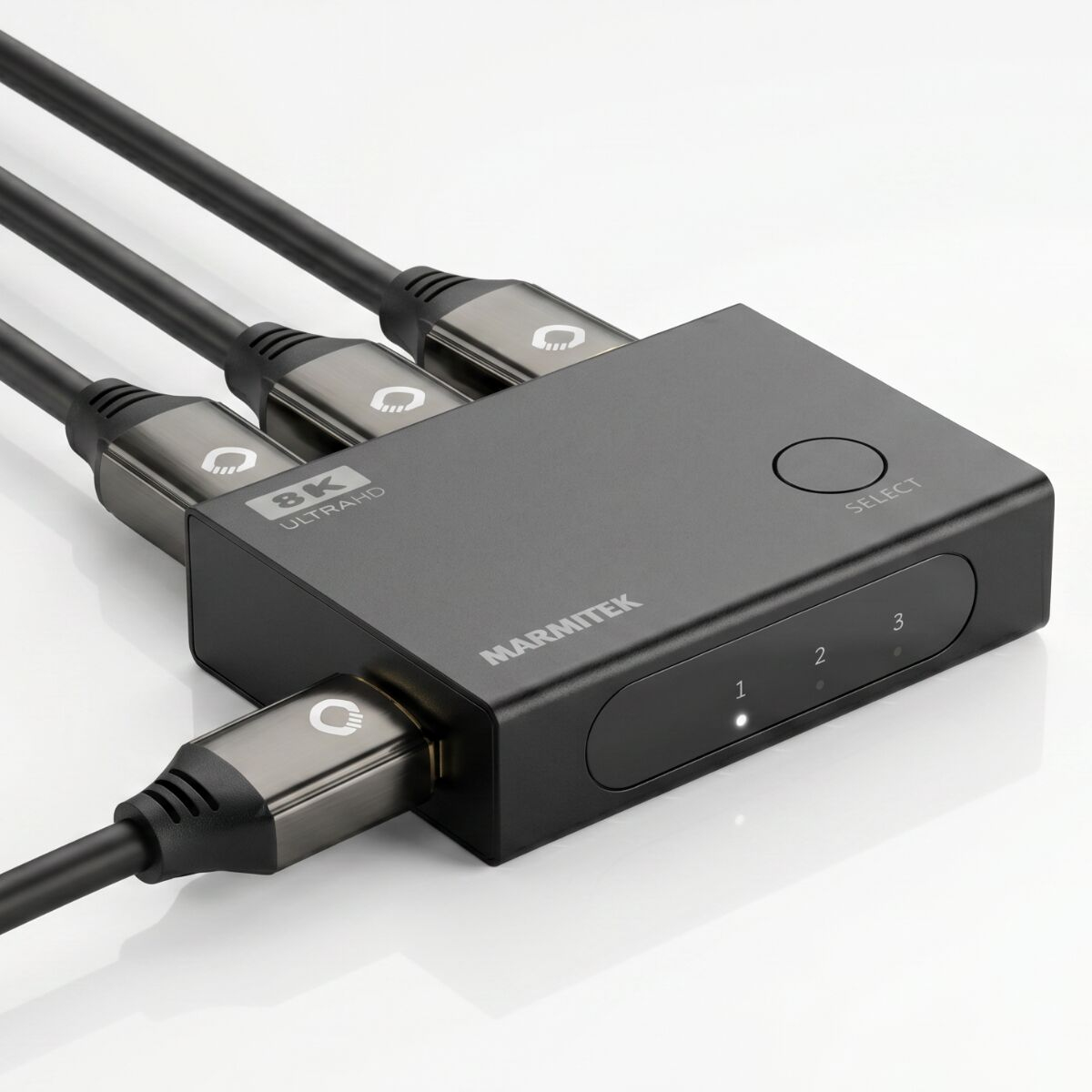

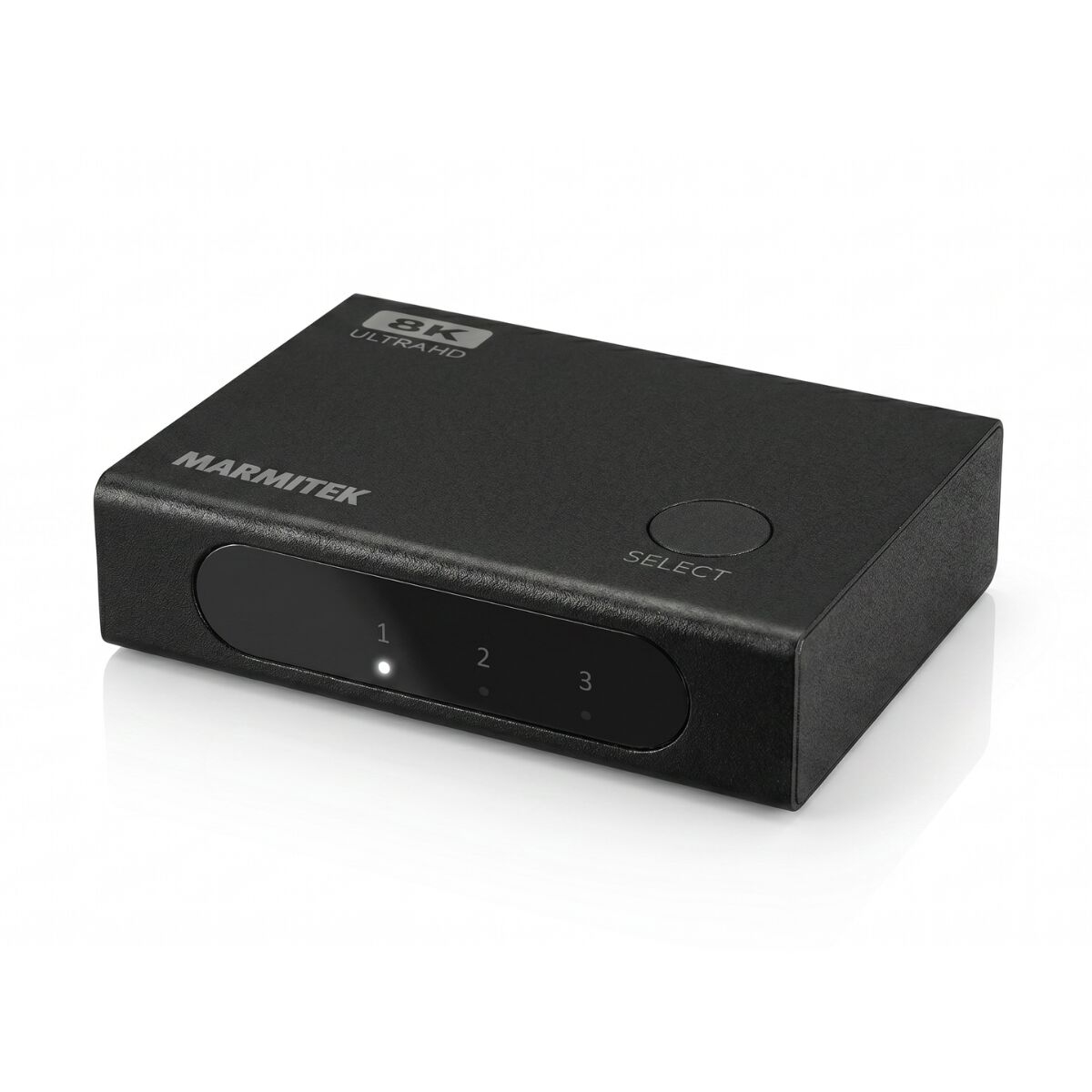

Connect 730 - HDMI switch 8K
60 Hz – 4K 165 Hz
Model 25008633EAN 8712285418501
25 specifications
- Weight70 g
- ColourBlack
- Video port typeHDMI
- Width70 mm
Overview
- Weight
- 70 g
- Colour
- Black
- Video port type
- HDMI
- Width
- 70 mm
- Brand
- Marmitek
- Category
- Video Switch
- Model
- 25008633
- Part number
- 25008633
- EAN / UPC
- 8712285418501
- Also known as
- Marmitek Connect 730 - HDMI switch 8K 60 Hz – 4K 165 Hz
Specifications
25 specifications in 3 groups
Ports & interfaces
| Specification | Value |
|---|---|

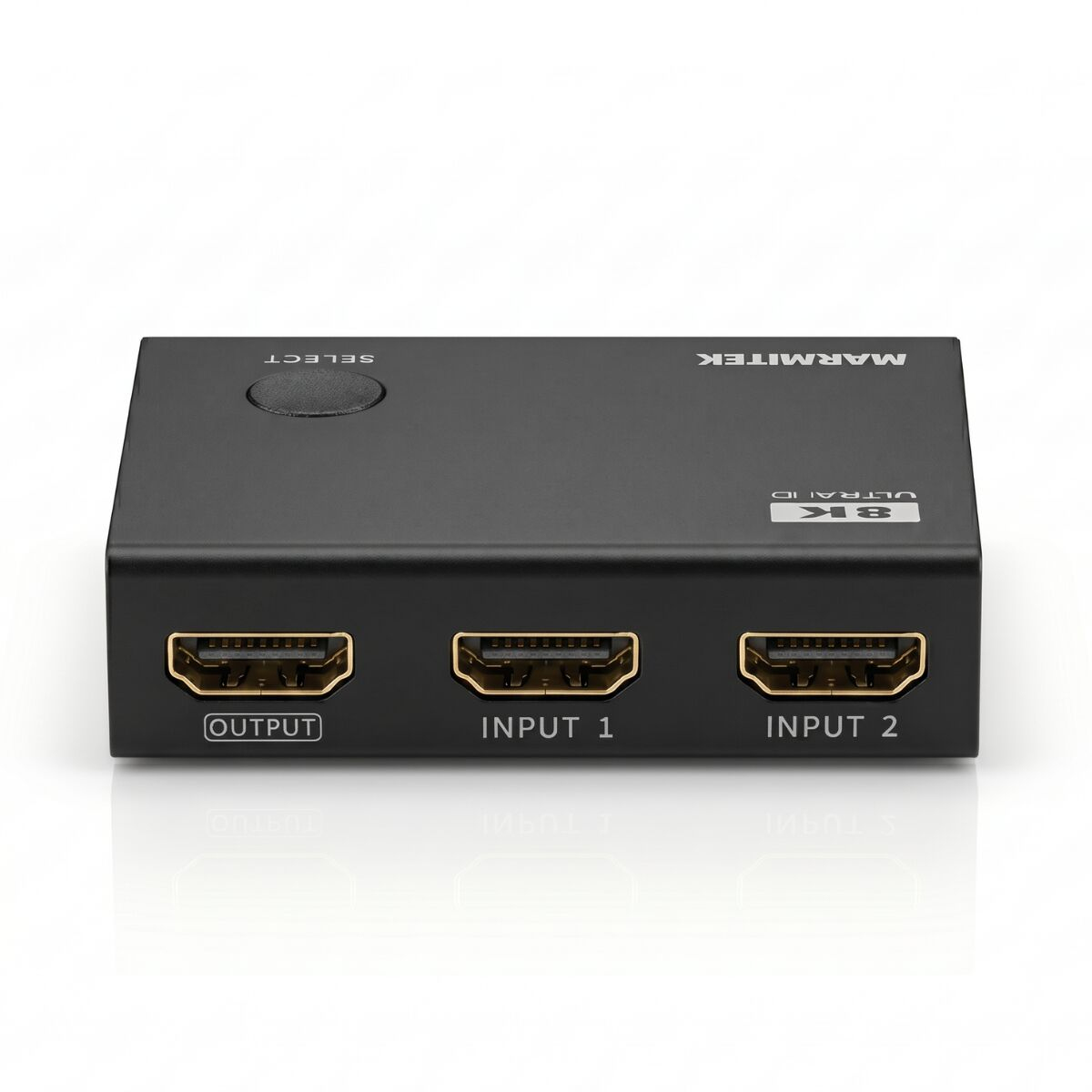

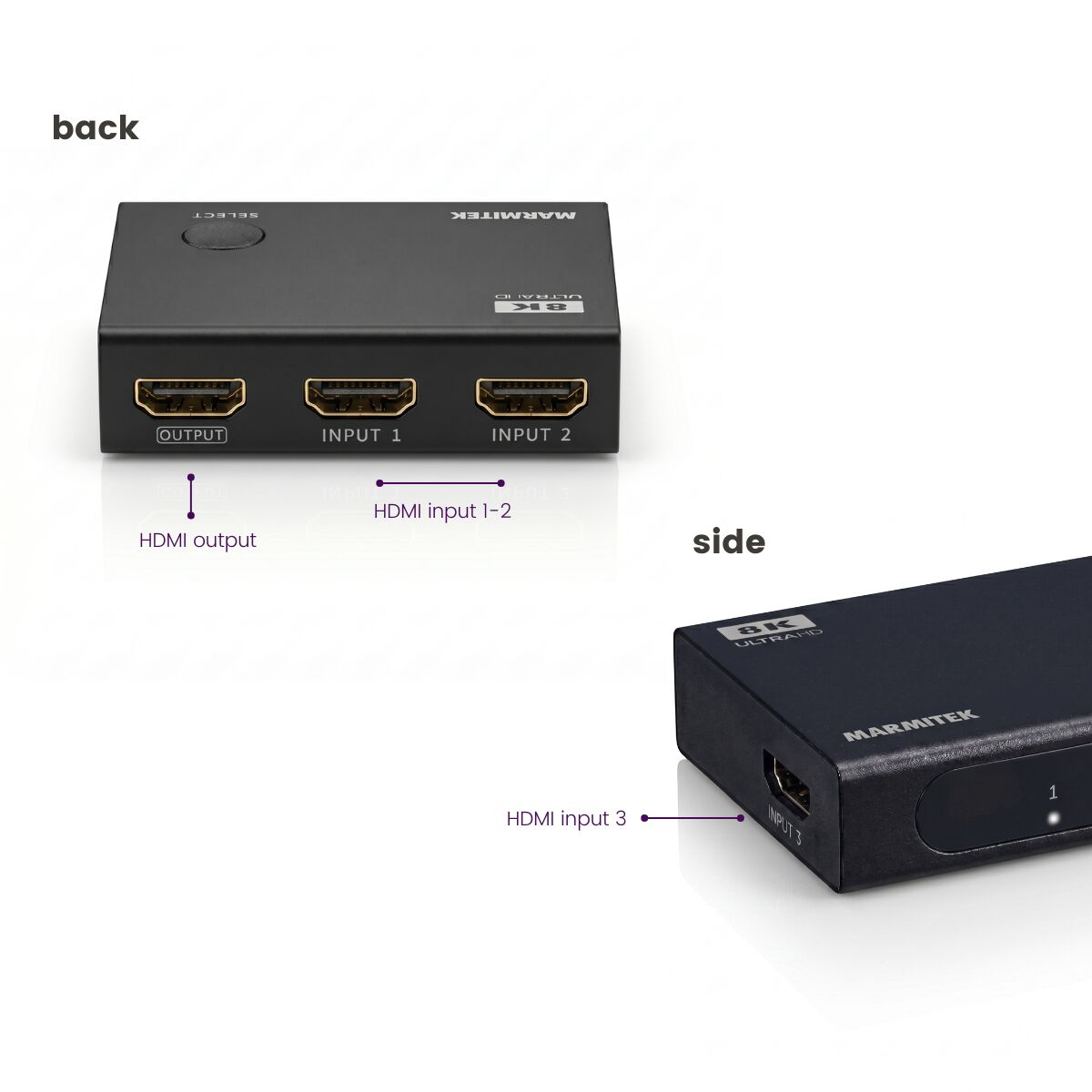

| Video port type | HDMI |
| HDMI ports quantity | 4 |
| HDMI version | 2.1 |
| HDMI in | 3 |
| Number of HDMI outputs | 1 |
Features
| Specification | Value |
|---|---|
| Product colour | Black |
| Consumer Electronics Control (CEC) support | Yes |
| Extended display identification data (EDID) | Yes |
| Audio codecs | LPCM 7.1, PCM 2.0 |
| Audio decoders | DTS-HD Master Audio, DTS:X, Dolby TrueHD, Dolby Atmos, Dolby Digital |
| Audio formats supported | PCM, LPCM |
| Bandwidth | 48 Gbit/s |
| Colour depth | 12 bit |
| Dolby technologies | DTS-HD Master Audio, DTS:X, Dolby TrueHD, Dolby Atmos, Dolby Digital, Dolby Digital AC3 |
| HD type | 8K Ultra HD |
| HDCP | Yes |
| HDCP version | 1.4/2.2/2.3 |
| LED indicators | Yes |
| Maximum refresh rate | 240 Hz |
| Maximum resolution | 7680 x 4320 pixels |
| Supported graphics resolutions | 3840 x 2160, 7680 x 4320 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 70 mm |
| Depth | 56 mm |
| Height | 18 mm |
| Weight | 70 g |
