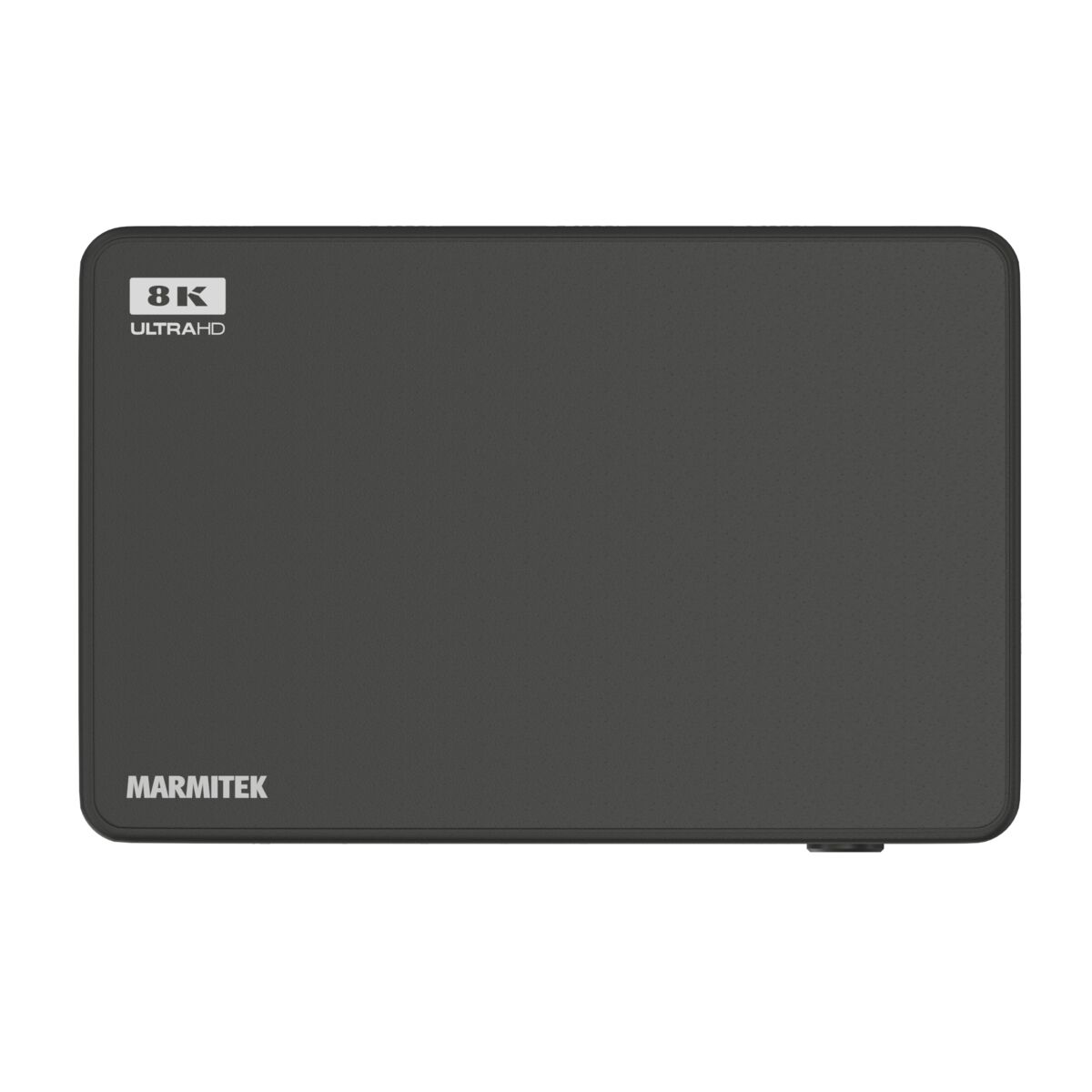

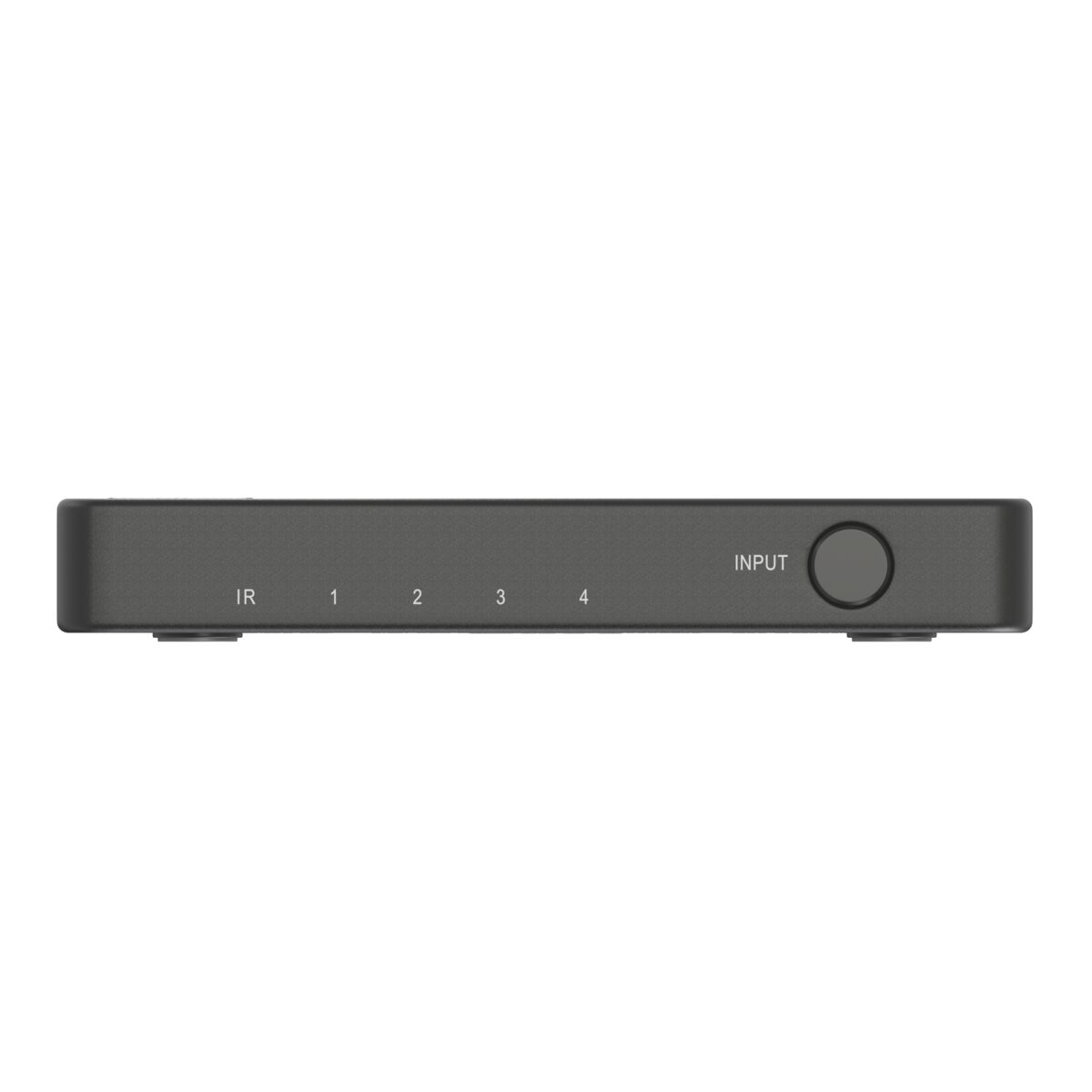

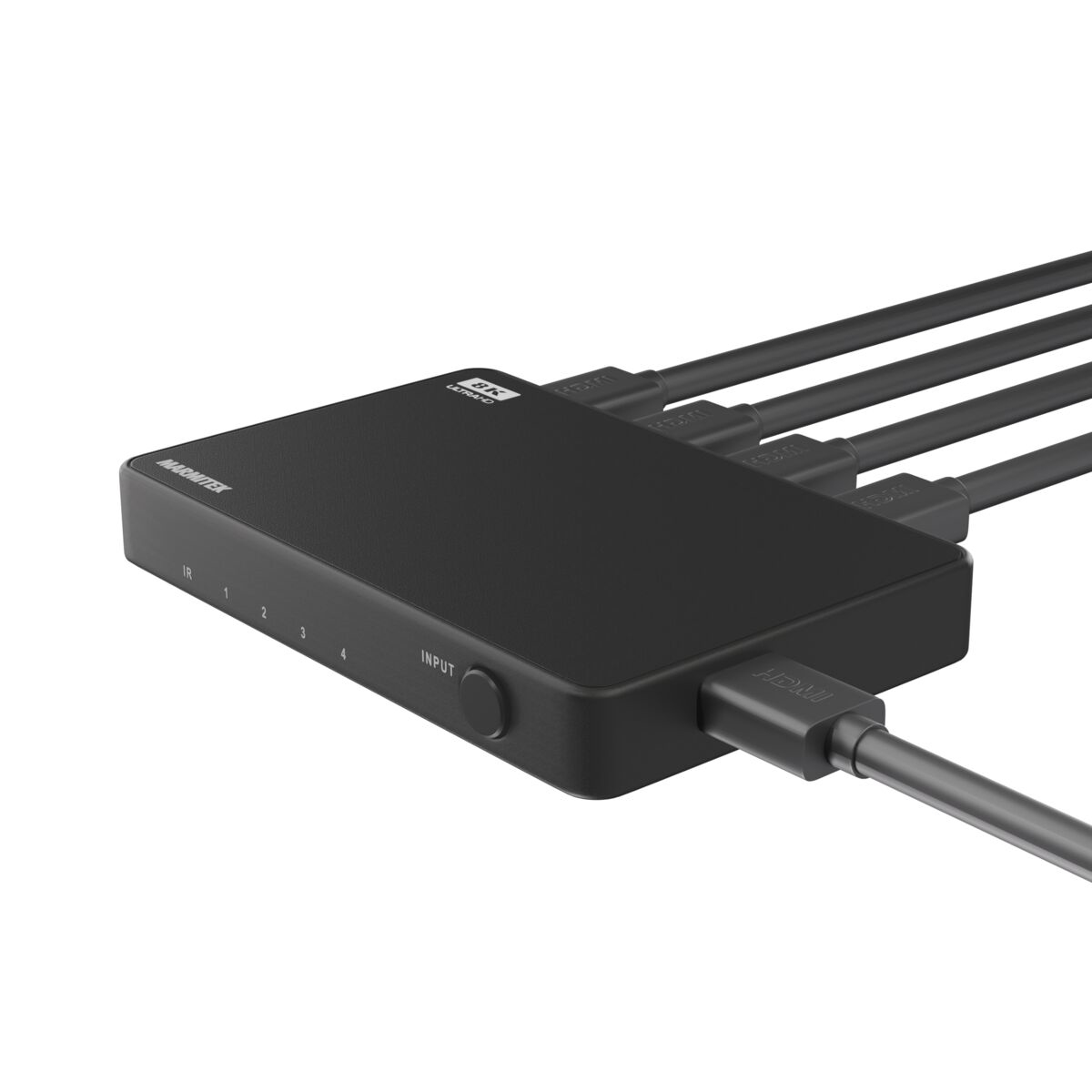

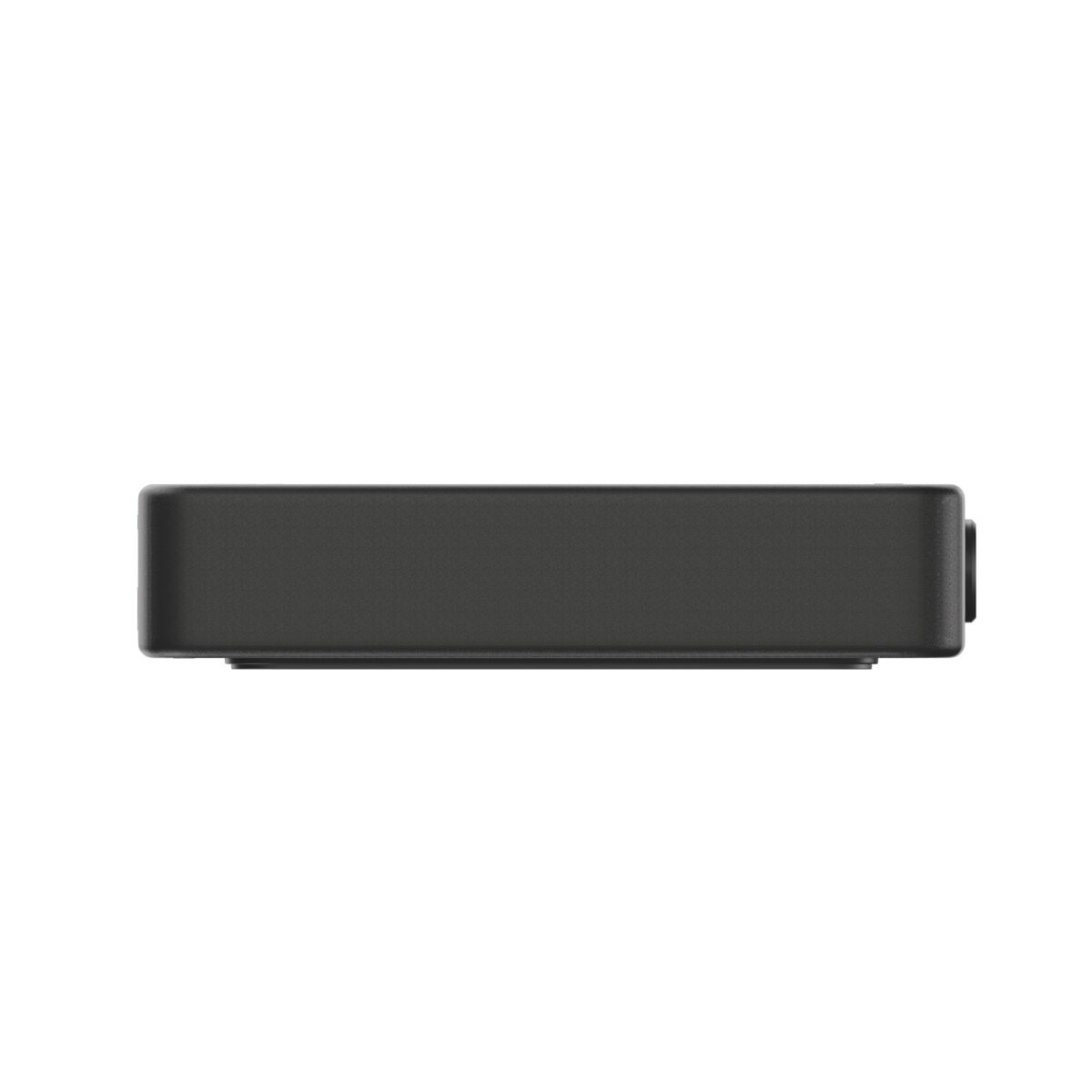

Connect 740 – HDMI switch 8K
60Hz – 4K 120Hz – HDMI 2.1 – 4 in / 1 out
Model 25008457EAN 8718164534577
32 specifications
- Weight210 g
- ColourBlack
- Video port typeHDMI
- AC adapter input voltage100 - 240 V
- Width120 mm
Overview
- Weight
- 210 g
- Colour
- Black
- Video port type
- HDMI
- AC adapter input voltage
- 100 - 240 V
- Width
- 120 mm
- Brand
- Marmitek
- Category
- Video Switch
- Model
- 25008457
- Part number
- 25008457
- EAN / UPC
- 8718164534577
- Also known as
- Marmitek Connect 740 – HDMI switch 8K 60Hz – 4K 120Hz – HDMI 2.1 – 4 in / 1 out
Specifications
32 specifications in 6 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Video port type | HDMI |
| HDMI ports quantity | 6 |
| HDMI version | 2.1 |

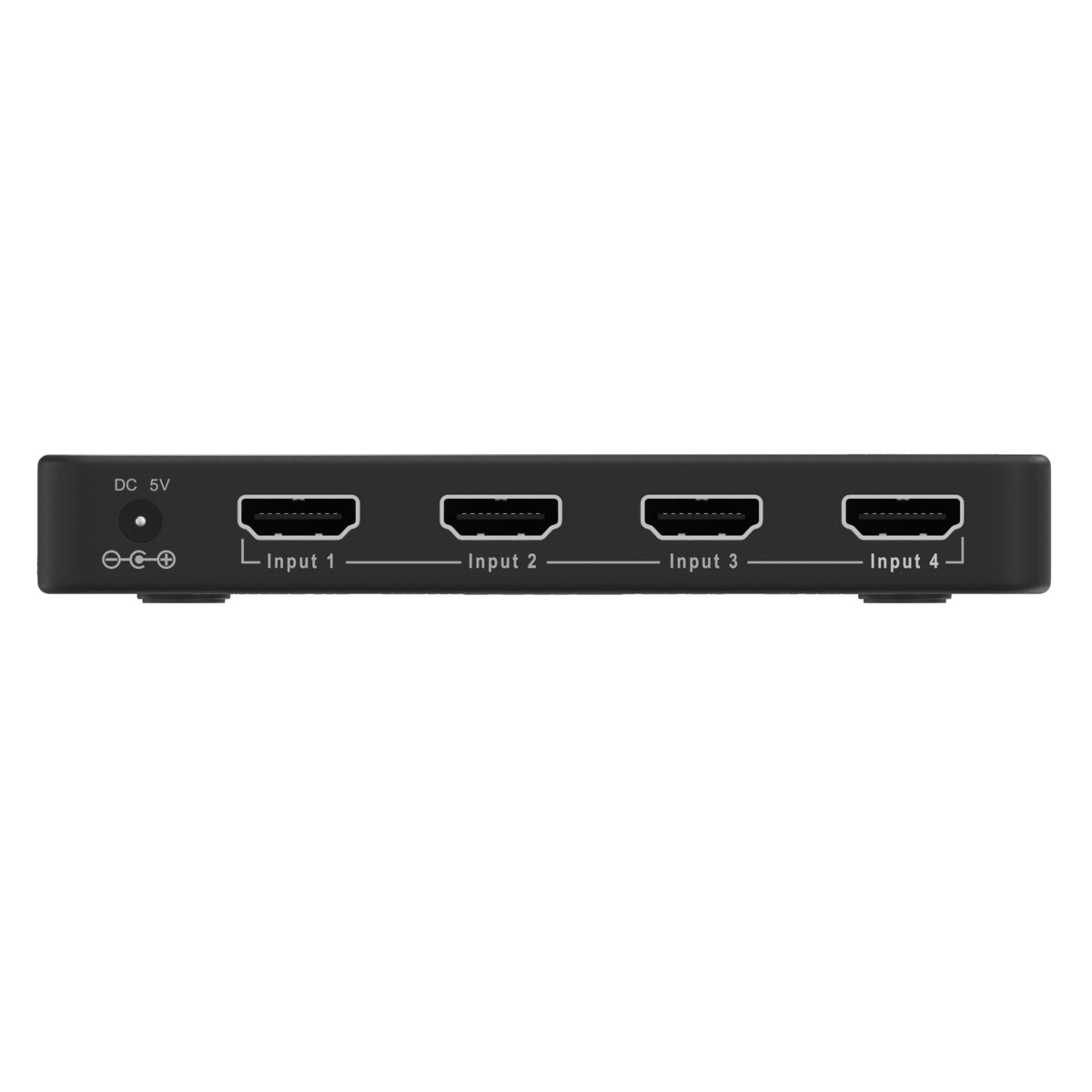

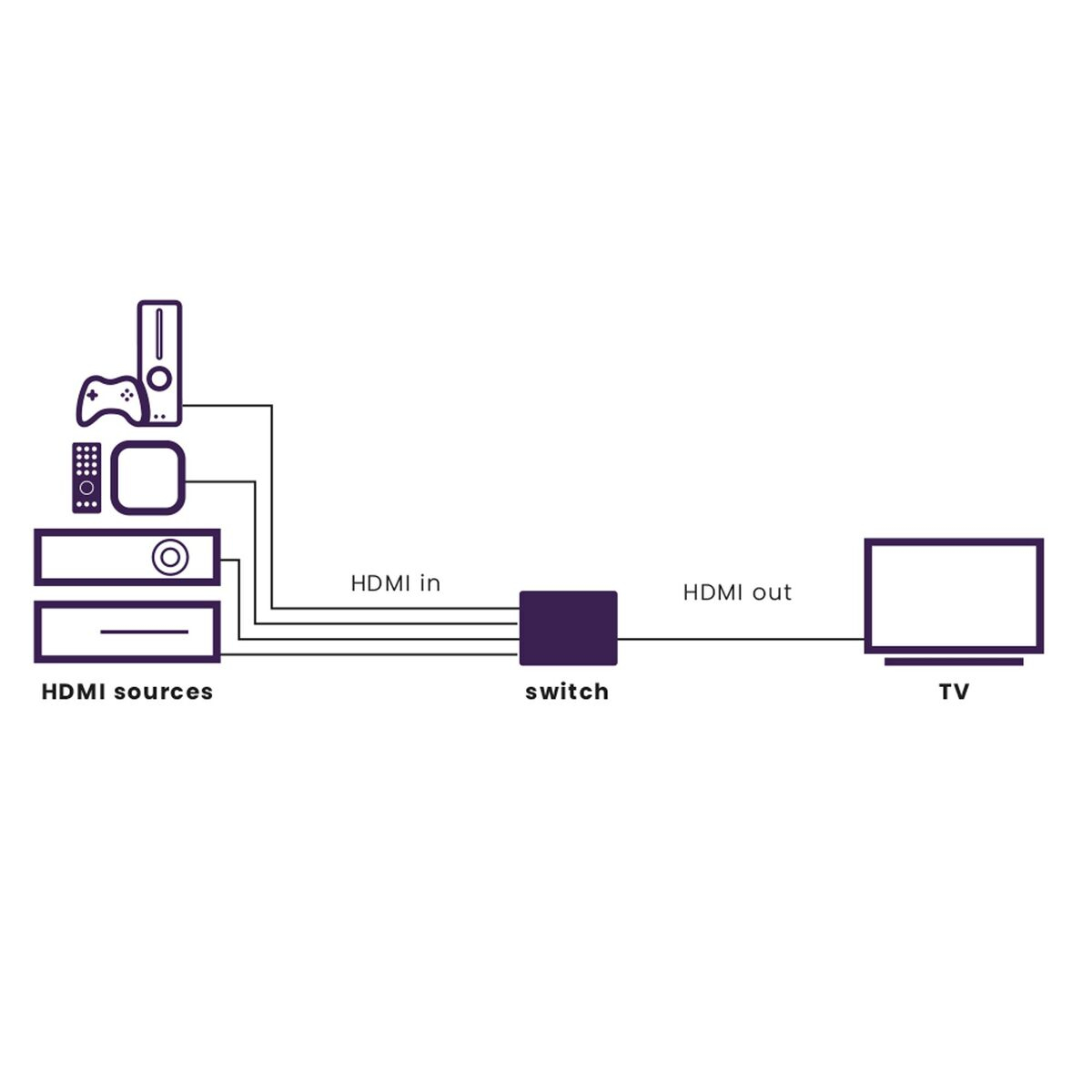

| HDMI in | 4 |

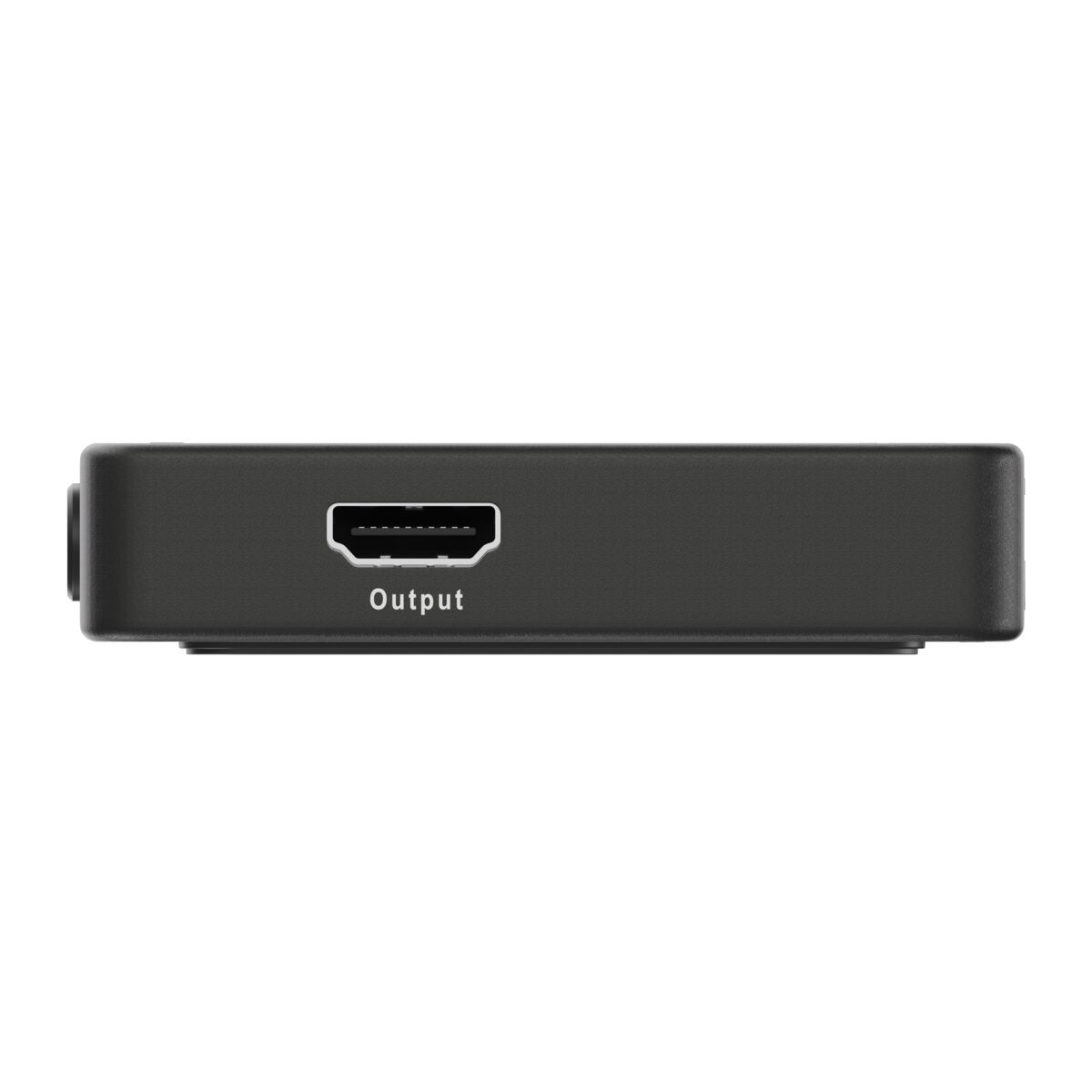

| Number of HDMI outputs | 1 |
| DC-in jack | Yes |
Features
| Specification | Value |
|---|---|
| Product colour | Black |
| Consumer Electronics Control (CEC) support | Yes |
| Extended display identification data (EDID) | Yes |
| Audio formats supported | AC3, LPCM, PCM |
| Bandwidth | 48 Gbit/s |
| Colour depth | 36 bit |
| Dolby technologies | DTS-HD Master Audio, DTS:X, Dolby Atmos, Dolby Digital, Dolby TrueHD |
| HD type | 8K Ultra HD |
| HDCP version | 1.4/2.2/2.3 |
| Maximum refresh rate | 120 Hz |
| Maximum resolution | 7680 x 4320 pixels |
| Plug and Play | Yes |
Power
| Specification | Value |
|---|---|
| AC adapter input voltage | 100 - 240 V |
| AC adapter frequency | 50/60 Hz |
| AC adapter output voltage | 5 V |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 120 mm |
| Depth | 78 mm |
| Height | 17 mm |
| Weight | 210 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 130 mm |
| Package depth | 70 mm |
| Package height | 155 mm |
Packaging content
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
| AC adapter included | Yes |
| Manual | Yes |

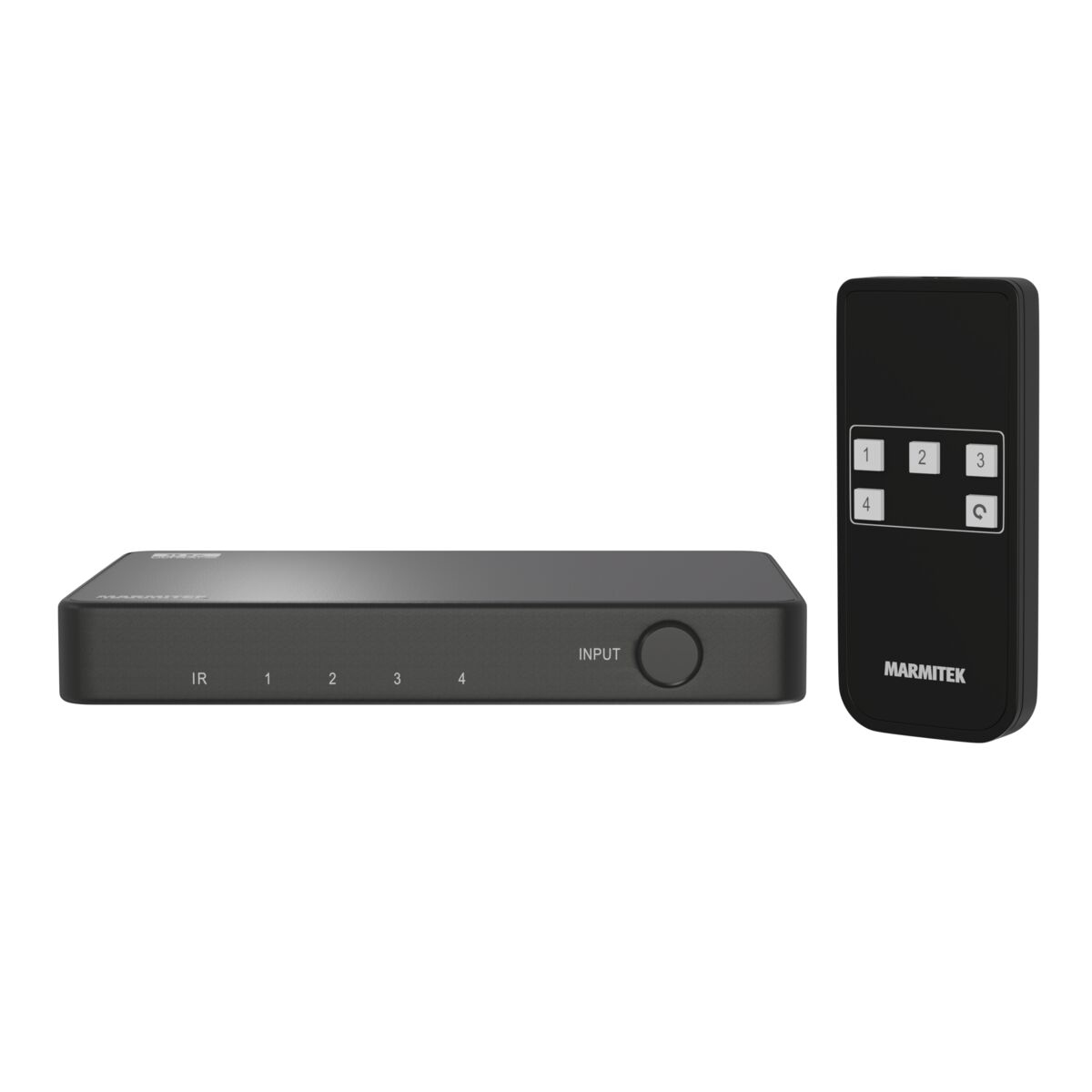

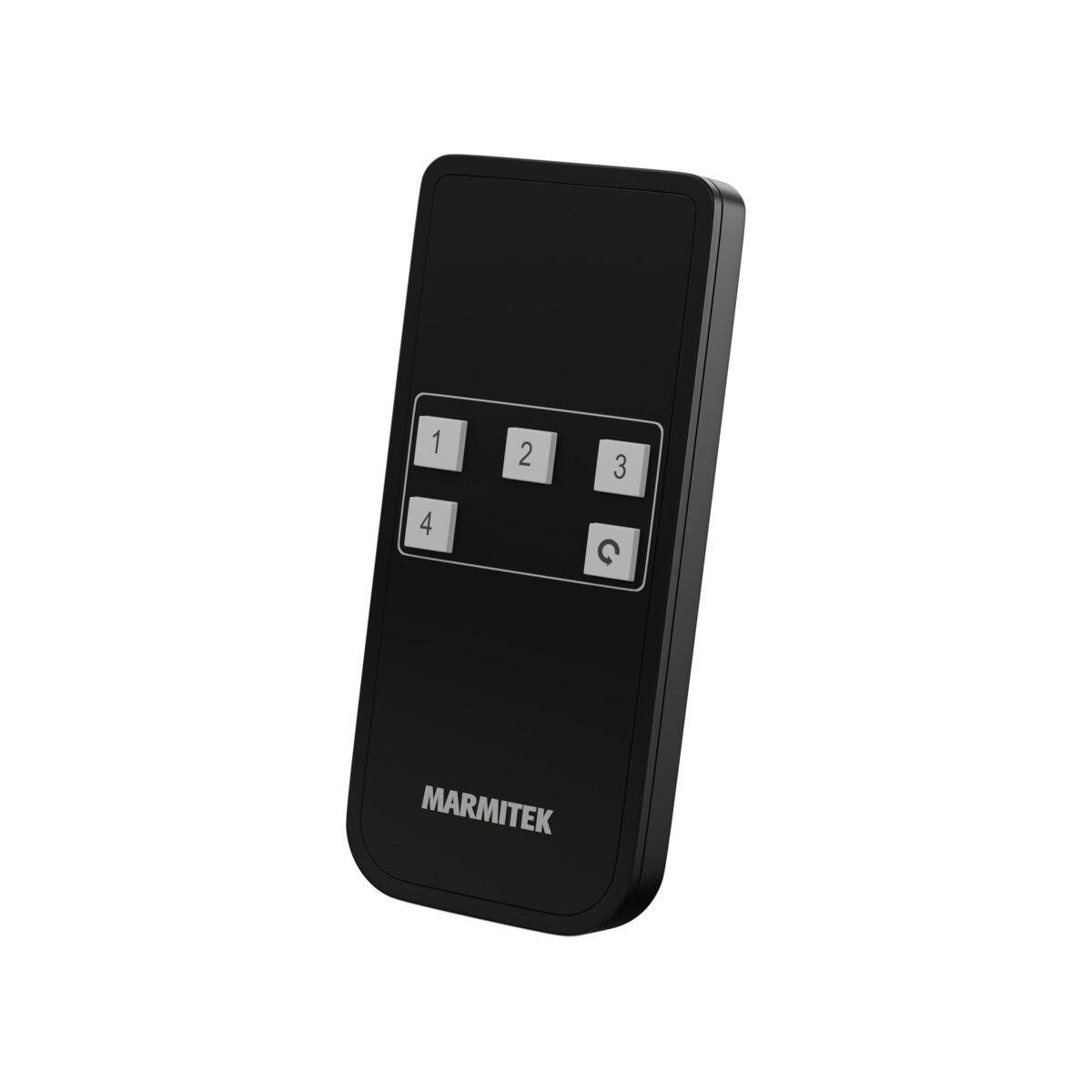

| Remote control included | Yes |
