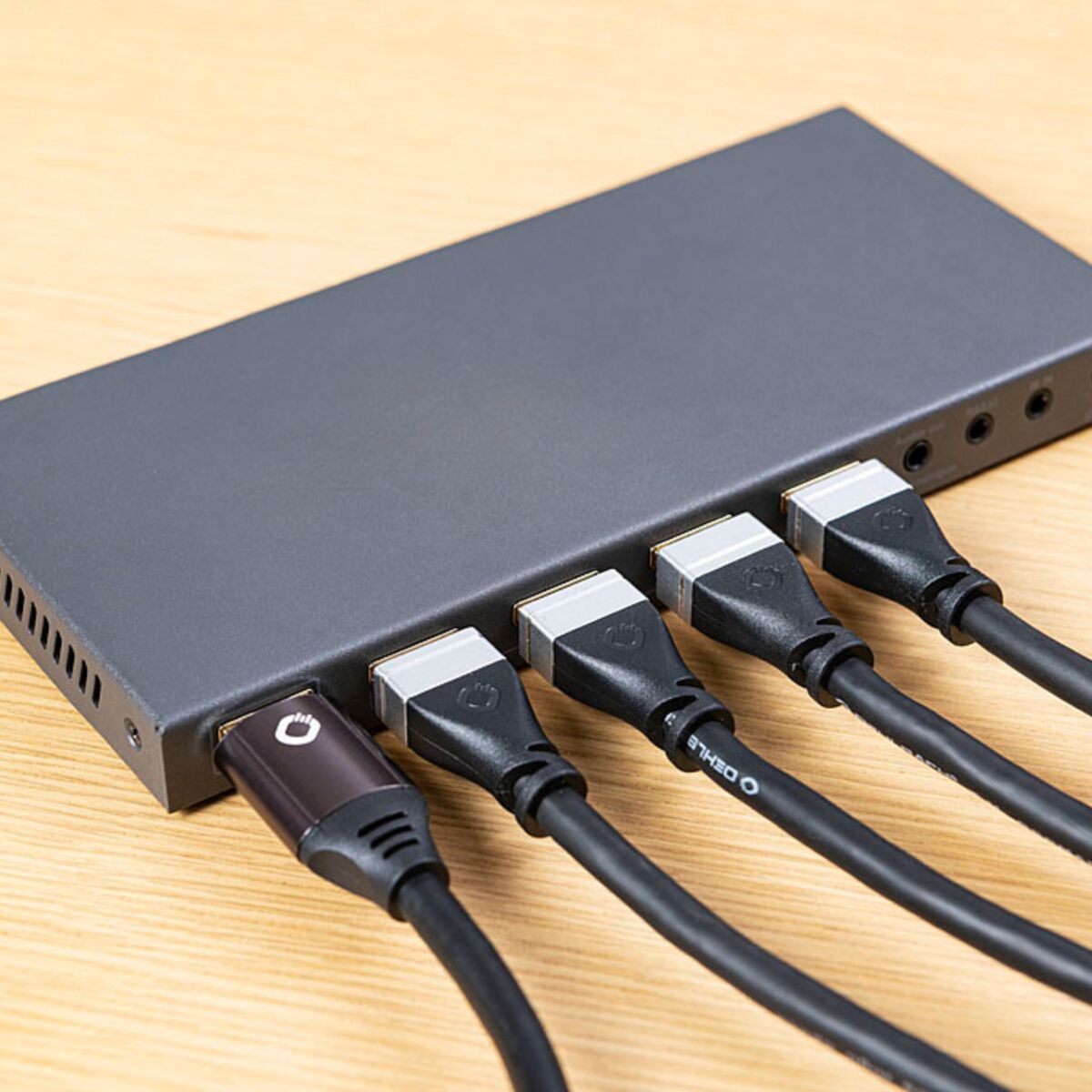

Connect 621 UHD 2.0 - HDMI switch 4K
60Hz - 4 in / 1 out
Model 25008327EAN 8718164533273
40 specifications
- Weight366 g
- ColourBlack
- Video port typeHDMI
- AC adapter input voltage100 - 240 V
- Width182 mm
- Operating temperature (T-T)0 - 40 °C
Overview
- Weight
- 366 g
- Colour
- Black
- Video port type
- HDMI
- AC adapter input voltage
- 100 - 240 V
- Width
- 182 mm
- Operating temperature (T-T)
- 0 - 40 °C
- Brand
- Marmitek
- Category
- Video Switch
- Model
- 25008327
- Part number
- 25008327
- EAN / UPC
- 8718164533273
- Also known as
- Marmitek Connect 621 UHD 2.0 - HDMI switch 4K 60Hz - 4 in / 1 out
Specifications
40 specifications in 7 groups

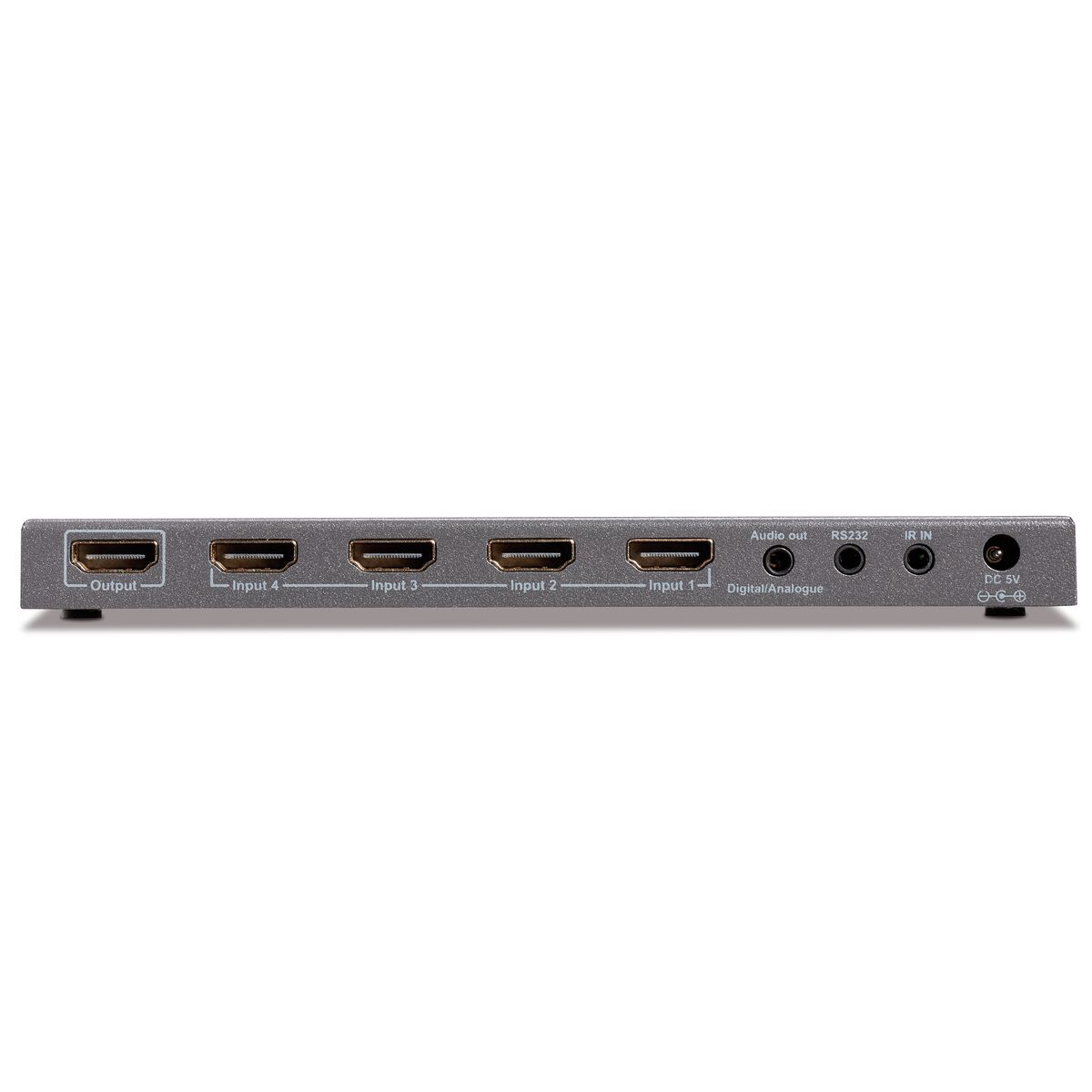

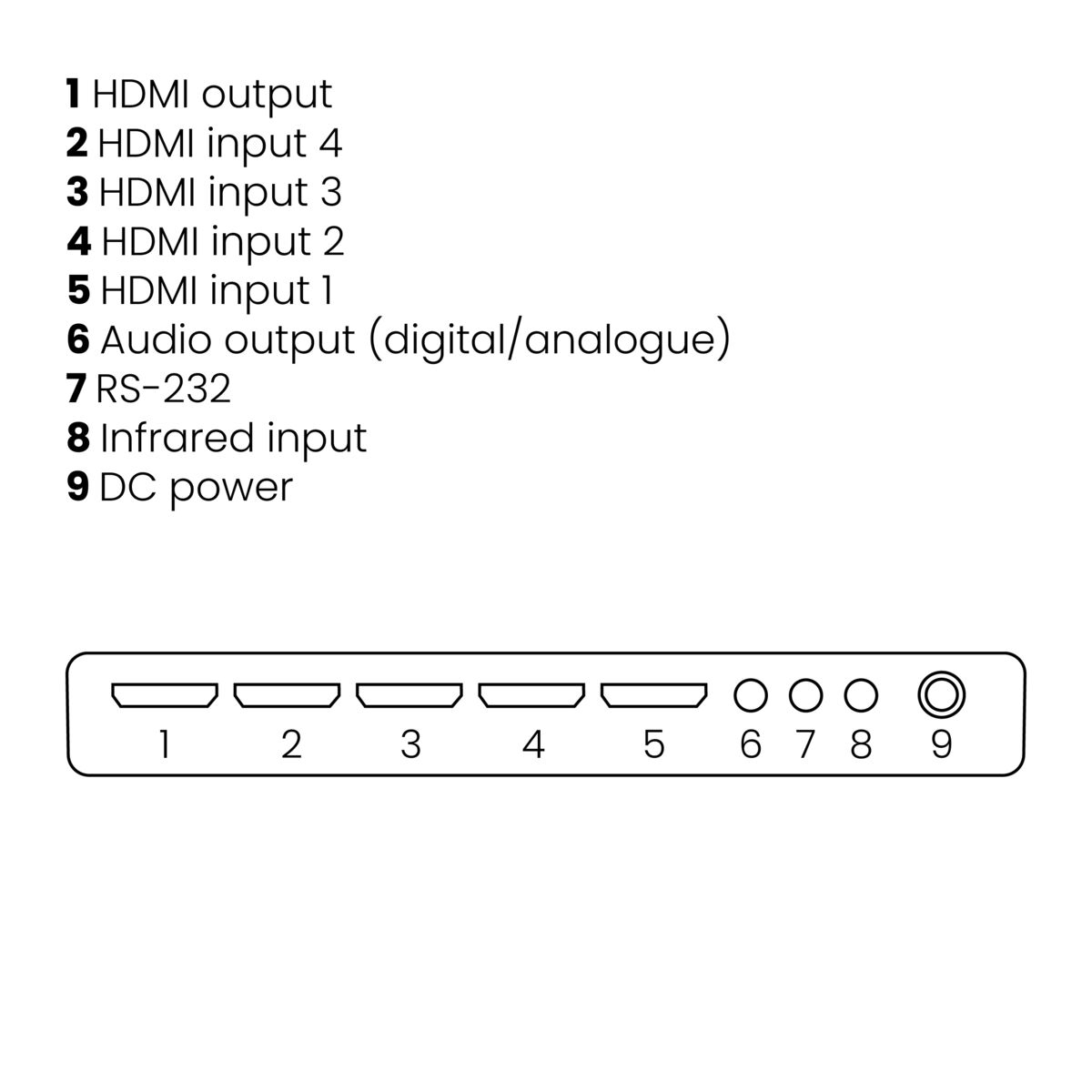

Ports & interfaces
| Specification | Value |
|---|---|
| Video port type | HDMI |
| HDMI ports quantity | 5 |
| HDMI version | 2.0b |
| HDMI in | 4 |
| Number of HDMI outputs | 1 |
| 3.5 mm (1/8-inch) out | Yes |
| RS-232 ports | 1 |
| DC-in jack | Yes |
Features
| Specification | Value |
|---|---|
| Product colour | Black |
| Consumer Electronics Control (CEC) support | Yes |
| Extended display identification data (EDID) | Yes |
| 3D | Yes |
| Audio formats supported | PCM |
| Bandwidth | 18 Gbit/s |
| Bandwidth | 600 MHz |
| Colour depth | 36 bit |
| Dolby technologies | DTS-HD Master Audio, DTS:X, Dolby Atmos, Dolby Digital, Dolby Digital AC3, Dolby TrueHD |
| HDCP | Yes |
| HDCP version | 1.4/2.2 |
| LED indicators | Yes |
| Maximum refresh rate | 60 Hz |
| Maximum resolution | 2560 x 2048 pixels |
| Supported video modes | 480i, 1080p, 2160p |
Power
| Specification | Value |
|---|---|
| AC adapter input voltage | 100 - 240 V |
| AC adapter frequency | 50/60 Hz |
| AC adapter output voltage | 5 V |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 182 mm |
| Depth | 85 mm |
| Height | 21 mm |
| Weight | 366 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 190 mm |
| Package depth | 260 mm |
| Package height | 70 mm |

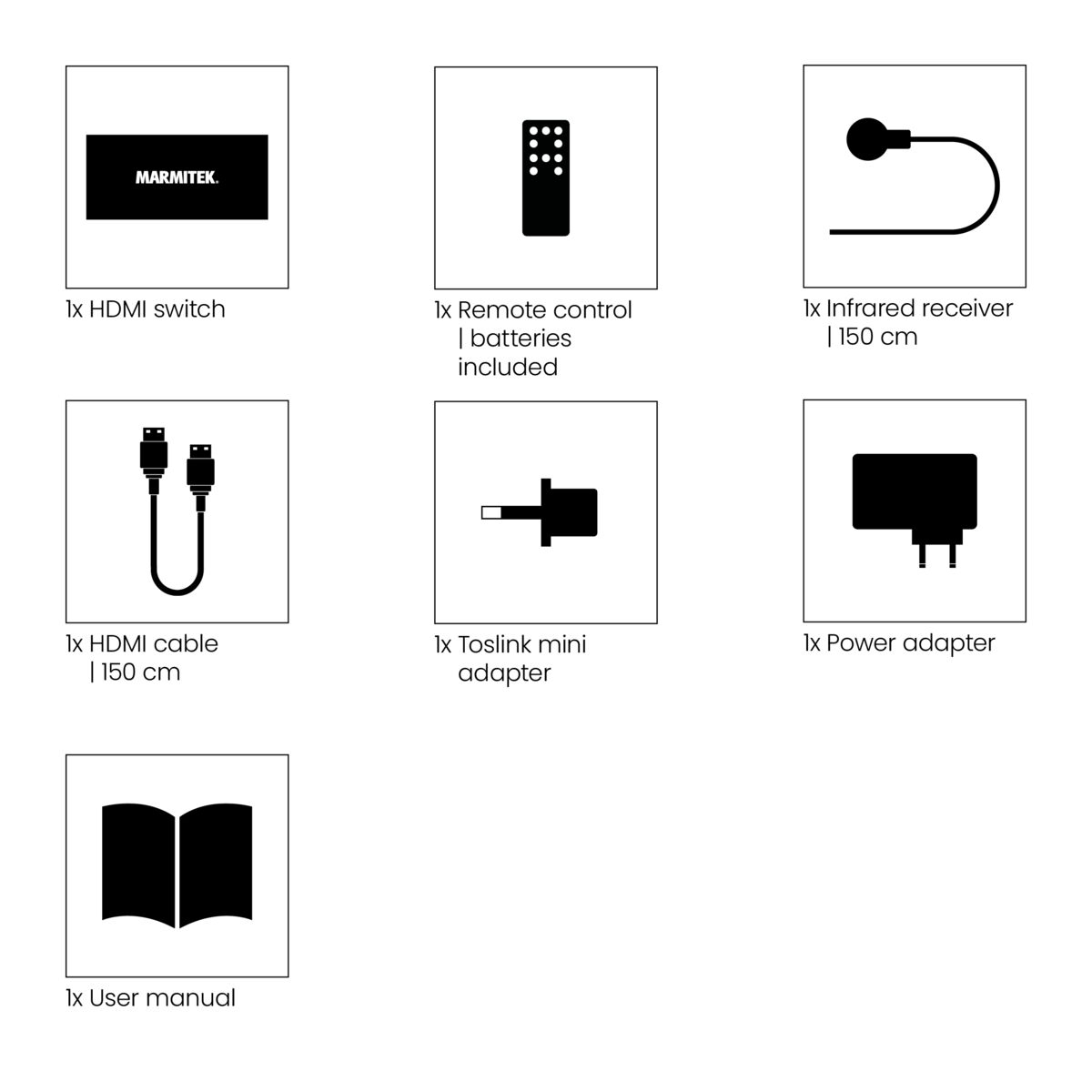

Packaging content
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
| AC adapter included | Yes |
| Cables included | HDMI, IR |
| Quick start guide | Yes |

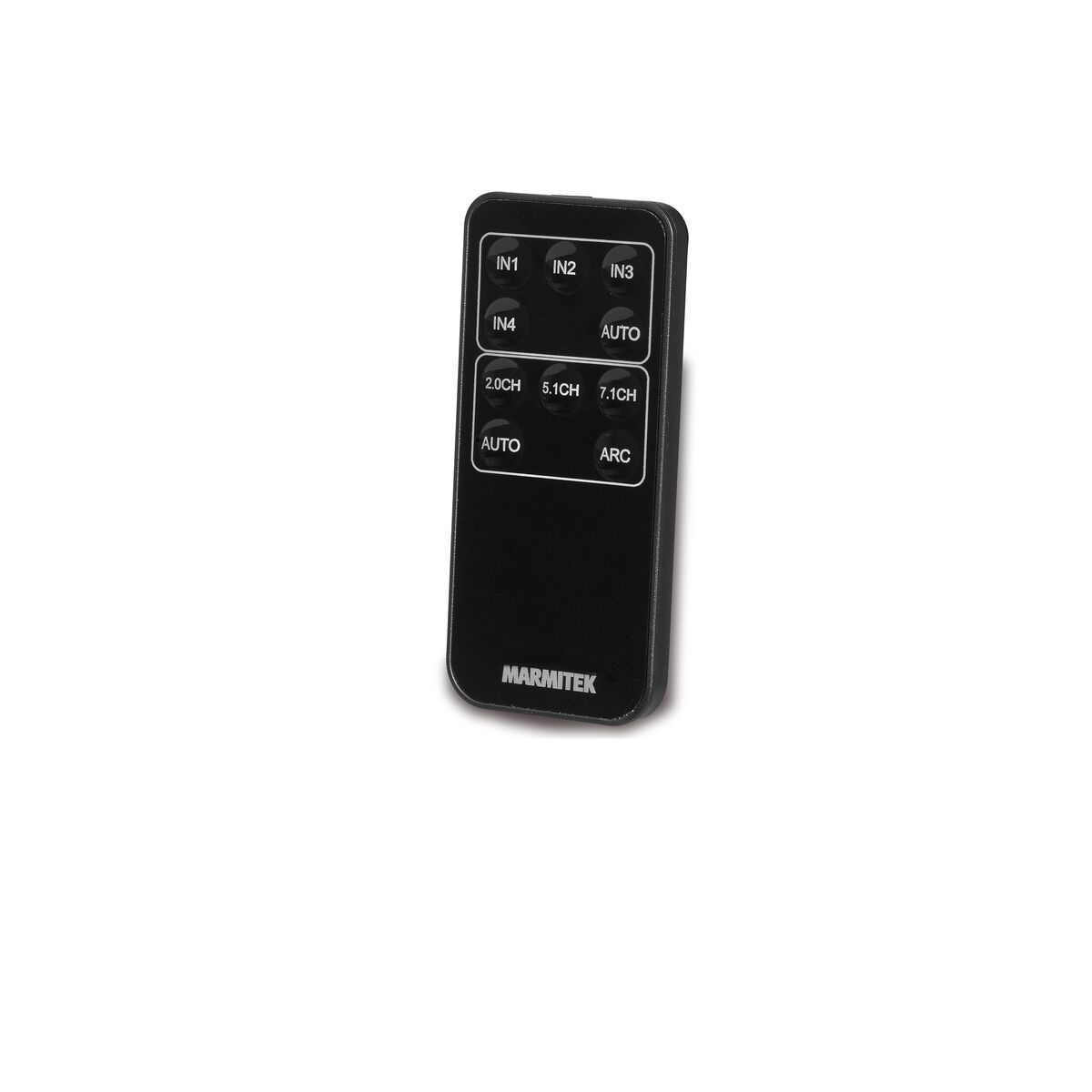

| Remote control included | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 20 - 90% |
