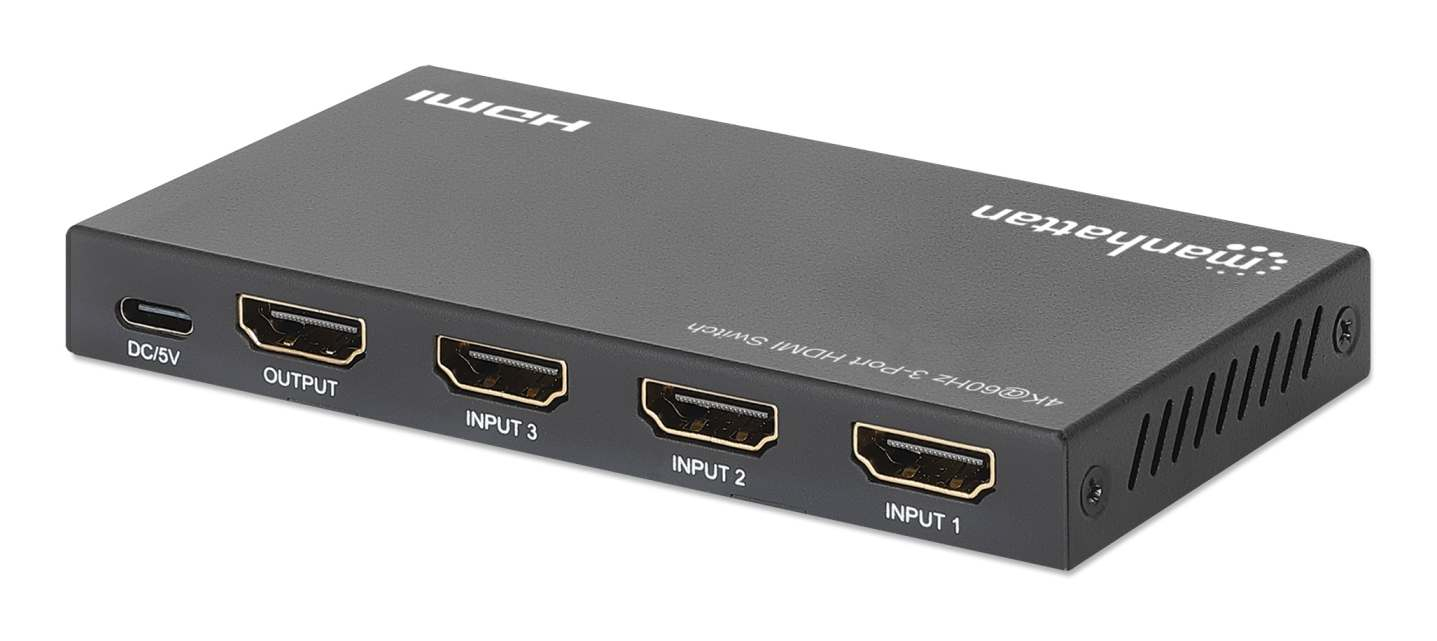

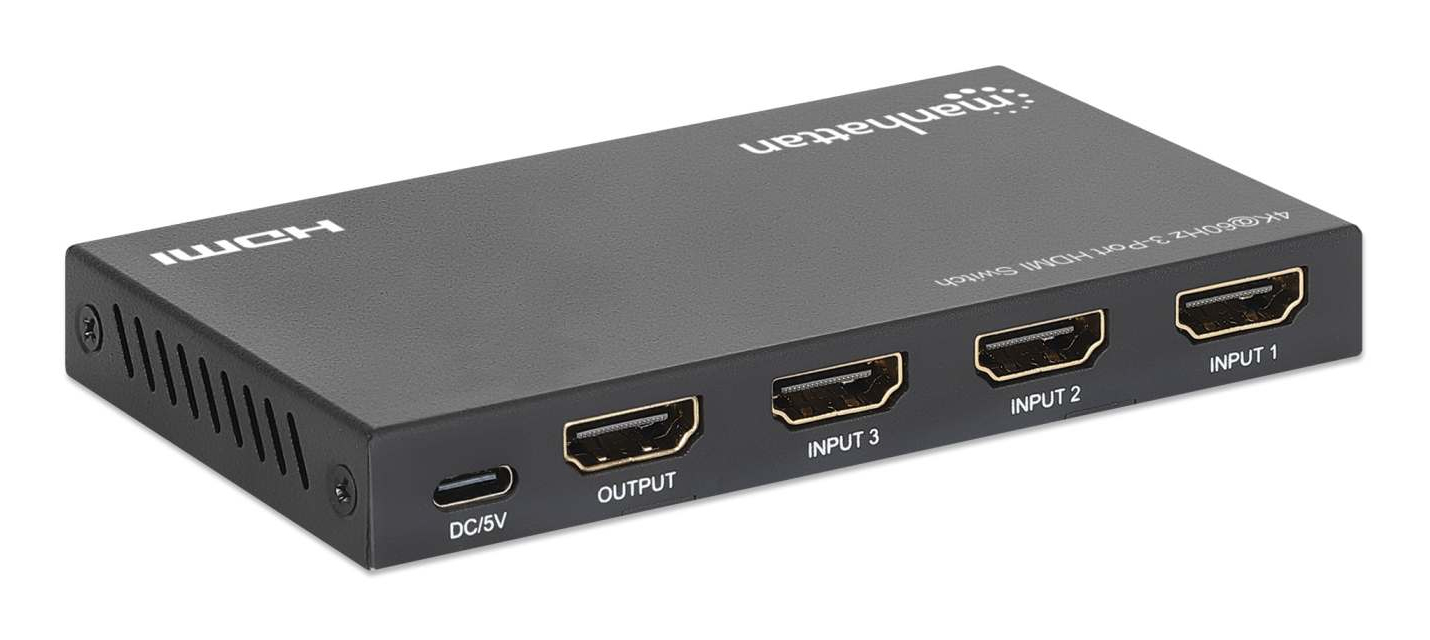

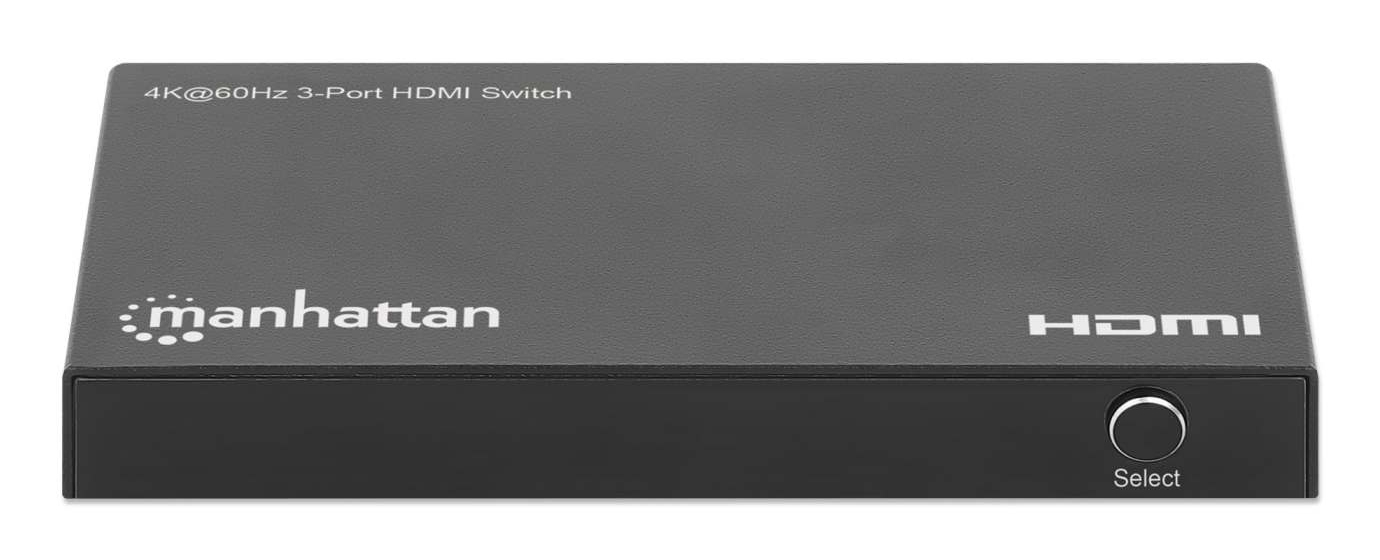

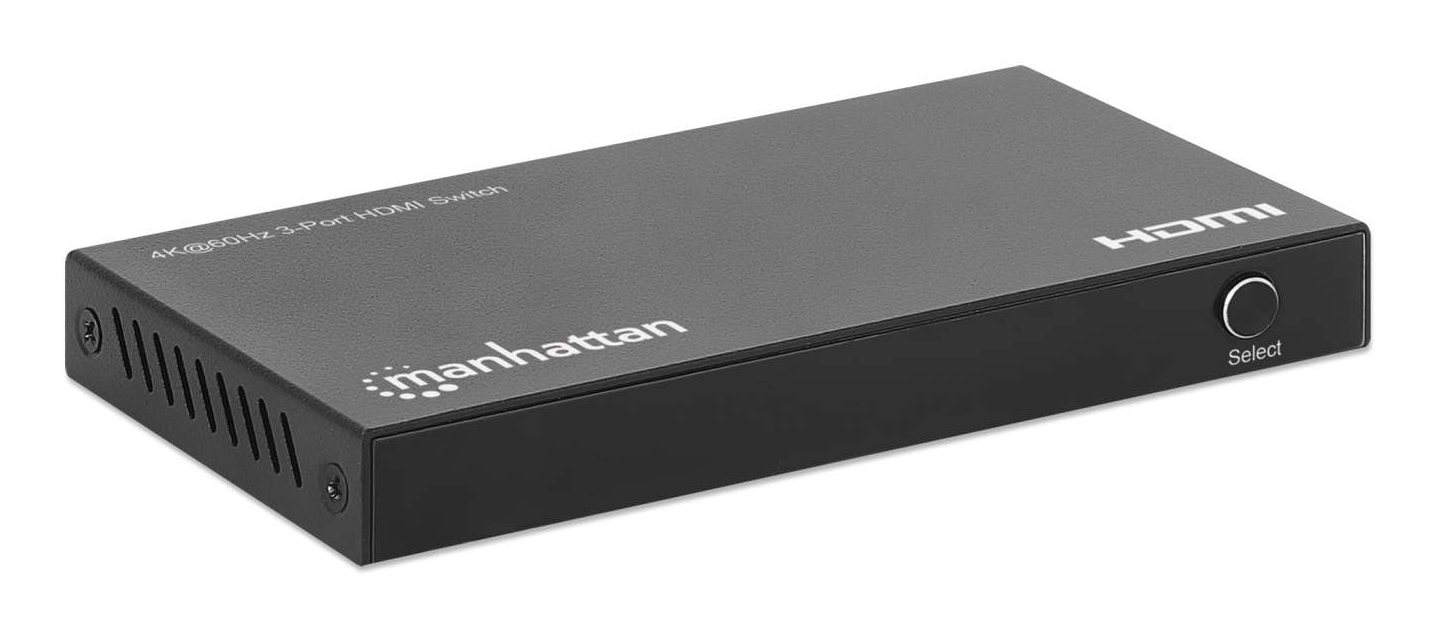

4K@60Hz 3-Port HDMI Switch, Switches Between Three HDMI Inputs on One HDMI Output (3x1)
18G, Automatic and Manual Switching, IR Remote Control, Black
Model 208222EAN 766623208222
34 specifications
- Weight128 g
- ColourBlack
- Video port typeHDMI
- MaterialMetal
- Power consumption (max)5 W
- Width56 mm
Overview
- Weight
- 128 g
- Colour
- Black
- Video port type
- HDMI
- Material
- Metal
- Power consumption (max)
- 5 W
- Width
- 56 mm
- Brand
- Manhattan
- Category
- Video Switch
- Model
- 208222
- Part number
- 208222
- EAN / UPC
- 766623208222
- Also known as
- Manhattan 4K@60Hz 3-Port HDMI Switch, Switches Between Three HDMI Inputs on One HDMI Output (3x1), 18G, Automatic and Manual Switching, IR Remote Control, Black
Specifications
34 specifications in 7 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Video port type | HDMI |
| HDMI ports quantity | 4 |
| HDMI in | 3 |
| Number of HDMI outputs | 1 |
| USB port type | USB Type-C |
Features
| Specification | Value |
|---|---|
| Material | Metal |
| Product colour | Black |
| High Dynamic Range (HDR) supported | Yes |
| 3D | Yes |
| Audio output channels | 7.1 channels |
| Bandwidth | 18 Gbit/s |
| Bandwidth | 600 MHz |
| Dolby technologies | DTS-HD, Dolby Atmos, Dolby TrueHD, Dolby Vision |
| HD type | 4K Ultra HD |
| HDCP | Yes |
| HDCP version | 2.2 |
| Maximum refresh rate | 60 Hz |
| Plug and Play | Yes |
| Remote control type | IR |
| Supported graphics resolutions | 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 3840 x 2160 |
| Supported video modes | 480p, 576i, 576p, 720p, 1080i, 1080p, 2160p |
Power
| Specification | Value |
|---|---|
| Power consumption (max) | 5 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 56 mm |
| Depth | 112 mm |
| Height | 14 mm |
| Weight | 128 g |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 280 g |
Packaging content
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
| Cables included | USB Type-A to USB Type-C |
| Manual | Yes |
| Remote control included | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -20 - 85 °C |
| Operating relative humidity (H-H) | 5 - 95% |
