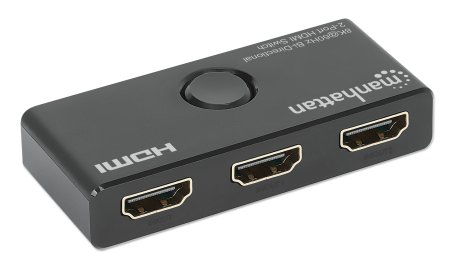

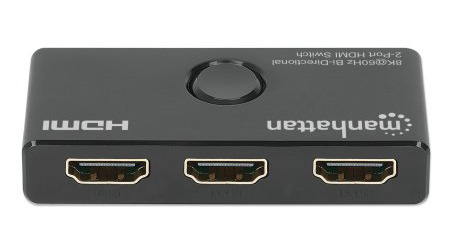

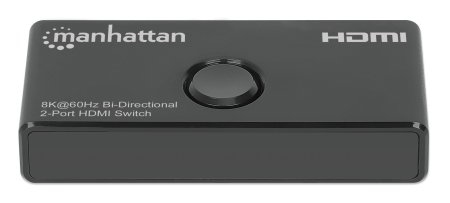

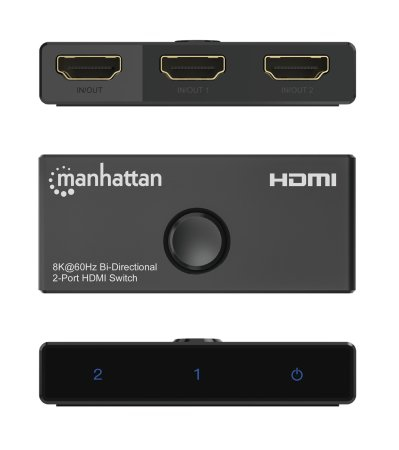

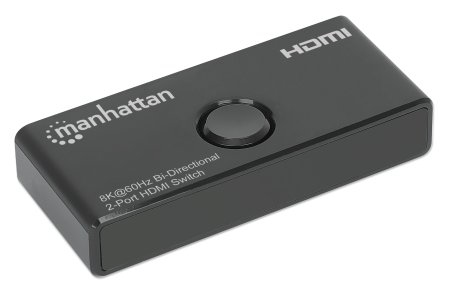

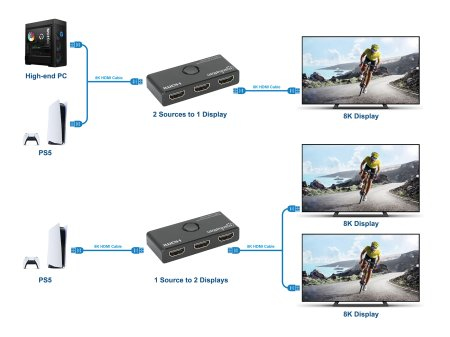

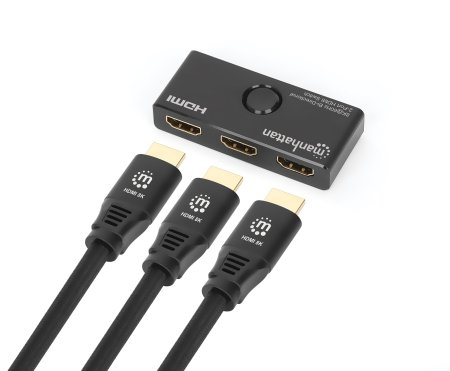

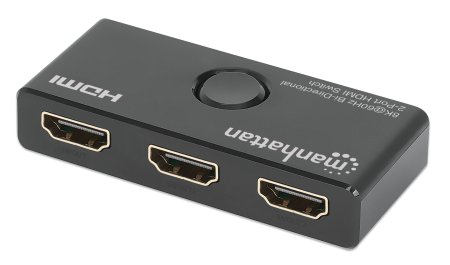

HDMI Switch 2-Port, 8K@60Hz, Bi-Directional, Black, Displays output from x1 HDMI source to x2 HD displays (same output to both displays) or Connects x
Model 207997EAN 766623207997
22 specifications
- Weight28 g
- Video port typeHDMI
- Bandwidth1200 MHz
- Power consumption (max)5 W
- Width32 mm
- Operating temperature (T-T)0 - 70 °C
Overview
- Weight
- 28 g
- Video port type
- HDMI
- Bandwidth
- 1200 MHz
- Power consumption (max)
- 5 W
- Width
- 32 mm
- Operating temperature (T-T)
- 0 - 70 °C
- Brand
- Manhattan
- Category
- Video Switch
- Model
- 207997
- Part number
- 207997
- EAN / UPC
- 766623207997
- Also known as
- Manhattan HDMI Switch 2-Port, 8K@60Hz, Bi-Directional, Black, Displays output from x1 HDMI source to x2 HD displays (same output to both displays) or Connects x
Specifications
22 specifications in 8 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Video port type | HDMI |
| HDMI ports quantity | 3 |
| HDMI version | 2.1 |
Features
| Specification | Value |
|---|---|
| Material | Acrylonitrile butadiene styrene (ABS) |
| Bandwidth | 1200 MHz |
| Bandwidth | 48 Gbit/s |
| HDCP | Yes |
| HDCP version | 2.3 |
| Maximum resolution | 7680 x 4320 pixels |
| Supported video modes | 480p, 576i, 720p, 1080i, 1080p, 1440p |
Power
| Specification | Value |
|---|---|
| Power consumption (max) | 5 W |
Certificates
| Specification | Value |
|---|---|
| Certification | CE FCC RoHS REACH UKCA |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 32 mm |
| Depth | 74 mm |
| Height | 15 mm |
| Weight | 28 g |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 48 g |
Packaging content
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
| Manual | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -20 - 80 °C |
| Operating relative humidity (H-H) | 5 - 90% |
