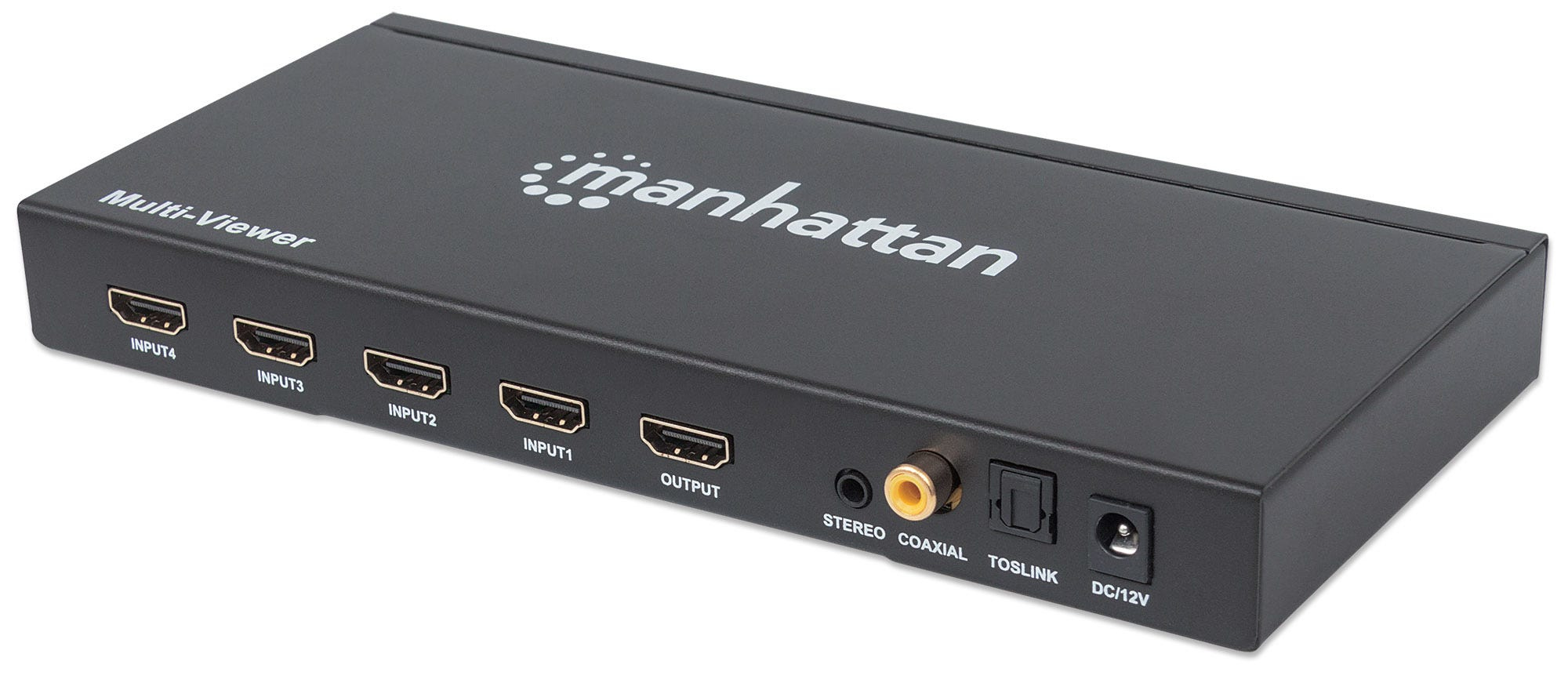

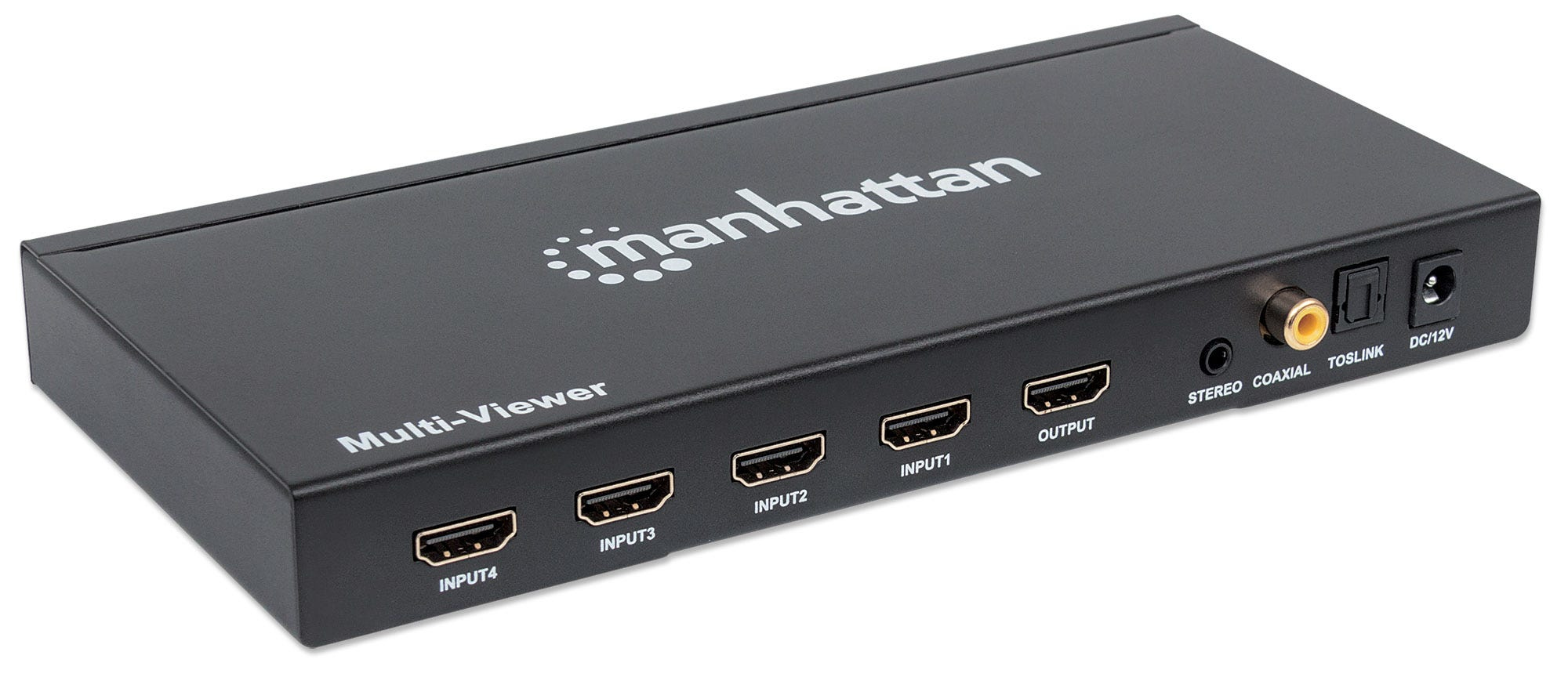

1080p 4-Port HDMI Multiviewer Switch, Switch with Four Inputs on One Display, Video Bandwidth Amplifier, Remote Control, Black, Three Year Warranty
Model 207881EAN 766623207881
35 specifications
- Weight460 g
- ColourBlack
- Video port typeHDMI
- MaterialMetal
- Width100 mm
- Operating temperature (T-T)0 - 40 °C
Overview
- Weight
- 460 g
- Colour
- Black
- Video port type
- HDMI
- Material
- Metal
- Width
- 100 mm
- Operating temperature (T-T)
- 0 - 40 °C
- Brand
- Manhattan
- Category
- Video Switch
- Model
- 207881
- Part number
- 207881
- EAN / UPC
- 766623207881
- Also known as
- Manhattan 1080p 4-Port HDMI Multiviewer Switch, Switch with Four Inputs on One Display, Video Bandwidth Amplifier, Remote Control, Black, Three Year Warranty
Specifications
35 specifications in 6 groups

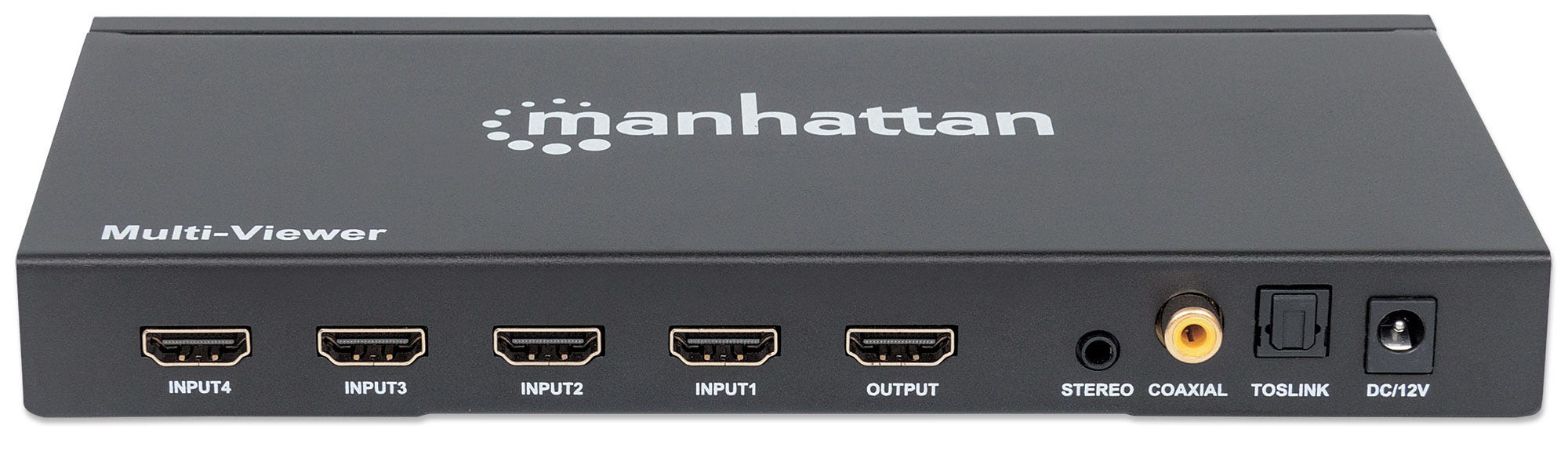

Ports & interfaces
| Specification | Value |
|---|---|
| Video port type | HDMI |
| HDMI ports quantity | 5 |
| HDMI version | 1.3 |
| HDMI in | 4 |
| Number of HDMI outputs | 1 |
| Digital audio coaxial out | 1 |
| S/PDIF out port | Yes |
| 3.5 mm (1/8-inch) out | Yes |
| DC-in jack | Yes |
Features
| Specification | Value |
|---|---|
| Material | Metal |
| Product colour | Black |
| 3D | Yes |
| Audio decoders | DTS-HD Master Audio, Dolby TrueHD |
| Audio formats supported | LPCM |
| Bandwidth | 2.25 Gbit/s |
| Bandwidth | 225 MHz |
| Cable length | 0.9 m |
| Connector contacts plating | Gold |
| Display Data Channel (DDC) input | 5 V |
| HD type | Full HD |
| HDCP | Yes |

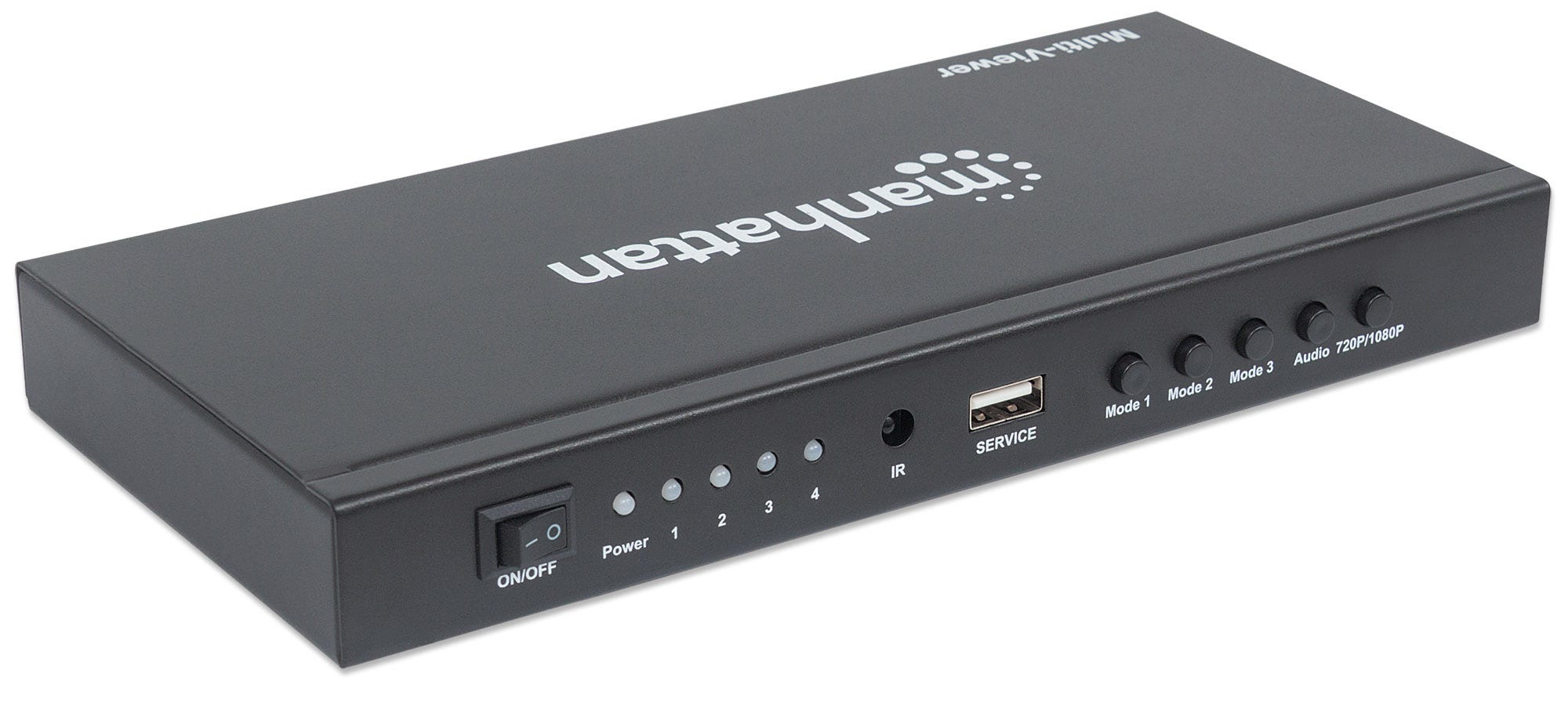

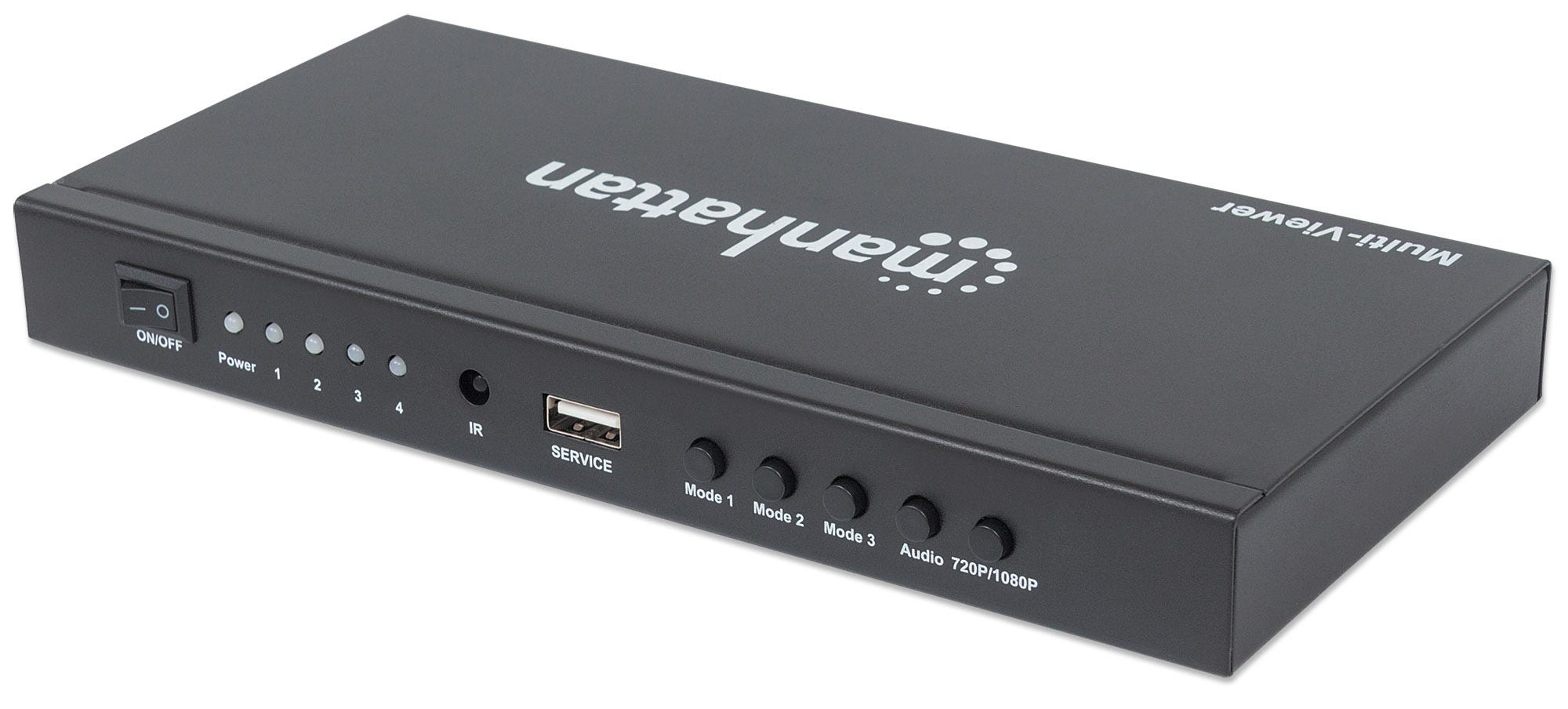

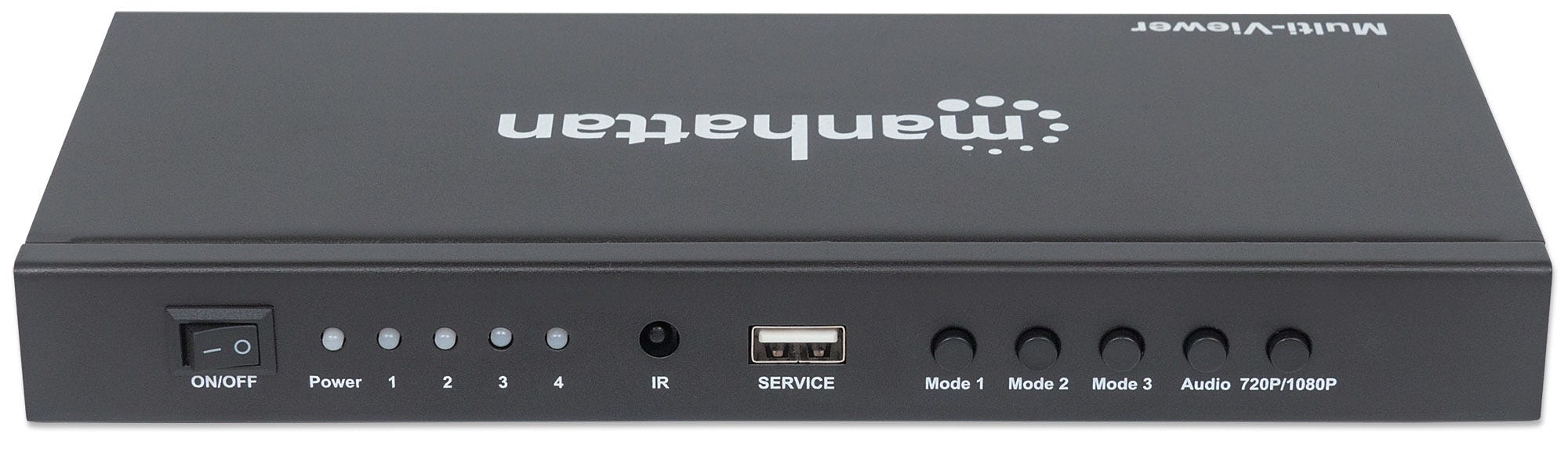

| LED indicators | Activity, Power |
| Plug and Play | Yes |
| Supported video modes | 480i, 480p, 576i, 576p, 720p, 1080i, 1080p |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 100 mm |
| Depth | 213 mm |
| Height | 25 mm |
| Weight | 460 g |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Quick start guide | Yes |

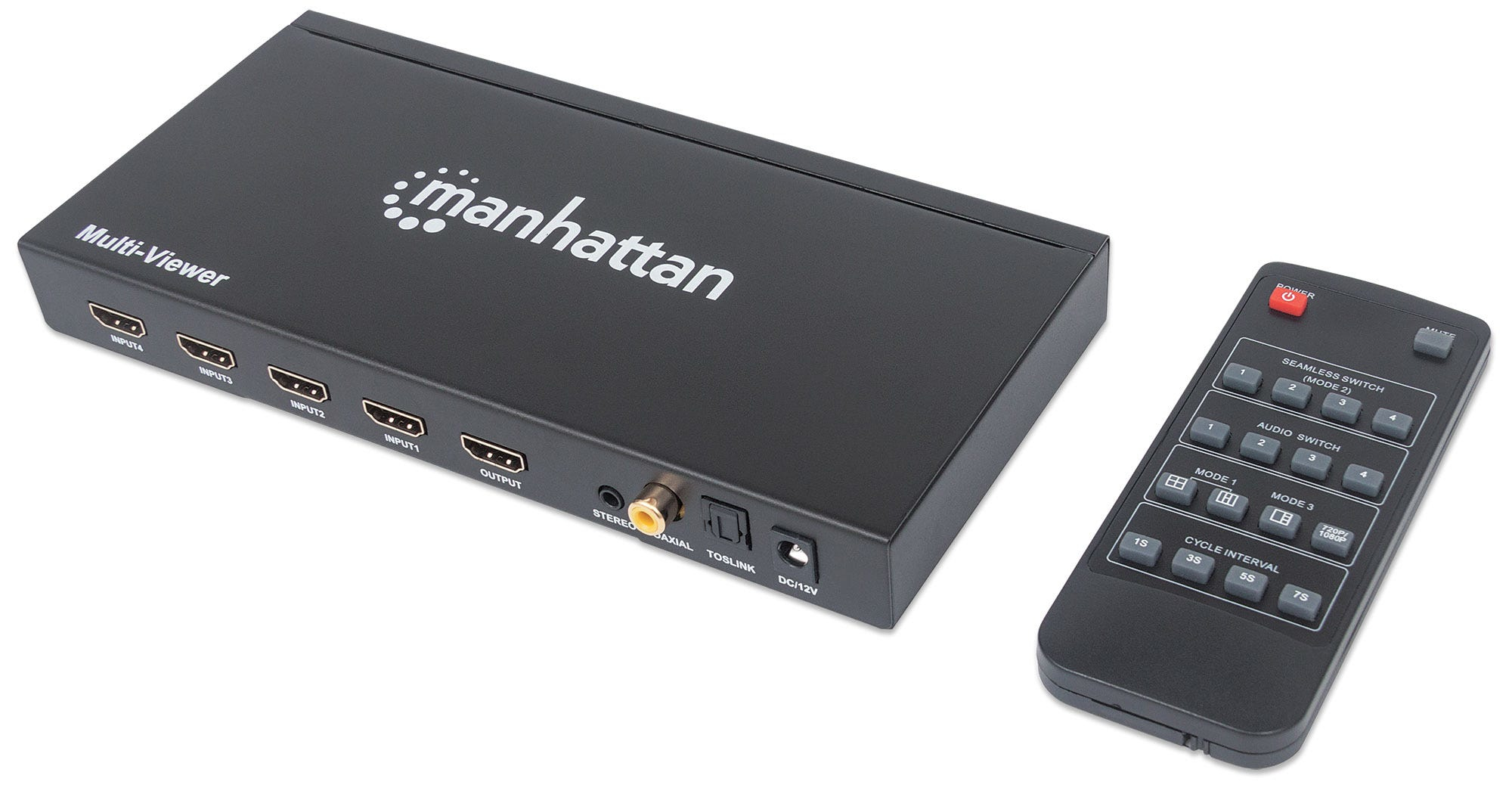

| Remote control included | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 96% |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85176990 |
