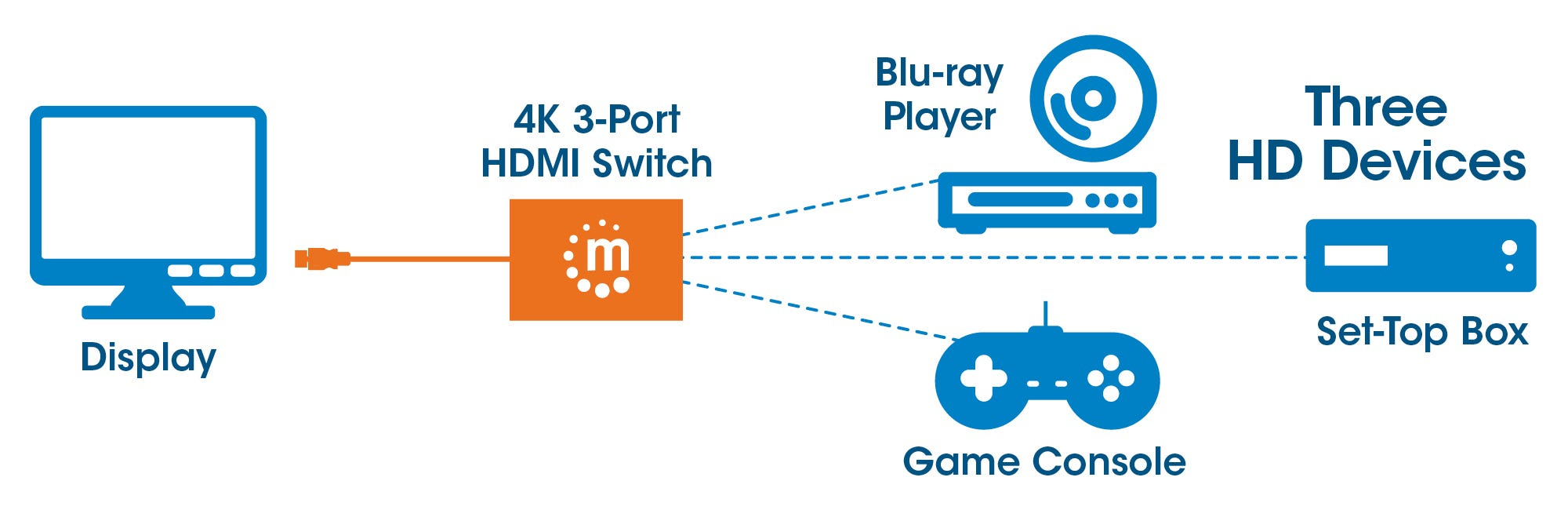

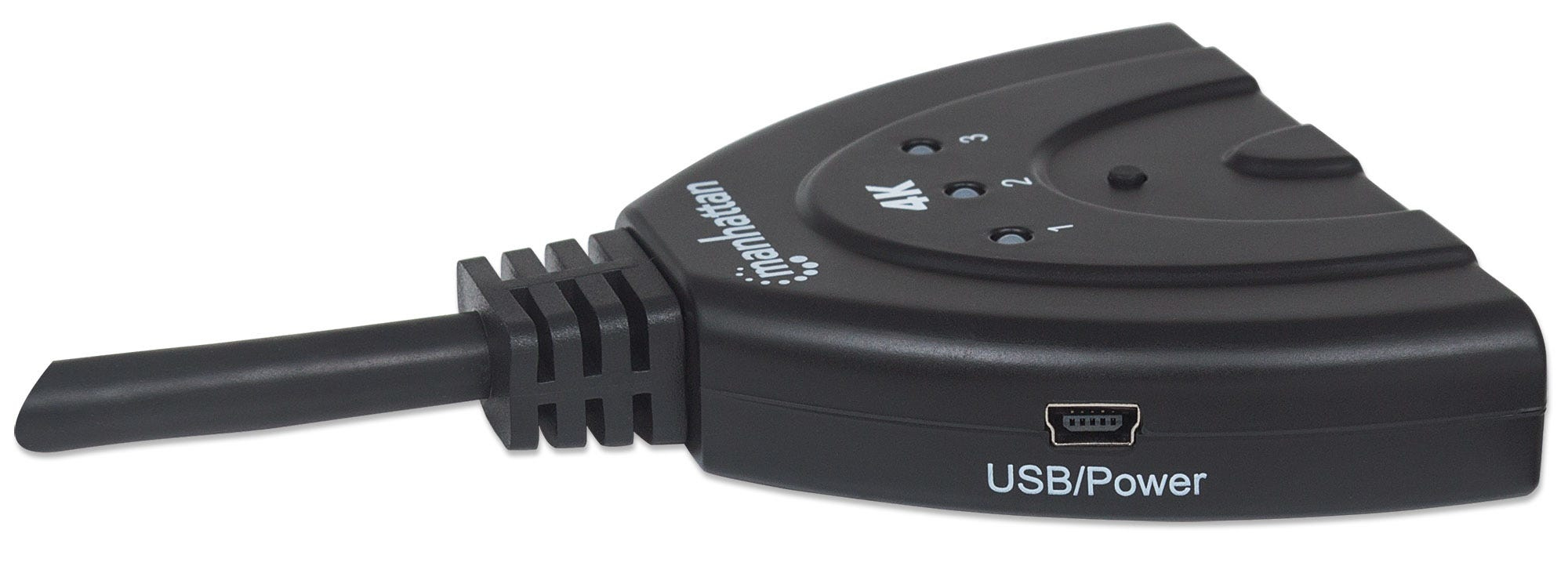

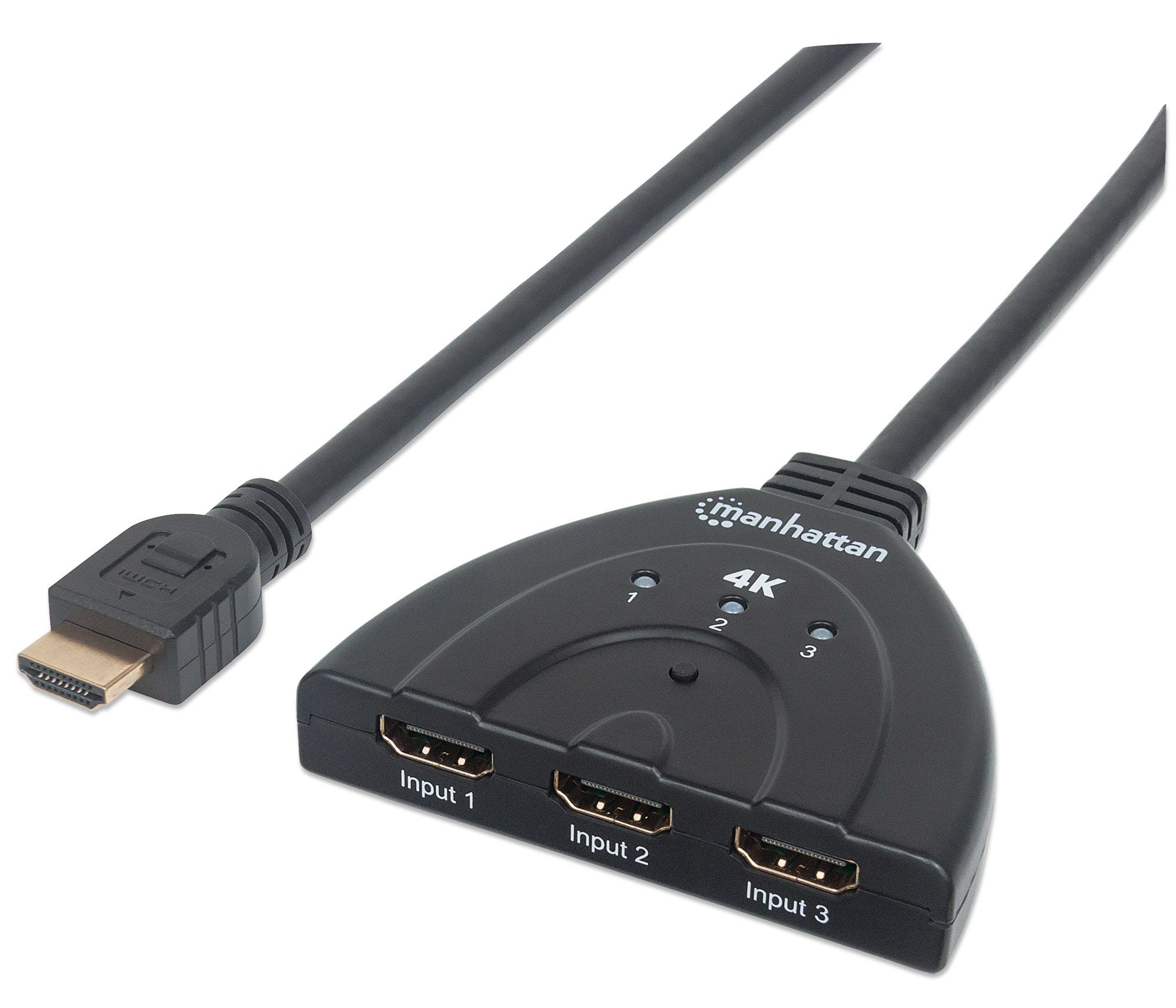

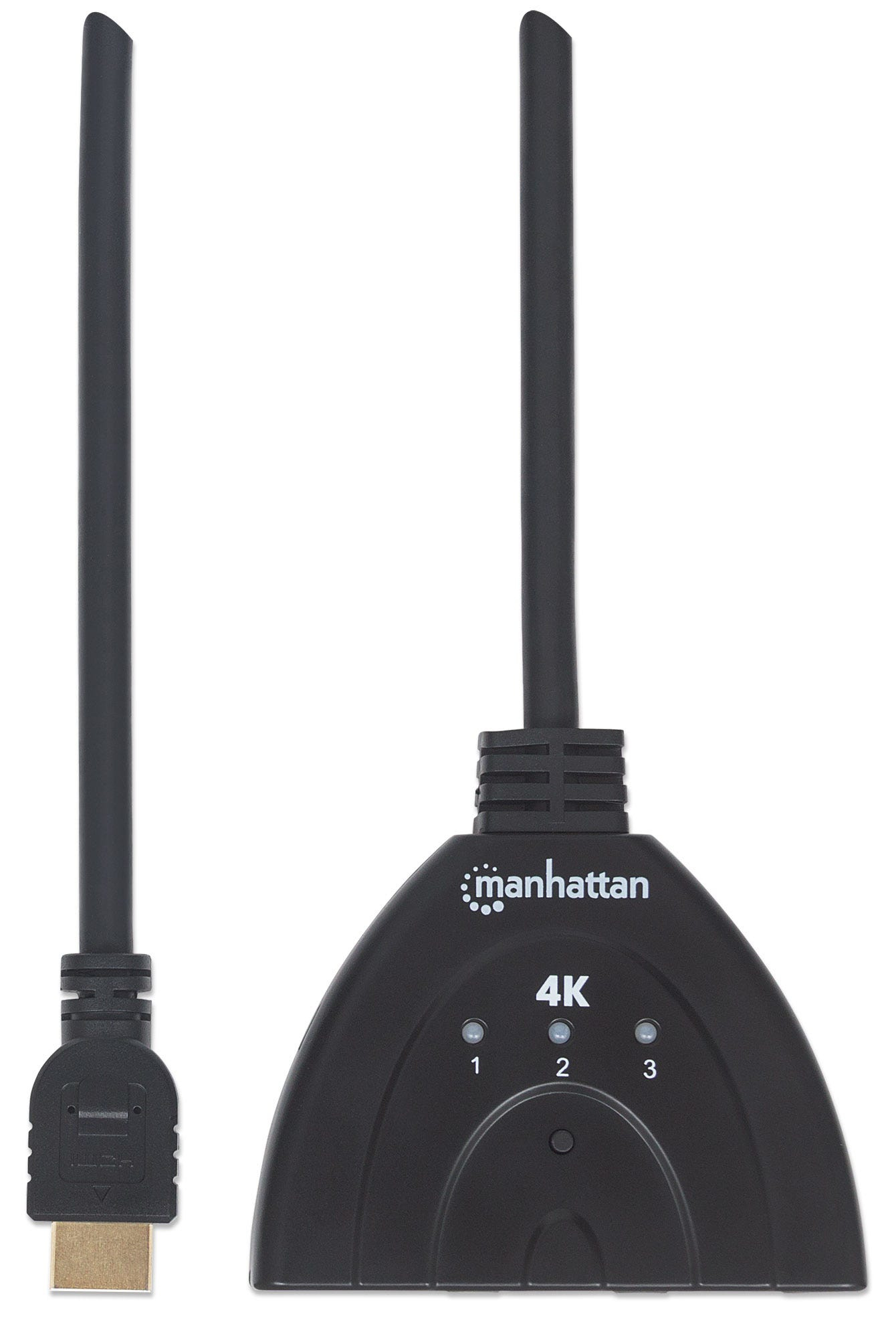

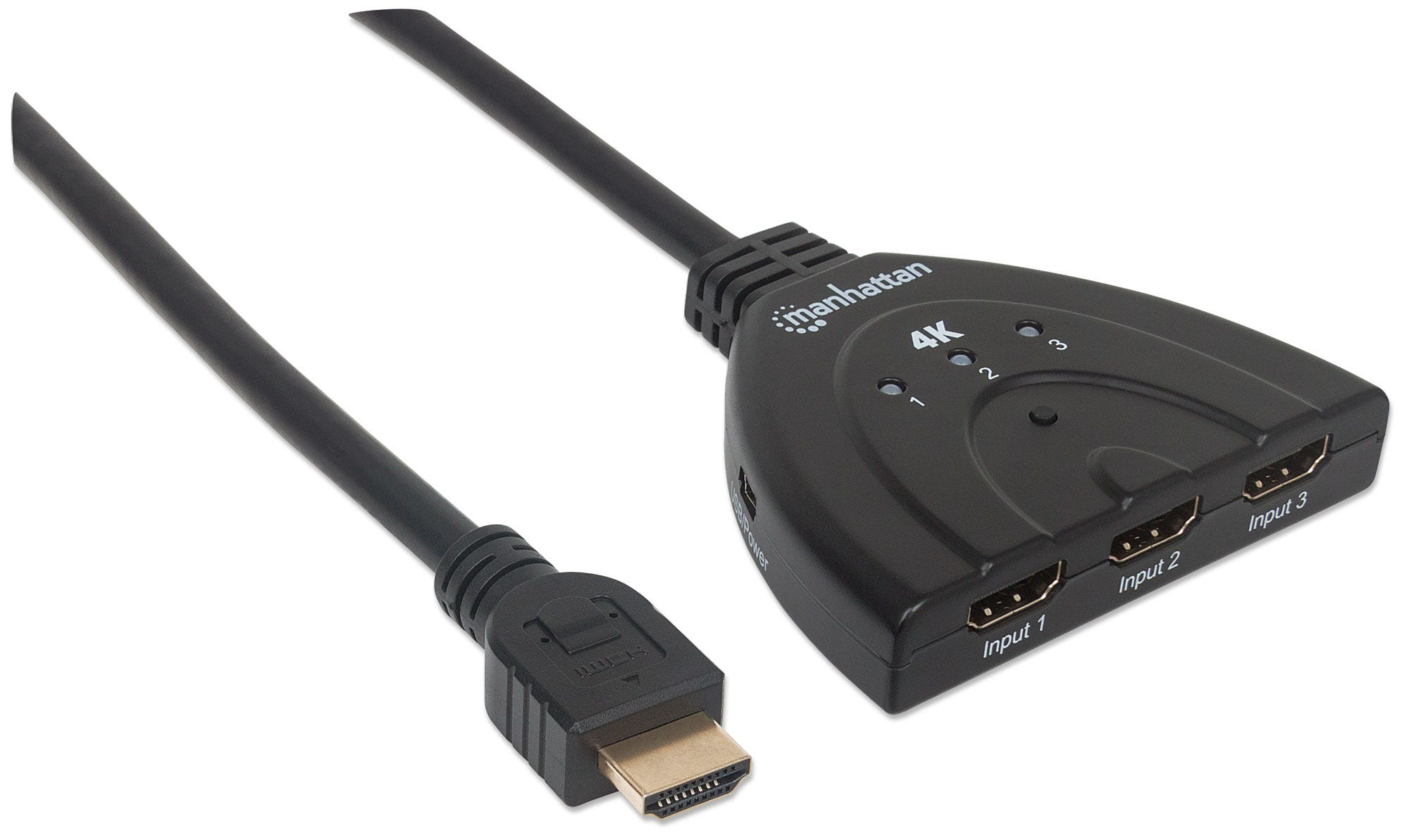

HDMI Switch 3-Port, 4K@60Hz, Connects x3 HDMI sources to x1 display, Manual Switching (via button), Integrated Cable (58cm), No external power require
Model 207874EAN 766623207874
33 specifications
- Weight90 g
- ColourBlack
- Video port typeHDMI
- MaterialPlastic
- Power consumption (typical)2 W
- Width61 mm
Overview
- Weight
- 90 g
- Colour
- Black
- Video port type
- HDMI
- Material
- Plastic
- Power consumption (typical)
- 2 W
- Width
- 61 mm
- Brand
- Manhattan
- Category
- Video Switch
- Model
- 207874
- Part number
- 207874
- EAN / UPC
- 766623207874
- Also known as
- Manhattan HDMI Switch 3-Port, 4K@60Hz, Connects x3 HDMI sources to x1 display, Manual Switching (via button), Integrated Cable (58cm), No external power require
Specifications
33 specifications in 9 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Video port type | HDMI |
| HDMI ports quantity | 3 |
| HDMI version | 2.0 |
| HDMI in | 3 |
| Number of HDMI outputs | 1 |
Features
| Specification | Value |
|---|---|
| Material | Plastic |
| Product colour | Black |
| Audio decoders | DTS-HD Master Audio, Dolby TrueHD |
| Audio output channels | 7.1 channels |
| Bandwidth | 18 Gbit/s |
| Cable length | 0.58 m |
| Connector contacts plating | Gold |
| HD type | 4K Ultra HD |
| HDCP | Yes |
| LED indicators | Yes |
| Maximum operating distance | 10 m |
| Maximum refresh rate | 60 Hz |
| Maximum resolution | 4096 x 2160 pixels |
| Plug and Play | Yes |
| Supported video modes | 480i, 480p, 576i, 576p, 720p, 1080i, 1080p |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 2 W |
Certificates
| Specification | Value |
|---|---|
| Certification | CE, FCC |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 61 mm |
| Depth | 82 mm |
| Height | 15 mm |
| Weight | 90 g |
Packaging content
| Specification | Value |
|---|---|
| Cables included | USB |
| Quick start guide | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 96% |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85176990 |
